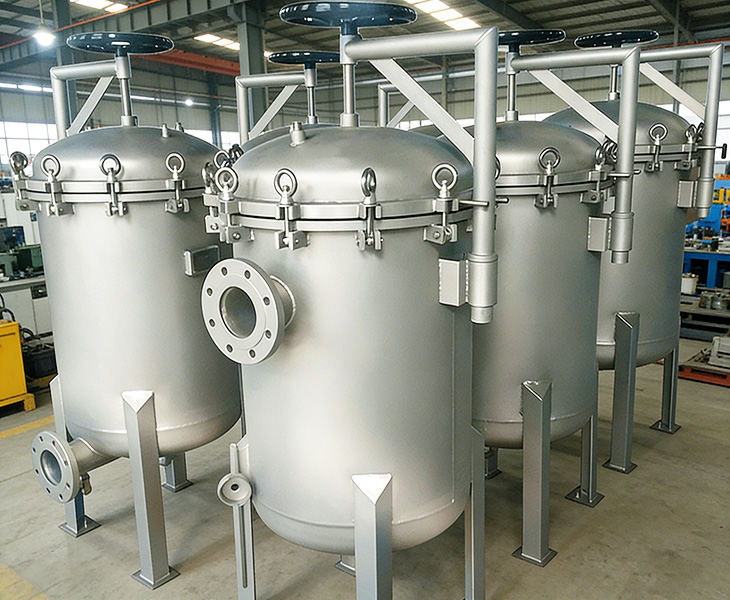

What is Liquid Filter Housing?
In industrial fluid systems, the liquid filter housing is the centerpiece of the entire filtration system. As a leading China liquid filter housing manufacturer, FiltEdge specializes in high-performance liquid process filter housings. Not only is it the pressure vessel that carries the filter elements (bags or cartridges), but it is also the critical node that ensures consistent flow and media purity in your production line.
FiltEdge’s liquid filter housings support your process in three dimensions:
Protecting your downstream assets: Providing efficient physical interception from 0.1μm to 2000μm, FiltEdge’s filter housings provide the last line of defense for expensive equipment such as high-pressure pumps, heat exchangers, precision nozzles, etc., minimizing the risk of wear and clogging.
Balancing system efficiency and flow: Precise internal flow path design effectively controls pressure drop, ensuring filtration accuracy while reducing pumping power consumption and maintaining long-lasting system balance.
Adapt to your complex working conditions: Support SS304/316L, carbon steel and other metal materials, and can provide PP/PVDF all-plastic corrosion-resistant solutions. With Viton, EPDM and other high-performance seals, it ensures 100% chemical compatibility in high temperature, strong acid and alkali environments, and completely eliminates the potential risk of media leakage.
Smart Automated Liquid Filter Housing Solutions
FiltEdge automated Liquid filter housings are designed for “zero downtime”. By integrating advanced sensor monitoring and self-cleaning technology, we help you eliminate the need for frequent downtime for maintenance, reducing labor costs while keeping your production line running 24/7.

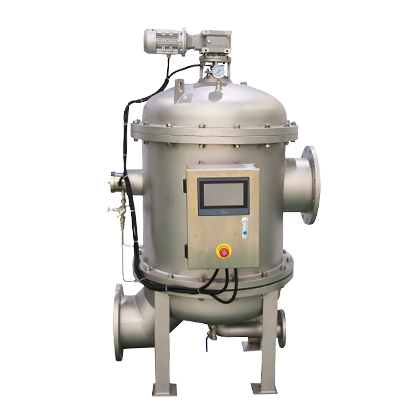

Automatic Backwash FilterIt is specifically designed for large scale industrial water recycling with virtually no consumables and zero maintenance costs.

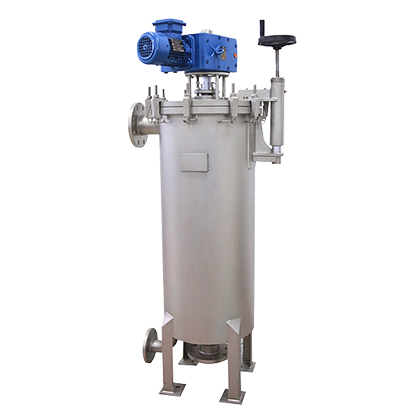

Scraper FilterIt is specially designed for paints, resins, chocolate and other high-viscosity fluids, and strongly removes stubborn sticky impurities.

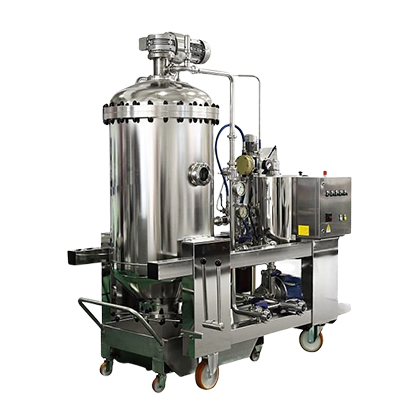

Candle FilterFully enclosed static operation, designed for high-value cake recovery and strong corrosive media, realizing zero pollution discharge.
Industrial Grade Manual Liquid Filter Housing Filtration
Precision engineered industrial grade liquid bag filter housings are the most reliable choice when your process requires the ultimate in media purity, or when large amounts of contaminants need to be handled.

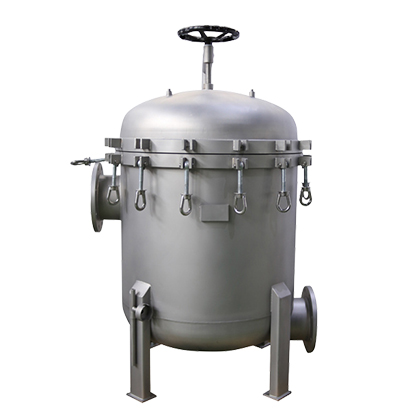

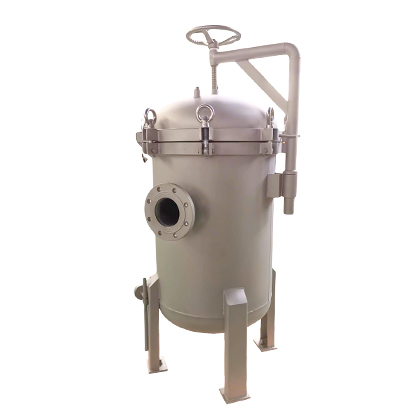

Multi-Bag Liquid Filter HousingScalable configurations from 2 to 32 bags are available for various high flow industrial applications; significantly extending media replacement intervals and making them an economical reliable choice for high contaminant loads.

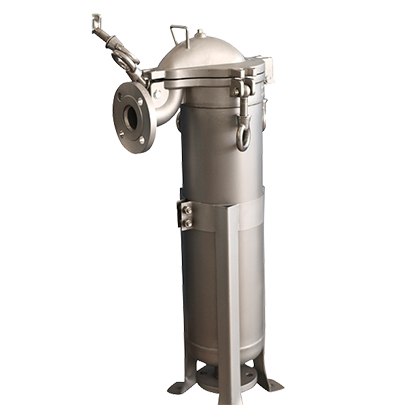

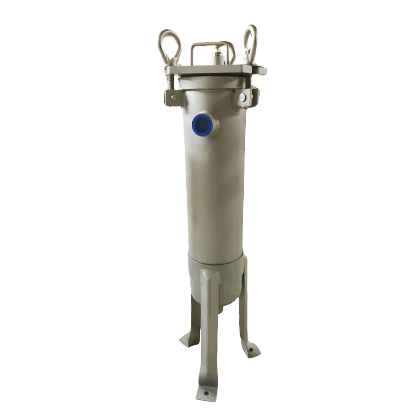

Single-bag Liquid Filter HousingIt adapts to complex on-site pipelines, and provides various interface layouts, such as top inlet/side inlet, bottom outlet/side outlet; with compact structure and convenient replacement, it is the most flexible filtration node for small and medium flow conditions.

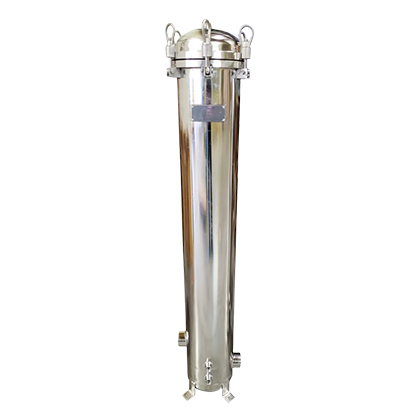

Industrial Cartridge Liquid FilterIndustrial liquid cartridge filter housing realizes submicron clarification from 0.1μm to 1μm; as the final guarantee for high purity process, it effectively protects the expensive downstream terminal membranes and precision components.
Liquid Filter Housing for Tough Conditions
Whether it is strong acid and alkali wastewater, high salinity seawater or extreme high temperature and high pressure, we ensure the chemical compatibility and structural integrity of the equipment through precise material matching (from special alloy to all-plastic material), so as to eliminate any leakage potential for you.

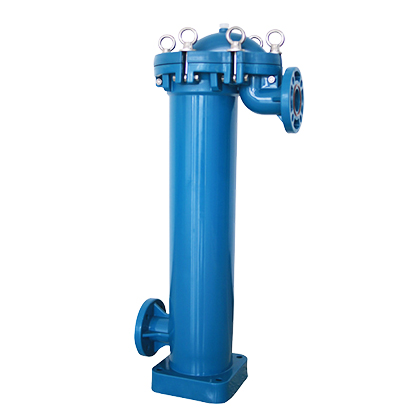

Strongly Corrosive Liquid Filter HousingIt is made of PP, PVDF full plastic or lined with fluoroplastic, specially designed for strong acids, alkalis and metal-sensitive chemicals, providing 100% chemical compatibility and completely eliminating metal ion pollution caused by corrosion.

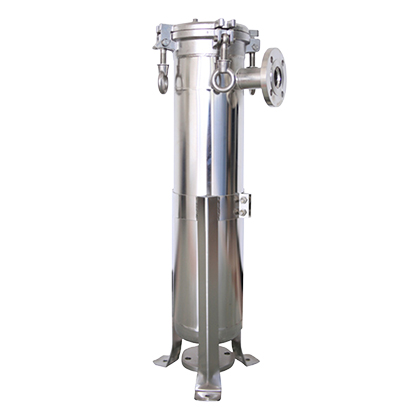

Desalination Liquid Filter HousingIt is made of high‑grade SS316L and titanium, with excellent resistance to pore corrosion and chlorine ions, which ensures that the structure of the equipment is still intact and reliable under long-term high salinity environment.

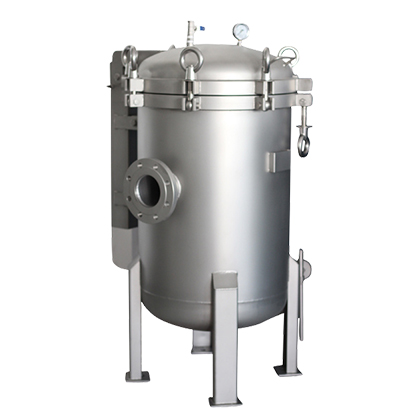

High-Pressure Liquid FilterIt can withstand a maximum working pressure of 6MPa – 25MPa; together with the reinforced sealing structure, it ensures no deformation and no leakage under high-pressure pulse cycle conditions.

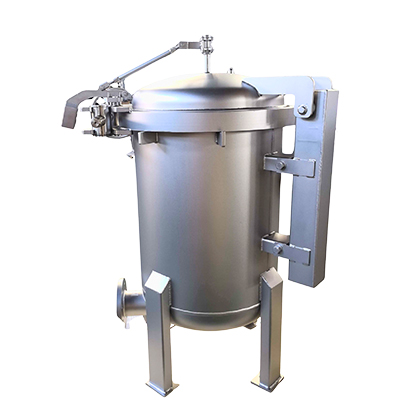

High-Temperature Liquid FilterIt is equipped with high-temperature metal filter elements and special Viton seals, which can operate long-term under extreme environments over 200°C. It is suitable for filtration of heat-conducting oils, high-temperature resins and steam.
Liquid Filter Housing Zero Leakage Design

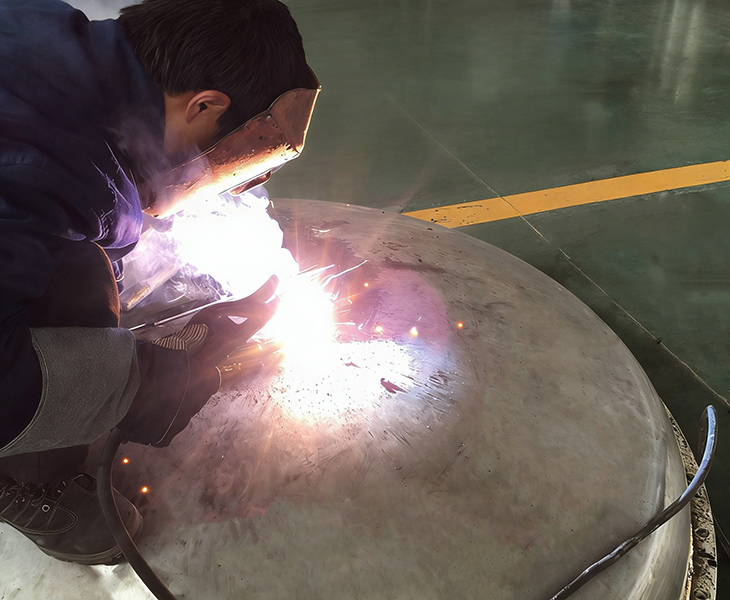

FiltEdge use ASME high standard automated pulse welding process to ensure that each weld is strictly polished and non-destructive testing. This eliminates the risk of fatigue cracking under long-term high-pressure operation and ensures that your system is always as solid as before.
Precision machining of the sealing positions, combined with our unique three-point compression structure and patented double-step design, ensures a 100% physical fit between your filter bag or cartridge and the Liquid Filter Housing. By completely eliminating media bypass, your water quality remains consistent.

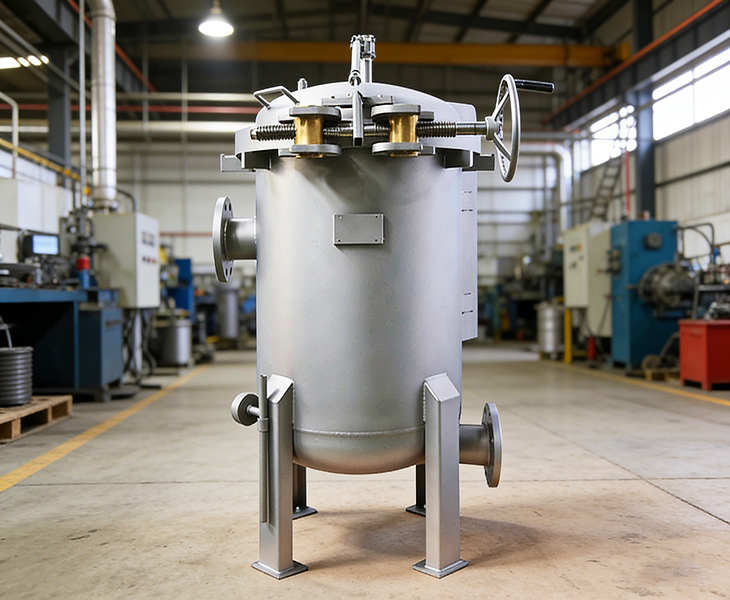

High Efficiency Liquid Filter Housing
FiltEdge Liquid Filter housings feature a Quick-Opening top cover and a self-balancing support mechanism that allows a single person to change filter media in minutes, reducing your downtime costs.
The modular interface design allows the inlet and outlet directions to be adjusted according to the piping on site, which greatly reduces installation difficulties and allows the equipment to be quickly integrated into your existing process layout.

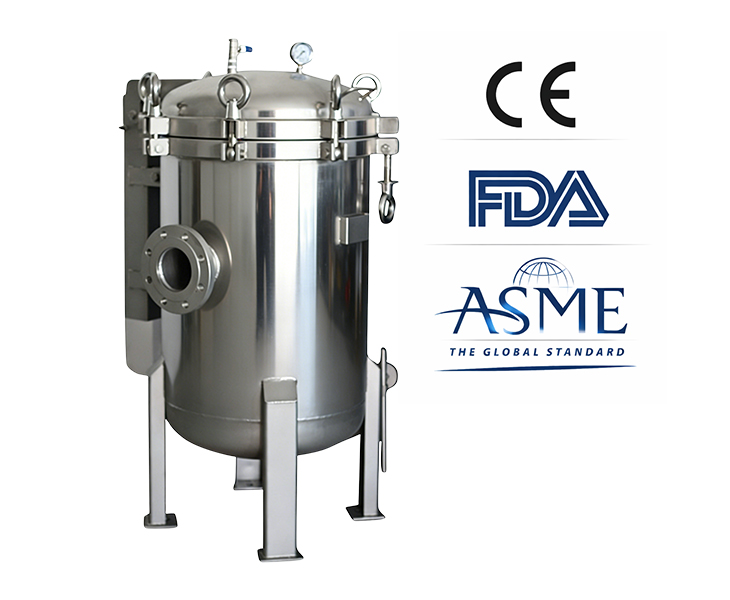

Liquid Filter Housing Compliance
Every one of your housings is made from genuine materials. We provide you with a complete Material Testimonial to ensure that the Liquid Filter Housing has excellent chemical stability in strong acidic or highly chlorinated environments, eliminating the potential for corrosion in your system at the source.
The interior of the housing is deeply electropolished (Ra < 0.4 μm) and has a mirror-like surface. This prevents contaminants from hanging on the walls and bacterial growth, and meets liquid sanitary filter housing requirements for the highest levels of cleanliness, from the chemical to the fine industries.

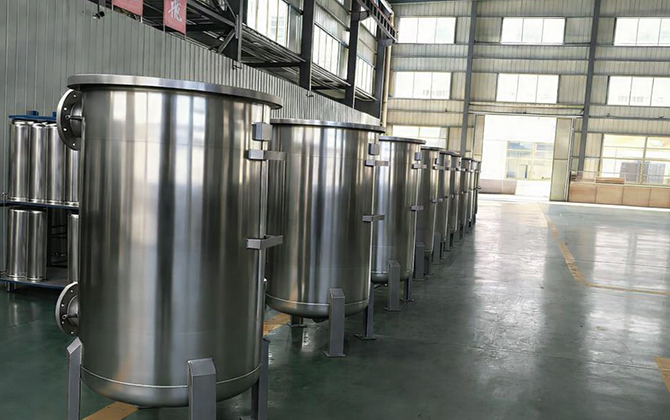

Why Choose FiltEdge’s Liquid Filter Housing?

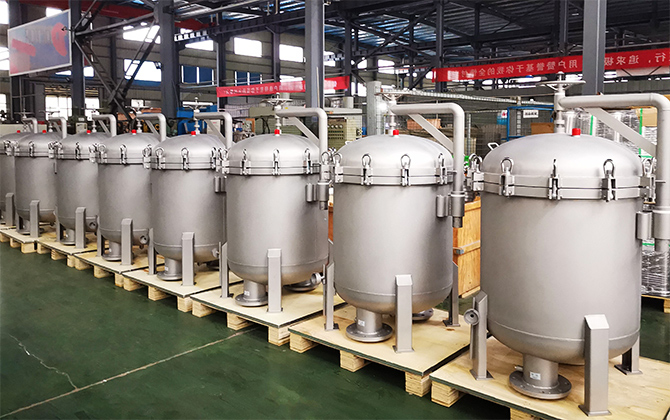

FiltEdge has 20 years of experience in fluid filtration research and development, and in our 3600 square meters of modern factory, we have completed the whole process from precision manufacturing to quality control. As a leading liquid filter housing manufacturer, we are not like ordinary traders; we rely on our own R&D team to provide you with a fast 7-day non-standard customization service. This allows us to precisely design solutions for your special piping layout or complex working conditions. With rich experience in serving customers in more than 100 countries and the advantage of two overseas warehouses in China and the U.S., we significantly shorten the parts replenishment cycle, ensuring that your production system always runs efficiently and does not stop due to a shortage of spare parts.
We not only provide you with high-specification hardware that meets ISO, CE, and FDA standards, but as a reliable liquid filter housing supplier, we also offer in-depth technical support covering the entire lifecycle. At the selection stage, we ensure the scientificity of the solution through professional sample testing and working condition analysis. After delivery, FiltEdge’s support is not only limited to remote guidance, but we also have the global dispatch capability to provide on-site installation, debugging, and staff training overseas, and even dispatch technicians to provide permanent guidance.
From the professional participation in more than 30 international exhibitions to the on-site service of each project site, what we deliver is not only liquid filter housings, but also the certainty of long-term stability for your production line. No matter how complicated the working conditions are, FiltEdge is always your most reliable liquid filter housing factory and system solution partner.
Liquid Filter Housing Selection
The parameters are yours, but the experience is ours. With the data provided in the table below, we will perform multi-dimensional fluid dynamics calculations for you and customize a system solution that best meets the energy efficiency ratio, ensuring that you are not just shopping for a piece of hardware, but a stable node that is maintenance-free and highly efficient.
- Liquid Filter Housing Selection
| Parameters | Customer Requirements |
| 1.Flow Rate | Maximum flow rate (GPM/LPM), expected normal operating flow rate, and range of flow rate fluctuations. |
| 2. Temperature | Medium room temperature/maximum temperature/minimum temperature, whether instantaneous high temperature shock is involved. |
| 3.Pressure | Design pressure, working pressure, maximum allowable pressure drop, inlet and outlet connection pressure levels. |
| 4.Micron Rating | Required filtration accuracy (micron/μm), interception rate requirement (absolute or nominal accuracy). |
| 5. Materials | Housing material (SS316L, Duplex Steel, PP/PVDF, etc.), seal material (Viton, EPDM, etc.). |
| 6. Automation | Operating modes: Fully automatic self-cleaning (Scraper/Backwash), semi-automatic, or manual bag/cartridge change. |
| 7. Maintenance | The need for quick-opening lid design (Quick-opening), the need for easy disassembly structure, backwash frequency requirements. |
| 8. Environment | Are there requirements for corrosion protection (acid/alkali/salt spray), explosion-proof rating (Ex-proof), outdoor or indoor installation, and protective coating? |
| 9.Installation | Inlet/outlet orientation (side in/top out/bottom out/side out), vertical or horizontal, and whether or not you need to move the trolley support. |
| 10. Fluid Properties | (Supplemental) Media name, viscosity (cP), solids content, chemical compatibility requirements. |
Get A Customized Filtration Solution Today
Don’t let the wrong liquid filter housing selection become a production line hazard.
Fill in your parameters in just 3 minutes, and our application engineers will provide you with a free multi-dimensional selection report for your liquid filter housing within 24 hours.
