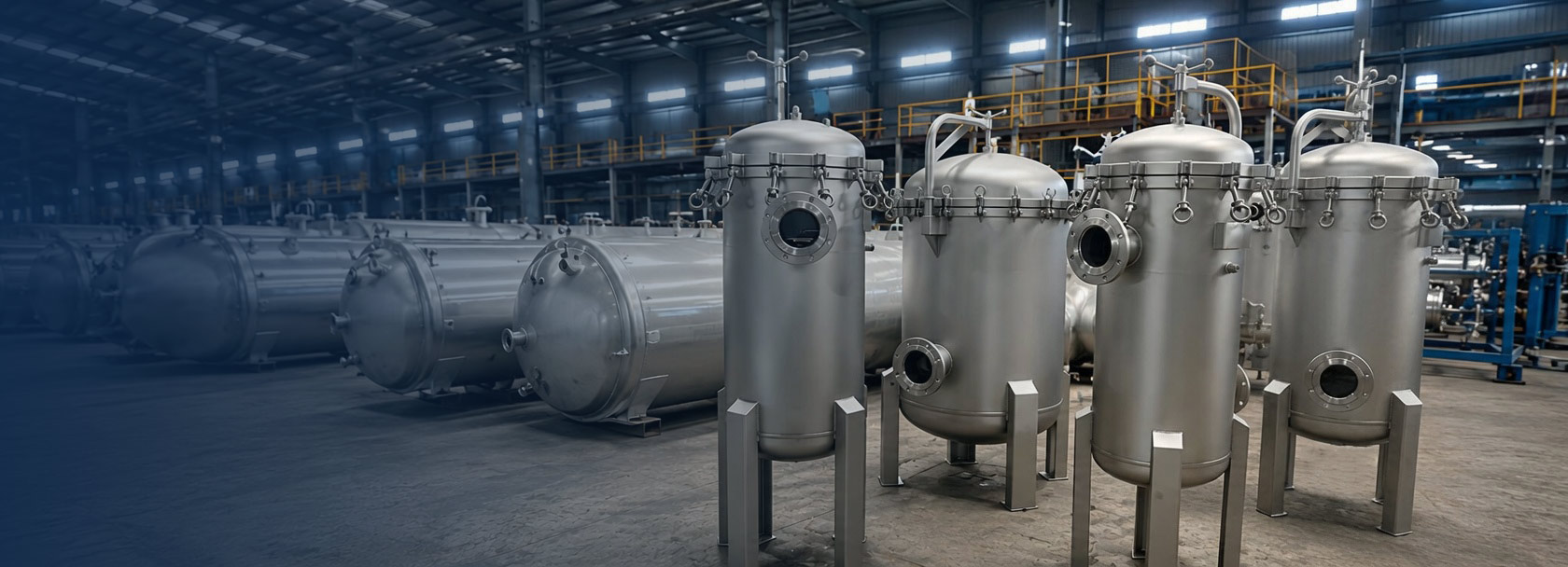

What Is FiltEdge's Industrial Cartridge Filter Housing?
Types of Industrial Cartridge Filter Housing

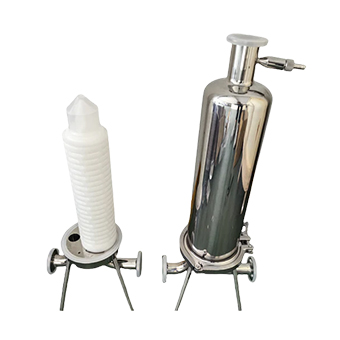

Available in 10“/20”/30“/40” lengths, mainly for laboratory and other small flow applications.

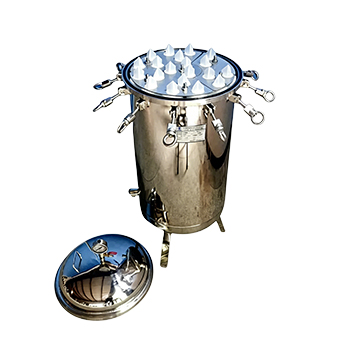

Available from 3round to 200+round, with an accuracy of 0.1μm, mainly used in industries that require high accuracy.

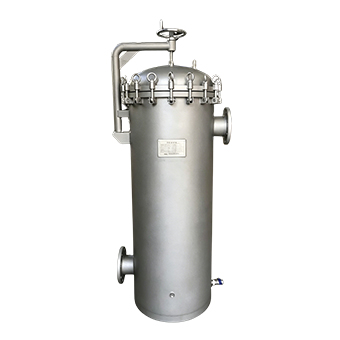

There are 6“, 6.5” diameter high flow cartridges, the flow rate of a single cartridge can be up to 50m³/h, which can save you the cost of cartridge replacement for high flow conditions.

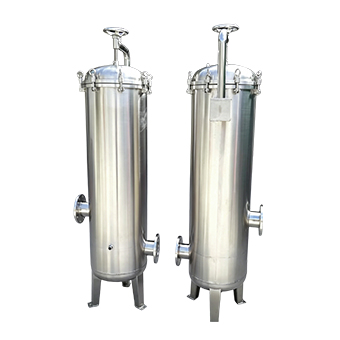

Available in SS304 and SS316, high pressure and corrosion resistant, suitable for food, pharmaceutical and other industries.

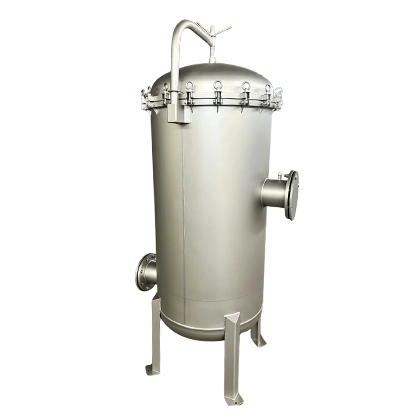

Carbon Steel Cartridge Filter HousingThe most economical filtration solution, suitable for less corrosive liquids, such as water treatment.

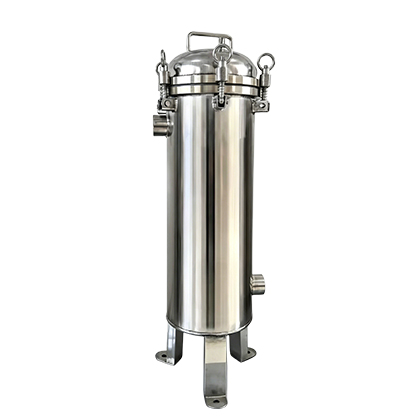

Sanitary Cartridge Filter HousingMirror polished Ra <0.8μm, no dead space design, not easy to breed bacteria, commonly used in pharmaceutical industry.

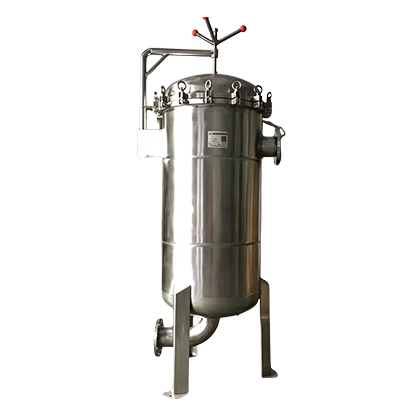

High Pressure Cartridge Filter HousingCustomized filters for pressures up to 2.5MPa are available.
Features of Industrial Cartridge Filter Housing
FiltEdge supplies you with high quality and efficient industrial cartridge filter housing through 22 filter patents, which reduces cost and increases efficiency for your production line.
Various opening and closing styles, such as clamp, rocker, boom, quick-open, etc., are available for different working conditions.
Compatible with mainstream cartridge interface: 222, 226, DOE.
Air venting valve and liquid drain valve ensure pressure relief and liquid release operation to ensure safety and purity.
Stainless steel, Hastelloy, internal coating/fluorine lining/gel lining, a variety of materials and processes to prevent corrosion and rust through.
Sandblasted, polished, pickled and passivated, both beautiful and hygienic.
EPDM, NBR, Viton, PTFE and other seals, suitable for different liquids.
Conventional pressure 0.6MPa-1.0MPa, can be customized 2.5MPa high pressure models.
Internal fluid optimization reduces the initial pressure drop and extends the service life of the cartridge.
Industrial Cartridge Filter Housing Zero Leakage

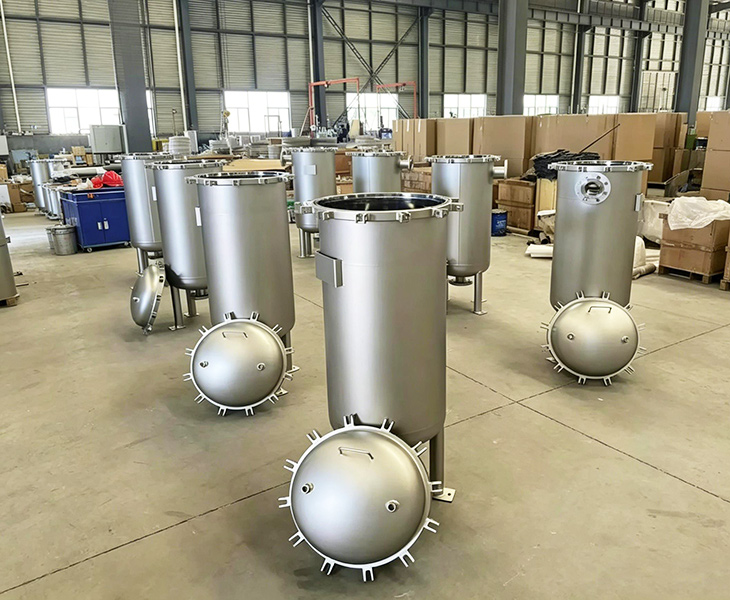

FiltEdge’s industrial cartridge filter housing is made of high quality materials such as stainless steel, Hastelloy, and seals that are customized to your operating conditions. It provides zero leakage even under high pressure and no downtime due to breakage. This ensures your safety, product yield and quality.
Industrial Cartridge Filter Housing Selection Service

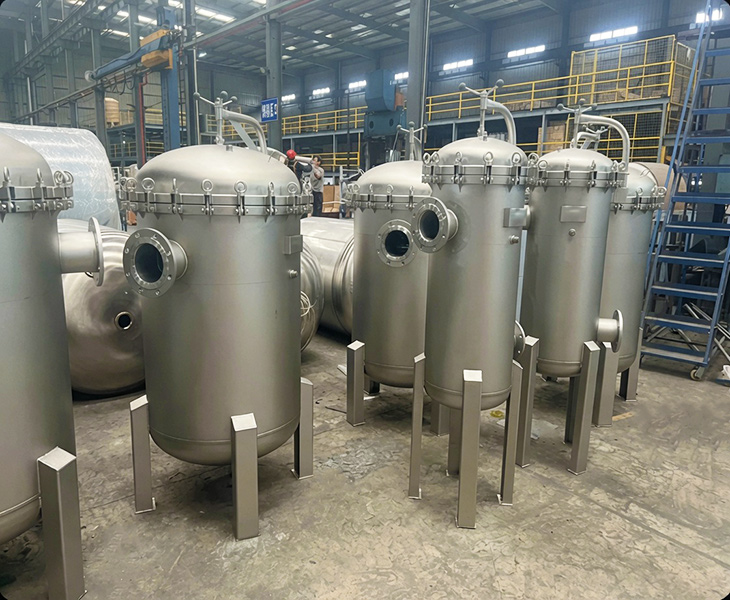

Selecting the wrong filter for your production line can cause immeasurable damage. FiltEdge can provide you with industrial cartridge filter housing selection service.
You only need to provide the flow rate, pressure, temperature, chemical properties of the liquid, our engineers will contact you with drawings and parameters within 24 hours.
Easy Maintenance Industrial Cartridge Filter Housing

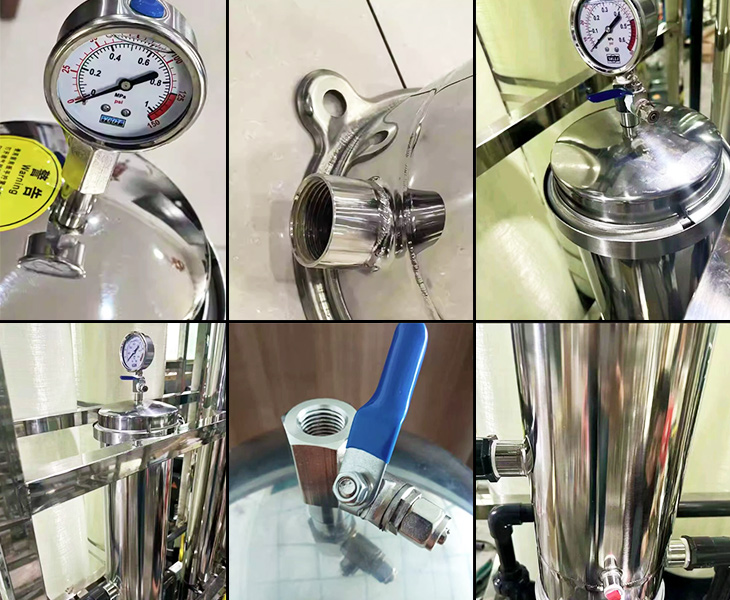

FiltEdge has a variety of opening and closing structures for the industrial cartridge filter housing, including the quick-opening structure that allows you to open the top cover in less than 3 minutes, which allows you to quickly change the cartridge and save downtime. Secondly, the interior of the filter housing is designed with no dead space and mirror polishing, which makes the interior easy to clean and less prone to bacterial growth, making it convenient for you to maintain the equipment.
Industrial Cartridge Filter Housing Compliance

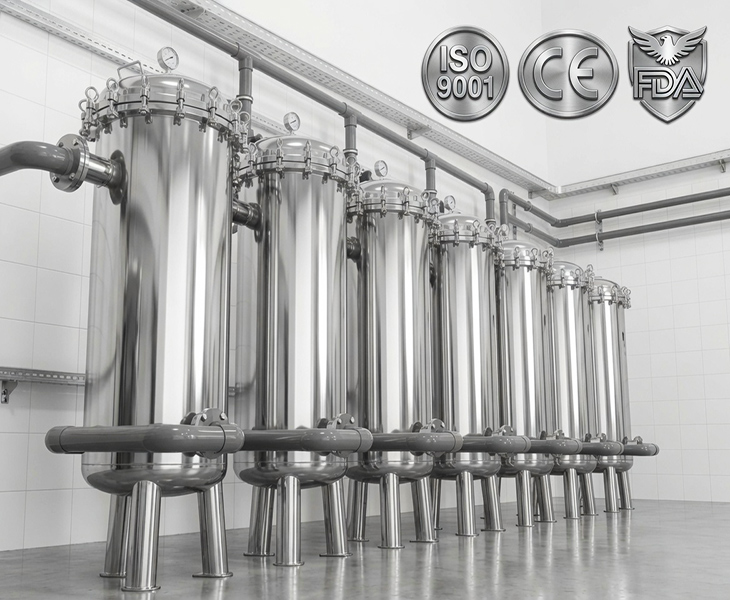

FiltEdge can provide you with ISO, CE, and FDA certificates, as well as material reports (MTR), weld inspection reports, pressure test reports, and a host of other compliance documents to help you quickly pass local regulations and industry requirements, and get started as soon as possible.

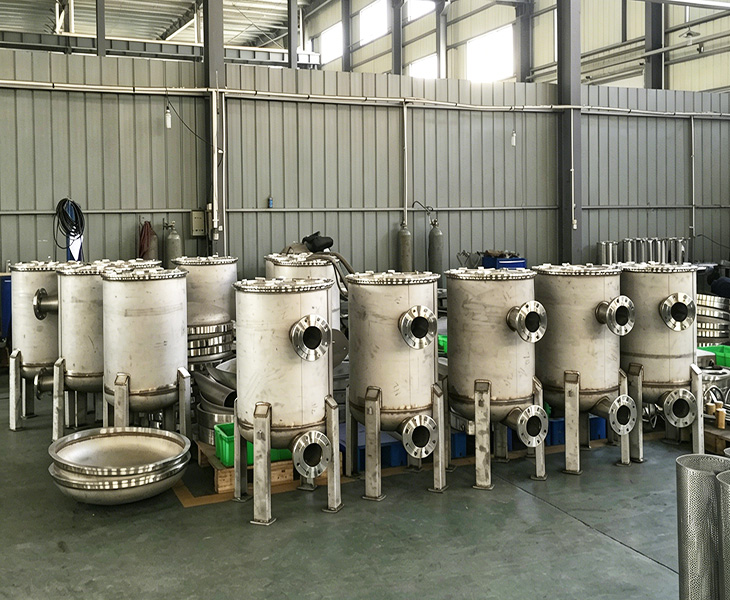

Customized Industrial Cartridge Filter Housing
Customized material, size, pressure, flow rate, inlet/outlet direction and linkage, etc., we can make a customized industrial cartridge filter housing which is more suitable for your production line, avoiding unexpected downtime and improving filtration quality. We can also customize your logo, packaging and other additional items for you to develop your brand market.

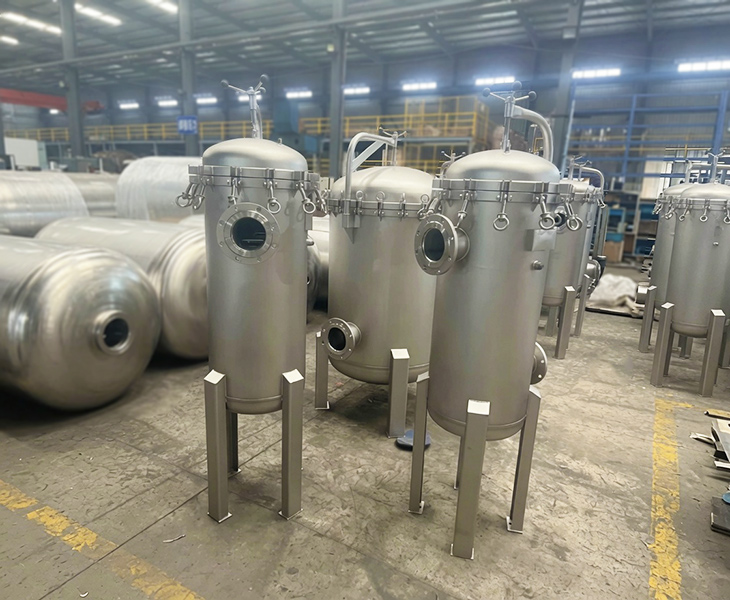

Quality Inspection of Industrial Cartridge Filter Housing
The raw materials of Industrial cartridge filter housing will be tested by PMI after entering the factory to provide you with 100% high quality materials; after the production is completed, we will conduct PT test on the housing, especially on the weld seams, as well as arrange the third-party testing organization to do UT test; finally, we will do a half-hour 1.5 times water pressure test on your filter to ensure the stable operation of the filter in your production line.
The filter runs stably in your production line.
Applications of Industrial Cartridge Filter Housing
FiltEdge’s industrial cartridge filter housing is corrosion and abrasion resistant and has a wide range of applications, which can be used for you in water treatment, desalination, food and beverage, pharmaceuticals, petrochemicals and paints.
Packaging for Industrial Cartridge Filter Housing

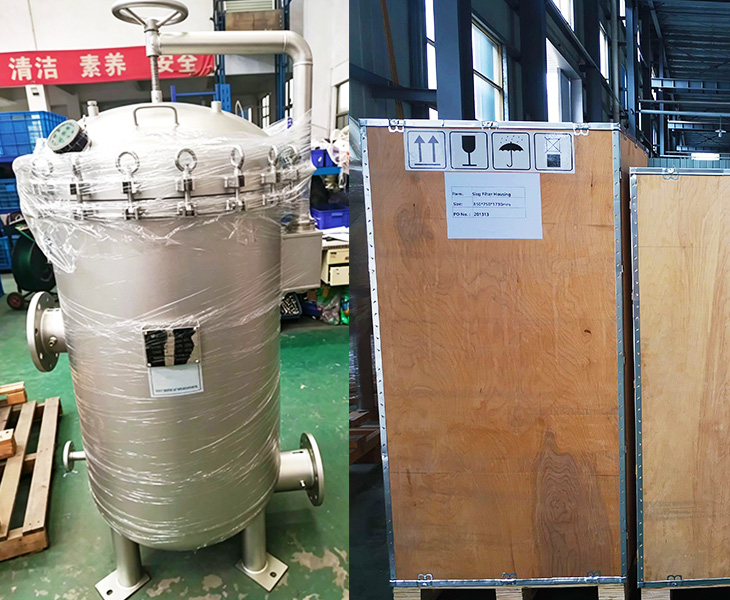

For small industrial cartridge filter housing, we use fumigation-free wooden box and foam to pack the filter tightly for you. For large industrial cartridge filter housing, we will install steel shelves inside the container to stabilize the filter and avoid shaking and collision. This ensures that you will receive your filters in good condition even after an ocean voyage.

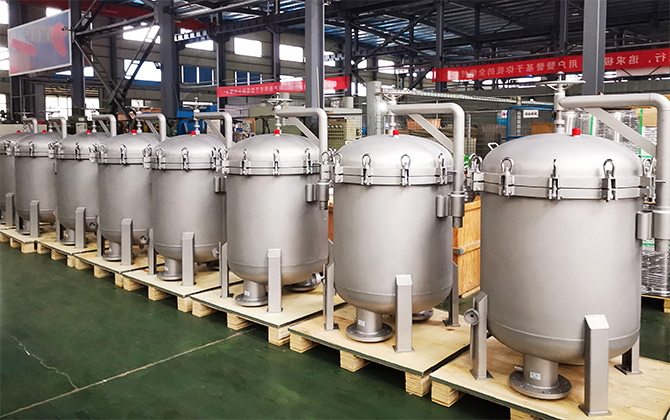

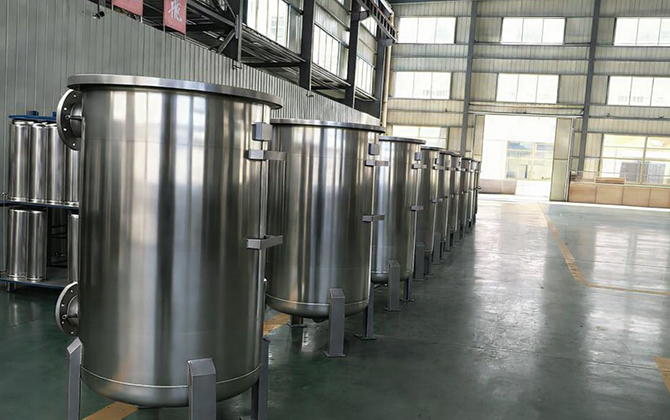

Why Choose Industrial Cartridge Filter Housing from FiltEdge?
We can provide you with working condition analysis, sample testing, industrial cartridge filter housing selection analysis, filter customization, drawings and compliance documents. For the most important after-sales issues, we provide you with 24-hour remote technical support, and can arrange technicians to install and repair the products. We can also assist you in arranging shipments, and multiple payments.
FiltEdge can provide you with conventional filters and accessories within 24 hours, and customized shipments within 7 days.
Technical Parameters Of Industrial Cartridge Filter Housing
- Technical Parameters Of Industrial Cartridge Filter Housing
| Design Parameter | Standard Industrial Grade | High-Spec / Extreme Custom Customization |
| Volumetric Flow Rate | • 6″ High Flow: 20 – 1,000 m³/h (90 – 4,400 GPM)
• 2.5″ Micro Filter: 5 – 400 m³/h (22 – 1,760 GPM) | • Mega-Scale Systems: Up to 1,800+ m³/h (8,000+ GPM) per single vessel (Horizontal 36-round layout) |
| Design Pressure Rating | • Class 1 (Standard): 0.6 MPa (100 PSI / 6 Bar)
• Class 2 (Heavy Duty): 1.0 MPa (150 PSI / 10 Bar) | • High-Pressure Series: Customized up to 1.6 MPa – 4.0 MPa+ (230 – 580+ PSI) with ASME U-Stamp |
| Operating Temperature Range | • Standard Water Application: 5°C – 80°C (41°F – 176°F)
(Equipped with standard EPDM seals) | • High-Temperature Process: Up to 150°C – 260°C (302°F – 500°F)
(Configured with Viton, FKM, or pure PTFE/Teflon gaskets) |
| Structural Metallurgy | • Stainless Steel 304 (SS304)
• Stainless Steel 316L (SS316L) | • Super Alloys & Linings: Super Duplex 2205/2507, Hastelloy C276, and Carbon Steel with PO/PE/Rubber/Epoxy Lining |
| Piping & Flange Connections | • ANSI / ASME B16.5 Class 150/300 flange
• EN 1092-1 / DIN PN10/PN16 flange
• Sanitary Tri-Clamp / NPT Threaded | • Custom Nozzles: From 2″ up to 14″ large-diameter connections. Inlet/Outlet layout customized (e.g., Side-In/Bottom-Out). |
| Internal Tube Sheet Tolerance | • CNC Laser Cut & Milled tube sheet.
• Pore size tolerance controlled within +/- 0.1 μm (Zero fluid bypass). | • Fully compatible with mainstream international cartridge brands (e.g., Pall style inside-out / 3M style outside-in). |
| Lid Closure Mechanism | • Quick-Opening Heavy-Duty Swing Bolts with eye nuts.
• V-Band Clamp (Only for low-flow single round). | • Mechanical Counter-Balanced Davit Arm (Lift Arm) standard for heavy lids. Open cover horizontally in 2 mins. |
| Quality Testing & Inspection | • Mandatory 1.5x Hydrostatic Pressure Leakage Test.
• Surface: Industrial sandblasting or pickling passivation. | • Non-Destructive Testing (RT/UT/PT)
• Sanitary Mirror Polishing (Ra < 0.4 μm). CE-PED / ISO / FDA compliance. |
V-Clamp Industrial Cartridge Filter Housing does not require any disassembling tools, and it is more efficient to change the cartridge, but it is suitable for low-pressure working condition.
Rocker bolt type is cumbersome to operate and has long downtime, but it is safer for high pressure working condition. In short, how to choose industrial cartridge filter housing, you need to consider according to the actual working conditions.
FiltEdge’s industrial cartridge filter housing has the following types of seals:
PTFE (PTFE Encapsulated): PTFE encapsulated, inert to almost all chemicals, suitable for extreme acid and alkali conditions.
Choosing the right seal for your fluid chemistry will eliminate leaks and keep you safe.
Our best stocked models are the standard stainless steel filter housings with single, 3, 5, 7 and 12 cartridges in standard pressure, which usually ship in 3-7 days.
For models that need to be customized, samples can be customized and completed in 7 days from drawing to shipment. Large shipments need to be scheduled.
