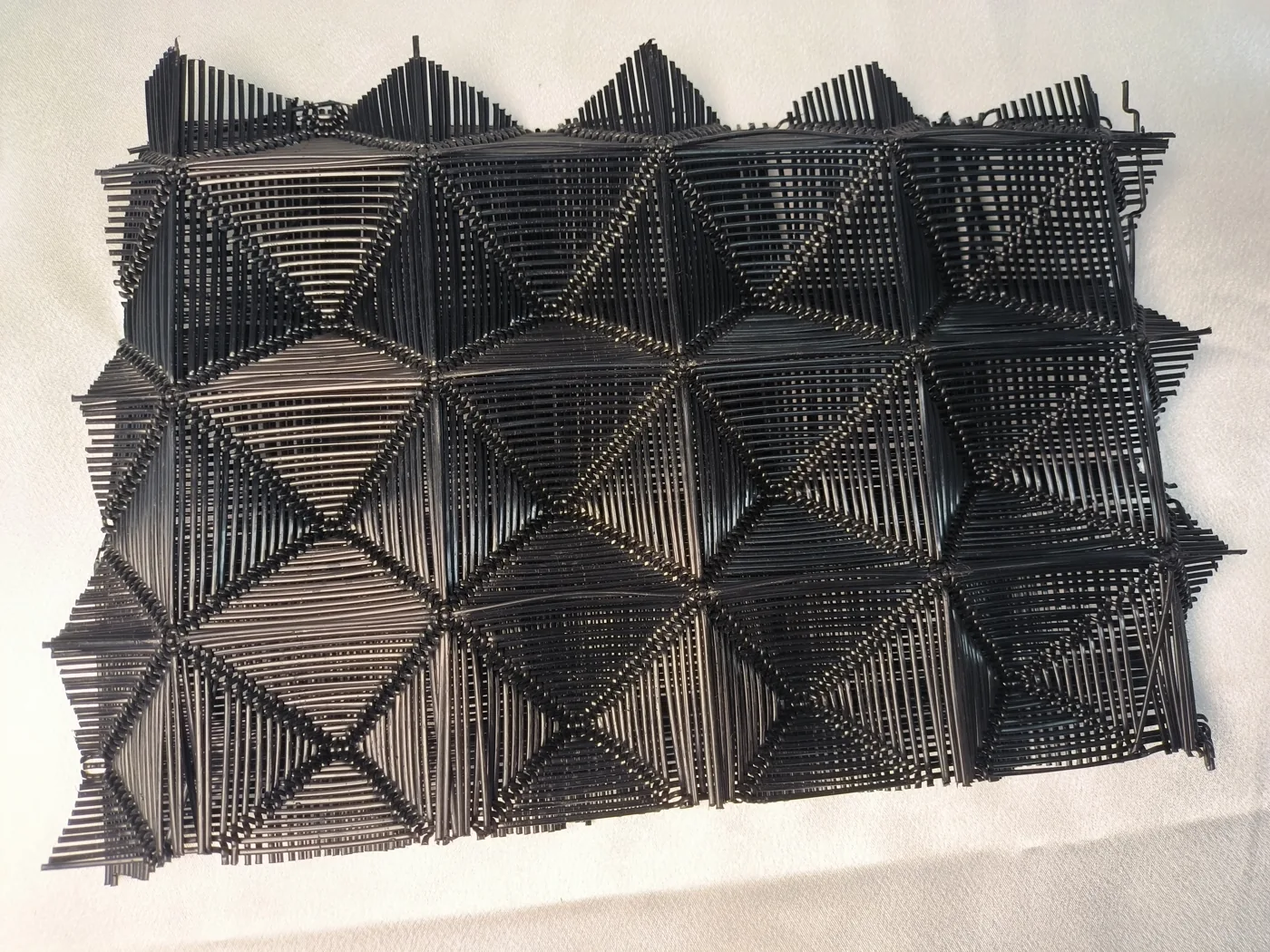

We supply structured polypropylene monofilament media for application-specific removal of entrained liquid droplets from gas streams. Compare five reference styles, review the structure drawings and tell us about your process before selecting the finished configuration.
Request a configuration review

Project selection: define the separation task first
For a new installation or replacement project, identify the liquid, gas flow, available space and drainage arrangement. A model number alone does not establish removal efficiency, operating pressure drop or compatibility with an existing separator.
Not sure which mist-elimination approach fits your process? Read our mist eliminator selection guide: PP mesh, glass-fibre beds, knitted mesh and vanes.

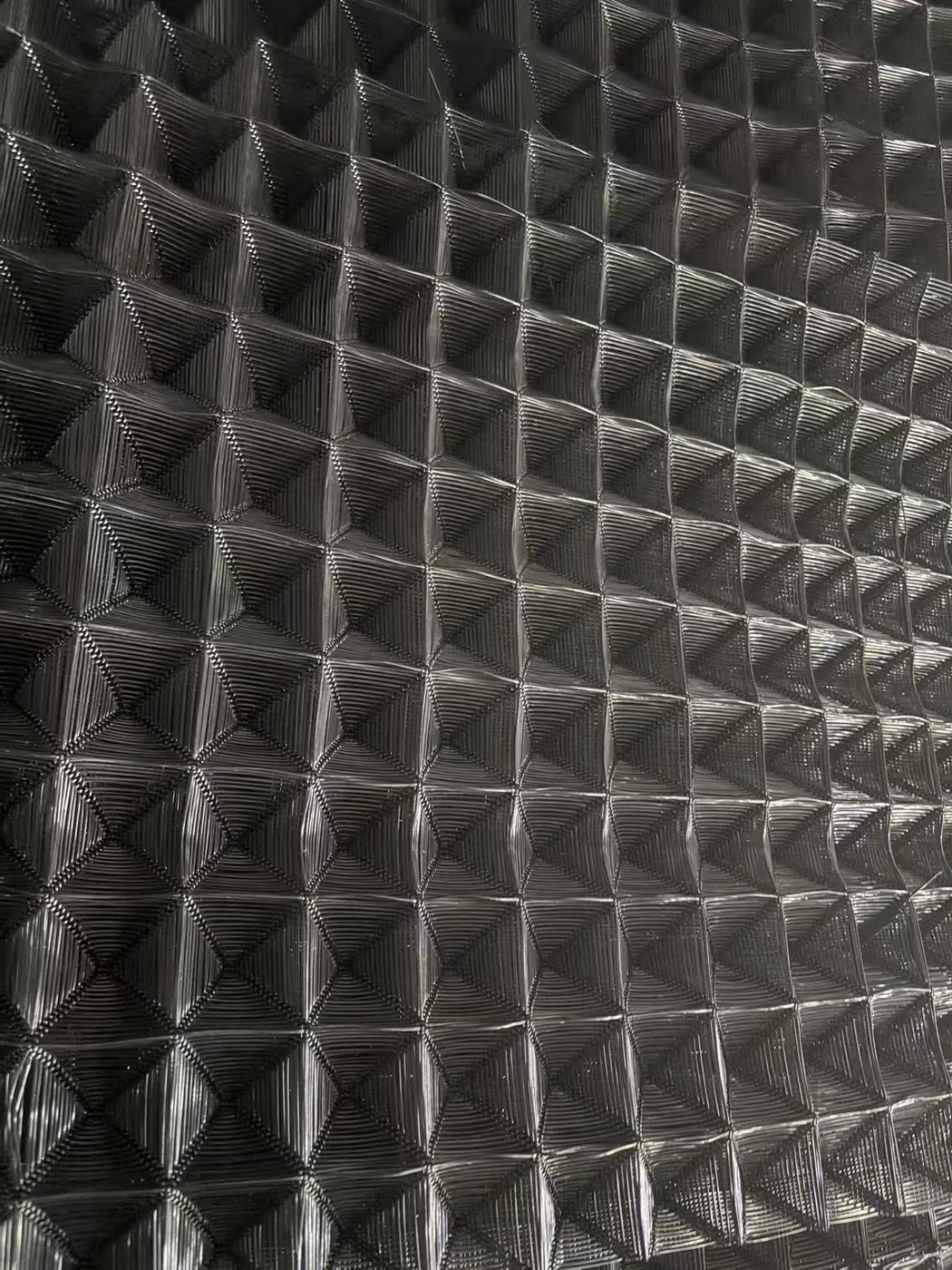

How the structured media works
Liquid droplets may contact the filaments through impaction and interception. Captured droplets can combine into larger drops, which must then drain through an appropriate separator arrangement. Material selection, media structure, gas velocity, liquid loading and drainage all affect the result. We supply the media for installation with suitable support, housing and drainage.
Our five media specifications
We offer the following five 3D PP media specifications. Single-layer height/thickness carries the stated ±10% reference tolerance. Confirm the finished configuration before ordering; separation performance depends on the selected assembly and operating conditions.
| Reference | Bulk density (kg/m³) | Single-layer thickness (mm) | Filament diameter (mm) | Porosity | Technical PDF |
|---|---|---|---|---|---|
| FE-DM-1012 | 30.5 | 5 | 0.12 | 95% | Table and drawing |
| FE-DM-1022 | 51.3 | 10* | 0.22 | 95% | Table and drawing |
| FE-DM-1522 | 31.4 | 12 | 0.22 | 96% | Table and drawing |
| FE-DM-2545 | 52.4 | 18 | 0.45 | 96% | Table and drawing |
| FE-DM-2598 | 83.5 | 20 | 0.98 | 96% | Table and drawing |
* FE-DM-1022: Our nominal single-layer thickness is 10 mm. We confirm finished pad thickness, tolerance, layer count and frame dimensions in your configuration drawing.
Applications to review
- Industrial mist elimination: define the entrained liquid, desired separation task and drainage arrangement.
- Oil-mist capture: review the oil, temperature, aerosol characteristics and collector design; a media selection is not a complete equipment specification.
- Gas-liquid coalescence: review droplet loading, drainage, wet pressure drop and downstream carryover requirements.
- Cooling-tower droplet capture: assess the proposed structure, airflow and water return; this concerns entrained droplets, not water vapour.
- Scrubber packing: evaluate gas-liquid contact and mass-transfer requirements separately. Pollutant absorption also depends on the scrubbing liquid and process; PP mesh is not described as a universal gas adsorbent.
We match the media structure, layer arrangement and drainage to your application.

Technical data and drawings
Download the five-style technical reference collection. Each style has a reference table and structure drawing. We provide technical data and structure drawings to help you select and configure our media. We confirm your selected configuration and performance requirements before order confirmation.
Frequently asked questions
What does this media separate?
It is intended for application-specific capture and coalescence of entrained liquid droplets in gas streams. The appropriate structure and operating conditions must be reviewed for the selected duty.
Does it remove water vapour?
Droplet capture is different from water-vapour removal. This mesh is not presented as a dehumidifier or as a means of removing all gaseous contaminants.
Which of the five styles should I choose?
Compare the structure drawing, filament diameter, reference thickness and intended assembly, then review gas flow, liquid properties, loading and drainage. The five styles are not automatically assigned to five different industries.
Are the listed thicknesses the complete pad thickness?
The table describes a single-layer reference. Finished pad thickness depends on the selected layers and assembly. For FE-DM-1022, our nominal single-layer thickness is 10 mm. We confirm finished pad thickness and tolerance in your configuration drawing.
What efficiency and pressure drop can be expected?
We specify droplet-capture performance and operating pressure drop for the selected assembly and agreed process conditions. Send your gas flow, liquid composition, droplet-size target and carryover requirements so we can confirm the configuration and verification requirements.
Can it replace an existing separator element?
Share the existing drawing or photographs, dimensions, frame, orientation and operating conditions. Similar appearance or a reference code does not establish interchangeability.
Can the media be cleaned and reused?
Cleaning suitability depends on the contaminant, PP compatibility, construction and condition. Confirm the cleaning method before use; no fixed cleaning interval or service life is specified.
What information is needed for a quotation?
Provide the application, gas and liquid composition, gas flow or face velocity, temperature, pressure, installation space, layer or assembly requirements, drainage direction, quantity and destination. Unknown items can be discussed during review.
Discuss your configuration
Send the preferred reference, quantity, dimensions and available operating conditions through our existing inquiry page. Include photographs or drawings where the inquiry channel supports them; missing technical details can be reviewed with the team.
