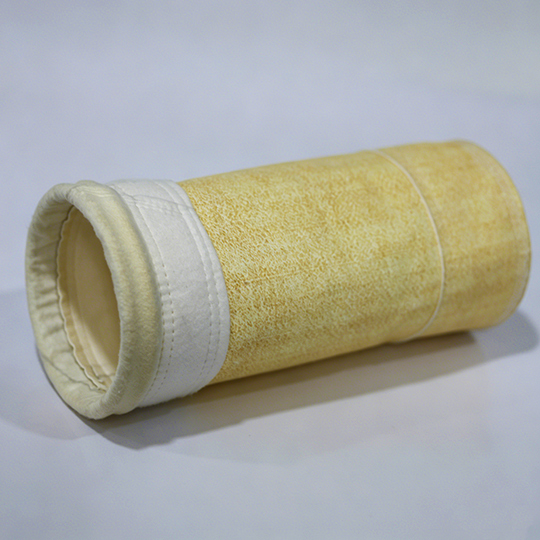

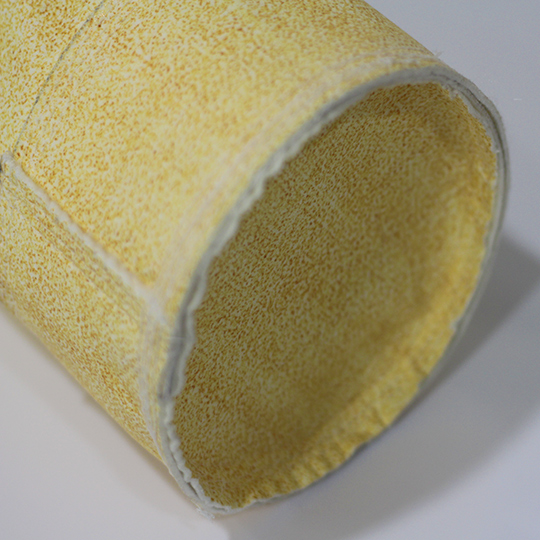

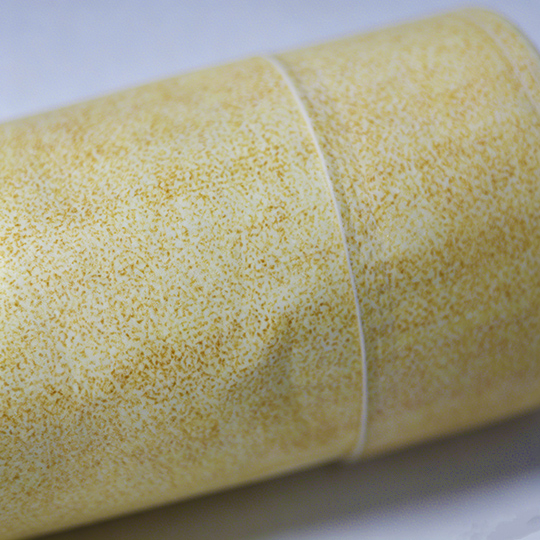

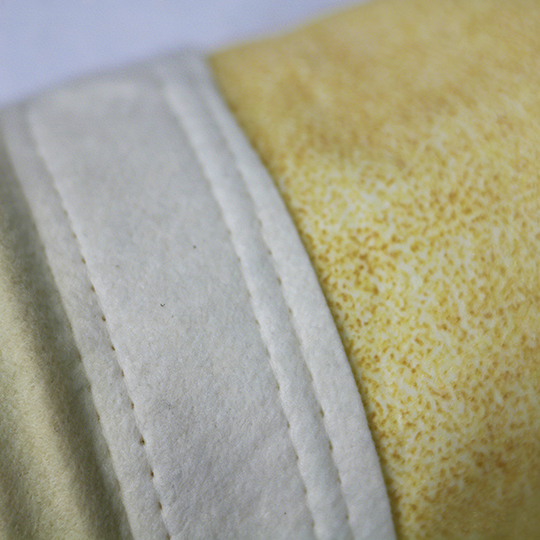

Advantages of FiltEdge's Acrylic Filter Bag
Moisture-related conditions: Water- and oil-repellent finishes may be considered where moisture and dust characteristics make surface treatment appropriate. Condensation control also depends on process temperature, insulation and operating practice.
Material review: Homopolymer acrylic needle felt may suit selected acidic or hydrolysis-sensitive conditions within the confirmed temperature and chemical limits. Media and finish should be checked against actual process data.
Emission performance: Emissions depend on media grade, construction, installation, collector condition and operating settings. Any target must be reviewed against the project specification and applicable requirements.
Documentation: Available material and inspection documents are confirmed for the selected specification and order.

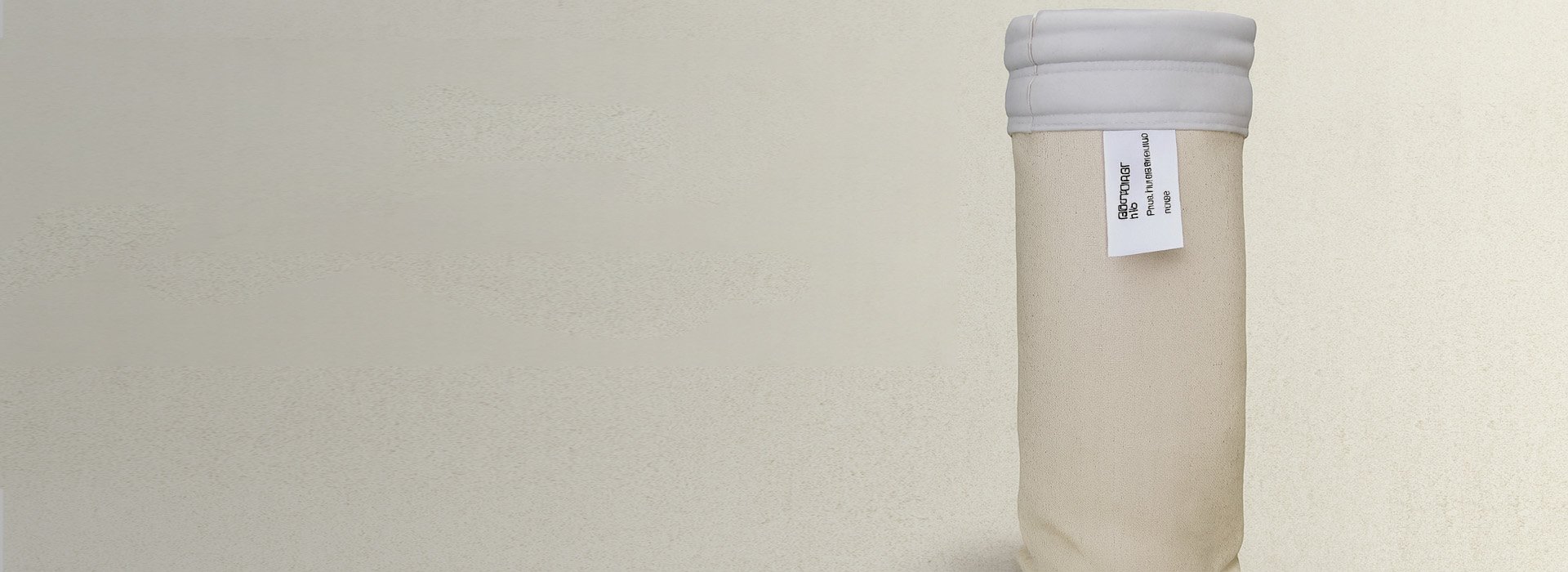

What’s Acrylic Filter Bags
Acrylic filter bag selection depends on the gas composition, humidity, temperature and dust collector design. Share your drawings, existing bag sample and operating conditions for an application review. Custom construction can be discussed for pulse-jet, reverse-air and mechanical-shaking equipment. Our team reviews technical and after-sales requests during business hours; support arrangements are confirmed for the order.
Acrylic Filter Bag Selection and Classification
Acrylic filter bags can be specified by material, surface treatment and construction. Share your operating conditions or drawings so our team can review the available options during business hours. The following configurations are provided for reference.

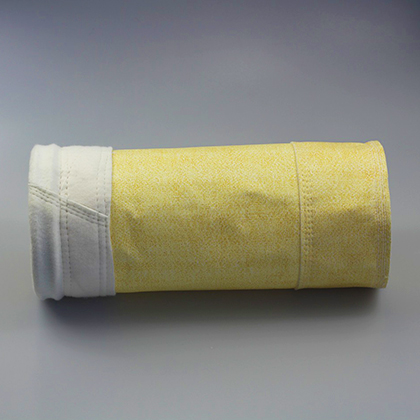

Standard Acrylic Filter BagYou can use it in wet, acidic, working temperature below 125 ℃ working conditions.

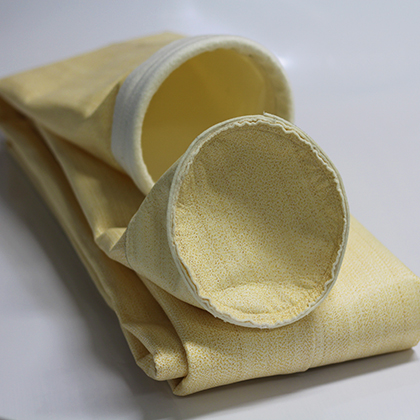

Water and Oil Repellent Acrylic Filter BagIt can resist condensation and is suitable for working conditions that are humid and prone to condensation leading to clogging of filter bags.

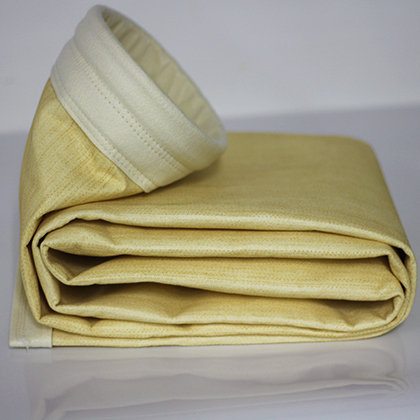

ePTFE Membrane Laminated Acrylic Filter BagAfter coating ePTFE, the precision can be improved, and it can be applied to the working condition that has the demand for ultra-low emission (<5mg/10mg).
Acrylic Filter Bag Performance
The excellent performance of Filtedge’s acrylic filter bags reduces costs and increases efficiency in your production.
Continuous operating temperature of 125°C, with a maximum instantaneous temperature of 140°C.
It exhibits excellent hydrolysis resistance, making it suitable for use in equipment operating in high-humidity environments.
Suitable for gases such as SO2/SO3/NOX/HCL, phosphides, and organic acids.
Low thermal shrinkage rate, stable structure, resistant to deformation, and long service life.
More cost-effective than other filter bags.
Suitable for various industrial dust collection systems such as pulse jet, reverse air, and shaking.
High capture efficiency for medium-sized dust particles; can be coated with PTFE for enhanced filtration efficiency.
It can be considered a low-energy filter material in medium-temperature dust collection systems.

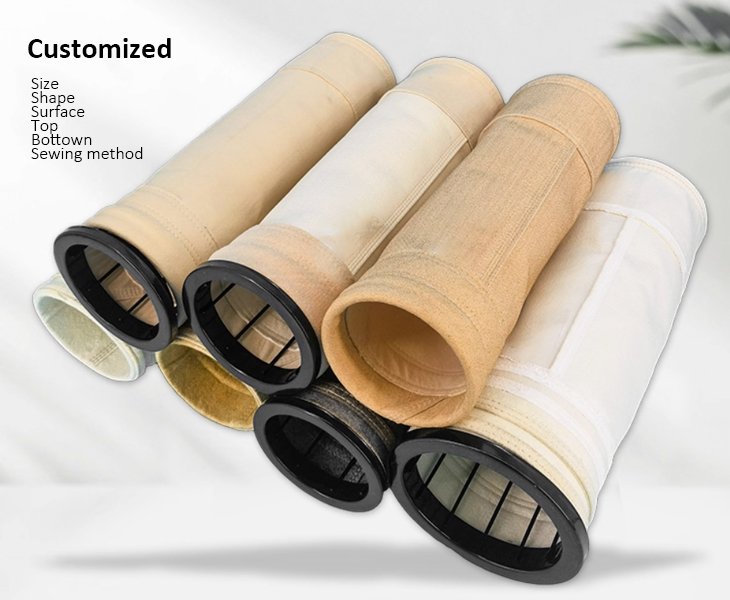

Custom Acrylic Filter Bags
Filtedge offers OEM/ODM customization services tailored to your procurement needs and operational conditions, helping you optimize your business operations and production. Customization options for acrylic filter bags include: fabric type, dimensions, top and bottom construction, shape, surface treatment, sewing techniques, logo placement, packaging dimensions and methods, and label specifications.

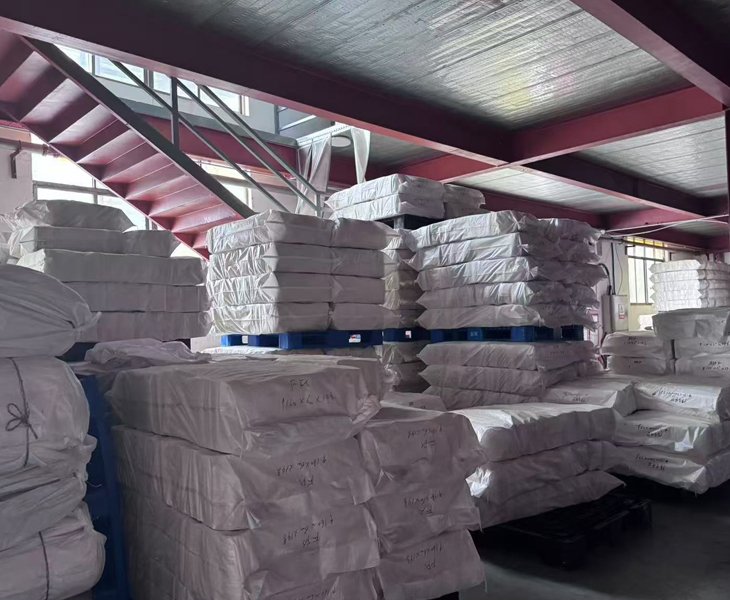

Fast Delivery
FiltEdge coordinates shipping with SFFILTECH manufacturing support in China. Stock availability, dispatch dates, freight and customs responsibilities are confirmed in the quotation. No standing North American warehouse or guaranteed rapid shipment is promised.

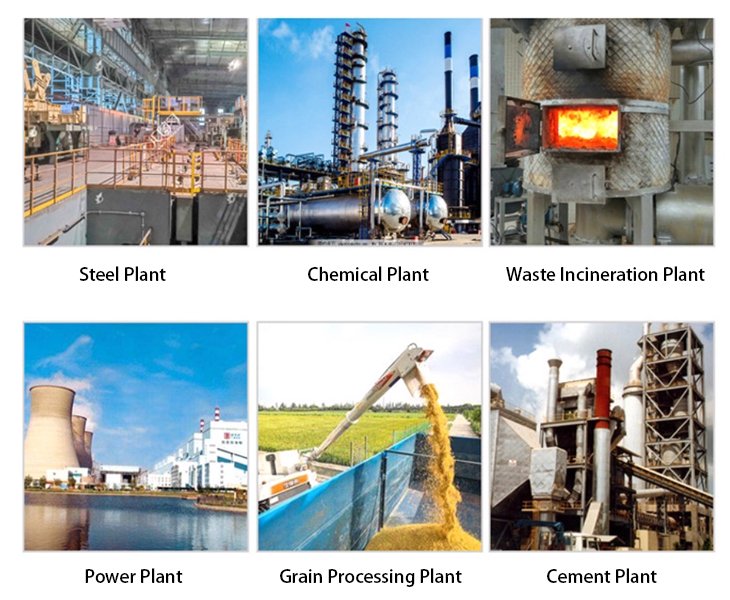

Applications of Acrylic Filter Bags
If your operating conditions involve low temperatures, humidity, and acidic gas dust, Filtedge’s acrylic filter bags are highly suitable. Examples include coal mill dust in cement plants, HCL/SO2/NOX acidic gases from waste incineration, asphalt mixing plants, and flue gas treatment in coal-fired power plants.

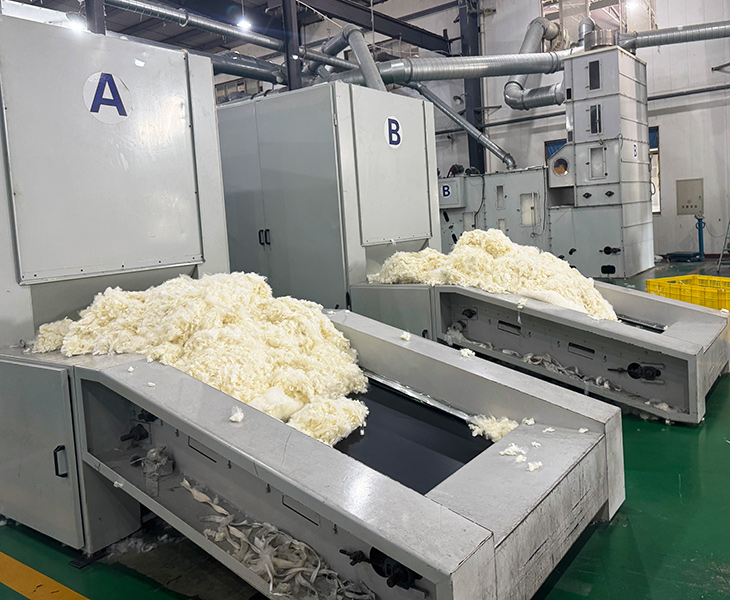

Acrylic Filter Bag Material
FiltEdge’s acrylic filter bags are available in 2 main materials, homopolymer acrylic or copolymer acrylic. The most commonly used fabric is 350-600gsm needle felted homopolymer acrylic. Homopolymer acrylic is 100% pure, high quality acrylonitrile needle felted. It can withstand higher temperatures (125°C) than copolymerized acrylic. In wet, acidic applications, homopolymer acrylic filter bags are less likely to corrode and break, and the service life can be directly increased by a factor of 2, reducing your long-term consumable costs and labor costs for bag changes.

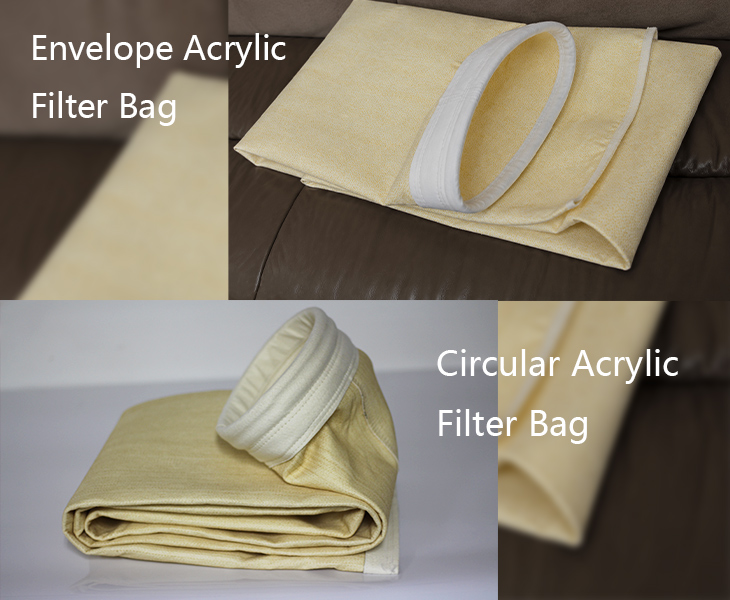

Shape of Acrylic Filter Bag
We can manufacture both circular acrylic filter bags and envelope acrylic filter bags for you. However, circular acrylic filter bags are chosen by our customers the most because they have the widest range of applications. You can choose according to your dust collector and working condition requirements.

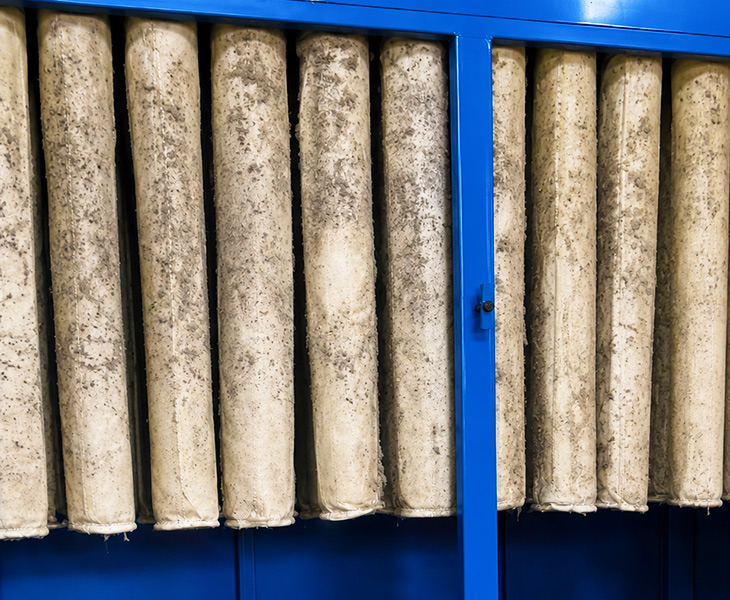

Acrylic Filter Bag Cleaning Method
FiltEdge’s acrylic filter bags have excellent dust cake stripping performance in humid acidic environment, not easy to paste and stick bags, very suitable for use in high-pressure pulse jet dust collector. With each pulse spray stroke, the dust can be easily shaken off, so that your dust collector can maintain low resistance operation for a long time. It is corrosion-resistant and durable, which reduces the number of times you have to replace the filter bag frequently and can realize the purpose of cost reduction and efficiency for you.

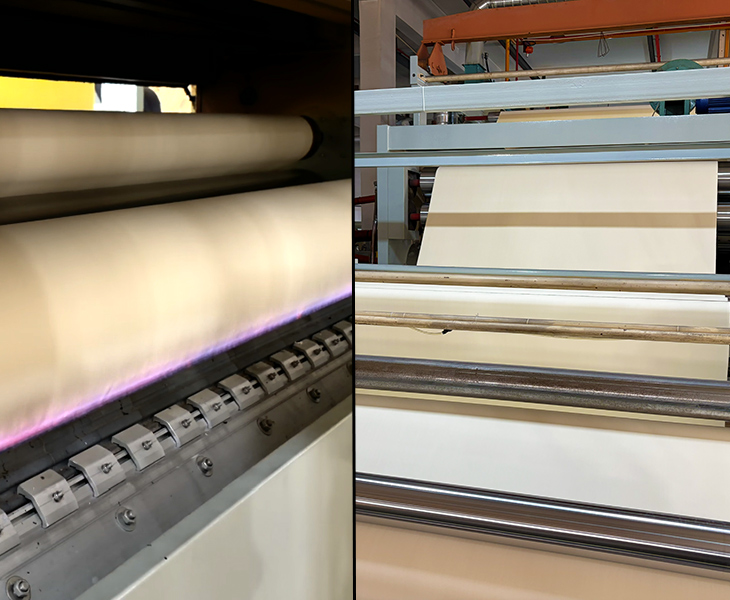

Acrylic Filter Bag Surface Post-Treatment
Surface-treatment options include singeing, calendering, water and oil repellency, PTFE impregnation, membrane lamination and antistatic treatment. Suitability depends on the application. No treatment alone establishes safe use with combustible dust; the complete system requirements must be reviewed.

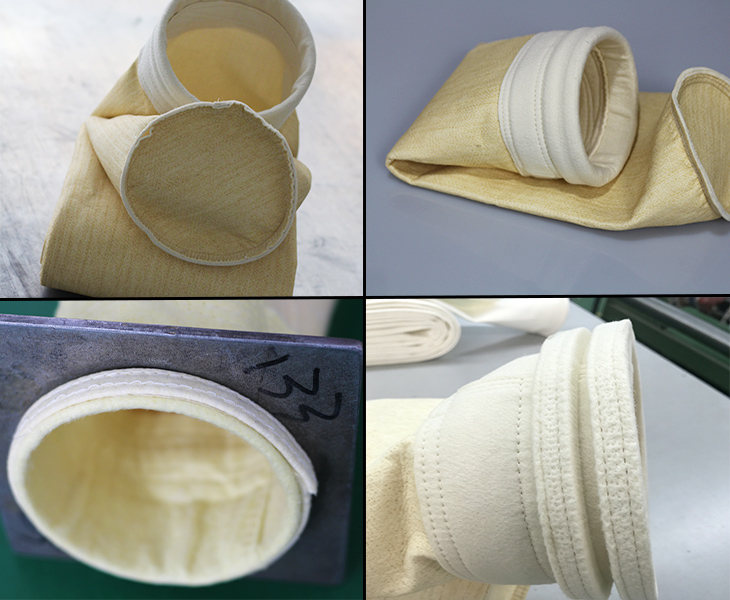

Acrylic Filter Bag Installation Structure
FiltEdge’s acrylic filter bags have the most common top configurations with snap band and flange type; acrylic filter bag bottom structure with reinforced disc bottom. These structures have excellent solidity and sealing, and you can use them to remove dust efficiently on pulse dust collectors. If your factory is using a reverse air baghouse, you can not easily replace the dust collector, and you need to face the high emission standards, we can customize the hanger cap, tie-on top, raw edge needle felt acrylic filter bag for you.

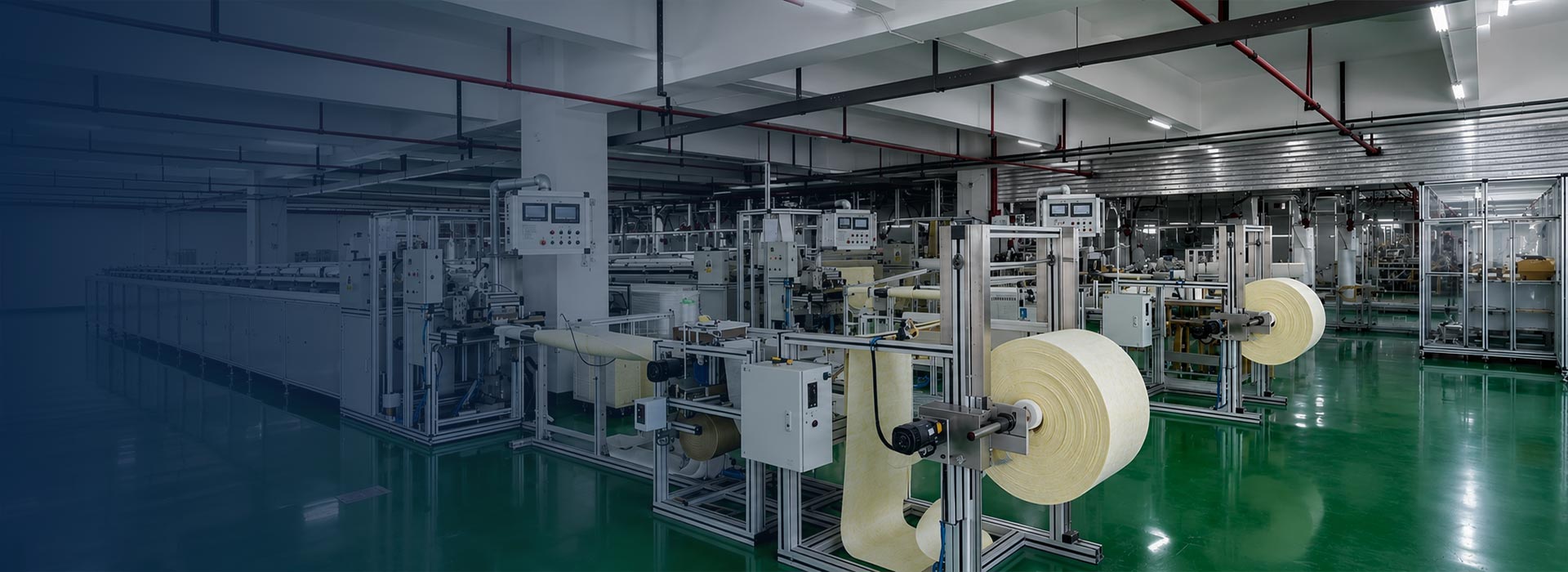

Why Choose Filtedge？

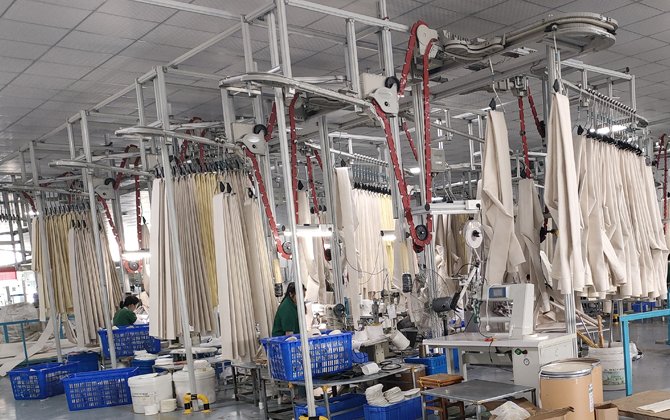

FiltEdge LLC is a U.S. industrial filtration brand established in 2023, supported by SFFILTECH manufacturing in China, founded in 2006. Manufacturing certificates and test records must be reviewed for the applicable facility, product, scope and validity; they are not certifications of FiltEdge LLC. Product selection, delivery and support arrangements are confirmed for each order.
Inspection requirements and available manufacturer reports are confirmed for the acrylic filter bag specification and order. Third-party testing can be discussed; no blanket ISO product inspection certificate is promised.
Available material inspections can include fabric weight, thickness, tensile strength and shrinkage, according to the agreed specification and sampling plan. Request the applicable manufacturer records for the order.

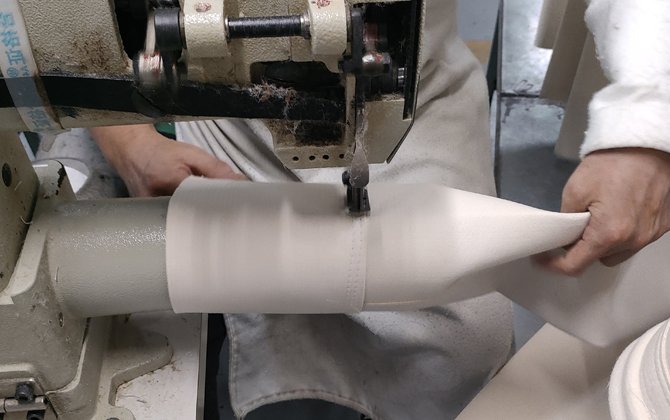

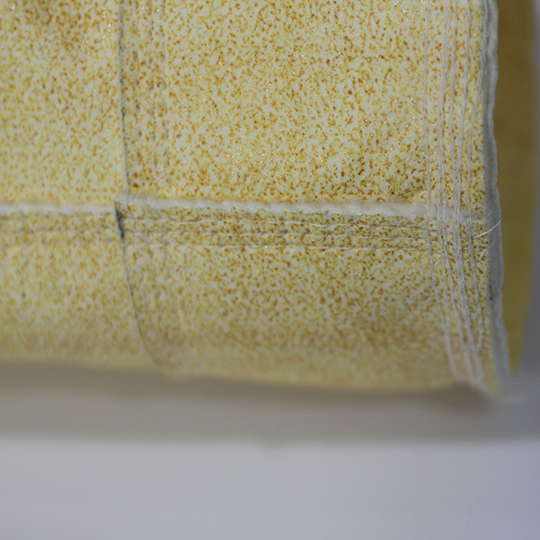

We use 3-needle chain stitch, 25-30 stitches in 10cm to produce acrylic filter bags that are tensile, tear-resistant and do not leak dust for you.
Not only for each of your acrylic filter bags to detect the size, snap band elasticity test, but also will be on each filter bag illumination inspection, to eliminate pinhole leakage of ash. This ensures that you receive a bag that is just right for your dust collector.
Acrylic Filter Bag Specification
Below is a list of technical parameters, chemical properties, and common sizes of acrylic filter bags. You can also send us the working condition, our engineers with suitable filter bag drawings and parameters to contact you. And we can customize more suitable filter bag for you.
Confirm the final operating limits, material grade and performance requirements in the approved product specification. Reference values on this page do not replace application-specific review.
- Information Sheet
- Technical Specification
- Chemical Resistance Guide
- Standard Dimensions
| Material | Polyacrylonitrile Homopolymer |
| Weight | 350-600gsm |
| Finishing | Singeing/Calendering/Heat Setting/PTFE Membrane/Water and Oil Repellent Treatment/Antistatic Treatment
|
| Size | Customized |
| Continuous Temperature | 120°C |
| Peak Temperature | 140°C |
| Resistance to Hydrolysis | Good |
| Resistance to Acids | Good |
| Resistance to Alkalis | moderate |
| Resistance to Oxidation | Good |
| PH Value | 3-11 |
| Technical Property | Value / Specification |
| Material | 100% Polyacrylonitrile Homopolymer (Homopolymer Acrylic) |
| Manufacturing Method | Needle Punched Non-woven |
| Scrim / Base Fabric | 100% Homopolymer Acrylic Filament Scrim |
| Weight | 350 gsm – 600 gsm (Standard: 500 gsm / 550 gsm) |
| Thickness | 1.8 mm – 2.2 mm |
| Air Permeability | 10 – 18m³/(㎡.min) @ 200Pa |
| Tensile Strength | Warp: ≥1000 N/5cm | Weft: ≥1200 N/5cm |
| Elongation at Break | Warp: < 35% | Weft: < 50% |
| Thermal Shrinkage | ≤1.5% @ 150°C (302°F) for 90 mins |
| Continuous Operating Temperature | 120°C (248°F) |
| Peak Temperature | 140°C (284°F) |
| Resistance to Hydrolysis | Good |
| Resistance to Acids | Good |
| Resistance to Alkalis | Moderate / Fair |
| Resistance to Oxidation | Good |
| PH Value | 3 – 11 |
| Available Finishes & Treatments | Singeing, Calendering, Heat Setting, Water & Oil Repellent Treatment (Oleophobic), PTFE Impregnation, PTFE Membrane Lamination, Antistatic Treatment (Conductive Fiber Blended) |
| Environmental Factor | Rating / Resistance Level | Industrial Applications & Comments |
| Moisture & Hydrolysis | Excellent | 100% immune to water hydrolysis; eliminates premium failure risks in high-moisture flues (＜125℃). |
| Acid Resistance | Excellent | Highly stable against aggressive acid gases including SO2, SO3, NOx, and HCl. Ideal for chemical processing. |
| Alkali Resistance | Moderate / Fair | Reliable in weak alkaline conditions; avoid direct exposure to strong alkaline environments. |
| Oxidation Resistance | Good | Superior to PPS under medium temperatures, effectively resisting oxidation from oxygen-rich flue gas. |
| Abrasion Resistance | Good | Robust mechanical strength to handle high-velocity particulate and moderate-to-heavy dust load friction. |
| Filter Bag Shape | Common Diameter | Standard Length | Matching Top Design | Compatible Baghouse Type |
| Round / Cylinder Bag | Diameter 120 mm / Diameter 130 mm / Diameter 160 mm | 2.0 m – 6.0 m | Snap Band / Flange Top / Raw Edge | Top-loading Pulse Jet Baghouse (External Filtration) |
| Round / Cylinder Bag | Diameter 292 mm / Diameter 300 mm | 8.0 m – 12.0 m | Hanger Cap / Cord Top / Open Top | Reverse Air & Shaker Dust Collector (Internal Filtration) |
| Flat / Envelope Bag | Customized based on tube sheet | 1.0 m – 3.0 m | Collar Top / Pressed Plate | Compact Flat Bag Pulse Jet System |
Minimum order quantity depends on the construction, material and production requirements. Please send the specification and requested quantity for confirmation.
Production and shipping lead times depend on specifications, quantity, material availability and the production schedule. The applicable timing is confirmed in the quotation.
Available manufacturing quality certificates and test reports are reviewed for the relevant China facility and product. FiltEdge LLC does not claim its own ISO 9001 certification. Third-party testing requirements, availability and charges must be confirmed for the order.
Sample availability, quantity, charges, freight and timing are confirmed after reviewing your requirements.
Polyester filter bags work at about 110℃, acrylic filter bags can work continuously in 125℃. And the biggest advantage of acrylic filter bags is that they are not easily hydrolyzed and have excellent acid resistance. If you are using the filter bag in the environment with water vapor, high temperature and sulfur, then the acrylic filter bag extends the service life 2-3 times longer than the polyester filter bag, which can save you cost as well as reduce the frequency of changing the bag, and the comprehensive cost-effective will be higher.
FiltEdge’s acrylic filter bags are manufactured to tight tolerances of ±2mm. We measure the folded width, overall length, and diameter of the bag before it leaves the factory. If a fit problem occurs, provide the order details and measurements for review. Any replacement, return or refund is handled according to the agreed order terms.
The requested emission level must be assessed for the complete dust collection system and operating conditions. An ePTFE membrane option can be reviewed, but the filter bag alone does not guarantee regulatory compliance. Confirm performance requirements and validation arrangements before ordering.
Yes, they can be used. Typically, blowback filters are more commonly used with woven filter bags, but for larger blowback filtration plants, FiltEdge can provide you with coated acrylic needle punched filter bags with anti-collapse spreader rings for blowback filtration, which will stabilize filtration, prevent sticking, and reduce emissions to meet stringent environmental standards.
Related Filter Bag

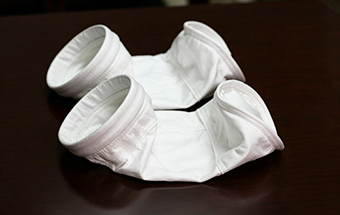

Used for <110℃ dry, conventional industrial dust interception. For example, cement back-end, woodworking, grain processing, surface coating.
Used for 200℃ high temperature, dry, with the risk of sparking conditions. For example: asphalt mixing plants, cement kiln heads, ironworks discharge yards.
Used in heavy industry with 240°C extreme high temperature, high air volume and limited budget.
For example: cement kiln end, steel blast furnace gas, copper and aluminum smelting.

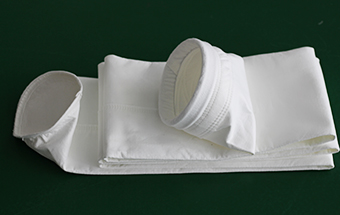

Used in 260℃ extreme high temperature, extreme strong acid and alkali corrosion, high risk and high humidity working conditions. For example, waste incineration power generation, chemical plant core reactor.

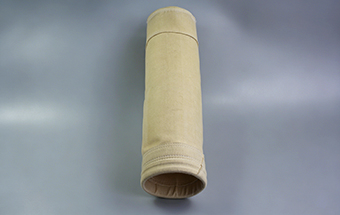

Used in 160℃ high temperature, high sulfur, strong acidic flue gas. For example: coal-fired power plant boilers, biomass power generation.
