What is Single Bag Filter Housing?
A single-bag filter housing is a pressure filtration vessel that supports one replaceable filter bag inside a basket. It is commonly selected for batch processes, side streams and moderate liquid flow rates where straightforward bag replacement is important.
Single housings may be installed in series for staged filtration or in parallel when additional flow capacity or maintenance flexibility is required. Actual flow, pressure drop and changeout frequency depend on the liquid, contaminant loading, bag material and micron rating.
Housing material, seal material, connection type, inlet and outlet orientation, design pressure and surface finish are selected for the application. Provide the liquid composition, temperature, operating pressure, target flow, filtration rating and piping layout so the model and drawing can be reviewed before quotation.
Types of Single Bag Filter Housing
The logic of selecting a single bag filter housing is not about the housing, but about how you deal with leakage, pressure drop and maintenance frequency. For your different fluid characteristics and pressure fluctuations, we provide you with the following selection options based on thousands of field operating data to ensure that each unit is precisely adapted to your process.

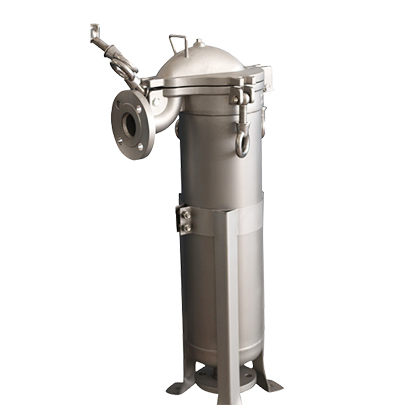

Top Entry Single Bag Filter HousingLiquid is pressed in from directly above, using the gland to act directly on the sealing ring of the filter bag. With CNC-machined sealing grooves, side leakage is measured at 0%, even when you’re operating at sustained high pressures up to 1.0 MPa. If you’re responsible for high-value chemical fluids or precision purification tasks, this is the product for you.

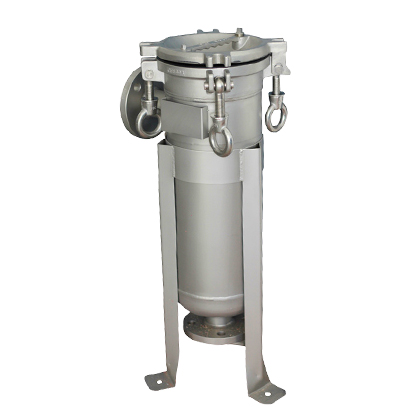

Quick-Open Single Bag Filter HousingIf you are faced with high impurity levels and frequent changeover of consumables, don’t waste your time manually tightening bolts. The three-jaw locking or clamping design allows your operators to perform maintenance with their bare hands in less than 120 seconds, dramatically improving the turnover rate of your entire production line.

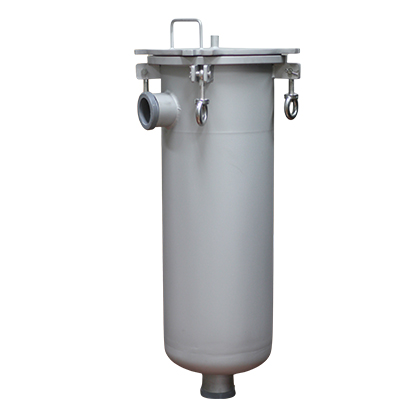

Small Flow Single Bag Filter HousingFor small-scale production of 1-10 m³/h, this series is ultra compact and features a Ra＜0.6 μm mirror-polished interior. It can help you to take care of those materials extremely sensitive to the amount of residue liquid filling or laboratory precision small sample filtration tasks.

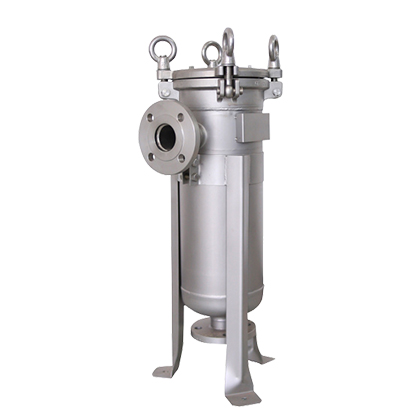

Side Entry Single Bag Filter HousingA hot seller with flexible inlet and outlet positions, it is cast or spin molded for structural stability. With extremely robust operation at 0.6-1.0 MPa for cooling circulating water or conventional primary filtration, it’s the right balance for keeping production costs under control on a limited budget.

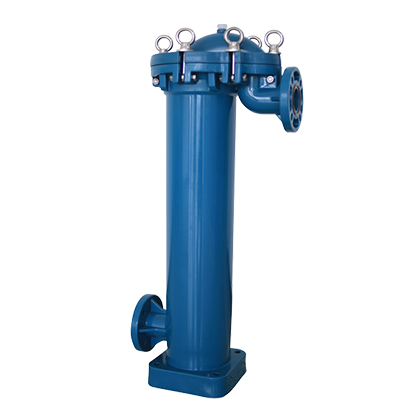

Corrosion Resistant Single Bag Filter HousingFor your extreme acid/alkaline (pH) fluids, we offer durable models lined with PFA/ETFE or pure PP. This construction is a direct match for strong oxidizers and virtually all types of inorganic acids, ensuring that your single bag filter housing will not stress crack or corrode and never safely perforate in harsh working chemical environments.
Features of Single Bag Filter Housing
In addition to the conventional specifications of single bag filter housing, your on-site piping direction, special corrosive environment or stretched installation space is the core of our solution. Whether you require a customized inlet/outlet location or a special anti-corrosion coating, we can achieve seamless integration according to your drawings.
With CNC-machined seal grooves and annular compression devices, you can achieve the demanding goal of zero side leakage at 1.0 MPa. This ensures that 100% of the fluid must pass through the filter bag, helping you maintain a high level of precision filtration.
With the optional three-jaw linkage quick release, you can switch bags in less than 2 minutes by one person without having to find a special wrench. This design directly reduces unproductive downtime and helps you improve overall line availability.
The perforated support basket is selected for the housing and filter-bag size. Basket open area, material and allowable differential pressure are model-specific and must be checked against the approved design and operating limits.
Internal flow paths have been optimized by CFD simulation to reduce inlet and outlet pressure drop by 15-20% compared to conventional designs. This means that for the same pumping power consumption, you can get a larger instantaneous capacity, which directly reduces your operating costs.
Housing material, wall thickness, seal material and allowable temperature are selected for the approved model and design conditions. Confirm fluid temperature, pressure, duty cycle and cleaning method before quotation; service life depends on actual operating conditions.
The matched high-strength perforated mesh basket has more than 60% effective open area. Even if you are faced with an instantaneous shock differential pressure of 0.3 MPa, the support basket will maintain the same geometry, preventing physical breakage of the filter bag due to support failure.
Whether your site is flanged, threaded or sanitary quick-fit, we can customize the inlet and outlet orientations to your pipe elevation. You don’t need to overhaul the piping when you get the equipment, you can just put it in place and butt-lock it, eliminating additional construction costs.
The top cover is reserved with a G1/4″ size vent and pressure gauge connection. This port must be used to manually relieve residual pressure before you can open the lid. This redundant safety design helps you to avoid liquid spills in the field due to mishandling.
Quick-Opening Maintenance
Optional quick-opening configurations can simplify routine filter-bag replacement. Actual maintenance time depends on housing size, pressure-relief and isolation procedures, access and operator method; follow the approved operating procedure.
Quality Control for Single Bag Filter Housing
Confirm the housing inspection plan and applicable design standard before ordering. The stated hydrostatic test of 1.5 times design pressure for 30 minutes, PMI and surface-finish inspection must be supported by product-specific records. Confirm applicable quality and compliance requirements for the selected product before ordering. Request supporting documents for the exact model, material and manufacturing entity. Food or pharmaceutical suitability, third-party inspection and any certification must be agreed separately; audit acceptance is not guaranteed.
Customized Single Bag Filter Housing

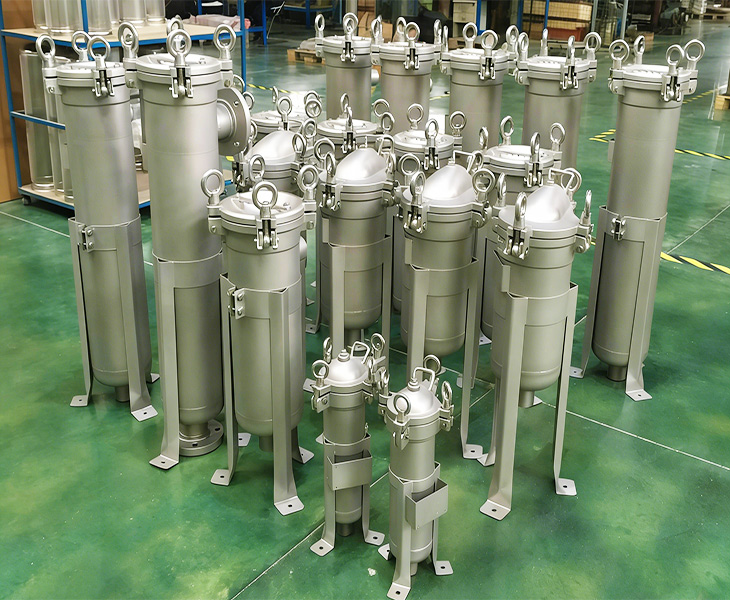

Standard single bag filter housings often don’t “fit” into your existing plumbing space. From SS304/316L, carbon steel to highly corrosion-resistant PP/PVDF, the material library covers your media needs. You can customize special inlet/outlet orientations, cap opening logic (triple jaws/bolts/swivel caps), and barrel thickness and reinforcement to meet ASME VIII-1 specifications (note: U-Stamp originals are not available). Whether you require 1μm or 200μm filtration accuracy, or special ANSI/JIS flange standards, we can accurately realize your CAD drawings to ensure that you can align the equipment without having to change the tubing twice when it arrives at your site.
Fast Delivery of Single Bag Filter Housing
Manufacturing support is provided in China. Confirm availability of housings, O-rings and support baskets, and agree production and shipping schedules in the quotation. Custom orders and spare parts do not carry a fixed dispatch-time guarantee.
Why Choose FiltEdge’s Single Bag Filter Housing?

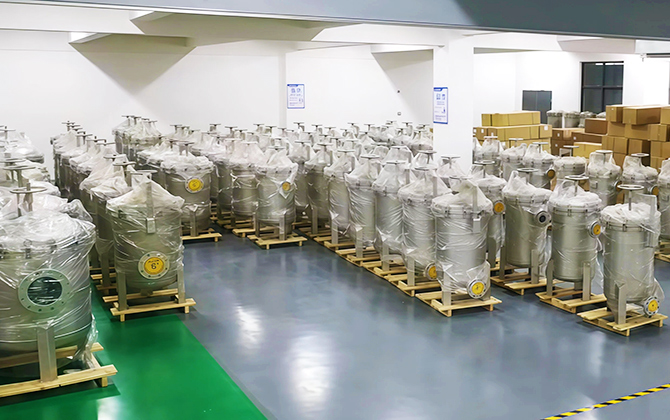

FiltEdge LLC is a U.S. company established in 2023, supported by SFFILTECH in China, established in 2006. Manufacturing support is provided through SFFILTECH in China. Confirm product specifications, available quality documents, pricing and delivery in the quotation. Certificates must be checked for the relevant entity, facility and product. Support is arranged during business hours; any on-site service or warranty terms require separate agreement.
Applications of Single Bag Filter Housing
When paint shear clumps cause holes in the surface of a car or slow bag changes slow down the line, FiltEdge’s single bag filter housing with a three-jaw quick-open mechanism and CFD-simulated drag-reducing flow paths allows your operators to perform maintenance in less than 120 seconds, ensuring that your paint line won’t be shut down for a bag change. Runner optimization reduces paint loss and helps you keep your paint pass rate within preset targets.
FiltEdge uses a reliable single bag filter housing with a mirror-polished inner wall (Ra <0.4μm) and no dead space, reducing your rinse water consumption by more than 30% when switching between batches. With no material hanging on the walls, you don’t have to worry about the risk of recalling entire batches due to cross-contamination, which directly significantly improves the key food safety inspection rate of the entire production line.

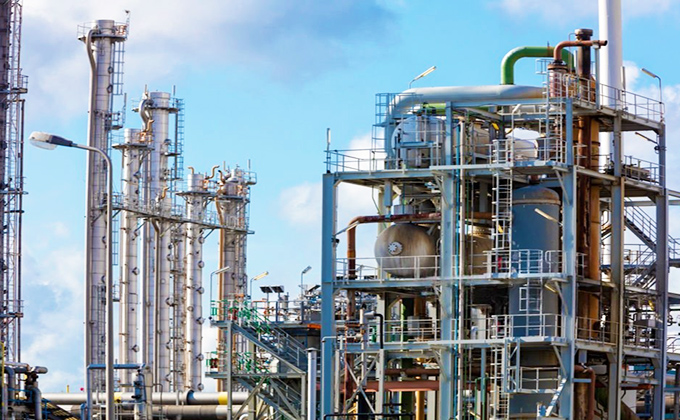

Loss of precious metal catalysts or leakage of toxic solvents due to seal failure is one of the most costly and dangerous aspects of fine chemicals.
This design helps you seal off the path of loss for expensive materials. You no longer have to pay for catalyst loss due to side leaks, and you avoid the risk of shutdowns due to VOCs during environmental inspections.
For small dosages that leave a lot of residue, or for large equipment that doesn’t fit into a compact lab space, FiltEdge offers a single bag filter housing with customized inlets and outlets in the Size 03/04 compact design, a custom solution that allows you to put it in place without having to remove the existing plumbing and saves you thousands of dollars in construction costs. The extremely small internal dead volume helps minimize the loss of expensive liquid residue, so every drop of liquid can be converted into a productive output for you.
Technical Parameters of Single Bag Filter Housing
The table below covers key technical specifications for FiltEdge top entry and side entry single bag filter housing. You can make a visual comparison based on your flow requirements, operating pressure and media chemistry.
- Technical Parameters of Single Bag Filter Housing
| Item | Side Entry (S Series) | Top Entry (DS Series) |
| Model Range | DS1# (Size 01) / DS2# (Size 02) | 1S / 2S (Standard); 3S / 4S (Compact) |
| Applicable Filter Bag | #1 bag / #2 bag | #1 / #2 / #4 bag |
| Construction Features | Concave Precision Casting Cover | Knapsack Type Top & Bottom Cover |
| Inlet / Outlet Orientation | Top-in / Bottom-out | Side-in / Bottom-out |
| Sealing Method | Zero-Bypass Concave Sealing | Patent multi-sealing ring / O-ring seal |
| Standard Flow Reference | 15 – 30 m³/h(Based on #2 bag) | 20 – 40 m³/h (Based on #2 bag) |
| Filter Precision | 1 – 1000 μm | 1 – 1000 μm |
| Materials Available | SS304 / SS316L | SS304 / SS316L / Carbon Steel / PP / PVDF |
| Design Pressure | ≤1.0 MPa(High-pressure custom available) | 0.6 MPa – 1.0 MPa |
| Operating Temperature | -20°C – 95°C | Metal: -20°C – 95°C PP: ≤70 °C PVDF: ≤95 °C |
| Lid Opening Method | Quick-open – unscrew nut to open | Quick-opening / Clamp / Swing bolts |
| Surface Treatment | Interior Ra < 0.4μm Mirror Polished | Ext. Sandblasting / Int. Electrolytic Polishing |
| Connection Method | Standard Flange | Flanged / Threaded / Clamp |
| Bracket Design | Stainless steel adjustable bracket | Adjustable legs |
| Customization | Pressure, Material, Orientation, Mounting Height | OEM Dimensions, Materials, Port orientation |
Inquire about Single Bag Filter Housing Today!
Provide fluid properties, operating conditions and your piping layout for selection review. Sample analysis, drawings, testing scope, costs and schedule can be discussed with your inquiry. Confirm fit through the approved drawing before ordering.
A: Our single bag filter housing will fit any standard size 01-04 bag. However, I have to remind you that the sealing rings of many third party bags are not as hard as they should be, and can be easily punctured under high pressure, resulting in side leakage. In order to prevent you from wasting your money on a bunch of scrap, I suggest you send me your consumable specifications when you make your first selection, so that you don’t let the poor quality filter bags ruin the filtration accuracy of the whole machine.
Confirm whether your project requires ASME design, certification or a code stamp before ordering. Following selected design requirements is not equivalent to certified or stamped construction. Available documentation and the exact supply scope must be stated in the quotation.
A: Those single bag filter housings on the market that are designed to save material and have wall thicknesses that step over the qualification line will basically deform permanently when they encounter the water hammer effect (instantaneous pressure shocks). We give you a 20% safety margin for the wall thickness of the cylinder. Even if the instantaneous pressure fluctuation exceeds the rated pressure, the redundant structural strength ensures that the barrel body will not expand the bag and the flange will not warp.
A: Intergranular corrosion is the death knell of many stainless steel installations. For this single bag filter housing, we not only provide a material report (MTR), but also use argon gas shielded welding and post-weld passivation treatment to completely remove the chromium-depleted layer in the heat-affected zone in the critical weld seams. If you require, we can provide penetration testing (PT) or ultrasonic testing (UT) reports for individual units to ensure that you are not getting a “pressure vessel” with hidden defects.
FiltEdge ‘s single bag filter housings are shipped with a customized pearl cotton cover of at least 15mm in thickness and encased in a fumigation-free wooden crate. If the sealing surface is found to have non-human impact upon arrival, we will directly initiate a remote claim and send the core sealing assembly by SF, never letting transportation problems delay your on-site work schedule.
