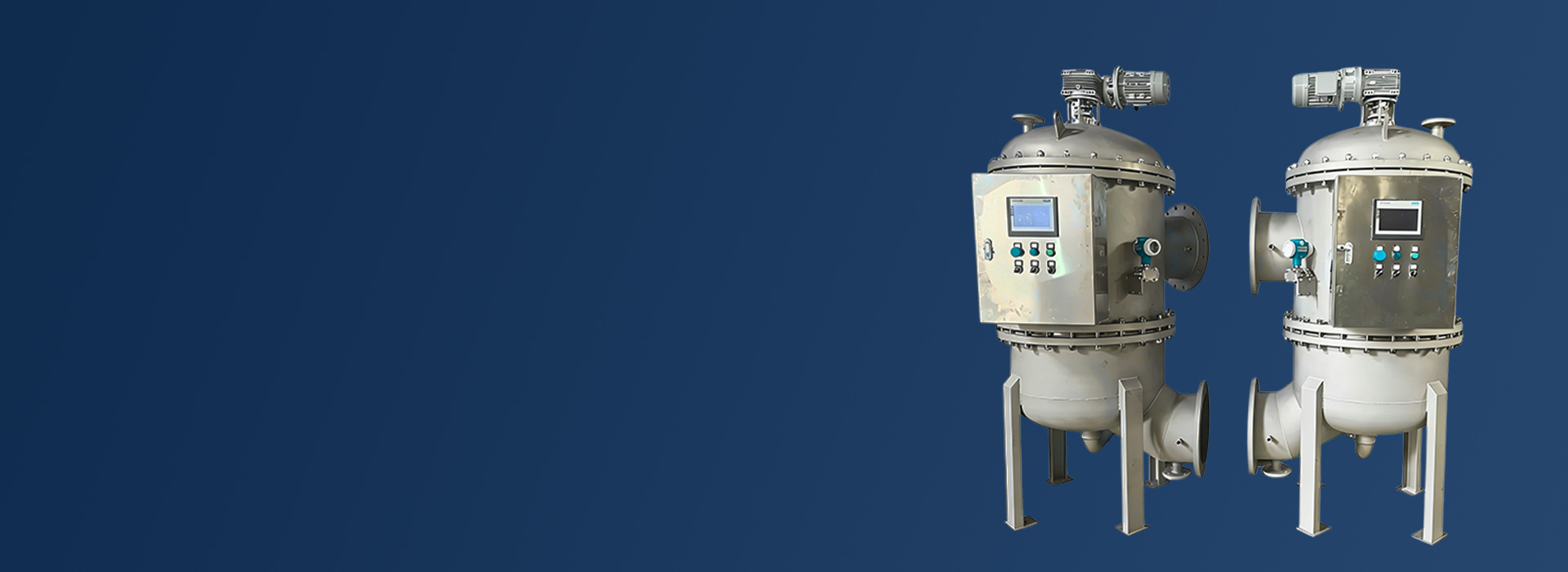

What is Backwash Filter?
Our Backwash Filter is the premium line of Backflush Filters, and an Industrial Backwash Filter System designed for demanding applications.It is designed to treat suspended contaminants in high flow circulating water, raw water and a variety of low viscosity fluids for your industrial system.
As a professional China Auto Backwash Screen Filter Factory, FiltEdge developed the Automatic Backwash Liquid Filter to solve the pain point of traditional filter housing that requires frequent downtime to clean, and realize fully automatic control, so you don’t need to manually clean.
The Automatic Online Backwash technology automatically senses pressure differentials and removes particles trapped by the filter screen without interrupting production flow. It ensures that your production line will not be shut down due to screen clogging, and it extends the life of your back-end equipment and reduces maintenance costs.
Backwash Filter Recommendations & Selection
Depending on your unique industrial process, our application engineers are ready to select the most cost-effective backwash filter for your flow rate, accuracy, and fluid characteristics.Leave the engineering calculations to us.

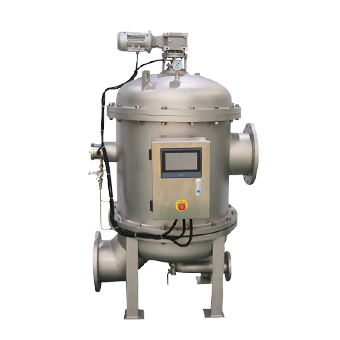

The best-selling Backwash Filter model, designed for industrial circulating water, provides you with cost-effective filtration solutions.

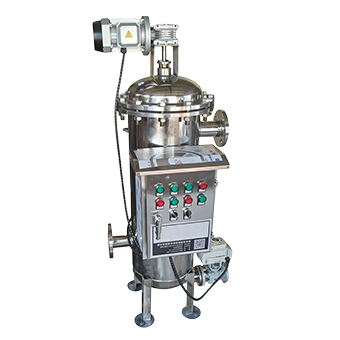

SS316L/Duplex Steel, specially developed for Backwash Filter Marine and offshore platforms and other highly corrosive environments, to protect your core equipment under harsh operating conditions.

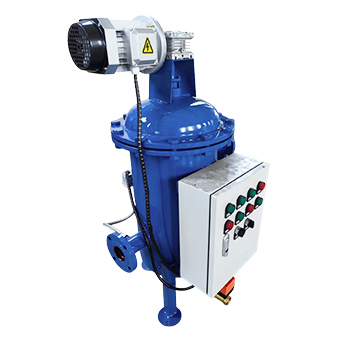

It provides 25-50μm fine interception accuracy, designed for fine chemical and micro-particle interception conditions, saving you the tedious and costly frequent replacement of filter elements.

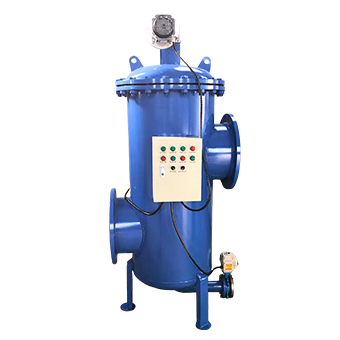

Single unit can reach 2000m³/h large flow rate, designed for steel mills, electric power and municipal water treatment, providing 24/7 non-stop filtration solutions under high flow conditions.

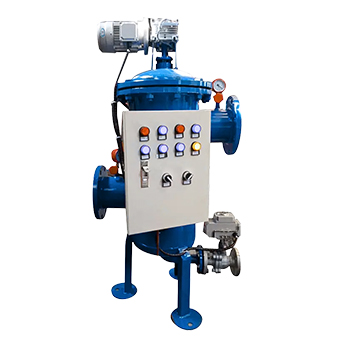

The reinforced filter housing design can operate stably under 2.5MPa pressure environment, which meets the severe requirements of your oilfield water injection, mining or high-pressure pipeline system.

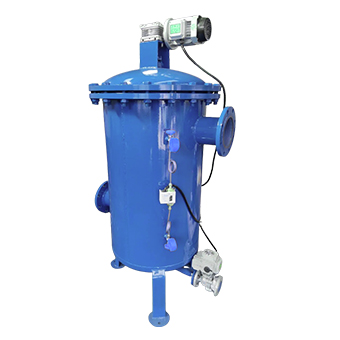

It is available in special coatings or all-alloy construction, specially customized for Backwash Filter Water Treatment of strong alkaline, acidic or extremely high salt wastewater.

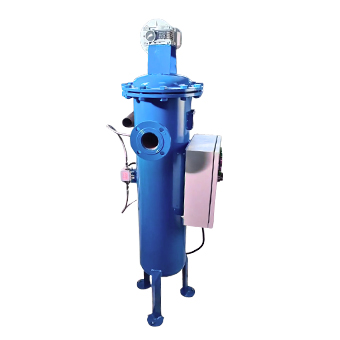

Compact design, designed for confined spaces, provides you with a flexible, small footprint space-saving Backwashable Filter solution.

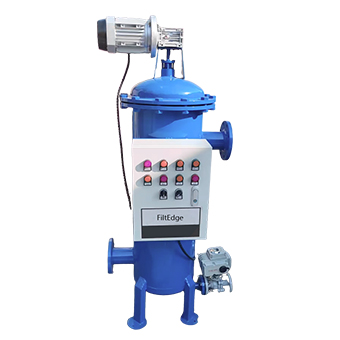

Integrates advanced differential pressure sensing and remote signal output to realize high automation for your filtration system, allowing you to control the operation status in real time in the control room, and truly realize unattended operation.
Feature & Advance of Backwash Filter
Based on FiltEdge’s 20 years of industrial filtration research and development experience, the Automatic Backwash Filter System integrates more than 20 core technological advantages to increase your production capacity and reduce operating costs.
Continuous Backwash Filter technology eliminates the need for frequent downtime to change filter bags, increasing your capacity.
Automatic Backwash Control automatically triggers cleaning through differential pressure sensing, eliminating the risk of incomplete cleaning and saving you high maintenance costs.
Stainless Steel Backwash Filter with high strength wedge mesh, service life up to 5-10 years, saving you the cost of consumables replacement.
Localized anti-suction effect, water consumption is only 0.1%-0.5%, for you to strictly control water.
Optimized hydraulic design makes Backwashable Filter compact, allowing you to set up a high-flow filtration system in a small space.
Adopting pressure overrun alarm and forced backwash function, your Backwashing Filter System achieves 0 risk filtration and ensures that the back-end precision equipments are not damaged by impurities.
200℃ ultra-high temperature design and 2.5MPa high-pressure design make your backwash filter run stably.
Can be configured in advance according to the current Filter Backwash Flow Rate Calculation, and later with the business growth flexibility to increase the module, significantly reducing your initial capital expenditure (CAPEX).

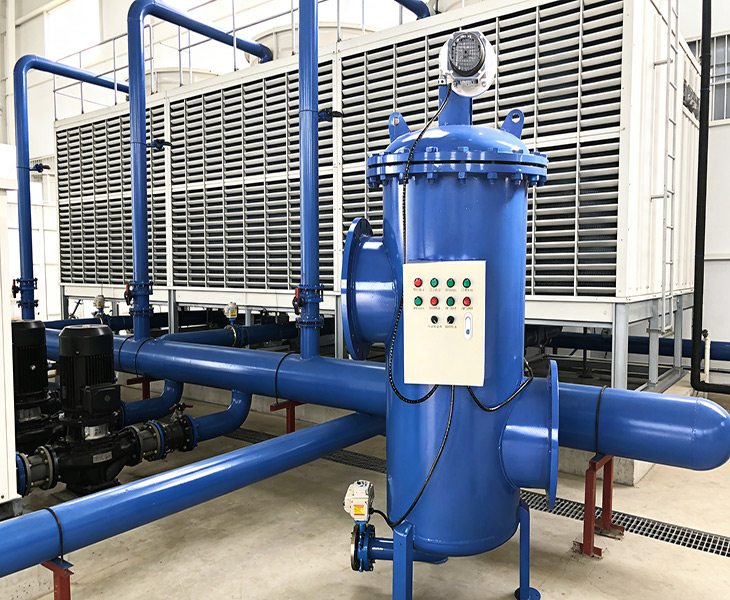

Backwash Filter for HVAC & Cooling Tower Water
In large HVAC systems, dust, algae, and suspended solids (TSS) in cooling towers can significantly increase energy consumption and shorten the life of the heat exchanger (PHE) FiltEdge offers a precision Side Stream Filter Auto Backwash solution.
We utilize V-Cross Section Stainless Steel Wedge Wire Technology with 25μm high precision filtration to effectively block over 98% of particles with no embedded contaminants. This reduces chemical dosing by approximately 20% and reduces system cooling energy consumption by 10% – 15%.
The core Powerful Cleaning Mechanism utilizes system pressure to powerfully strip away sticky dirt, occupying only 1% – 3% of the screen area to ensure Non-stop Process Flow, creating a truly unattended HVAC Backwash Screen Filter cleaning system. circulation system for a truly unattended HVAC Backwash Screen Filter cleaning system.

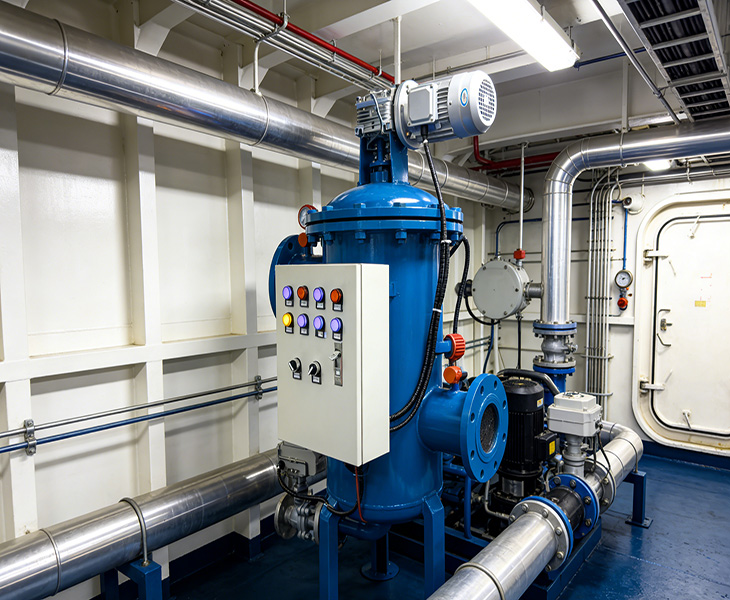

Backwash Filter for Marine & Offshore
Barnacles, gravel, and sea life are a deadly threat to your marine cooling system and ballast water treatment in corrosive seawater environments, and FiltEdge has built the Seawater Coarse Filter Backwash to be the most reliable offshore filtration solution for you.
We use SS316L or Super Duplex steel with a high-grade corrosion-resistant coating to ensure your filter lasts 3-5 times longer in saltwater immersion and salt spray environments. With the V-Wire wedge mesh design, your Auto Backwash Filter on Ship will always operate with a very low differential pressure (< 10KPa), helping you to effectively reduce system pumping energy and fuel consumption.
For your limited cabin space, our vertical compact structure saves you about 30% of floor space and greatly simplifies your ship’s piping arrangement. Combined with single-cycle backwash technology, your Backwash Screen Filter will run continuously 24/7, allowing you to sail through extreme sea conditions.

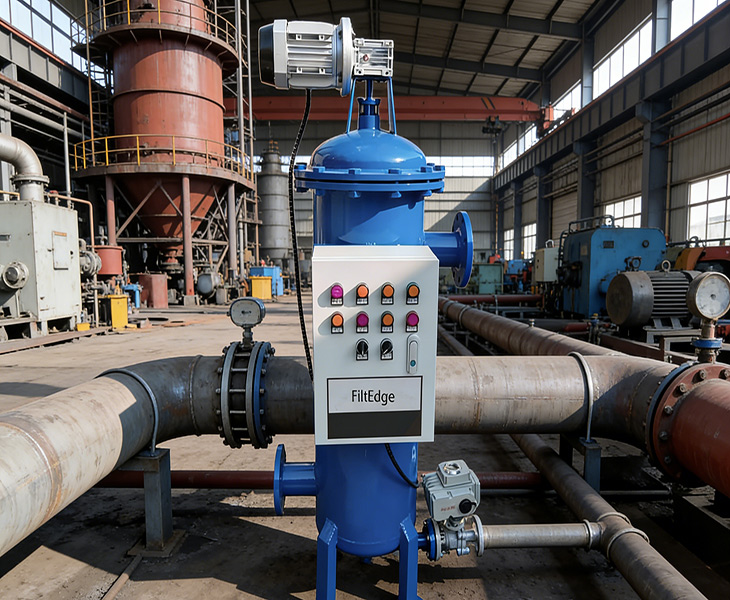

Backwash filter for Steel & Power Plant
Heavy sediment and abrasive particles in blast furnace cooling water can wear down pump impellers and clog heat exchangers, leading to costly unplanned downtime.
FiltEdge’s Industrial Sediment Backwash Filter is designed for your high-load conditions.
We use a high-strength, V-shaped Wedge Wire construction that accurately traps sediment, reduces contaminant wear, and extends the life of your filter by 2-3 times. The scanning, fully automatic self-cleaning mechanism effectively strips embedded contaminants from the deeper layers of the screen and eliminates the need for downtime, reducing your maintenance intervals by more than 30% and ensuring that your production line or genset is running at full capacity 24/7, dramatically reducing the amount of production lost due to maintenance.

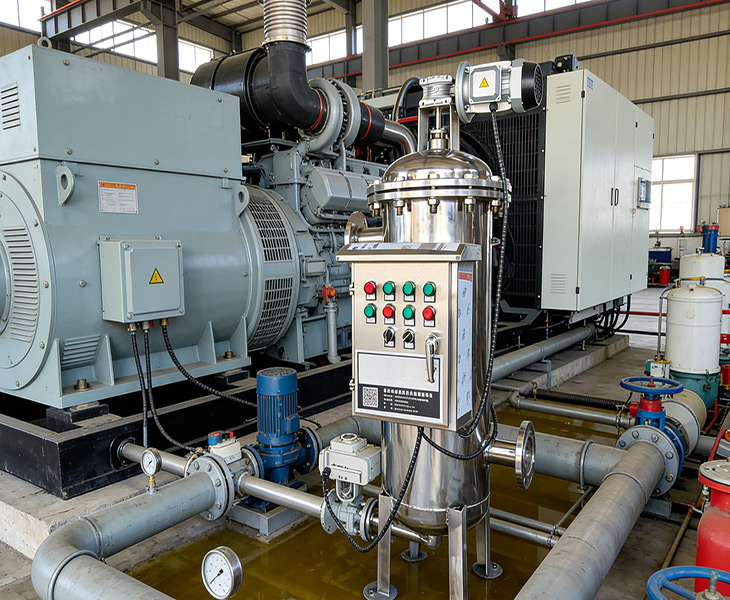

Backwash filter for Energy & Oil Filtration
In the operation of large generator sets, compressors or gearboxes, the accumulation of microscopic abrasive particles in the lubricating oil can severely wear precision bearings.
FiltEdge offers a specialized Lube Oil Auto Backwash Filter solution.
For the characteristics of high viscosity oil, we use high-strength Multi-layered Mesh technology and integrated intelligent control system, Backflush Filter can automatically identify the instantaneous pressure difference caused by oil temperature fluctuation to achieve effective cleaning, stabilize the system pressure, and ensure that the filter stably maintains a filtration accuracy of 25μm under pressure fluctuation.
Through efficient online purification, we can help you extend the service life of lubricating oil by 30% – 50%, and reduce the replacement of disposable filter elements by more than 80%, so that your energy system can realize truly long cycle and low cost operation.

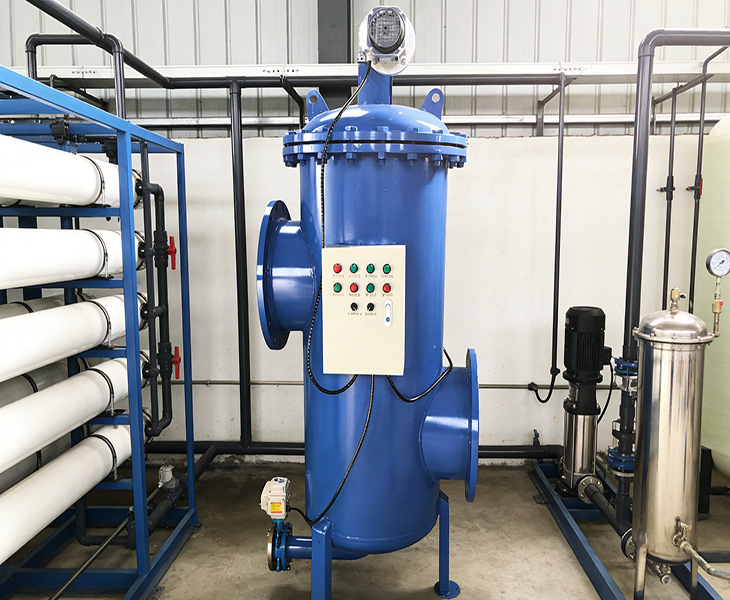

Backwash Filter for Wastewater Reuse
In municipal water reuse or industrial wastewater deep treatment, finely suspended solids (TSS) can damage expensive UF/RO membrane systems at the back end.
In FiltEdge’s Backwash Filter Water Treatment solution, we use a 25μm – 50μm high precision wedge mesh as a pre-treatment to accurately intercept fine particles and fibrous contaminants that can cause membrane contamination. This reduces the frequency of fouling and extends the life of your membrane modules by more than 30%.
With Continuous Backwash, we ensure that flow and pressure remain constant during filter cleaning, reducing CIP consumption by 15% – 20%, improving water recovery, and dramatically reducing your OPEX per ton of water.

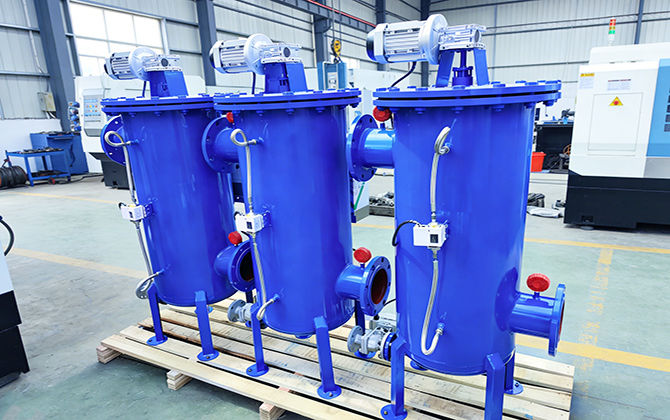

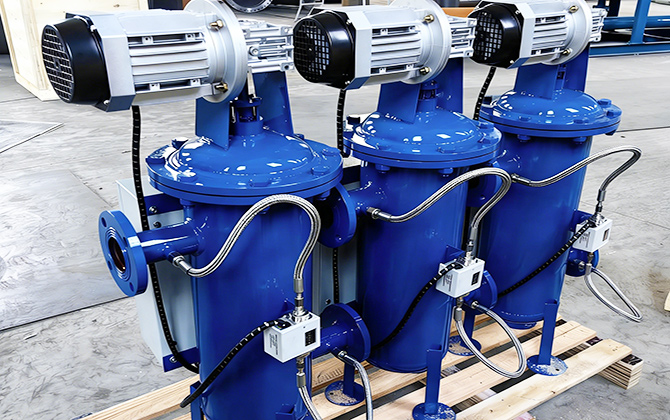

Why Choose FiltEdge Backwash Filter?
FiltEdge does not only produce Automatic Backwash Filter System for you, but also provides you one-stop service from design to after-sales, which is all from our precise manufacturing and strict testing.
- Production Strength and Delivery Speed
FiltEdge has 3600 square meters of its own factory, which is capable of producing 6000 filter systems per year. For non-standard customized backwash filters, we can deliver the products in 7 days to minimize the pressure on your schedule. With overseas warehouses in China and the United States, we can provide you with regular accessories for filter housings within 24 hours. - Engineering level technical support
From sample testing, condition analysis, equipment selection, to 1:1 CAD/3D design, our engineers are involved in the whole process to make sure the backwash filter can work in your process pipeline. - Stringent quality control process
Every Industrial Backwash Filter you receive must pass PMI chemical composition test, PT weld non-destructive flaw detection, and 30-minute 1.5 times the design pressure test, to ensure that the quality of your filter is 100% up to the standard, and remains stable and reliable under extreme high-pressure conditions, eliminating any risk of leakage. - International Standards and Global Service
Our backwash filters are ISO/CE/FDA certified and can be designed and manufactured according to ASME standards. After you receive the goods, in addition to 24-hour online remote guidance, we also support the dispatch of personnel to your site for installation, commissioning and personnel training services. - Flexible global trade
FiltEdge supports T/T, L/C, and Alibaba online payment to protect your money; as well as EXW, FOB, CIF, DDP and other global trade terms, which is a one-stop solution to your cross-border logistics and customs clearance problems.
Backwash Filter Parameter Technology
Every operating condition is unique. The following are standard technical specifications for automatic backwashing filters, and our engineers can support you with precise customized parameters based on your specific flow rates, pressures, and contaminant characteristics.
Special materials and coatings available upon detailed project technical review.
- Backwash Filter Parameter Technology
| Main model of filter | BCM400 | BCM500 | BCM600 | BCM800 | BCM1000 | BCM1200 |
| Filtering area (m2) | 1.56 | 2.64 | 4.05 | 5.91 | 10.45 | 15.72 |
| Number of filter elements | 10 | 18 | 26 | 33 | 49 | 64 |
| Volume (L) | 130 | 200 | 296 | 610 | 895 | 1695 |
| Size of inlet and outlet | DN150 | DN200 | DN250 | DN350 | DN400 | DN500 |
| Size of drain outlet | DN40 | DN65 | DN65 | DN80 | DN80 | DN80 |
| Applicable liquid | High flow, high speed, low viscosity ( 100mPas) impurity mass ＜ 1000ppm) | |||||
| Filtering precision | 25-2000μm | |||||
| Standard design pressure rating | 1.0MPa higher can be customized | |||||
| Design temperature | 0-200C (depending on seals) | |||||
| Cleaning differential pressure | 50-100KPa (determined by liquid viscosity) | |||||
| Differential pressure instrument | Differential pressure switch/pressure transmitter/differential pressure transmitter | |||||
| Inlet and outlet connection standard | Flange. HG20592-2009 (standard design) HG20615-2009 (compatible with ANSI B16.5): ON11851 round thread union | |||||
| Filter element series | MS | |||||
| Shell wetted material | 304/316L/CS, Special Alloys (Duplex/Hastelloy) upon request. | |||||
| Material of backwashing rotary arm | 304/316L | |||||
| Shell sealing material | NBR/EPDM/VITON/silicone rubber/FEP coated silicone rubber | |||||
| Filter element sealing material brigade | NBR/EPDM/VITON/silicone rubber/FEP coated silicone rubber | |||||
| Piston rod sealing material | NBR/PU /VITON | |||||
| Blowdown and slag discharge valve | Full bore pneumatic ball valve | |||||
| Single acting or double acting 304/316 | ||||||
| Utility supply requirements | 220V AC 0.4-0.6MPa clean dry compressed air for control system | |||||
| Surface Treatment | For Stainless Steel: Bead Blasting (Standard) or Mechanical Polishing/Electropolishing (Optional)
For Carbon Steel: High-performance Anti-corrosion Coating (Epoxy/Rilsan) or Galvanizing. | |||||
Seeking professional filtration solutions
Optimize your filtration process immediately, say goodbye to frequent screen clogging and costly manual maintenance, and increase your overall production capacity.
Contact FiltEdge’s application engineers, you can immediately get:
Exclusive Quote: Automatic Backwash Water Filter Quote for your application.
Technical Solution: Preliminary Auto Backwash Filter Diagram (CAD/3D drawing) within 24 hours.
Selection Support: Free condition analysis and filter accuracy recommendation from 10 years experienced engineers.
FiltEdge
FiltEdge’s Automatic Backwash Filter System has a recommended start-up differential pressure of 0.05-0.1MPa, which ensures a balance between Filter Ripening and cleaning efficiency for you.
No.
FiltEdge’s BCM Series Backwash Filter supports Automatic Online Backwash, which allows your filter to take up only a very small portion of the tributary flow during backwash, while over 95% of the remaining area remains in normal filtration, ensuring that your Constant Process Flow is not interrupted.
Our team of professional engineers will provide you with an accurate calculation of Volume of Backwash Water Required based on your system pressure. Based on FiltEdge’s 20 years of experience in the industry, the volume of backwash water required is usually only 0.1% – 0.5% of the total treatment volume.
Our Automatic Backwash Water Filter typically requires a system pressure of at least 0.2-0.3MPa to ensure that the backwash mechanism can generate enough suction to remove contaminants. If the pressure is too low, we can provide you with pressurized model selection support.
FiltEdge, as a professional China Auto Backwash Screen Filter Factory, we offer a wide range of micron ratings from 25μm to 2000μm, and we can provide you with selection suggestions based on your Particle Size Analysis.
FiltEdge’s BCM series has a consumable-free design, and the core Stainless Steel wedge filter does not need to be replaced regularly, which saves you a lot of money on cartridge purchases. The seals (O-rings) only need to be inspected and replaced once every 12-18 months. Depending on your operating conditions, the drain valve and pressure sensor should be inspected every 2-3 years. In short, the BCM series is a very cost-effective Industrial Backwash Filter System.
