What is FiltEdge’s Industrial Filter Housing?
Industrial Filter Housing is also known as Filter vessel. it is the pressure vessel in a filtration system that holds the filter bags/cartridges and directs the flow of slurry through the filter media to remove impurities.
In your production line, Industrial Filter Housing eliminates particles and impurities from liquids to ensure the purity of your products; in addition, it acts as a pre-filtering process to prevent equipment downstream of your production line from being damaged and clogged. It is widely used in petroleum, chemical, pharmaceutical, food, automobile manufacturing, electronic chip and other industries.
FiltEdge offers Industrial Filter Housing in a wide range of materials from PP, PVDF, Carbon Steel and Stainless Steel (SS304/SS316), which can easily cope with high flow rates from 175GPM to 5000+GPM. According to your actual working conditions, we will customize a cost-effective and more suitable filter housing for you.
Industrial Filter Housing Types
FiltEdge offers a wide range of bag/core/full-automatic Industrial Filter Houses to fit your production needs. If the following few product recommendations do not meet your needs, please let us know your working conditions, we will do the selection analysis for you to make a customized design that better meets your process needs.

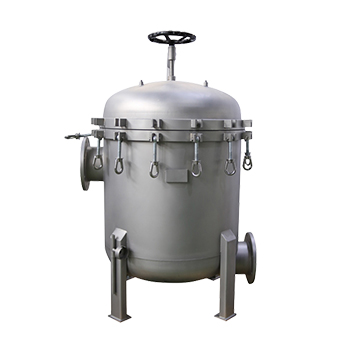

1-32 bags specially designed for various flow rates, quick-open/clam-open/swing-arm opening and closing, easy to change bag and maintain, shorten downtime
It can reach 0.1μm high precision, supports 200-cell large capacity customization, and produces high purity liquids for you under very low pressure drop.

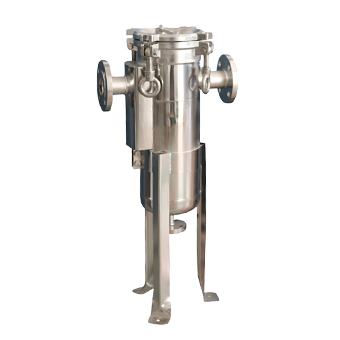

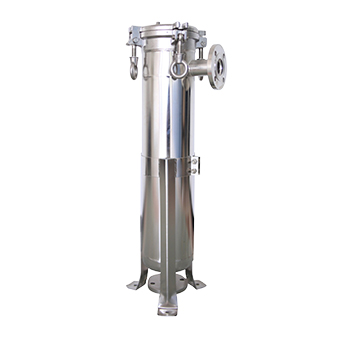

With inner wall Ra < 0.4μm electrolytic polishing, no dead space design, GMP/FDA compliant. Eliminate bacteria breeding, guard your food and medicine production safety.
Adopts Silicone seal and food grade 316L material, eliminating side leakage, protecting your food safety.

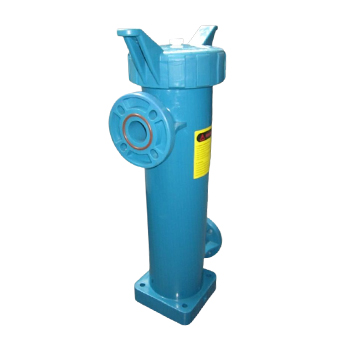

It is made of PP or PVDF one-piece molding material, corrosion-resistant, providing cost-effective filtration solutions for your harsh working conditions.
SS361 premium material, strong and durable up to 20 years long life, for you to reduce the overall cost.

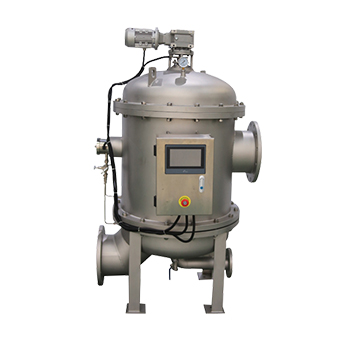

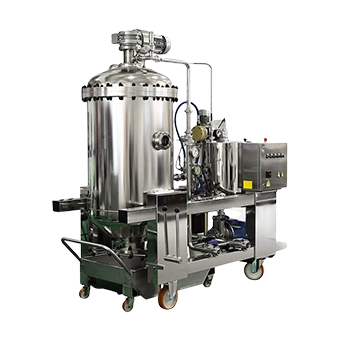

Intelligent differential pressure control, automatic recovery of filter elements without downtime, allowing your production line 24 hours of continuous production.
PLC intelligent control, fully automatic filtration, cleaning and slagging, avoids contamination from cover opening, helps production line meet industry compliance.
Features and Advantages of Industrial Filter Housing
FiltEdge provides high-performance Industrial Filter Housing to exacting standards, ensuring that your production line runs smoothly and produces high-quality fluids.
PP/PVDF/SS304/SS316/Carbon steel materials are available to suit your various working conditions, making your filter highly durable and saving your overall cost.
FiltEdge’s Industrial Filter Housing’s accessories are compatible with international standard/FSI standard filter bags and cartridges, making it easy for you to replace the accessories and reduce maintenance costs.
We offer Industrial Filter Housing from 1000μm coarse filtration to 0.1μm high accuracy, matching your various filtration process needs and providing you with high quality products.
It can withstand high pressure working pressure from 6 bar to 25 bar, which makes your production line run stably under high pressure environment and improves production safety for you.
Support 175 GPM to 5,000+ GPM capacity, making it easy to cope with large volume of flow and improve your productivity.
Offer a fully automatic cleaning system or 15-second quick-open structure that can be operated and maintained by only one person, saving you time and labor and reducing downtime.
The integrated skid modularity is plug-and-play, shortening your installation and commissioning time and helping you to quickly open your production window.
Support sandblasting, electrolytic polishing, PTFE coating, and pickling passivation for a wide range of applications, from heavy duty to food and pharmaceutical grade.

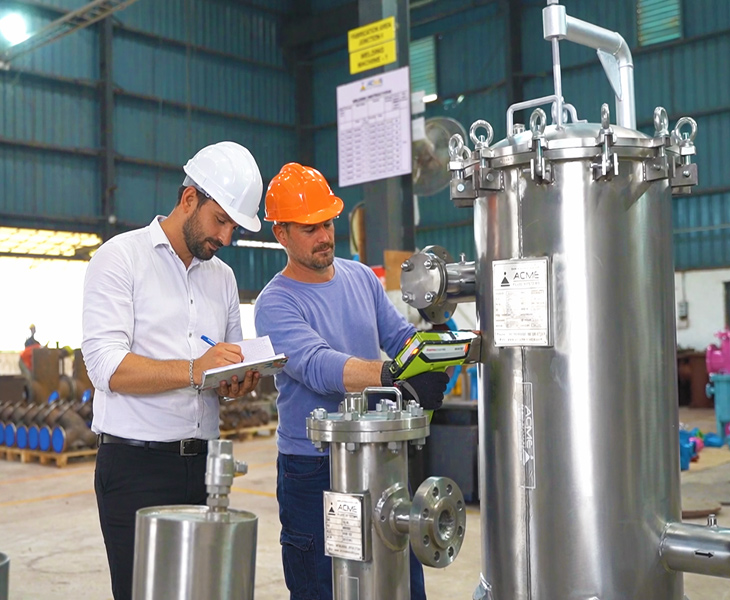

Industrial Filter Housing Factory Quality Inspection
Before leaving the factory, each of your Industrial Filter Housing will be subjected to a strict quality inspection test.
- 30 minutes of 1.5 times water pressure test, to ensure that your Filter Housing can withstand instantaneous pressure peaks, so that your production line can still run smoothly under high-pressure environment.
- Air tightness testing of your Filter through air pressure to ensure zero bubble leakage of O-ring, 100% making your Filter realize 0 leakage and avoiding potential safety hazards.
- Conduct deep scanning of your filter’s weld seams by means of PT inspection to exclude leakage of welds, cracks, etc. and ensure the durability of your filter.
- Conduct roughness test on the surface of your filter to achieve your required precision, such as Ra <0.4μm, to ensure that your production line can easily pass the GMP or FDA requirements.
Certifications for Industrial Filter Housing
FiltEdge has 22 patented filter technology certifications, such as auto-drain technology, patented lid opening structure, and patented scraper, allowing you to use the latest technology of Industrial Filter Housing to improve your productivity and product quality.
In addition, our liquid filters have ISO, CE and FDA approvals for the food industry. We also have the ability to design and manufacture filtration systems for you in accordance with ASME standards, making it easy for your company to meet local regulations and industry compliance.

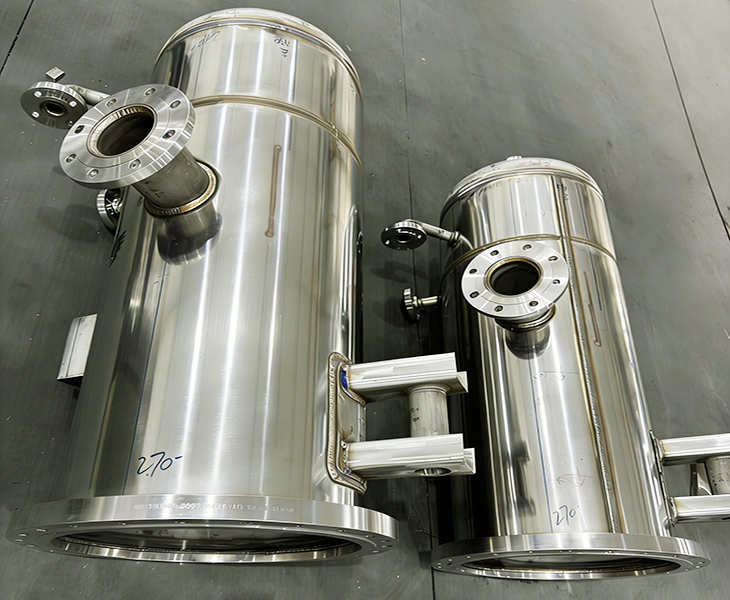

Customized Industrial Filter Housing
FiltEdge can customize your Industrial Filter Housing to better match your production process, given that your production environment, piping, and process standards are different from those of other customers. The customization is as follows:
- We adjust the filter size, interface position (opposite side/same side/bottom out), flange standard, without your investment to modify the plant or piping position, to ensure that your filters can be put in place to start production, saving costs.
- For your special process, we can customize materials and seals to enhance the performance of the filter, so that your filter can withstand high temperature, high pressure, and strong corrosive working conditions.
- We provide fully automatic backwashing, pre-coating additives, zero residual liquid discharge and filter residue recycling and other customized combinations of functions, so that your production line process can be comprehensively upgraded to achieve unmanned operation and 24-hour continuous operation.
Why Choose FiltEdge’s Industrial Filter Housing?

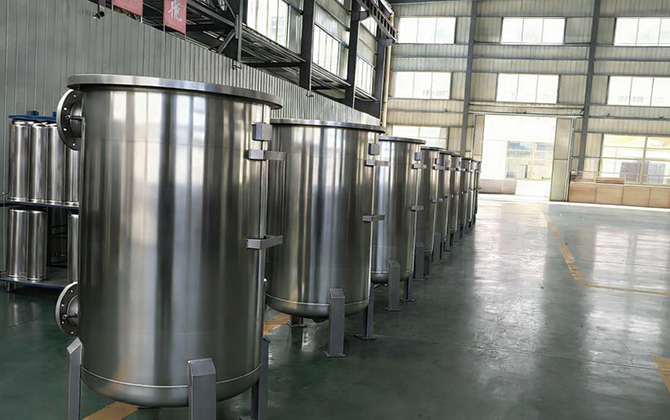

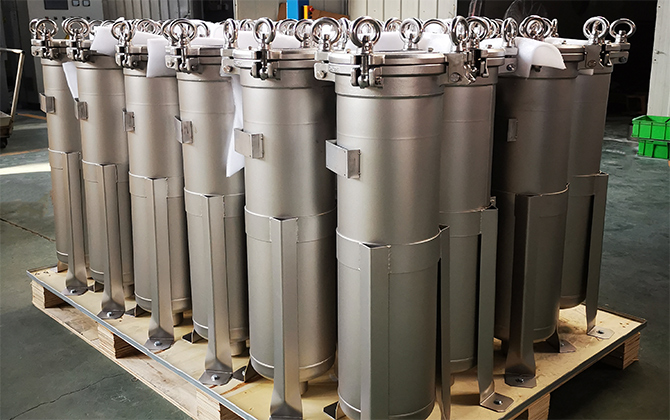

FiltEdge has a production base of 3600 square meters and an annual production capacity of 6000 units of Industrial Filter Housing. Relying on the warehouses in China and the United States, we can realize 24-hour delivery of regular filtration products and accessories for you. For complex non-standard filter requirements, we can shorten your waiting period for production by taking only 7 days from selection and analysis to delivery of the filter housing.
We provide laboratory sample analysis, 24-hour technical support, and on-site installation and training by overseas engineers, which are the cornerstones of trust that have enabled us to achieve cooperation with customers in more than 100 countries.
Every Industrial Filter Housing you receive from us is subjected to our rigorous quality control. We utilize our complete production line and 20 years of experience in the filtration industry, not only to be your industrial filter housing supplier, but also a strategic partner for the stable operation of your production line.
Industrial Filter Housing Customer Case & Application

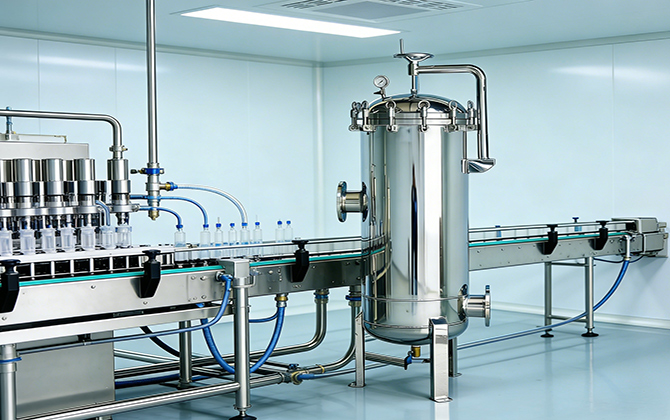

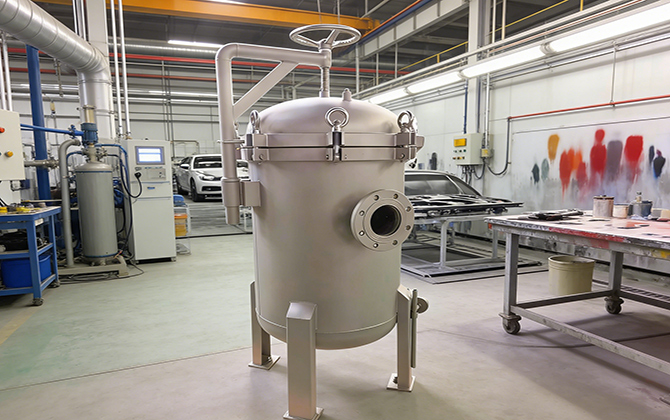

FiltEdge’s industrial filter housing can be used in a wide range of industries such as pharmaceutical, biotechnology, industrial coating, food and beverage, fine chemical, petrochemical, water treatment, electronics and semiconductor, helping you to improve productivity and reduce overall costs.
Our customer’s original Industrial Filter Housing was aging and needed replacement filters. They needed end-of-line filtration for their LVP (Large Volume Parenteral), and told us “The filters need to have no dead space inside and be able to withstand frequent steam autoclaving (SIP).
We use 316L stainless steel to make the filter housing, and the internal surface is mechanically polished to 0.4 μm, which is 100% in line with GMP aseptic hygiene requirements.
We were informed by the customer that our industrial cartridge filter housing helped them to reduce the amount of liquid residue and save about 4 liters of expensive liquid per batch. The EPDM seals were not deformed and did not leak under the daily 120℃ high temperature sterilization operation, which ensured the safety of their production line.
Finally, it is made into a rocker arm design, so that one person can open the heavy top cover, avoiding the risk of injury to employees, but also shortening his downtime for bag change from 30 minutes to 5 minutes.
Industrial Filter Housing Design Specifications
FiltEdge offers a wide range of industrial filter housing, and the styles shown below are not exhaustive. If you need specific style information, please contact us, we will serve you within 24 hours.

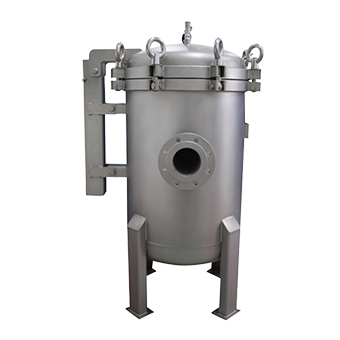

- Industrial Bag Filter Housing

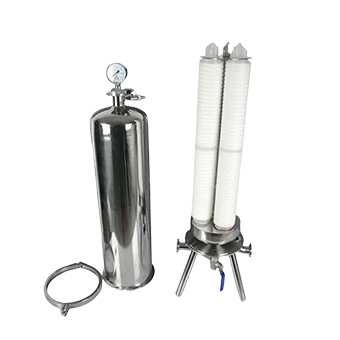

- Industrial Cartridge Filter Housing
- Industrial Candle Filter Housing
| Item | Specification |
| Number of Filter Bags | 3 / 4 / 5 / 6 / 8 / 12 / 17 / 23 bags |
| Material | Stainless Steel (SS316 optional), high-quality O-ring |
| Opening Method | Quick-opening, vertical cover, gravity-assisted, single-finger operation |
| Replacement Time | ≤15 seconds ON/OFF quick filter bag replacement |
| Design Pressure | 0.6–1.6 MPa (6–16 bar) (Optional higher customization: 10–25 bar high-pressure model) |
| Operating Temperature | -20°C to 120°C (EPDM); up to 150°C (PTFE/Viton) |
| Filtration Rating | 1 – 1000 μm optional (commonly used 1 / 5 / 10 / 25 / 50 / 100 μm) |
| Bag Size Compatible | #1 (7“ × 16”) / #2 (7“ × 32”) International Standard / FSI Standard Filter Bag, other sizes available upon request |
| Flow Capacity | 175GPM to 4000+GPM (depending on bag quantity and media viscosity). |
| Inlet & Outlet Connection | Flange/Threaded/Clamp/Custom Orientation Standard Orientation Options: Side→Bottom/Side→Side/Top→Bottom |
| Design Standard | ASME Section VIII Div.1 / CE-PED / GB150 |
| Application | High-impurity liquid filtration, industrial liquids, chemical processing, pharmaceuticals, food and beverage |
| Features | – Quick filter bag replacement – Safety chain + balanced lid opening assistance – Multiple units can be installed in parallel – Saves pipeline space – Boosts production efficiency and reduces labor costs |
| Special Features | Modular / Parallel installation possible, High-efficiency filtration, Reduced downtime |
| Item | Cartridge Qty | Length | Vessel Diameter | In/Out |
| SCF-1 | 1 Round | 10″ – 30″ | Φ102 | 1″ – 1.5″ |
| SCF-3 | 3 Round | 20″ – 40″ | Φ168 | 1.5″ – 2″ |
| SCF-5 | 5 Round | 30″ – 40″ | Φ219 | 2″ – 2.5″ |
| SCF-7 | 7 Round | 30″ – 40″ | Φ250 | 2.5″ – 3″ |
| SCF-12 | 12 Round | 40″ | Φ350 | 3″ – 4″ |
| SCF-Custom | Up to 200 | Customizable | Up to Φ1500 | Flange / Tri-clamp |
| Design Pressure | 150 PSI (10 bar) Standard / Up to 360 PSI (25 bar) High Pressure. | |||
| Sealing Material | EPDM, Viton, Silicone, PTFE. | |||
| Cartridge Socket | DOE (Standard), 222/Fin, 226/Flat. | |||
| Filtration Precision | 0.1μm – 100μm. | |||
| Design Standard | ASME VIII-1 / GB150 / CE-PED compliant. | |||
| No. | Product Model | Filter area (m²) | Dimension (mm) | Filter media size(mm) | Quantity of Filter Media (pcs) |
| 1 | DCF-1 | 1 | ф377*1600 | ф60*760 | 7 |
| 2 | DCF-2 | 2 | ф450*2000 | ф60*1070 | 10 |
| 3 | DCF-3 | 2 | ф450*2500 | ф60*1600 | 10 |
| 4 | DCF-5 | 5 | ф550*2400 | ф60*1400 | 19 |
| 5 | DCF-8 | 8 | ф700*2500 | ф60*1520 | 29 |
| 6 | DCF-10 | 10 | ф700*3500 | ф60*1830 | 29 |
| 7 | DCF-15 | 15 | ф900*3500 | ф60*1830 | 44 |
| 8 | DCF-20 | 20 | ф900*3500 | ф60*2450 | 44 |
| 9 | DCF-30 | 30 | ф1250*4500 | ф86*2300 | 49 |
| 10 | DCF-45 | 45 | ф1500*4800 | ф86*2600 | 64 |
| 11 | DCF-60 | 60 | ф1800*5000 | ф86*2600 | 86 |
| 12 | DCF-80 | 80 | ф2000*5500 | ф86*2800 | 108 |
| 13 | DCF-100 | 100 | ф2200*5500 | ф86*2200 | 172 |
| 14 | DCF-120 | 120 | ф2200*6000 | ф86*2600 | 172 |
| 15 | DCF-150 | 150 | ф2500*6400 | ф86*2600 | 214 |
Contact Us
Do you want to reduce your operating costs by 15%?
Come see which of our 100+ industrial filter housings is best for your process.
FiltEdge
Available.
While we standardly offer industrial filter housings with flange connections, we can also customize industrial SS water filter housings with NPT connections (1“ to 3”) so that you can connect the filter housing to your existing American style piping system.
Our industrial fuel filter housing and external filter housing for industrial oil have reinforced inner baskets and can withstand high pressure up to 2.5MPa. They can handle the high viscosity fluids and heavy particle loads common in oil for you.
FiltEdge as an industrial filter housings manufacturer, we offer factory price industrial filter housings for wholesalers . Ensure that you get CHEAP industrial filter housings with premium quality.
FiltEdge’s industrial grade liquid bag filter housings are available in stainless steel with PTFE/PVDF liners and are designed for harsh environments to resist strong acids and corrosive industrial processes.
