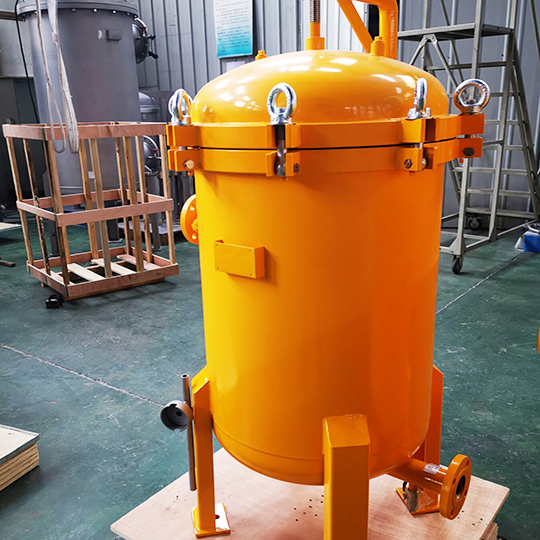

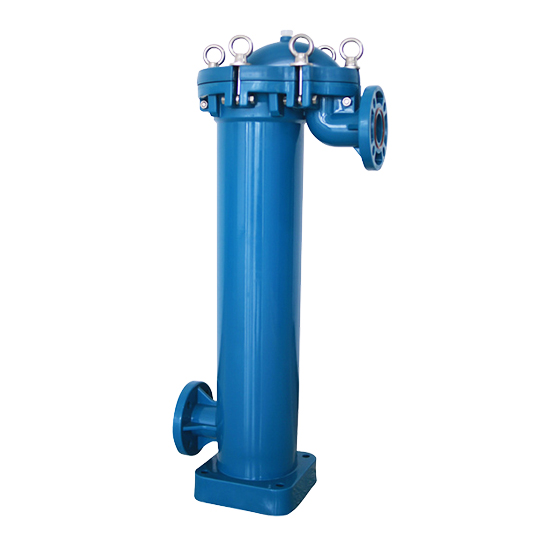

FiltEdge’s Filter Vessels Manufacturing Standards
Leakage Control: Provides you with a finish-flat groove seal that keeps your line leak-free, even under high-pressure fluctuations.
Pressure Safety: Strictly perform hydraulic pressure stabilization tests at 1.5 times the design pressure for you, and define structural strength in accordance with ASME standards to eliminate your safety hazards.
Material Quality: MTC certified stainless steel is selected for you and combined with pickling and passivation of the entire line to eliminate material adulteration and avoid secondary contamination of your system.
What is FiltEdge’s Filter Vessels?
FiltEdge’s Filter Vessels, also known as Filter Housing or Filter Casing, are the heavy-duty pressure devices in your filtration system that hold the filter media and keep your process safe.
We offer precision filtration options from 0.1μm to 2000μm that not only withstand aggressive and high-temperature fluids, but also precisely match your existing piping with flanged, threaded, or sanitary connections. Optimized flow path design effectively reduces pressure drop, helping you cope with high-flow conditions with ease.
Whether you’re treating large-scale industrial water, refining high-value chemicals, or ensuring the purity of your food and beverage, the FiltEdge maintains consistent filtration even with fluctuating flow rates.

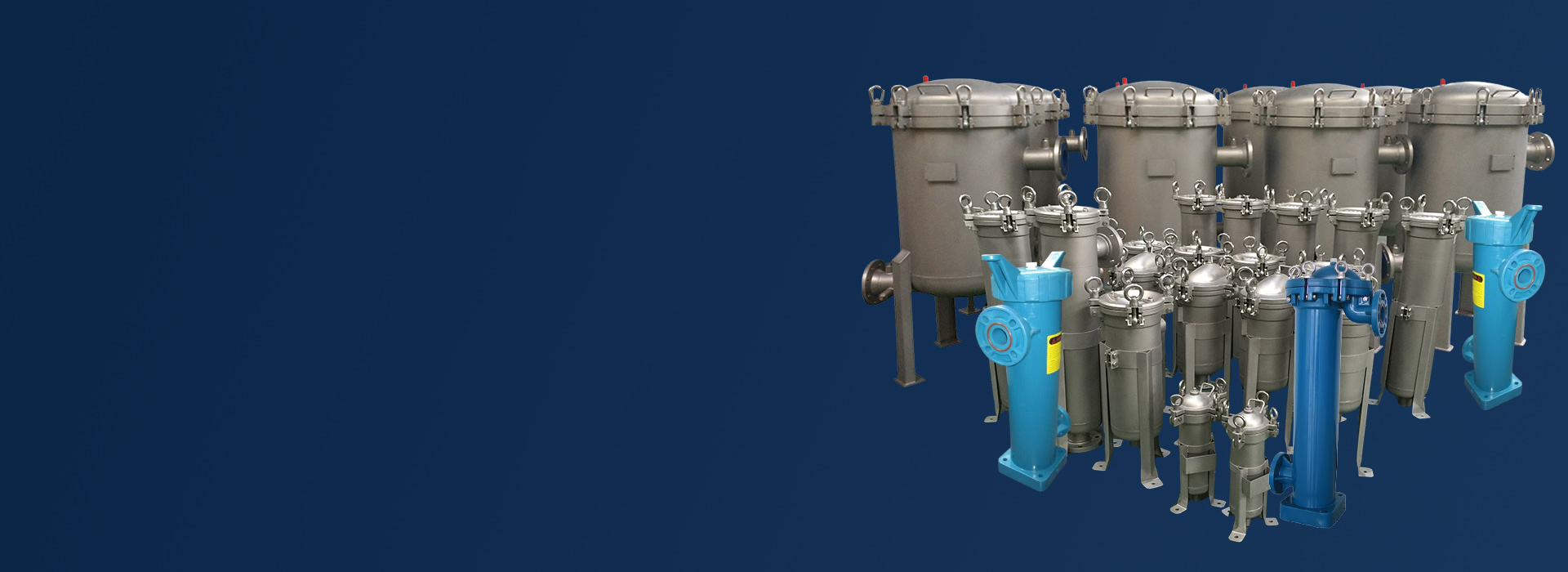

Filter Vessel Selection & Types
Whether you’ re handling high volumes of industrial water, fine chemicals, or complex oil/water separations, FiltEdge’s line of Filter Vessels can help you quickly find the right fit for your piping and pressures.
And if standard sizes don’t fit, our engineers can customize filter vessels for your specific process.

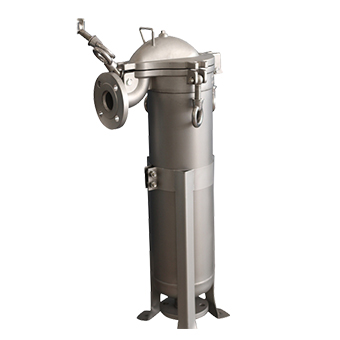

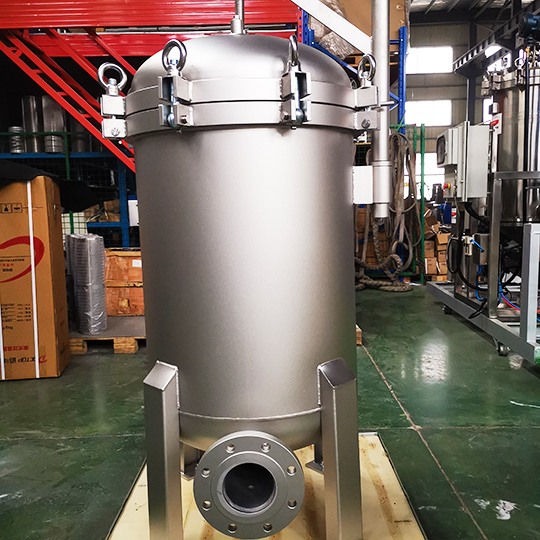

With a flow rate of 15-40m³/h, support for higher pressures (>1.0MPa) and top entry construction, this is a compact choice for your intermittent production.

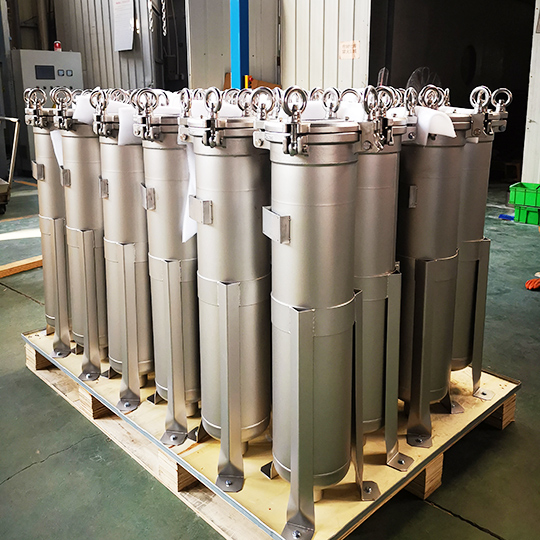

2-32 bags are available with flow rates of 1000 m³/h or more. The quick-open swing-arm design significantly reduces your maintenance effort during continuous high-flow operation.

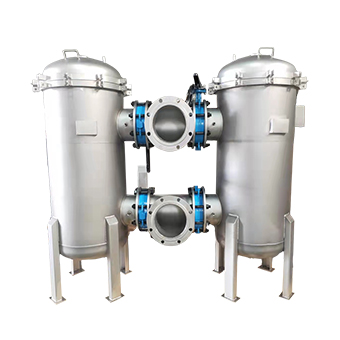

Connecting two vessels in parallel via a switching valve lets you change the filter bag without stopping production for zero downtime.
With an accuracy of 0.5 μm and a mirror finish with a Ra < 0.4 μm, they are fully compliant with ASME standards and guarantee the cleanliness of your fine chemical processes.

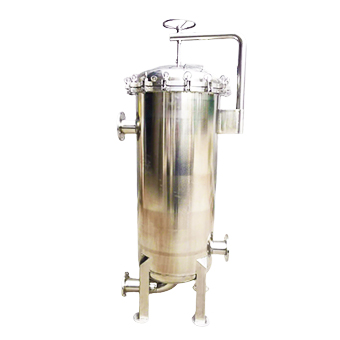

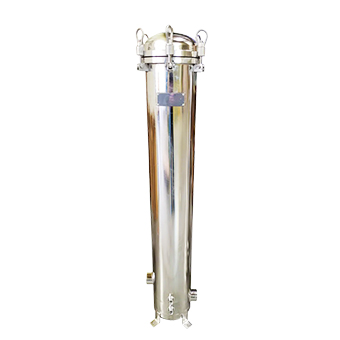

A single cartridge can provide more than 20 times the flow rate of a conventional cartridge (up to 80 m³/h). This allows you to handle a larger flow rate in a smaller tank, saving you space and maintenance time.

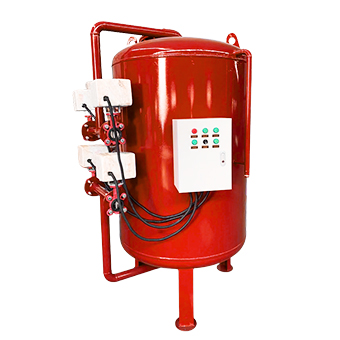

Heavy-duty pressure vessel designed to decolorize and deodorize your pre-treatment process, laying the foundation for your subsequent precision filtration.

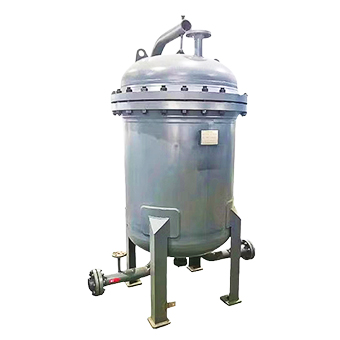

For your oil-water or gas-liquid separation needs, the built-in precision coalescer internal parts provide you with pure media output even under complicated working conditions.
Filter Vessels Process
Heavy-Duty Support Basket

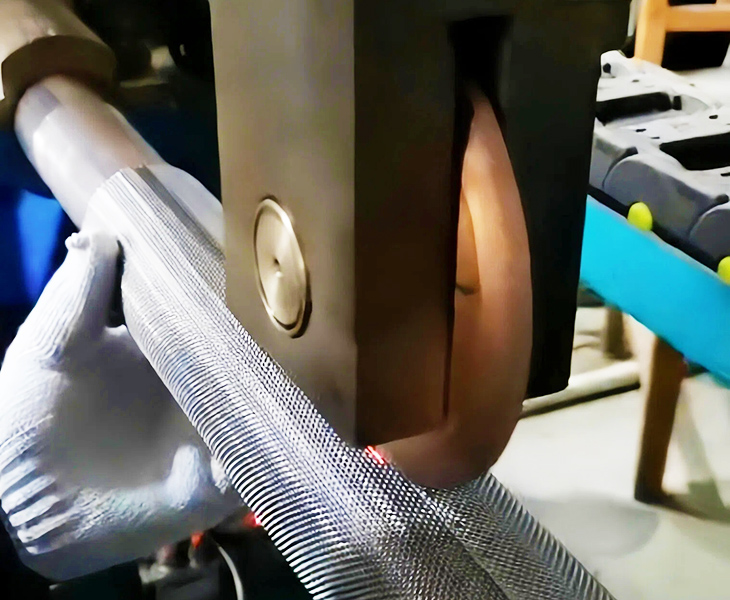

We understand that poor quality baskets are susceptible to deformation under pressure fluctuations, which can lead to accidental rupture of your filter bag. For high pressure differentials, FiltEdge uses 2.0mm thick SS316L punched and molded into a single piece with a rigorous surface polishing and deburring process. This rigid structure provides solid support for your filter bag, eliminating the risk of breakage and extending the life of your consumables at the source.

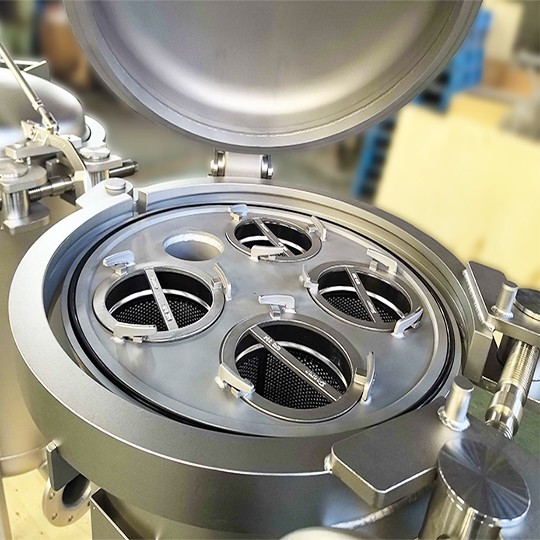

Positive-Seal Hold-Down Ring
Precision manufactured stainless steel three-jaw/ring hold-down mechanism. The vertical weight of the lid closure, combined with the “positive pressure” of the fluid itself , forces the filter bag collar to fit 100% against the base, providing you with the ultimate seal with zero bypass leakage.

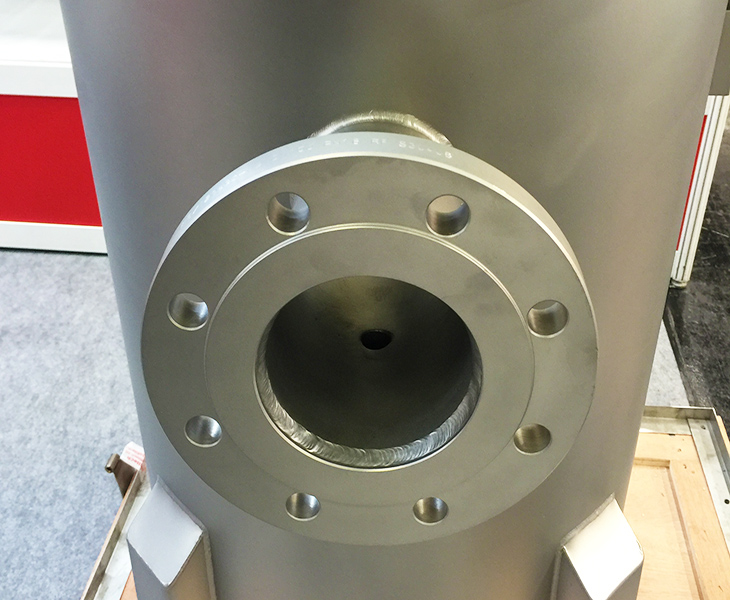

Customized Filter Vessels Interfaces
Piping in industrial sites varies greatly, and mismatched equipment means delays and additional retrofit costs. As a manufacturer, FiltEdge offers 100% flexibility in customizing interfaces, ensuring that Filter vessels can be seamlessly integrated directly into your existing piping system at .
Versatile Standards: Whether your system utilizes ANSI (American Standard), DIN (German Standard), or JIS (Japanese Standard), we can match it.
Connections: Industrial flanges, sanitary Tri-clamp (quick release), and high-seal NPT/BSP threads are available.
Flow layout: Side-in, Bottom-out, Side-in-Side-out or Bottom-in-Bottom-out. All you need to do is provide the drawings and we will do the rest of the structural optimization.
Quality Control and Testing for Filter Vessels

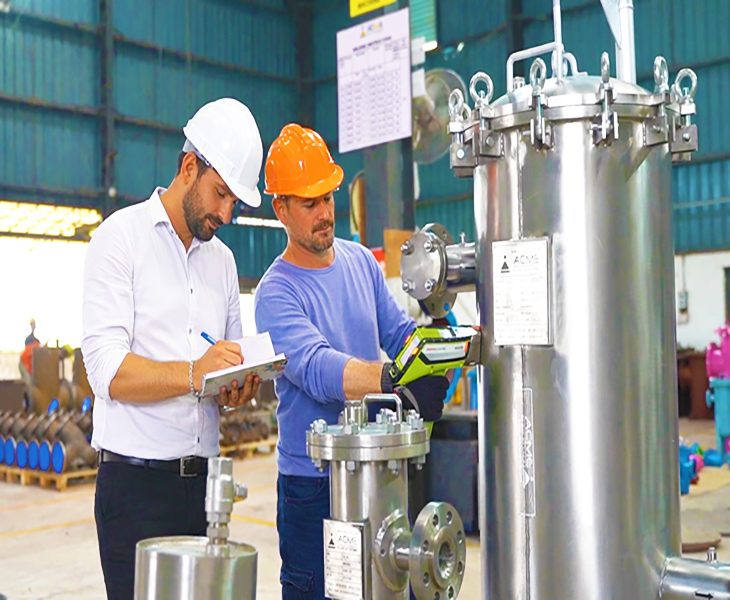

Safety and leak tightness are the bottom line for pressure filter vessels, and every unit from FiltEdge goes through a rigorous and standardized testing process before delivery to ensure that it meets the requirements of your application:
Penetrant Testing (PT): Penetrant testing is performed on all critical weld seams. Our specialized coloring process captures any subtle surface openings and ensures that you get a structurally sound shell with tight welds.
1.5x Hydrostatic Strength Testing: Every filter vessel is pressure tested for a minimum of 30 minutes at 1.5 times the design pressure. We keep pressure curves or test records for you to ensure that the pressure safety of the filter vessel is not in doubt on your production line.
Ra Surface Roughness Measurement: For demanding industries such as pharmaceuticals and food, we offer a mirror polishing service with a Ra value report (up to Ra < 0.4μm). This helps you to effectively avoid material walling and eliminate the risk of secondary contamination.
Why Choose FiltEdge’s Filter Vessel?

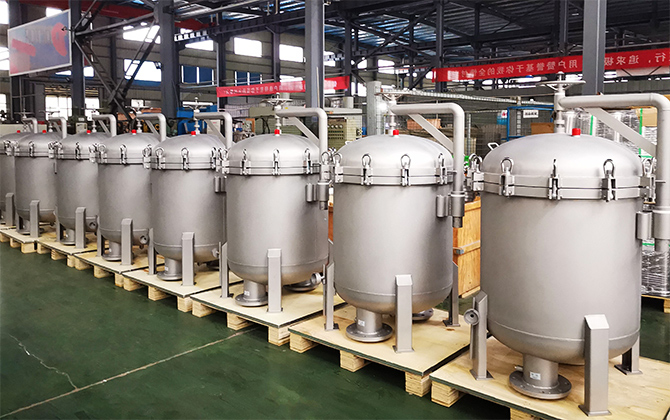

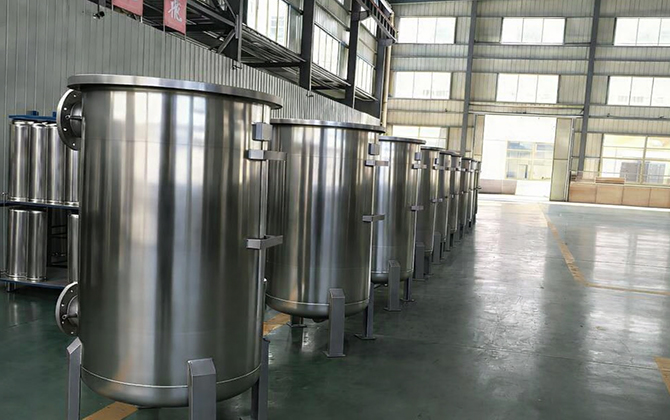

We provide you with a solid technical guarantee with our 20 years of industry accumulation and 3600 square meters of physical factory. Our annual production capacity of more than 6,000 filter vessels not only ensures consistent quality, but also gives us the ability to fulfill your non-standard customization needs within 7 days. Whether you need ISO, CE, or FDA certifications to meet stringent compliance requirements, we can provide a complete set of endorsements. With our “China factory manufacturing + US warehouse distribution” model, we can ship parts and accessories within 24 hours and support a wide range of settlements from TT, LC to AliPay, as well as full trade terms such as EXW, FOB, CIF, and even assist you with the complex customs clearance process. If you are worried about after-sales service, our remote technical support and overseas dispatch staff can come to your home at any time to carry out installation and maintenance training, in FiltEdge you can realize the real one-stop shopping with no worries.
Industry Applications of Filter Vessel
Filtration is not just about stopping contaminants, it’s about keeping your entire production line running efficiently, and FiltEdge has the right materials and construction solutions for the energy and chemical, bio pharmaceutical and food, electronics and plating, automotive and paint, and municipal and environmental industries, to name a few.
Faced with challenging corrosive environments such as strong acids and alkali, FiltEdge can provide special fluorine lining (PTFE/PFA Lining) or high grade alloys according to the composition of your media, completely solving the downtime hazards caused by corrosion perforation.
In reverse osmosis (RO) system fore-hearths, where unstable water quality can quickly destroy expensive membrane modules, the FiltEdge high-flow filtration system is designed for high throughput conditions, providing a precise retention barrier for your RO membranes through an extremely low initial system pressure drop and a high dirt-trapping space. Ensuring that the fluid entering the membrane module meets stringent SDI specifications significantly extends the cleaning cycle and life of expensive membrane elements.
Sanitary corners are a breeding ground for bacteria. We provide you with FDA-compliant, fully polished vessels with an internal Ra < 0.4 μm that are easy to CIP clean and meet the most stringent food safety compliance requirements at every step of your production.
For highly viscous liquids and volatile media, our quick-open cover design dramatically reduces your downtime for cleaning. Positive sealing ensures that every drop of your finished product is never wasted, even when working with high-value coatings.
Technical Parameters of Filter Vessel
To assist you in selecting Filter Vessels, we have summarized the core technical parameters and design highlights of the vessel. If your application involves special parameters such as ultra-high pressures, extremely high temperatures, etc., please contact our engineering team directly for a customized solution.
- Technical Parameters of Filter Vessel
| Parameters | Standard Specifications | Design Highlights |
| Housing Material | SS304, SS316L, Carbon Steel, Alloy, PVDF, PP | Optional PTFE/PFA lining for extreme corrosive media. |
| Max. Flow Rate | 1 m³/h – 1000 m³/h+ |
Depending on the viscosity of your fluid, we offer sizes from single to multiple bags (up to 32 bags) to ensure that the flow rate meets the process requirements. |
| Design Pressure | 0.6 MPa – 2.5 MPa (Customizable) | Factory tested at 1.5x hydraulic strength. |
| Design Temperature | -20°C to 150°C (Standard), up to 200°C (Special Alloy) | Jacket designs are available for high-temperature thermal oil or ultra-low-temperature applications. |
| Connection Standard | ANSI, DIN, JIS Flanges / NPT, BSP / Tri-clamp | Supports customization of non-standard interfaces according to your existing piping drawings. |
| Filter Rating | 0.1 μm – 1000μm | Non-automatic filters are compatible with FSI and international standards for bag, core or high-flow elements. |
| Seal Material | Viton, EPDM, Silicone, PTFE Encapsulated | Precisely matched to media temperature and compatibility |
| Surface Finish | Glass Bead / Sandblasted / Mirror Polished/Pickling & Passivation | Hygienic grade up to Ra < 0.4μm |
| Closure Type | Manual : Swing Bolt / Quick-open/Davit Arm | A Davit Arm option is available to solve heavy-duty lid opening problems on large vessels. |

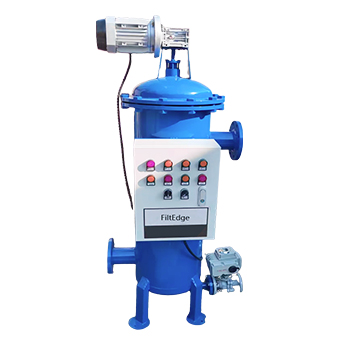

| Automatic:Self-cleaning | The fully automatic series supports differential pressure monitoring for automatic backwashing/drainage, eliminating the need to manually open the lid to replace consumables. | |
| QC Testing | PT (Penetration Testing) / Hydrostatic Test | Supplied with a complete Material Tracking Report (MTR) and Pressure Test Report. |
| Vent & Drain Connections | NPT/BSP Threaded (Standard) | The standard exhaust valve and drain valve interface ensures that you can achieve a safe pressure relief and full emptying of material when replacing the filter bag. |
Now Match Your Conditions with a More Durable Filter Vessel
Simply provide your specific flow and media parameters and our engineers will match you with the most durable Filter Vessel solution within 24 hours. Click the button below or give us a call to help you improve your line’s filtration efficiency and get your own technical advice today!
FiltEdge
A: Absolutely. Our Single Bag Filter Vessel and Multi-Bag Filter Housing are designed to replace Eaton and FSI Filter Vessels. Our Stainless Steel Filter Baskets follow strict international standards and are a perfect match for Pall O-ring or Pall FSPN Housing. ring or Pall FSPN Housing, ensuring that your existing consumables can be used seamlessly.
Filter Vessel Sizing depends primarily on your flow rate, fluid viscosity, and desired Filter Rating, and you can refer to our Filter Vessel Size Chart to select a standard model. For accurate Filter Vessel Design Calculation, our engineers will take into account the maximum allowable pressure drop (DP) to ensure that the Filter Vessel Sump has enough capacity to handle contaminants without causing frequent clogging.
A: Yes, FiltEdge offers Refinery Filter Vessels and High Pressure Filter Vessels for refinery applications in Titanium or 316/304 Stainless Steel . This is sufficient to meet the challenges of Oil Filter Vessels and Water Filter Vessels in heavy industrial environments.
A: Yes. We can pre-install Filter Vessel DP Gauges for real-time monitoring and customize the Filter Vessel Sump to meet your actual discharge needs, making discharge operations easier when dealing with heavy pollutants.
