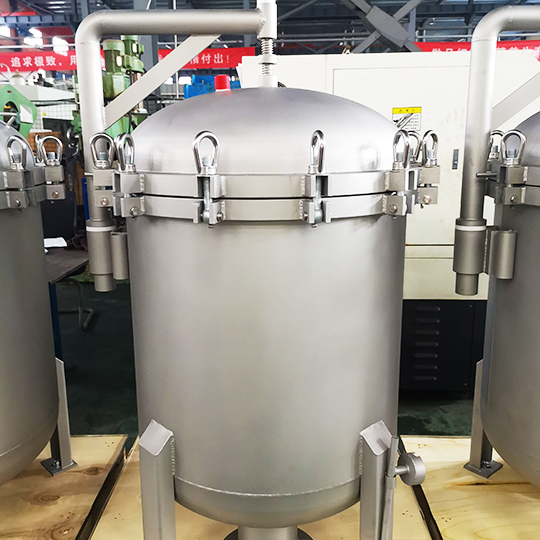

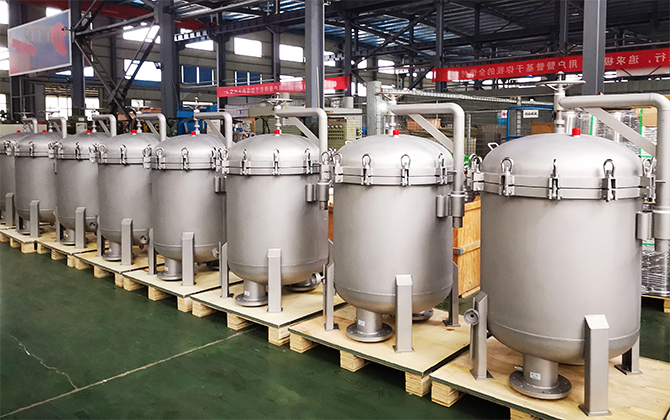

Who Are High Flow Filter Housing Designed For?
Chemical plants: You can choose filter housings that are corrosion-resistant, such as stainless steel, and are capable of filtering flows up to 5,000 GPM.
Pharmaceutical plants: sanitary filter housings are available in quick-open or fully automatic designs, reducing maintenance frequency for you.
Food and beverage factories: 1-1000μm filtration precision, improving filtration efficiency while reducing your costs.
Water treatment industry: carbon steel filter housings, which improve the cost-effectiveness as well as stabilize the filtration of your industrial water.
High Flow Filter Housing Solve Your Generation Difficulties
- The flow rate of FiltEdge single filter can go up to 5000+GPM, and in parallel mode, it can also expand more flow space for you to break the flow bottleneck.
- Our quick-open design allows you to change filter bags/cartridges independently and quickly with a single person, reducing downtime; if your production line is upgraded to duplex mode or fully automatic self-cleaning, it will be 24 hours without downtime, reducing your downtime costs.
- Stainless steel/alloy, EPDM/PFTE/Viton seals and anti-corrosion surface coating can deal with the problem of filter corrosion.
- Fully automatic as well as quick-open design avoids your time-consuming and laborious cleaning, reduces maintenance complexity, and reduces your labor cost.
What Is A High Flow Filter Housing?
FiltEdge’s high-flow filter housings are filters that can reach 5000+ GPM with a single filter, and can be connected in parallel mode to extend the flow range again. The main material of high flow filter housing is SS304/SS316/carbon steel/alloy, which can withstand the shock and pressure brought by the high flow rate and maintain the stable operation of your production line.
If you don’t know how to choose the high-flow filter housing, you tell us the working condition, we will do the selection suggestion for you, and we can provide you with filter housings with different flow rates, pressures and materials. We can also provide you with in-depth customization of high-flow filter housings to better match your process. We will also provide you with remote support, installation and commissioning and other engineering support.
Types of High Flow Filter Housings
FiltEdge has over 100 high flow filter models to fit your wide range of applications. For special applications, we can also customize a filter housing to better match your needs.

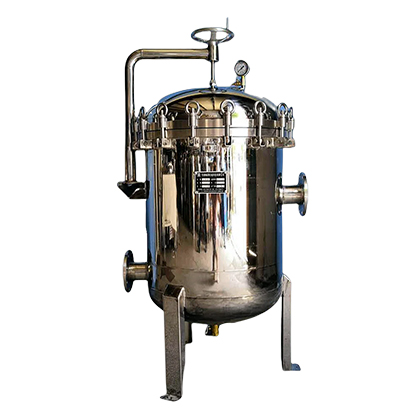

Multi-Element High Flow Filter Housing2-24 cartridges, 2-30m³/h high flow range, commonly used body in stainless steel and carbon steel two materials, for your excellent compatibility with hygiene and cost-effective.

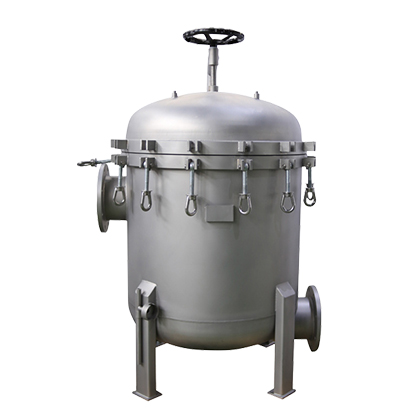

Multi-Bag High Flow Filter HousingSupporting 2-32 bags, the highest flow rate up to 5000+GPM, quick-open/clam-open/boom and other flexible opening and closing methods, allowing you to quickly replace the filter bag.

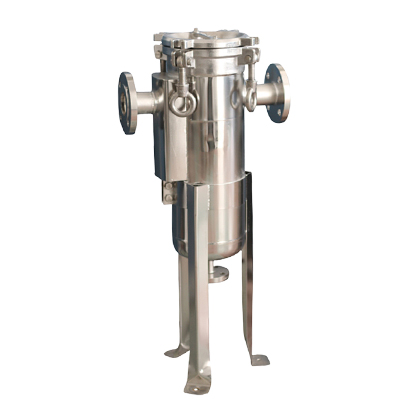

Sanitary High Flow Filter HousingFrom the housing, seals to the surface process are corrosion-resistant and dead-end design, preventing bacterial growth, easy to clean, avoiding cross contamination of product batches, and ensuring the quality of your products.

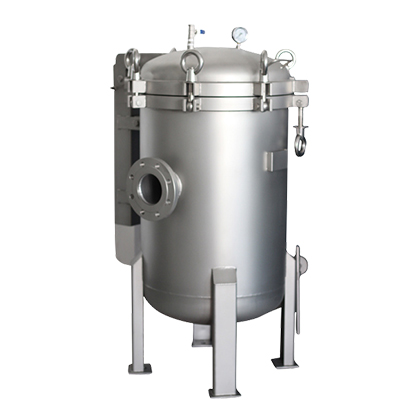

High Pressure Filter HousingCustomizable to 2.5MPa high pressure filters to maintain your process pressure stable.

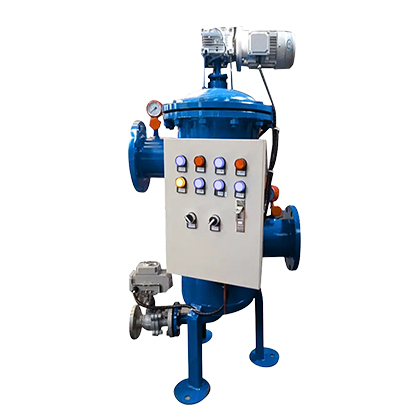

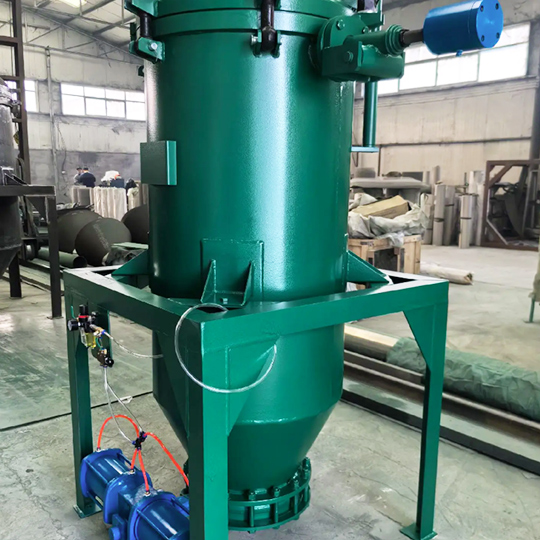

Automatic High Flow Filter Housing24 hours without stopping, self-cleaning filter element, no manual maintenance, avoiding losses caused by downtime.
Technical Advantages of High-Flow Filter Housings
Based on the original 22 patented technologies, FiltEdge’s high flow filter housings are constantly specializing in upgraded technologies to provide you with the latest filtration technology to enhance your process efficiency and product quality.
Up to 5000+ GPM high flow rate in a single unit
Up to 2.5MPa can be customized to stabilize filter pressure fluctuations
Stainless steel, EPDM and other corrosion-resistant materials to prevent rust through leakage.
Quick-open structure, one person can quickly replace the filter bag.
Customized High Flow Filter Housings

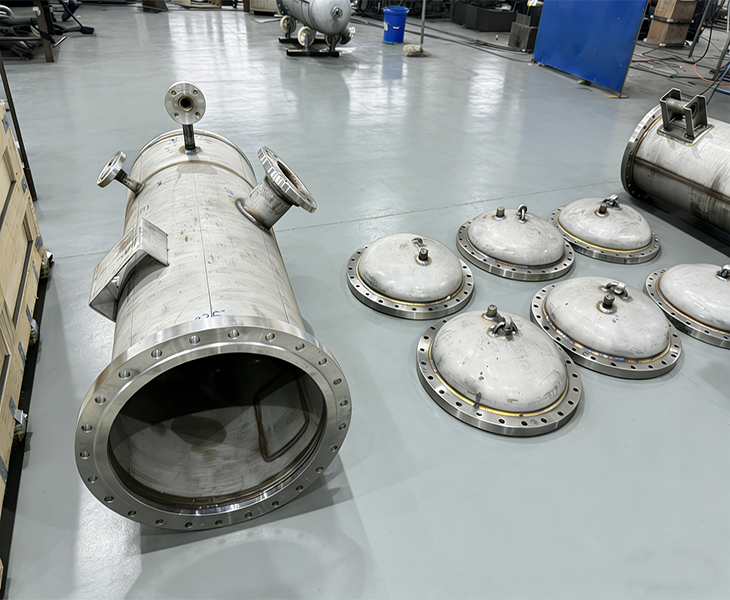

Common filters on the market may not necessarily match 100% of your generating line use, we can customize flow rate, pressure, size, material, and automated filtration, slag removal and other features to better match your filtration needs, as well as your piping layout, and reduce your investment costs.
Certifications for High-Flow Filter Housings

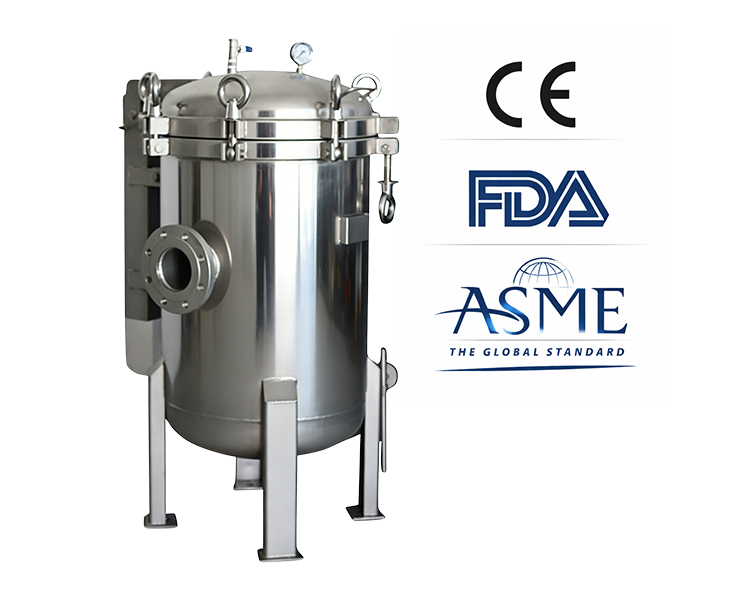

FiltEdge’s high flow filter housings have ISO, CE, and FAD certifications. We do material testing, weld testing, and 1.5x pressure testing for you from the moment the material comes into the factory. Rely on our complete set of quality generation standards and testing standards to provide you with high quality filters. If required, we can also design and manufacture for you according to ASME/DIN and other standards.
High Flow Filter Housing Applications
FiltEdge’s high flow filter housings can be used in chemical, pharmaceutical, food and beverage, water treatment, ink and coating industries, such as acid and alkali solutions, pure water, juices, syrups, wastewater, and high viscosity oils and fluids. No matter what the fluid or process, FiltEdge can provide you with a reliable liquid filtration solution to help you achieve production continuity and maximize efficiency.
Why Choose FiltEdge's High Flow Filter Housing?
Choose our FiltEdge high flow filter factory for one-stop shopping, so you can save trouble and worry.

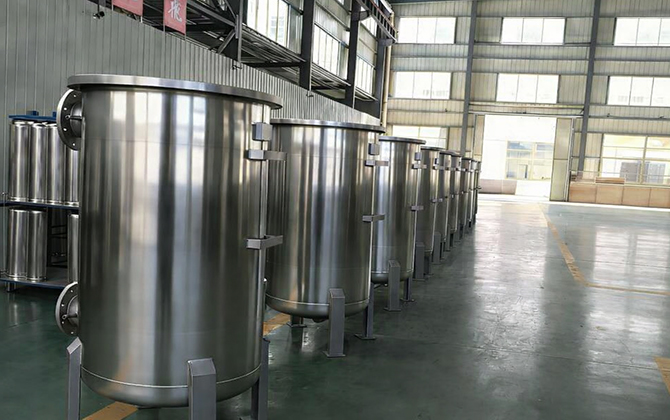

- We have a 3600㎡ factory in China with an annual production capacity of 6000+ units, which can guarantee you a constant supply of goods.
- Sample order can be delivered within 7 days, and big goods can be delivered for you within 30 days, mainly based on order scheduling and quantity.
- We have a warehouse in the United States, and we can deliver regular parts and stock for you 24 hours a day.
- Our engineers will do sample analysis, working condition analysis, product selection, layout drawings, and technical upgrading services for you.
- Later, our technicians will provide you with engineering support, including remote online technical support, door-to-door installation and commissioning, maintenance and personnel training services to solve your worries.
- We support TT, LC and other payment methods, and EXW, FOB, CIF and other trade methods, we can arrange sea transportation, land transportation, air transportation, and help you clear customs.
Technical Parameters of High Flow Filter Housing
The following are the parameters of conventional high-flow filter housings for your reference. More details of the parameters can contact us, we provide you with more suitable filters according to your working conditions as well as parameters to you.
- Technical Parameters of High Flow Filter Housing
| Item | Bag Filter | Cartridge Filter | Backwash Filter |
| Structural Type | Rocker-Arm Multi-Pocket Bag Filter Housing | Round Multi-Cartridge Filter Housing | BCM Series Backwash Filter |
| Bag / Cartridge Quantity | 2–23 standard bags (max 32 per unit) | 1–200 cartridges (customizable) | 10–64 elements (BCM400–BCM1200) |
| Flow Capacity | 350–5600 GPM (depends on bag quantity & liquid viscosity) | Single cartridge depends on size; total flow can reach tens of m³/h | High flow, low viscosity liquids (100 mPa·s, solids < 1000 ppm) |
| Applicable Liquids | Acidic, alkaline, solvents, neutral chemicals, high-pollutant waste liquids | Acidic/alkaline solutions, solvents, pure water, beverages | High flow, low viscosity industrial liquids |
| Material Options | Q235 Carbon Steel / SS304 / SS316L | 304/316L / Carbon Steel / Special Alloys (Duplex/Hastelloy optional) | 304/316L / Special Alloys |
| Cap Opening Method | Quick-Opening + Rocker-Arm Assisted Top Cover | DOE / 222/Fin / 226/Flat | Automated backwash rotary arm sealing |
| Surface Treatment | Sand-blasting | 304/316L: Bead Blasting / Mechanical Polishing / ElectropolishingCarbon Steel: Epoxy/Rilsan Coating or Galvanized | 304/316L: Bead Blasting / Mechanical Polishing / Electropolishing |
| Design Pressure | 6–10 bar (higher available on request) | Standard 10 bar (High pressure up to 25 bar) | Standard 1 MPa (customizable higher) |
| Design Standard | ASME Section VIII Div.1 / CE-PED / GB150 | ASME VIII-1 / GB150 / CE-PED | HG20592-2009 / HG20615-2009 / ANSI B16.5 / ON11851 |
| Operating Temperature | -20°C – 120°C (up to 150°C depending on seal material) | Depends on seal material | 0–200°C (depending on seal material) |
| Filtration Rating | 1–1000 μm (standard: 1 / 5 / 10 / 25 / 50 μm) | 0.1–100 μm | 25–2000 μm |
| Connection Size | DN80–DN300 Flange | 1″–4″ Flange / Tri-Clamp | DN150–DN500 Flange |
| Installation Method | Vertical floor-mounted; multiple units can be connected in parallel | Vertical/horizontal; parallel connection possible | Vertical floor-mounted; multiple units can be connected in parallel |
| Sealing Material | EPDM / FKM / Silicone / PTFE | EPDM / FKM / Silicone / PTFE | NBR / EPDM / FKM / Silicone / FEP Coated Silicone |
| Filter Element Size | International Standard / FSI #01 / #02 | 10″–40″ customizable | MS Series elements |
| Differential Pressure Monitoring | Optional differential pressure gauge | Differential pressure s |
Contact Us To Get A Quote For High Flow Filter Housing
Provide your slurry type, flow rate, pressure, viscosity and other parameters, our engineers will help you choose the right high flow filter housing within 24 hours.
FiltEdge
FiltEdge has 20 years of experience in the filtration industry and over 100 countries of cooperative customers. We can provide you with high quality high flow filter housings and liquid filtration system solutions.
This mainly depends on whether your filter is operated manually by a single unit, used in parallel or fully automatic self-cleaning. Single manually operated high-flow filter housings can’t avoid downtime, but we have a quick-open structure design, which allows you to quickly finish the replacement by one person and shorten the downtime. In parallel mode, it can realize 24 hours without downtime, when you need to replace the filter bag/cartridge, through the valve connected by 2 filters, all the slurry will be introduced into the other device, and after replacement, it will be opened for use again; if it is a full-automatic self-cleaning filter, it can be operated 24 hours without downtime without manual operation, and it will be cleaned while filtering.
The biggest difference is the acceptance of the flow rate, as well as the internal flow path design. High-flow filter housing in order to accept large flow, the shell will be very large, the corresponding material will be used more sturdy, thick wall thickness, in order to cope with the flow impact and pressure, will not be like ordinary filters using plastic shell.
