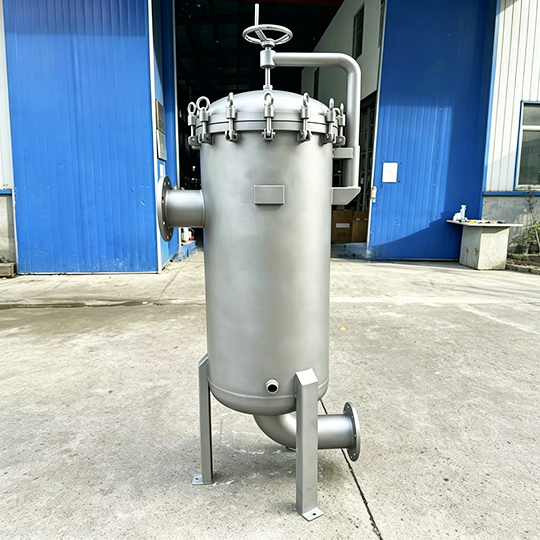

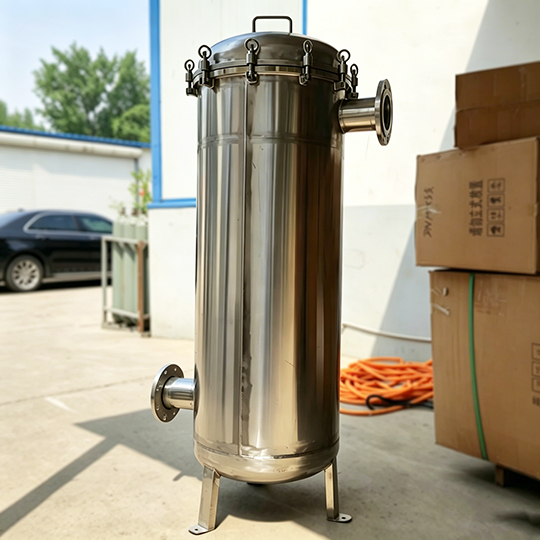

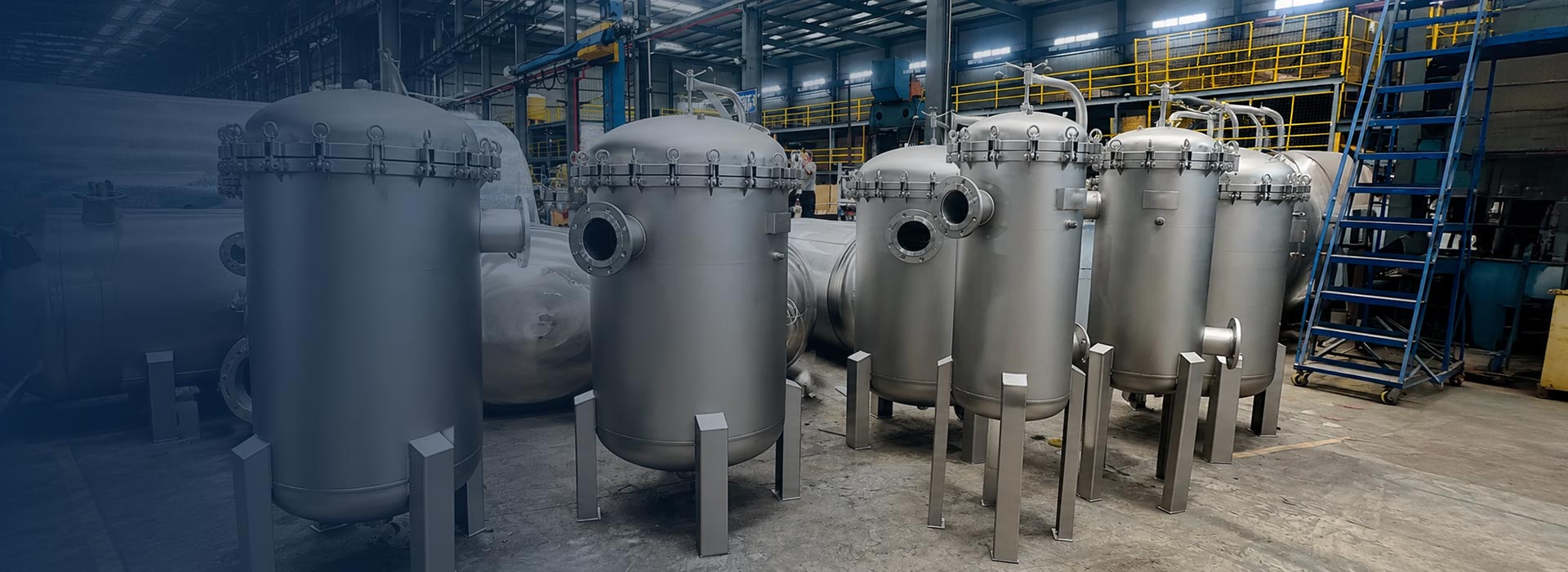

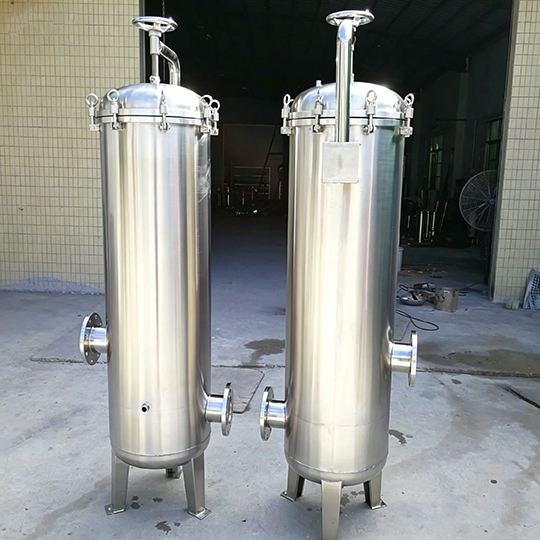

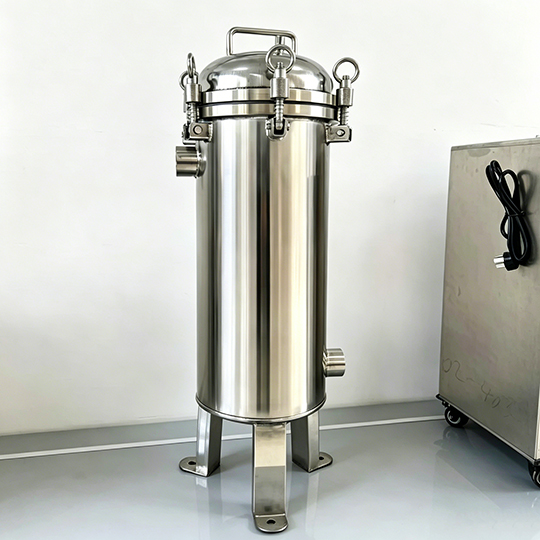

Advantages of FiltEdge's Cartridge Filter Vessel
Long Life: Made of high quality SS304/SS316 material, which improves corrosion resistance and extends the service life by more than 40%, FiltEdge will also provide you with a MTR material report.

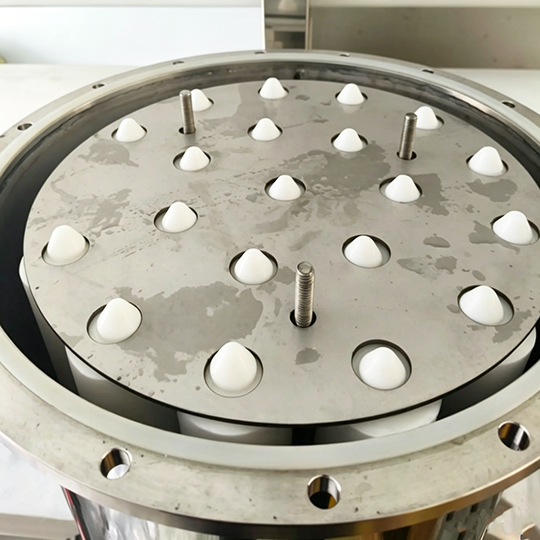

Zero Bypass: Precision machined cartridge platen and positioning disk with high quality EPDM/Viton seals ensure 100% liquid penetration through the cartridge, protecting your expensive downstream equipment.
Easy to change filter cartridge: With quick-open structure, the top cover can be opened within 2 minutes by single operator, which can save you about 2 hours of downtime for each filter cartridge change and improve your production capacity.
Compliance: design and manufacture cartridge filter vessel according to GB150/ASTM standard, after 1.5 times water pressure test, to ensure stable operation of each filter under high pressure environment.
Classification of Cartridge Filter Vessel
Whether you need an experimental-grade unit or a high-flow cartridge filter housing in the kiloton range, FiltEdge can create energy-saving filtration solutions for you.

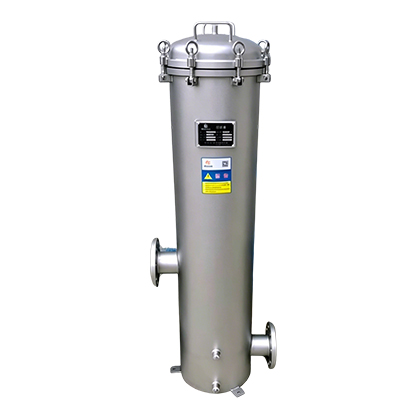

Available in 10“, 20”, 30“ and 40” cartridges for small flow rates in laboratory applications.

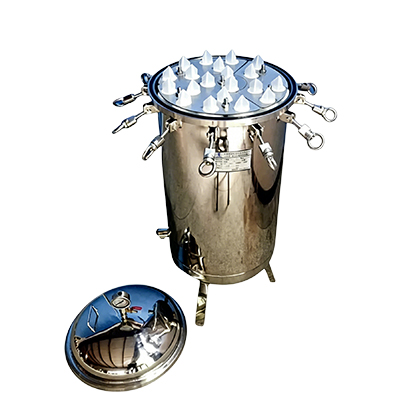

Multi Cartridge Filter VesselFrom 3-200 round cartridges, up to 1000m³/h flow rate, suitable for water treatment, chemical industry and other applications.
The diameter of single cartridge is 6 inches, 6.5 inches, the flow rate of single cartridge can be up to 50m³/h, which can save the expense of consumables in face of high flow conditions.

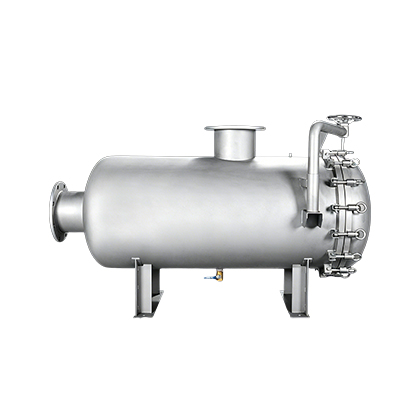

Horizontal Cartridge Filter HousingLarge equipment is suitable for the use of horizontal structure, convenient for you to quickly change the cartridge.
Features of the Cartridge Filter Vessel
Eliminating frequent shutdowns, bypasses and leaks, FiltEdge’s researchers have created high-quality, high-performance cartridge filter vessels to improve your product quality and protect downstream equipment.
SS304, SS316, carbon steel, and Hastelloy are available to fit your application.
Compatible with all major standard cartridges on the market, such as DOE, single pass (222/Flat, 226/Fin Code 7) and High Flow, saving you money in the long run.
Regular pressure 0.6-1.0MPa, customized high pressure models are available.
Mirror polished Ra <0.4μm, difficult to breed bacteria, can be used in the food and pharmaceutical industries.
Low level liquid discharge design prevents cross contamination between batches.
Optimized design of the flow path, uniform fluid distribution, low resistance, can save a sum of electric pump costs every year
Release the internal pressure before opening the lid to protect your personal safety
Can be modularized skid block, received equipment can be quickly installed to start.
Cartridge Filter Vessel Design Drawings
We can provide you with 2D/3D CAD model drawings, you only need to provide your process parameters, our team of engineers will produce cartridge filter housing program drawings for you after reviewing your requirements, so that you can better docking system, reduce the chance of choosing the wrong filter.

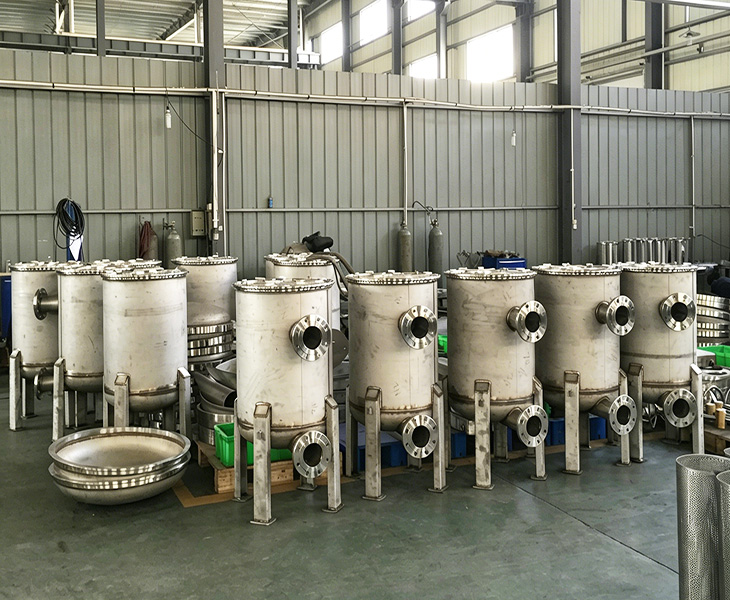

Customized Cartridge Filter Vessel
Processes are different and require cartridge filter vessels that cannot be of the conventional type, especially for large projects. We at FiltEdge, as a cartridge filter vessel manufacturer, are able to customize your filters, including flow rate, pressure, temperature, linkage, skid mounting, etc., as well as branding and packaging. Creating a filter that better suits your process and helps you tap into the market.
Certifications for Cartridge Filter Vessel
Confirm the applicable design requirements and available inspection records for the selected vessel. Any third-party inspection requires prior agreement; no blanket ISO or CE product approval is implied.
Packaging of Cartridge Filter Vessel

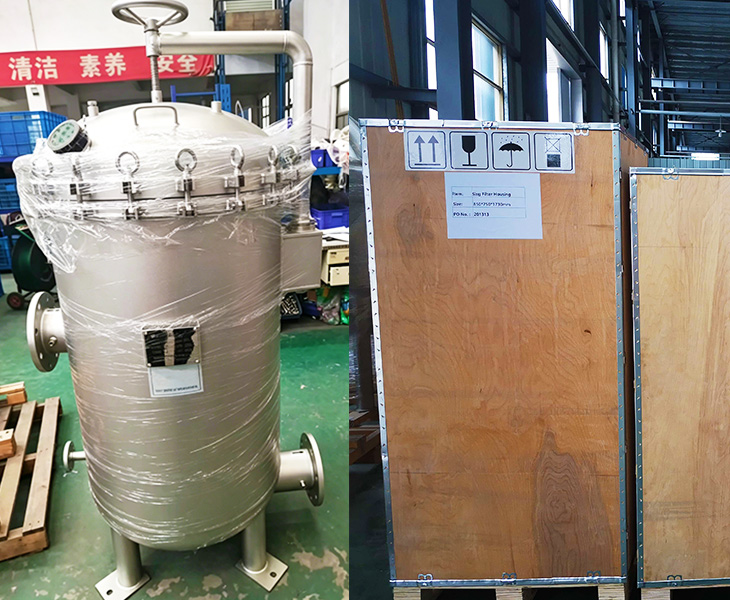

For small cartridge filter vessels, we use foam inside to protect the critical parts, fixed with wrap-around film and placed in fumigation-free wooden crates to prevent the filter parts from scattering and collision. For large cartridge filter vessels, we will place steel racks in the container to fix them, so that you can receive the filters in good condition.
Applications for Cartridge Filter Vessel
Cartridge Filter Vessel is commonly used in industries that require high precision filtration, and you can choose to use high flow cartridge filter vessel according to the size of the flow rate, hygiene requirements, with application-specific review of available material documentation.
Water treatment: RO/UF pre-filtration, seawater desalination.
Petrochemical: solvents, acid and alkali liquids, fuel oils
Food and beverage: beer, syrup, dairy products
Pharmaceutical: activated carbon filtration, sterile water pre-filtration

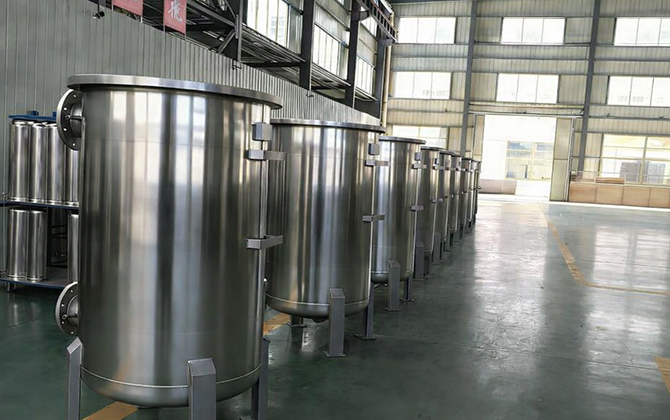

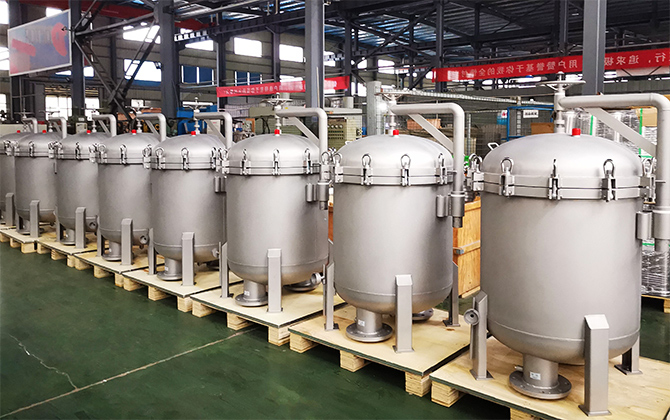

Why Choose FiltEdge's Cartridge Filter Vessel?
FiltEdge LLC is a U.S. company established in 2023, supported by SFFILTECH in China, established in 2006. Manufacturing support is provided through SFFILTECH in China. Confirm product specifications, available quality documents, pricing and delivery in the quotation. Certificates must be checked for the relevant entity, facility and product. Support is arranged during business hours; any on-site service or warranty terms require separate agreement.
Technical Parameters of Cartridge Filter Vessel
Below are the regular cartridge filter vessels parameters of FiltEdge for your quick selection. If the working condition is special, please contact us to inform the filtration requirements and liquid properties, our engineers will provide you with the best customized solutions and drawings after reviewing your requirements.
- Standard Cartridge Filter Vessel Specification

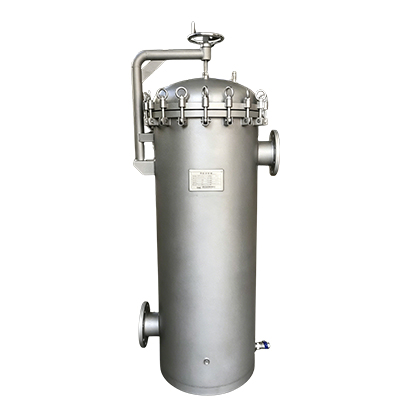

- High Flow Cartridge Filter Vessel Specification
| Technical Parameter | Specifications & Range |
| Cartridge Capacity | 1, 3, 5, 7, 12, 21, 36 up to 100+ rounds |
| Cartridge Length | 10″, 20″, 30″, 40″ |
| Compatible Cartridge Interface | DOE (Double Open End), Code 7 (222/Fin), Code 3 (222/Flat), Code 8 (226/Flat) |
| Max. Volumetric Flow Rate | 1m³/h to 500m³/h (4.4GPMto 2200GPM) depending on round count |
| Housing Material | Stainless Steel 304, Stainless Steel 316L, Carbon Steel |
| Max. Working Pressure | 150 PSI (10 Bar) standard, customizable up to 1000+ PSI (70 Bar) |
| Design Temperature Range | -10℃ to 150℃ (14°F to 302°F) dependent on O-ring material |
| Surface Finish | Exterior bead blasted/mirror polished; Interior mechanical polished (R_a < 0.8μm) or Electropolished (EP) |
| Inlet / Outlet Connection | 1″ to 12″ Flange (ANSI/DIN), NPT/G Thread, Tri-clamp |
| O-ring / Gasket Material | EPDM, Viton, Silicone, PTFE |
| Vent / Drain Connections | 1/2″ or 3/4″ NPT/Threaded (equipped with manual vent valve and drain plug) |
| Technical Parameter | Specifications & Range |
| Cartridge Capacity | 1, 3, 4, 5, 7, 12 up to 20+ rounds |
| Cartridge Length | 40″ or 60″ (High Flow specific) |
| Vessel Orientation | Vertical: Space-saving footprint
Horizontal: Easy side-access cartridge removal without high-altitude work |
| Max. Volumetric Flow Rate | 20 m³/h to 1,200+ m³/h (88 GPM to 5,280+ GPM) |
| Housing Material | Stainless Steel 316L, Stainless Steel 304, Carbon Steel (with optional anti-corrosion linings or Duplex SS for desalination) |
| Max. Working Pressure | 150 PSI (10 Bar) standard, customizable high-pressure options per ASME |
| Lid Lifting / Closure Device | Small Scale: Heavy-duty swing bolts
Large Scale: Mechanical Davit Arm or gas-spring assisted lifting cover standard |
| O-ring / Gasket Material | Viton, EPDM |
| Surface Finish | Industrial glass bead blasted or double-sided mechanical polish |
| Inlet / Outlet Connection | 3″ to 24″ Large Bore Flange (ANSI / DIN / JIS) |
| Manufacturing Standards | CE/PED, or standard GB150. And according to ASTM |
This depends mainly on the chemical nature of the liquid you are filtering with your cartridge filter vessels. For industrial water and mildly corrosive chemicals, you can choose SS304; for food, pharmaceuticals and highly corrosive liquids, SS314 is safer and less prone to leakage; for more severe conditions, use duplex steel, or hastelloy.
FiltEdge’s cartridge filter vessels are designed with precision machined internal partitions and strong spring-loaded compression caps to ensure that there is no liquid bypass under high pressure conditions.
Of course it can, the maximum temperature of CIP cleaning and SIP sterilizing is only 135℃, but our filter housing can withstand high temperature over 200℃, and the seals can be made of PTFE or Viton, which can ensure that it will not be deformed in high temperature environment, and will still be sealed tightly without leakage.
Spare-parts availability, shipment origin and dispatch timing are confirmed per order.
