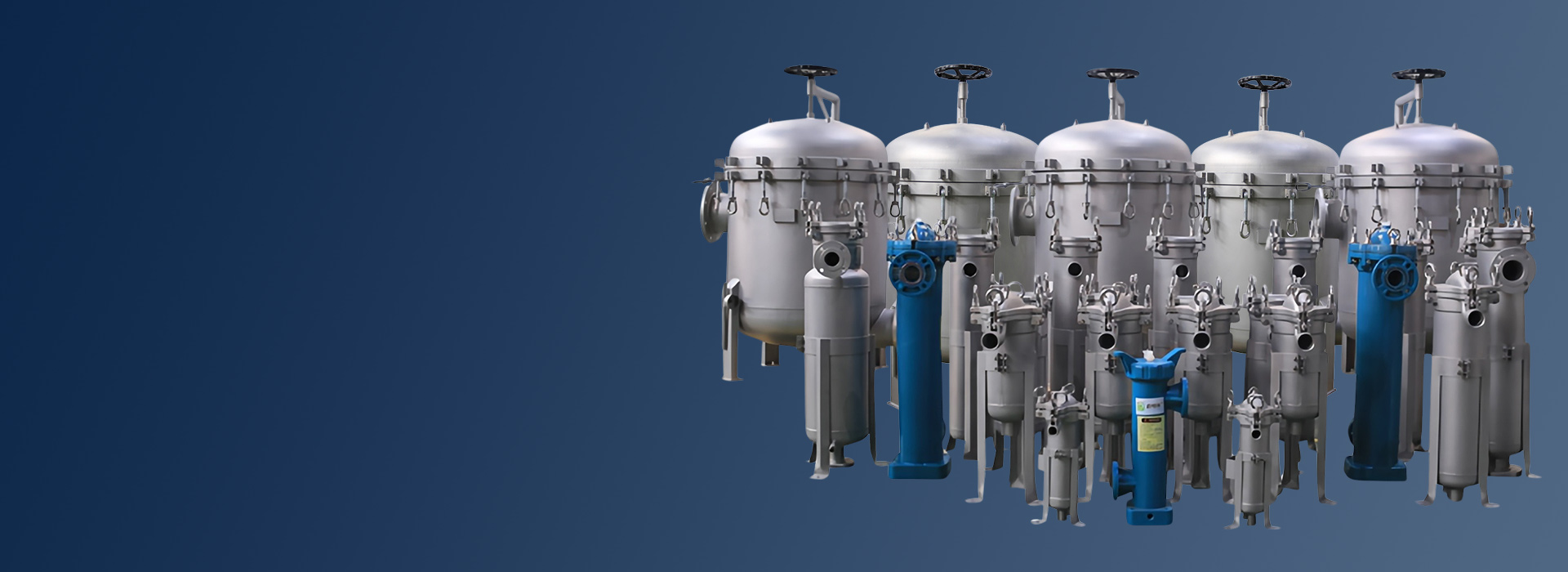

What are FiltEdge’s Bag Filter Vessels?
Bag Filter Vessels, also known as Bag Filter Housing, are the centerpiece of a filtration system. They are mainly used in the chemical, food, pharmaceutical, oil and energy industries to remove solid impurities from slurries. Depending on the precision of the filter element you choose and your filtration needs, Bag Filter Vessels can be used at the front end of the filtration system for coarse filtration or at the back end for fine filtration.
Types of Bag Filter Vessels
Depending on your production process needs, FiltEdge Bag Filter Vessel Supplier offers a wide range of opening and closing styles, flow rates, and precision filters. Below are the regular bag Filter Vessel for sale, if you don’t find any suitable one, you can provide us with the size, flow rate, precision, linkage method and other information you need, and we can deeply customize the Bag Filter Housing Vessel for you.

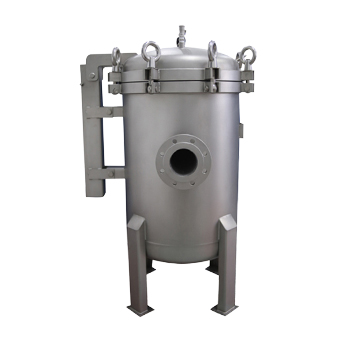

2-32 filter bags to flexibly handle your seamlessly varying flow requirements.
Matches #1, #2, and #5 filter bags for your lab or small process.

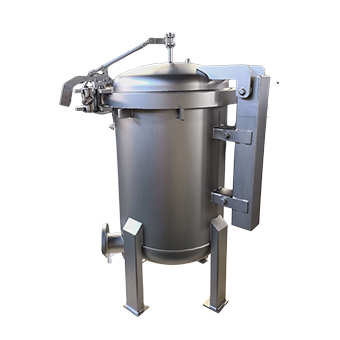

Rocker-assisted opening and closing for one-person operation and maintenance.

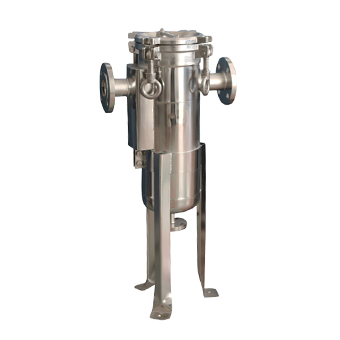

Provides same side, opposite side or bottom outlets flexibly for your various pipeline routes.
Adopts one-piece molded top cover compression structure to ensure leak-free sealing.
Basically applicable to a wide range of physical and chemical properties, providing you with high cost performance.
Features and Advantages of Bag Filter Vessels
FiltEdge’s Bag Filter Vessels provide your production line with consistent capacity by filtering high flow, corrosive, and high solids content liquids with exceptional performance.
Improved carbon steel, SUS304, 316L, PP, PVDF materials, to cope with all kinds of working conditions from ordinary water treatment to strong corrosive chemicals, to extend the life of your equipment and reduce the replacement cost.
supports 1-32 bags optional structure, matching your various types of flow, effectively reducing your equipment investment, and realizing the balance between high output and low energy consumption.
Covers 1-1000μm filtration precision, intercepts fine particles, ensures the quality of your products and protects precision equipment.
adopts quick opening structure, shortening your maintenance downtime, reducing manual operation, and improving your production line operation efficiency.
Bag Filter Vessels are equipped with a copper spiral lifting arm that rotates smoothly without lubrication, dramatically reducing your maintenance intensity and making it easy for you to change filter bags with one person.

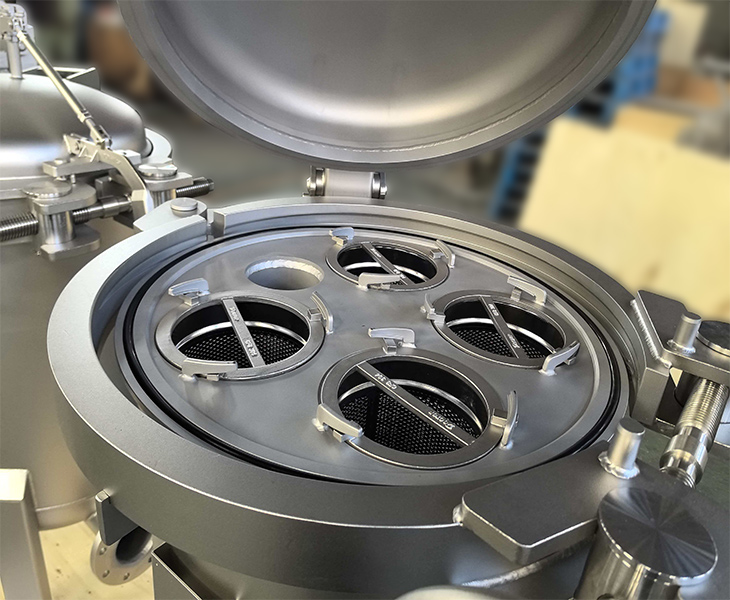

utilizes a three-point compression structure to ensure a tight fit between the filter bag and the mouth ring. Eliminates liquid bypass and ensures the cleanliness of your filtered product.
Confirm the interlock arrangement and approved operating procedure for the selected vessel. An interlock does not eliminate all operational risks.
pressurized designs is from 10 bar to 25 bar, and has been rigorously pressure-tested to ensure that your production line is still stable under extreme pressure fluctuations.

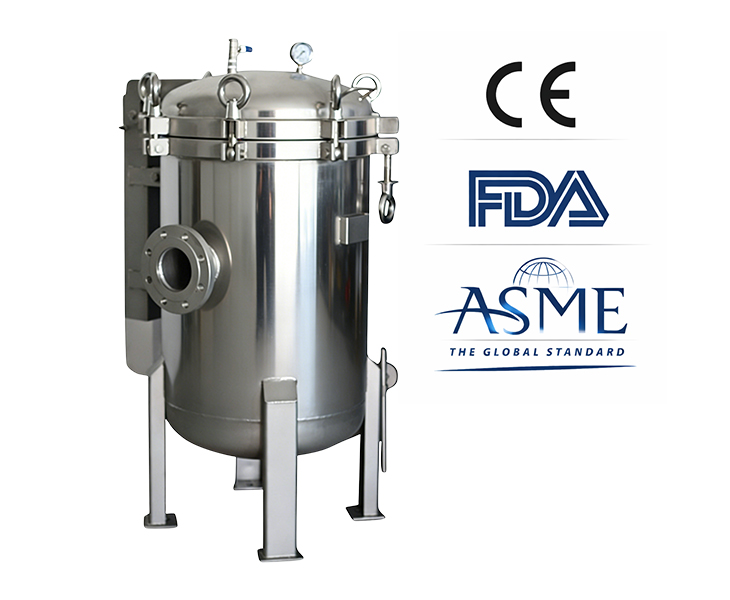

Bag Filter Vessel Quality Certifications
Confirm the applicable vessel design requirements and available quality documents before ordering. Certificates and reports must be checked for their specific scope; no blanket ISO, CE or FDA product approval is implied.

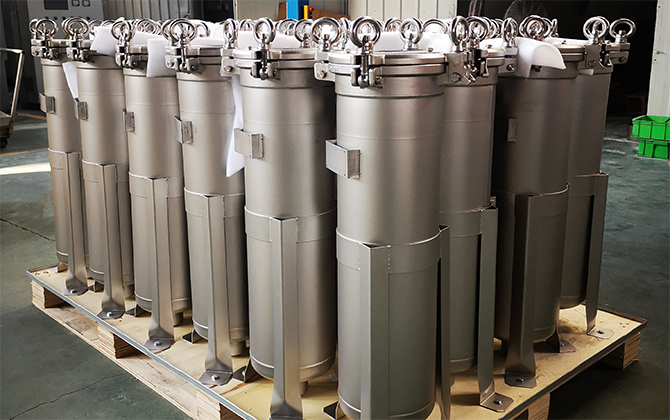

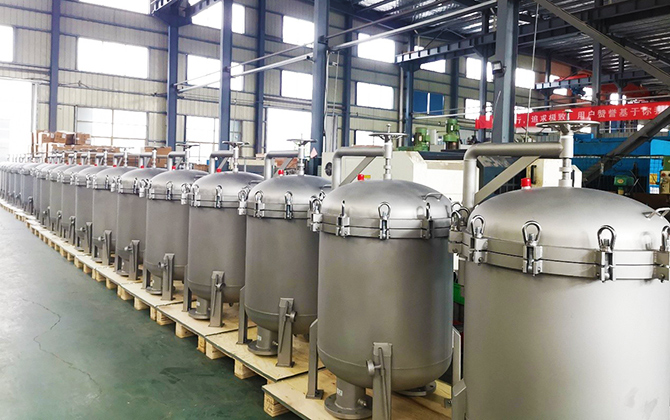

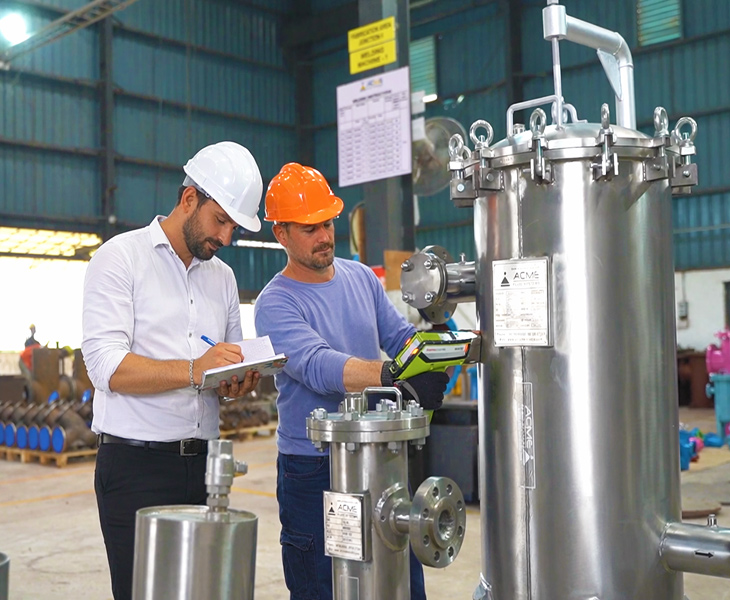

Bag Filter Vessel Factory Inspection
Before leaving the factory, each filter is strictly inspected:
- Dimensional surface inspection: to ensure that the dimensions of flanges, barrels, seals, etc. are within tolerance, so that your Bag Filter Vessel still maintains zero leakage under high temperature and high pressure.
- Penetration testing of welds: Ensure good welds without cracks, prolonging the service life of the filter.
- 1.5 times design pressure test: ensure no leakage and deformation of the filter, safeguard your production safety.

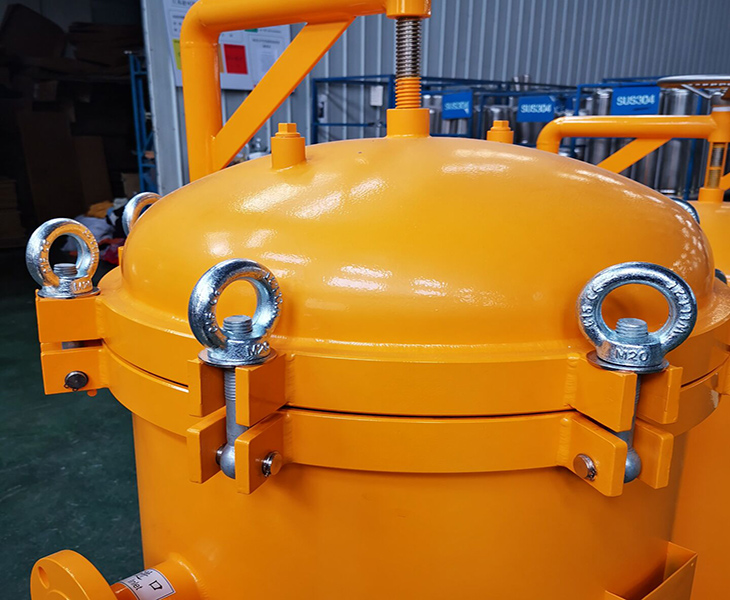

Surface Treatment for Bag Filter Vessel
FiltEdge can provide you with several surface treatments:
- Acid Wash Passivation: It can form a dense protective film on the surface of your Bag Filter Vessel, which will allow your filter to last up to 5 more years in humid environments, and reduce the cost of equipment replacement.
- Electrolytic Polishing: Reduce the Ra value, make your filter easy to clean, zero residue, avoid cross contamination of different product batches, and meet compliance standards.
- Sandblasting: Make your filter surface matte, more resistant to dirt and scratches, and enhance your corporate site management (5S) image.
- Anti-corrosion coating: solve the rust-through problem encountered by your filters, realize corrosion-resistant effect with minimum cost, save initial investment cost for you.

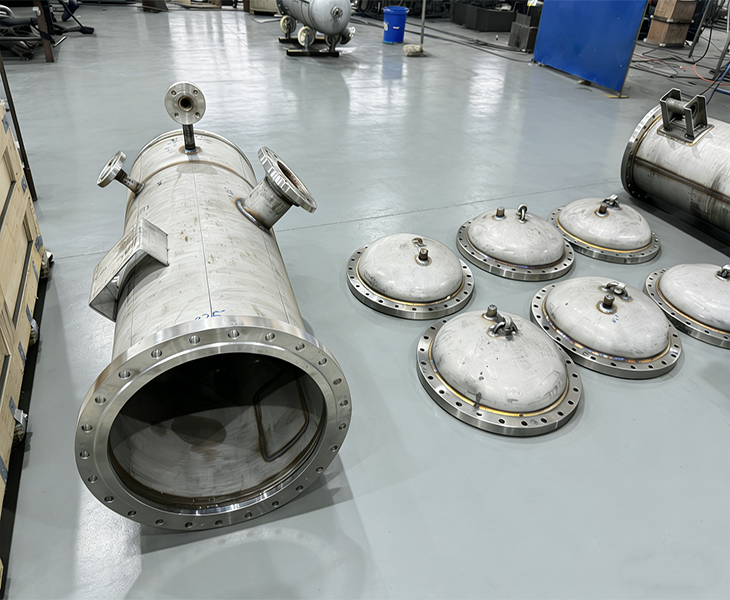

Customized Bag Filter Vessel
When faced with different plant sites, piping routes, or pressurized media with extreme chemical properties, standard filters suffer from mismatched interfaces, site constraints, leaks, and frequent vessel attrition.
FiltEdge specializes in customizing filters for flow rates, pressures, slurry properties, piping interfaces, and site space for your application.
The CAD modeling design ensures that the Bag Filter Vessel matches your production line, reduces construction costs, and improves the stability of the filtration system.
Why Choose FiltEdge’s Bag Filter Vessel?
FiltEdge LLC is a U.S. company established in 2025, supported by SFFILTECH in China, established in 2006. Manufacturing support is provided through SFFILTECH in China. Confirm product specifications, available quality documents, pricing and delivery in the quotation. Certificates must be checked for the relevant entity, facility and product. Support is arranged during business hours; any on-site service or warranty terms require separate agreement.
Application of Bag Filter Vessels
FiltEdge’s bag filter is widely used in water treatment, chemical, beverage, pharmaceutical, petroleum, automotive, laboratory, etc., guarding your productivity with professionalism.
In industrial circulating water, reverse osmosis pre-filtration and other applications. Impurities in the water lead to corrosion and scaling of pipelines and damage to expensive downstream facilities.FiltEdge’s Bag Filter Vessel utilizes SUS304/316L Stainless Steel Housing with filtration accuracy covering 1-100μm to achieve extremely low operating differential pressures. The use of this filter retains more than 95% of particulate contaminants, reducing the frequency of filter element replacement in back-end precision equipment by approximately 50-80%, dramatically reducing your operating costs.
In the production line of all kinds of synthetic resins, paints and coatings, daily detergents, fine chemicals and so on. Incomplete filtration of slurry will result in particles, uneven color, and even leakage of containers due to corrosive substances.FiltEdge adopts SS316 or PVDF material and unique safety lock pressure relief design of the filter, and the surface is then acid washed and passivated to ensure chemical compatibility. It increases your product qualification rate by about 10%-15% and reduces the frequency of downtime and raw material waste.
Used in the production of beer, beverages and dairy products as ingredient water, fine particles in the water can change the taste and color of the beverage, and even lead to food safety accidents. FiltEdge uses SUS316 Bag Filter Vessel with internal electrolytic polishing to Ra <0.4μm, to achieve a hygienic dead space. Achieve sanitation without dead space. Eliminating the buildup of scale and bacteria inside your filters reduces your cleaning frequency by approximately 30% and requires application-specific review and process validation.
In the electrophoresis cycle, topcoat spraying, and pre-treatment stages of automotive vehicle/component production, particles in the paint can cause Dirt on the body finish. FiltEdge utilizes the Zero-Bypass sealing construction and polished interior of the Bag Filter Housing Vessel, as well as a multi-pocket design to ensure that pressure is maintained smoothly during the painting process. The FiltEdge utilizes a Zero-Bypass seal and Bag Filter Housing Vessel with polished interior walls, as well as a multi-pocket design that ensures smooth pressure during the painting process. This solution reduces the rate of paint impurity defects by approximately 25-40%. It protects your film formation, reduces paint line downtime for cleaning, and saves you hundreds of thousands of dollars in rework costs.
Parametric Technology for Bag Filter Vessel
The following are the parameters of FiltEdge regular bag filter, if you need other technical parameters or need customized filter, please contact us.

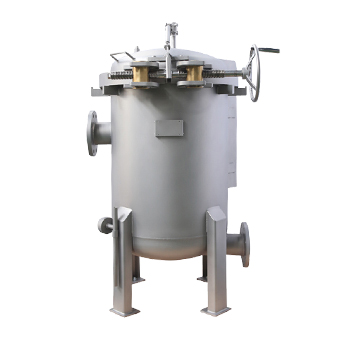

- Quick Opening Bag Filter Vessels

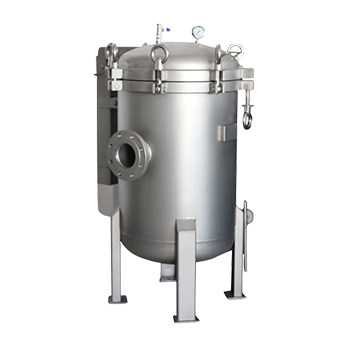

- Mussels Open Bag Filter Vessels

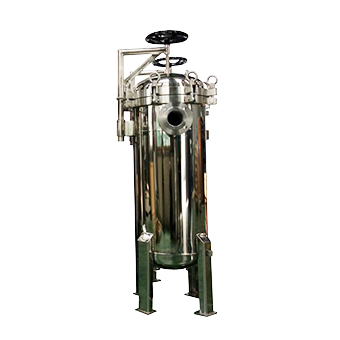

- Rocker-Arm Bag Filter Vessels

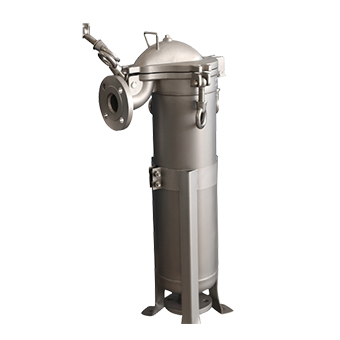

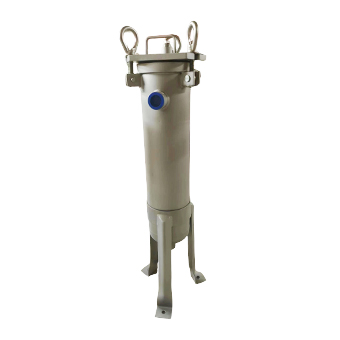

- Top-in Single Bag Filter Vessels
| Item | Specification |
| Number of Filter Bags | 3 / 4 / 5 / 6 / 8 / 12 / 17 / 23 bags |
| Material | Stainless Steel (SS316 optional), high-quality O-ring |
| Seal Material | EPDM / Viton / PTFE (FDA Compliant / Food Grade available) |
| Opening Method | Quick-opening, vertical cover, gravity-assisted, single-finger operation |
| Replacement Time | ≤15 seconds ON/OFF quick filter bag replacement |
| Design Pressure | 0.6–1.6 MPa (6–16 bar) (Optional higher customization: 10–25 bar high-pressure model) |
| Operating Temperature | -20°C to 120°C (EPDM); up to 150°C (PTFE/Viton) |
| Filtration Rating | 1 – 1000 μm optional (commonly used 1 / 5 / 10 / 25 / 50 / 100 μm) |
| Bag Size Compatible | #1 (7“ × 16”) / #2 (7“ × 32”) — Standard sizes, other sizes available upon request |
| Flow Capacity (based on #2 bag) | 175GPM to 4000+GPM (depending on bag quantity and media viscosity). |
| Inlet & Outlet Connection | Flange/Threaded/Clamp/Custom Orientation Standard Orientation Options: Side→Bottom/Side→Side/Top→Bottom |
| Design Standard | ASME Section VIII Div.1 / CE-PED / GB150 |
| Application | High-impurity liquid filtration, industrial liquids, chemical processing, pharmaceuticals, food and beverage |
| Features | – Quick filter bag replacement – Safety chain + balanced lid opening assistance – Multiple units can be installed in parallel – Saves pipeline space – Boosts production efficiency and reduces labor costs |
| Special Features | Modular / Parallel installation possible, High-efficiency filtration, Reduced downtime |
| Item | Specification |
| Structural Type | Mussels Open Type Multiple Bag Filter Housing |
| Number of Filter Bags | 3 / 4 / 5 / 6 / 8 / 12 / 17 / 23 bags |
| Flow Capacity (based on #2 bag) | 525GPM-4000+GPM (depending on bag quantity and media viscosity) |
| Material | Stainless Steel – SS304 / SS316 |
| Cap Opening Method | Eye-bolt bolt-tightened cover + Spring-balance assisted mechanism (enabling cover to remain open at any angle) |
| Sealing System | High-quality O-type elastomer sealing ring |
| Seal Material | EPDM / Viton / PTFE (FDA Compliant / Food Grade available) |
| Filter Bag Compatible Models | #01 / #02 Standard Filter Bag (Optional Filter Bag or Cartridge) |
| Connection Method | Flanged connection |
| Filter Structure Features | Three-point pressing device, Reinforced support mesh |
| Design Pressure | 6–16 bar (customizable high-pressure models up to 25 bar) |
| Design Standard | ASME Section VIII Div.1 / CE-PED / GB150 |
| Operating Temperature | -20°C – 120°C (EPDM); up to 150°C (PTFE / Viton) |
| Filtration Rating | 1 – 1000 μm (commonly used: 1 / 5 / 10 / 25 / 50 / 100 μm) |
| Surface treatment | Internal surface can be polished to Ra ≤ 0.8 μm; external sandblasting or mirror finish optional |
| Installation method | Floor-mounted vertical design (upright, small footprint, multiple units can be connected in parallel) |
| Applicable liquids | Various acidic, alkaline liquids, solvents, neutral liquids |
| Item | Specification |
| Structural Type | Rocker-Arm Multi-Pocket Bag Filter Housing |
| Bag Capacity Range | 2–23 standard bag configuration; single machine max. up to 32 bags |
| Flow Capacity (based on #2 bag) | 350GPM to 5600GPM (depending on bag quantity and media viscosity). |
| Applicable liquids | Various acidic liquids, alkaline liquids, solvents, neutral chemical liquids, and high-pollutant waste liquids |
| Material Options | Q235 Carbon Steel / SS304 / SS316L |
| Seal Material | EPDM / Viton / PTFE (FDA Compliant / Food Grade available) |
| Cap Opening Method | Quick-Opening + Rocker-Arm Assisted Top Cover |
| Surface treatment | Sand-blasting surface |
| Design Pressure | 6–10 bar (higher specifications available upon request) |
| Design Standard | ASME Section VIII Div.1 / CE-PED / GB150 |
| Operating Temp | -20°C – 120°C standard sealing; up to 150°C maximum (depending on seal material) |
| Filtration Rating | 1 – 1000 μm (standard 1 / 5 / 10 / 25 / 50 μm filter bags) |
| Bag Size | Standard #01 / #02 filter bags |
| Inlet/Outlet | DN80 – DN300 range |
| Connection | Standard Flanged Connection |
| Installation method | Vertical floor-mounted, multiple units can be connected in parallel for use in scenarios requiring extremely high flow rates. |
| Design Highlights | Dual exhaust + dual drainage design High-strength stainless bolts & nuts Excellent welding quality |
| Item | Specification |
| Model Range | 1S / 2S / 3S / 4S |
| Filter Bag | Compatible with FSI Standard #1, #2, and #4 filter bags |
| Filter precision | 1μm – 1000μm |
| Filter Flow Rate (based on #2 bag) | ≈ 20 – 40 m³/h (Depends on medium viscosity and precision) |
| Materials Available | SS304 / SS316L / Carbon Steel / PP / PVDF |
| Sealing Method | Patent multi-sealing ring / O-ring seal |
| Connection Method | Flanged/ Threaded / Clamp |
| Inlet/Outlet | Top-in inlet / Bottom-out outlet |
| Design Pressure | 6 bar – 10 bar |
| Operating Temperature | -20°C to 95°C (metal) / PP ≤ 70°C / PVDF ≤ 90°C |
| Surface Treatment | Internal polishing / External sandblasting or electrolytic polishing |
| Installation Method | adjustable legs |
| Filter Bag Replacement Method | Quick-opening top cover, ring-free quick-change structure |
| Application Medium | Chemicals, RO pretreatment, inks, cleaning solutions, solvents, food liquids, acids and alkalis, wastewater, etc. |
| customization | OEM dimensions / pressure / materials / connection types are all customizable. |

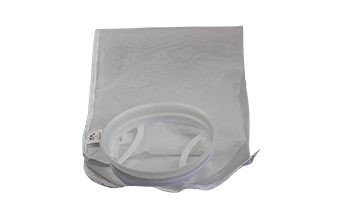

Filter Elements for Bag Filter Vessel

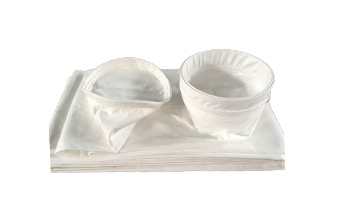

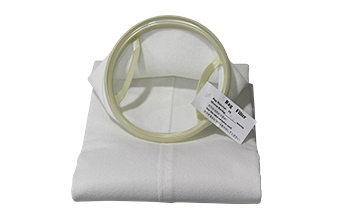

PTFE Filter BagMicron Rating: 1-200μm

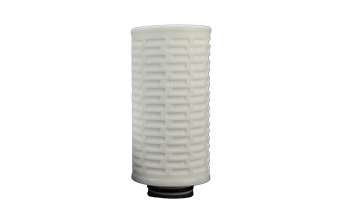

Shape: U-type, Round-Type, Fan-Shape

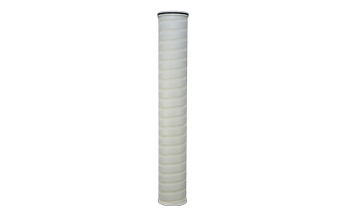

Micron Rating: 0.1 – 60 μm (Absolute/Nominal)
Material: PP, PES, PTFE, PVDF, Glass Fiber

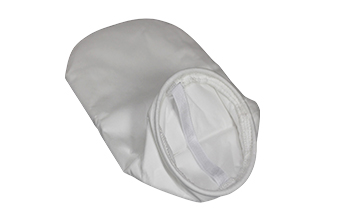

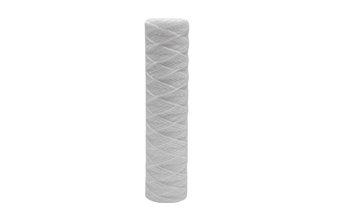

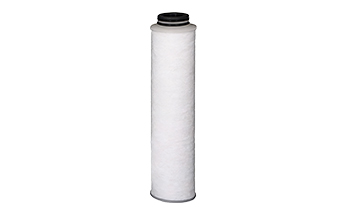

Micron Rating: 0.5 – 150 μm
Material: Polypropylene, Cotton, Glass Fiber
Contact FiltEdge to discuss selection support, available drawings, product documentation and a quotation. Samples, third-party testing, support scope and delivery timing are confirmed after reviewing your requirements.
Our industrial liquid filtration systems are compatible with leading brands. If you are looking for a replacement for a PALL or Eaton filter housing, our Liquid Bag Filter Housing not only provides the same functionality, bag filter vessel wholesale is more competitively priced.
Our Bag Filter Vessel can be designed and manufactured to ASME Section VIII Div.1 standards. While we provide our own internal pressure test reports rather than an official ASME code stamp filter vessel certificate. All material selection, welding and calculations follow strict industrial filtration specifications.
The choice of Micron Rating Bag Filter Vessel depends largely on your target level of clarification. We offer a full range of products from 1μm to 1000μm.
FiltEdge As a bag filter vessel wholesaler, we offer wholesale partnership support for distributors and large projects to ensure you get value for your investment.
Stock availability, shipment origin and dispatch timing are confirmed in the quotation. Customized vessel lead time depends on the approved specification and production schedule.
