Why Choose FiltEdge String Wound Filter Cartridges?
We don’t simply sell cartridges—we deliver cost-saving solutions. First, our filters deliver unmatched gradient precision. Computer-controlled winding angles during production ensure a seamless pore size gradient from surface to core, increasing by over 30% compared to standard cartridges. Second, no chemical adhesives are added. It meets food-grade and pharmaceutical-grade purity requirements.

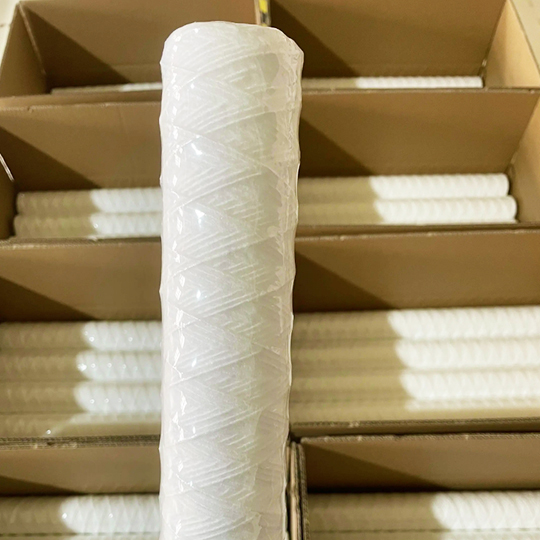

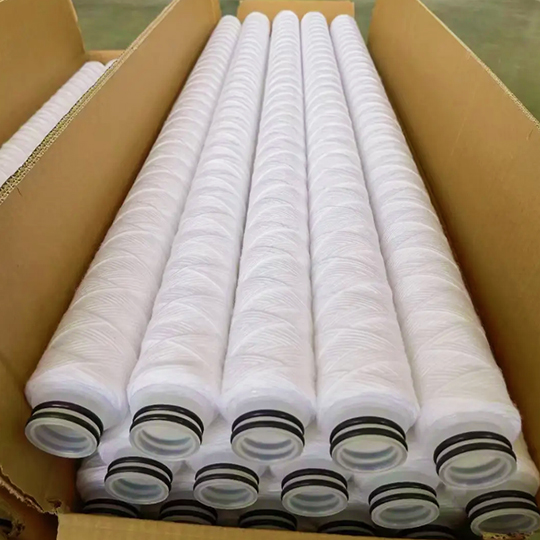

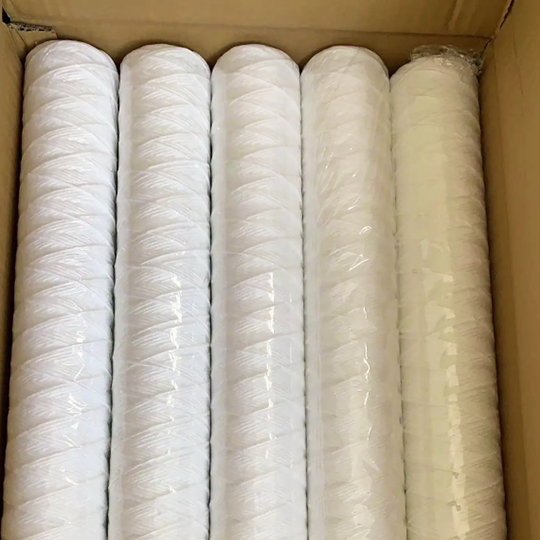

What is a String Wound Filter Cartridge?
FiltEdge string wound filter cartridges are made with high precision, using materials like polypropylene, degreased cotton, or glass fiber. These filters are wound in specific geometric patterns. The “loose-to-tight” gradient structure is key to solving common filtration issues. It efficiently traps suspended solids and impurities in water and has excellent dirt-holding capacity. This helps reduce the frequent downtime caused by short filter lifespans. For users, it means more stable filtration, protecting sensitive downstream equipment. Also, with longer maintenance intervals, it lowers long-term costs related to labor and spare parts.

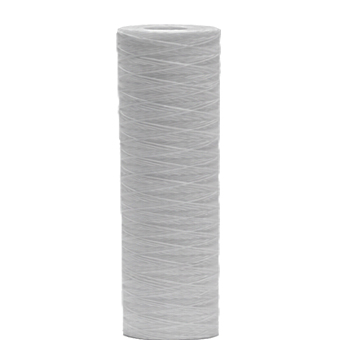

FiltEdge String Wound Filter Cartridge Series
High stable flow, low steady pressure drop, ideal for residential home filtration or advanced commercial water purification systems.

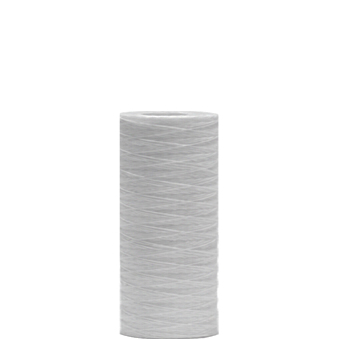

Classic standard size, compatible with most standard filter housings on the market, making it a cost-effective choice for pre-treatment in laboratory equipment and the fine chemical industry.

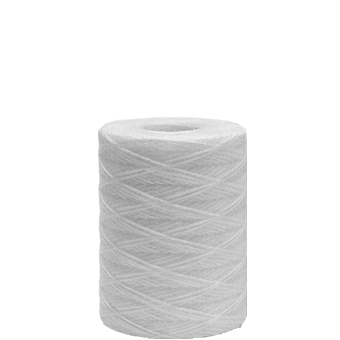

High superior dirt-holding capacity for treating highly turbid industrial water. Extended filter cartridge replacement intervals reduce overall downtime for operational maintenance and labor costs.

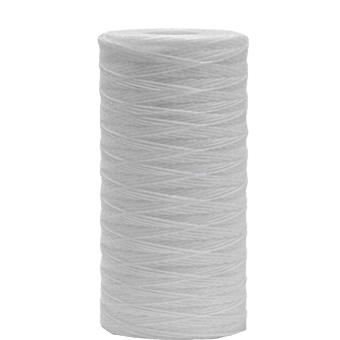

The elongated structure increases the surface area, high deep-layer interception efficiency to ensure stable effluent precision.
Key Features of String Wound Filter Cartridges
The special heat-sealing method keeps the fibers tightly in place, so they don’t fall off and contaminate the liquids passing through the filter.
We can adjust the string wound filter’s size, length, and strength to fit your needs, making it strong enough for high-pressure, heavy-duty use or special fluids.
Our fully automated machines ensure that every filter is made the same way, so you get the same high-quality filter every time.
Our filters are certified to meet FDA food safety standards. It makes them safe for use in food, drinking water, and beverage filtration.

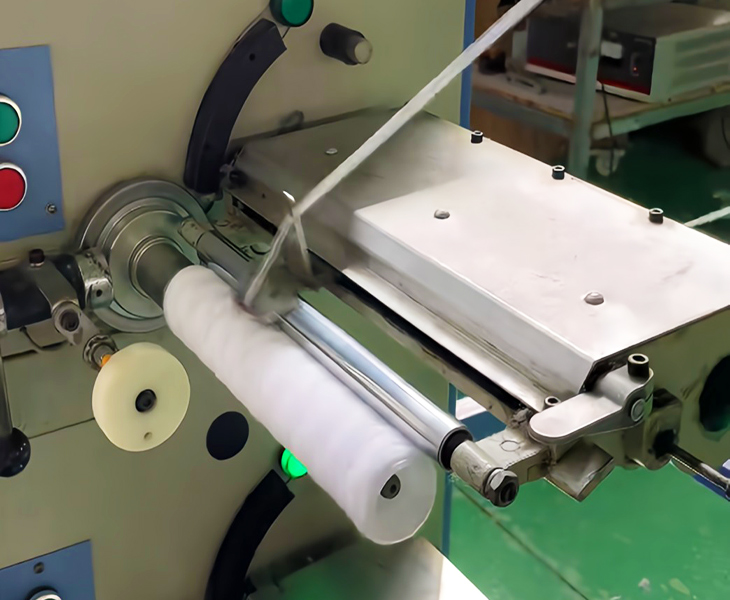

Multi-Axis Precision Winding Technology of String Wound Filter Cartridges
FiltEdge multi-axis precision winding technology solves critical issues of short service life and incomplete filtration compared to conventional string wound filter cartridges. Many low-cost string wound filter cartridges seem robust; their internal winding is often loose. Under high-pressure operating conditions, this leads to short-circuit flow. Also, it will allow contaminants to penetrate directly. Our string wound filter cartridges are different. Our factory equipment monitors yarn tension in real time. Uneven tension leads to inconsistent pore sizes. Through constant tension control, FiltEdge achieves true multi-stage filtration. The outer layer captures larger particles while the inner layers trap finer particles. This not only prevents rapid surface clogging but also ensures every inch of the cartridge space contributes to contaminant retention. Data shows that compared to standard filter cartridges, our cartridges extend replacement cycles by 20 to 40 days, directly reducing consumable costs and manual maintenance frequency.

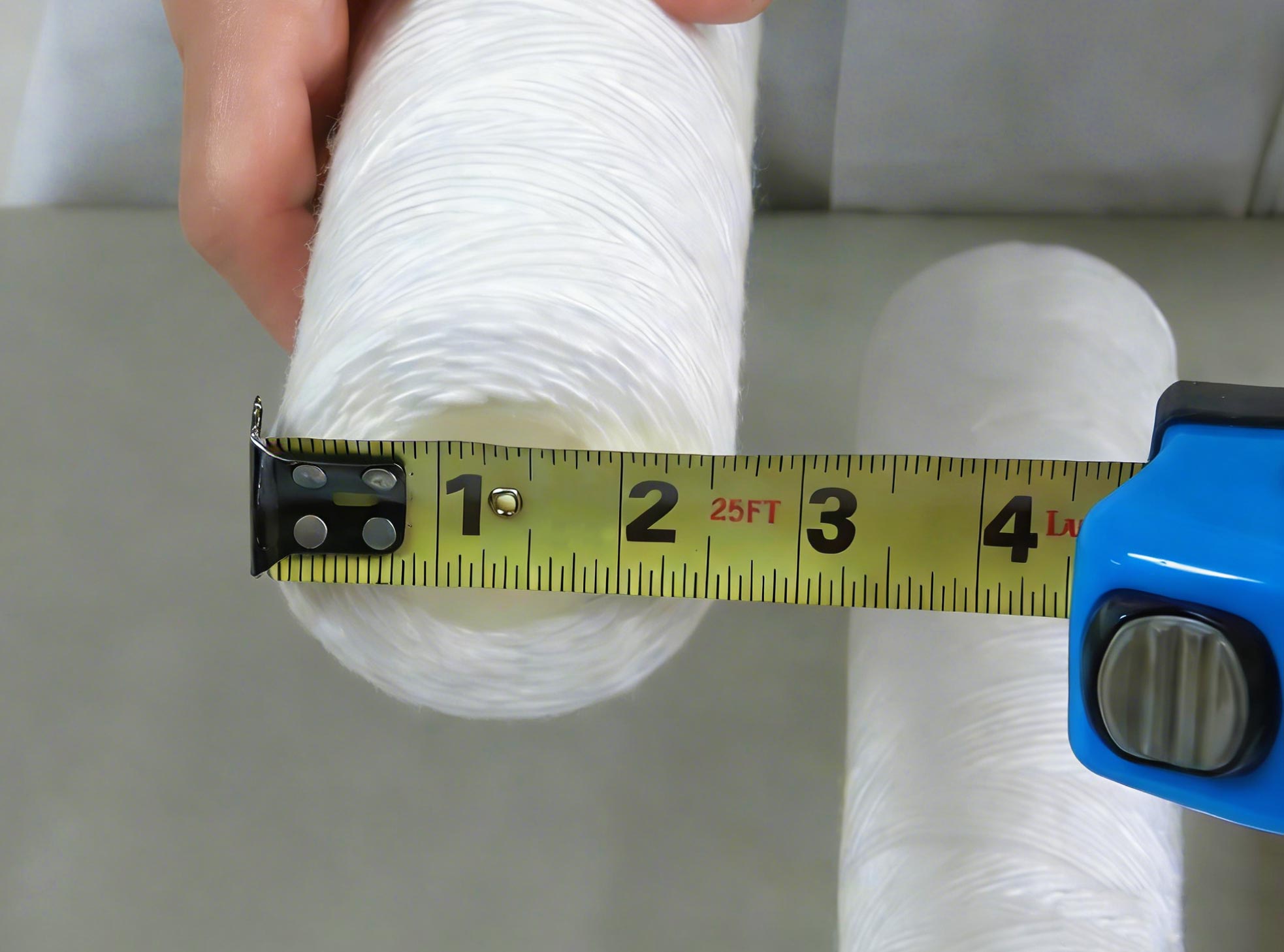

FiltEdge String Wound Filter Cartridge’s Rigorous Quality Control
At FiltEdge, quality is not just a standard but a commitment to precision engineering. Every batch of our string-wound filter cartridges undergoes a rigorous three-tier quality assurance protocol to ensure uncompromising performance. We will use Bubble Point Testing to verify pore size integrity and mechanical strength under high-pressure conditions, ensuring the filter structure remains stable without bypassing. Our laboratory conducts Performance Profiling using specialized instrumentation to calibrate micron ratings and flow-rate characteristics. We guarantee that each unit meets strict design specifications for efficiency and low pressure drop. Furthermore, every cartridge undergoes a 100% Visual Inspection to eliminate physical defects such as fiber loosening or contamination. The process from tension-controlled winding to final purity validation guarantees that FiltEdge delivers consistent, high-purity filtration.
Why Choose FiltEdge as Your String Wound Filter Cartridges Supplier?

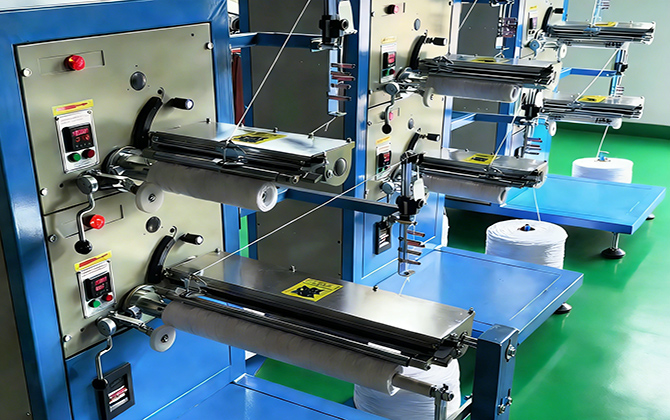

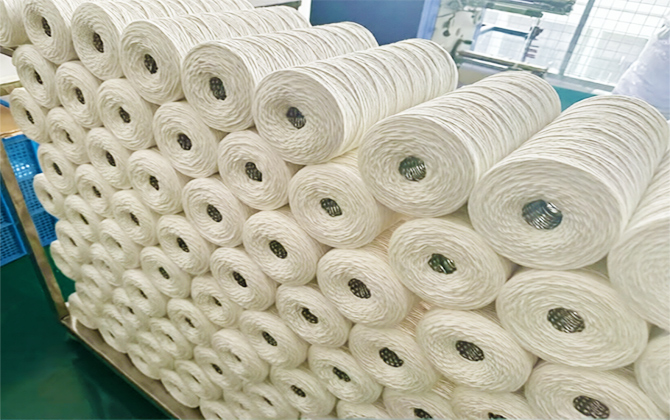

As a top string wound filter cartridges supplier, FiltEdge has a 3,500 m² ISO 7 (Class 10,000) cleanroom assembly facility. It is home to 15 high-end CNC wire-wound filter cartridge forming machines, 4 fully automatic ultrasonic end cap welding machines, and precision fluid resistance testing stations. This setup allows us to produce tens of thousands of units daily while maintaining strict quality control, from raw materials to the finished product. Over the years, we’ve worked with clients from over 100 countries. Through strong partnerships with system integrators and brand clients, we’ve gained valuable experience in avoiding common issues and helping reduce risk costs. FiltEdge not only provides high-performance string wound filter cartridges but is also dedicated to being your trusted long-term partner. We warmly invite you to visit our factory for an on-site inspection, so we can work together to take filtration solutions to the next level.
Applications of String Wound Filter Cartridges

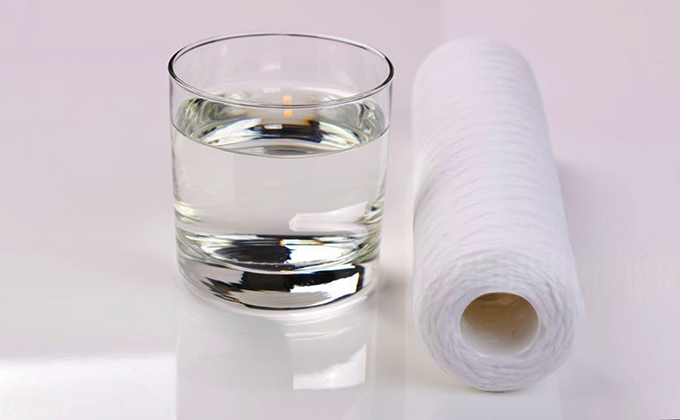

String wound filter cartridges are often used as the first step in home water filters, where they help remove dirt, rust, and other particles from the water before it’s used for drinking or other household needs.
In the food industry, the filters are made from food-grade, safe, high-quality materials that don’t shed fibers. They are great for filtering oils, syrups, juices, and even alcoholic drinks, ensuring that no unwanted particles affect the finished final product.

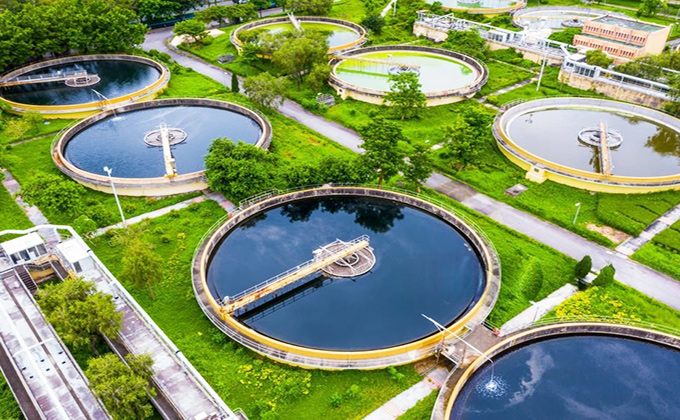

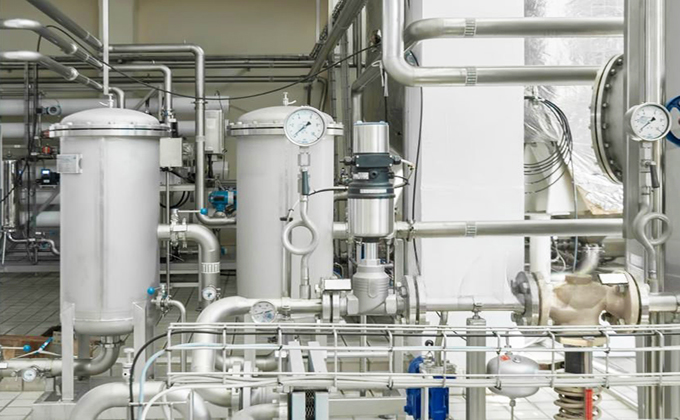

In industries like electronics, textiles, and paper production, water is used throughout the entire process. The quality of the water can directly affect the final product, so these filters are essential for ensuring clean water that won’t cause damage or defects.
String wound filters work well in chemical manufacturing, handling a variety of liquids, both acidic and alkaline. They help to filter out solid particles during the production process, ensuring the final chemicals are pure.

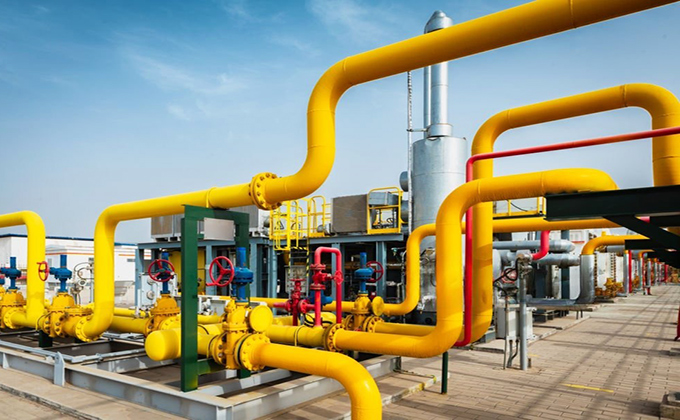

In oil and gas operations, these filters are used to treat water that has high levels of suspended solids. They help prevent blockages and keep equipment running smoothly by filtering out dirt and debris.
Technical Specifications
- Technical Specifications
| Items | Specification |
| Filter Material | Polypropylene (PP) |
| Diameter | 2.5inch, 4.5inch |
| Length | 10inch, 20inch |
| Max Operating Temperature | 60°C |
| Miron Ratings | 1-100 μm |
No.
If you wish to remove impurities, you need to use activated carbon and other filtration systems together.
No.
The function of string wound filter cartridge is to remove particles and impurities.
String wound water sediment filters are made by winding yarn around a core. It offers high mechanical strength. Even in environments with fluctuating pressures, they won’t deform like melt-blown filters. If your goal is to filter liquids with high viscosity or unstable system pressure, string wound filters are a more economical and reliable choice.
Usually, it’s difficult to judge by visual inspection alone. We recommend checking pressure drop, flow rate, and time cycles. When the pressure difference between the inlet and outlet reaches 0.15 – 0.2 MPa (around 22-30 PSI), the filter is saturated. Also, if the flow rate significantly decreases, it’s time for a change. The typical replacement cycle is 3-6 months.
Yes.
We have flexible production lines. We support non-standard customization—whether for length, diameter, skeleton material, or end cap style. You can communicate directly with our engineers.
