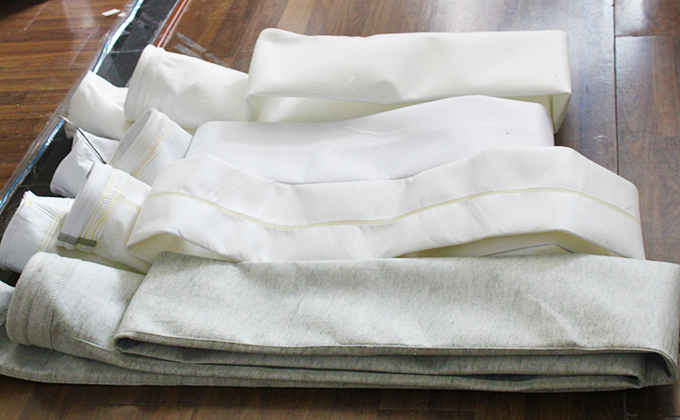

What Is a Dust Extraction Filter Bags?
The Dust Extraction Filter Bags is the heart of the local dust extraction system. It utilizes the capture velocity generated by the negative pressure to efficiently intercept and filter dust at source with a high air permeability of 12 – 18 m³/m².min.
The core advantage: high air permeability, no clogging, and a fresh workplace at all times.
Suitable for woodworking saws, metal grinding tables, laser cutting and other single-machine scenarios. Whether your system utilizes internal filtration or external filtration configuration,, FiltEdge offers tailored solutions designed to ensure optimal static pressure stability.
FiltEdge Typical Dust Extraction Filter Bags by Different Applications
Unlike dust collection filter bags, which are used for dust removal in large, continuous industrial containment environments, Dust Extraction Filter Bags are used in small, localized, discrete processing/manufacturing, open suction collection/removal of dust in non-continuous areas that require high air permeability and the ability to cope with sudden, instantaneous dust surges, and are based on specialized knowledge and extensive experience. Based on our expertise and experience, FiltEdge offers a wide range of Dust Extraction Filter Bags to meet the challenges of your complex environments. The list is only a partial list of typical applications, and can be customized to meet specific needs.

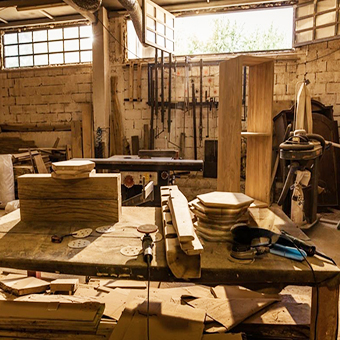

Wood chips and sawdust from sawing and planing machines
Sanding dust
Panel processing dust
Partial anti static needed
Machine tool processing
Metal grinding/cutting/welding
Mixed dust environments

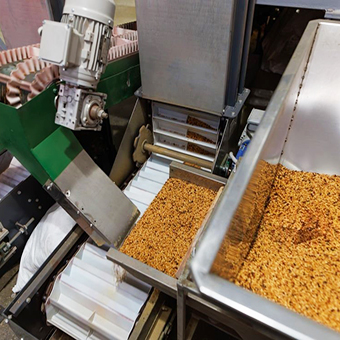

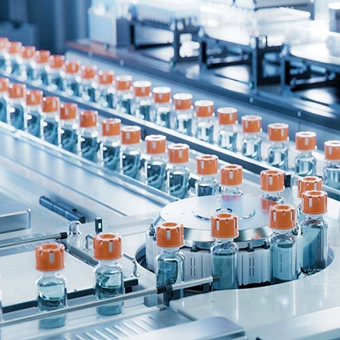

Local airflow capture for pharmaceutical weighing and chemical powder workstations
Source dust removal for localized feeding and packaging only
Food grade FDA compliant
Partial anti static and explosion proof needed
FiltEdge Typical Dust Extraction Filter Bags by Different System Types
Depending on the characteristics of the structure of the dust extraction system, FiltEdge is able to adapt the appropriate Dust Extraction Filter Bags to ensure continuous production and clean workshop environment to meet emission regulations.

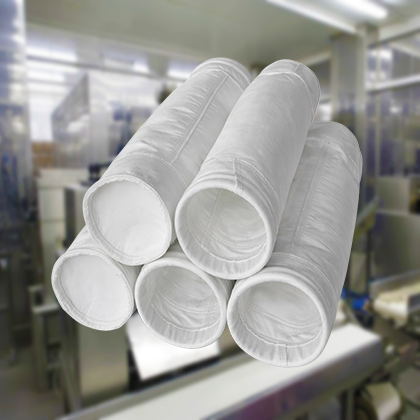

Single-Unit SystemsA single piece of equipment or station, commonly found in small processing machines or stand-alone workstations.Smaller machinesLower airflowSmaller filter bag sizesHigher replacement frequency

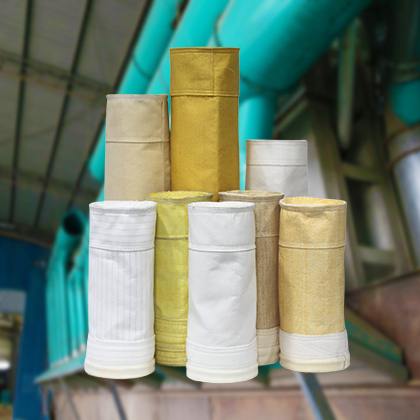

Centralized Extraction SystemOne system for multiple workstationsDucts connecting multiple dust sourcesHigher airflow and increased number of filter bags, for medium and large workshops.Continuous operation

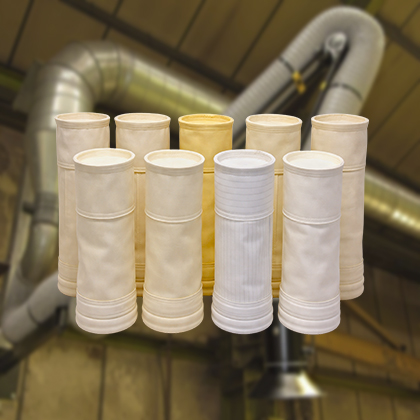

Vacuum Extraction SystemsLong distance conveying or high dust density scenarios
Higher negative pressure operation may be used to increase dust conveying capacity and sealing.

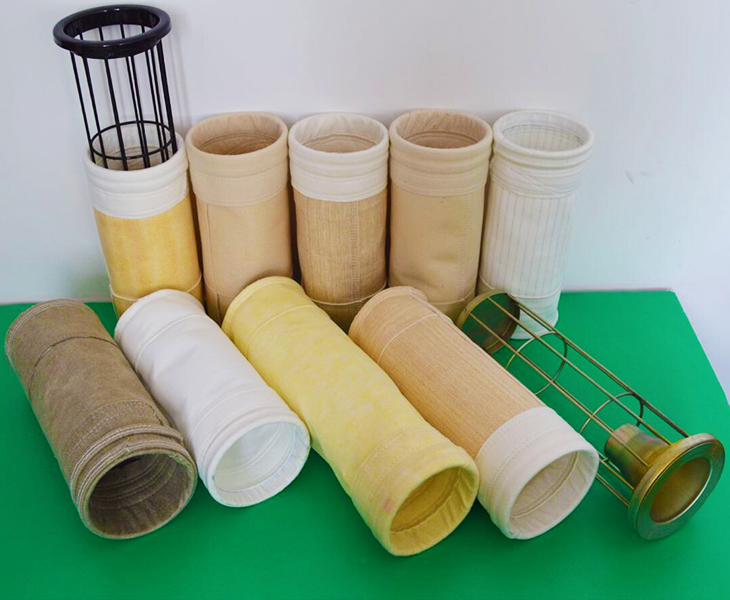

How to Choose the Right Dust Extraction Filter Bags?
When selecting filter bags for a dust extraction system, the following factors should be given primary consideration:
- Dust Types
Dust coarseness/fineness, concentration
Oil or sticky substances contained?
Corrosive/flammable and explosive? - Airflow Conditions
Air volume
System pressure
Temperature
Humidity
Corrosive gas
Flammable and explosive? - Cleaning Method
Vibrating type
Pulse cleaning (partial system)
FiltEdge is focused more on system fit than single material or parameter. Dust is captured through three filtration mechanisms for efficient filtration and separation.

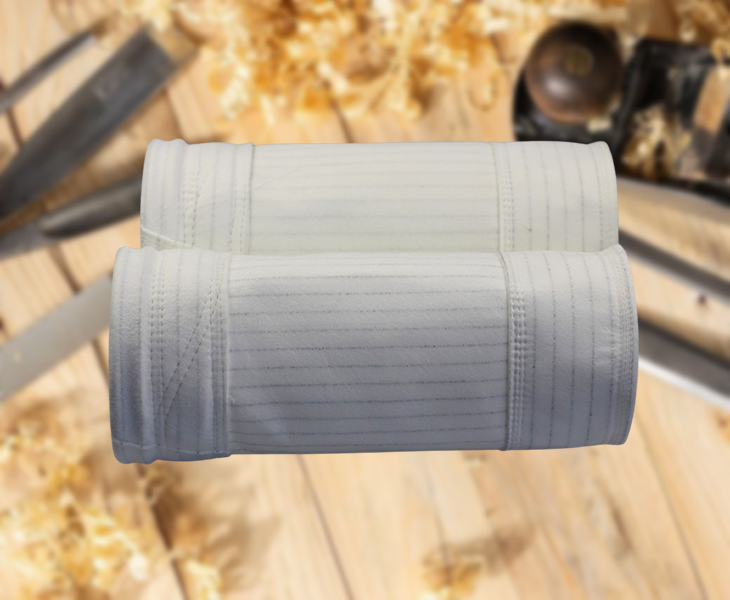

What Type of Dust Extraction Filter Bags Is Suitable for Woodworking Dust?
Usually filter media with good air permeability and strong resistance to clogging is selected. For cost and efficiency considerations, the general wood products processing company utilize mainstream selection of polyester needle felt filter bag, there is no problem under most of the cases. However, due to wood shavings, chips belong to flammable materials, and pipes / vessel wall friction with electrostatic generation of ignition probably, especially in dry environments with a high concentration of wood fines, such as grinding)/ sanding/ medium-density fiberboard processing, the risk of deflagration is very high, FiltEdge strongly recommends the use of polyester anti static filter bags.
Why Choose FiltEdge for Dust Extraction Filter Bags？
With more than 20 years of filtration and technology experience as well as integrated manufacturing and external sourcing capabilities, FiltEdge delivers more than 1 million filter bags per year to more than 50 countries/regions, ensuring 100% compatibility. Whether you are looking for filtration materials/rolls, filter bags/cartridges or filter systems, FiltEdge is capable of meeting your demand quickly, selecting, sampling or optimizing the design according to your actual operating conditions for free, guaranteeing a long-term and stable supply and freeing you from supply chain anxiety.
- One-Stop Filtration Sourcing Capability
Combined in-house manufacturing with mature external sourcing help you avoid compatibility issues, repeated communication, unclear responsibility and hidden system risks. - Application-Oriented Engineering Matching Capability
Based on Dust Extraction Filter Bags’s small volume, diversity and non-standard nature, FiltEdge always adheres to the principle of application-oriented selection, combined with rich global application experience, to achieve extended service life, lower total life cycle cost and stable operation on the basis of low emission. - Flexible Production and Technical Design Capabilities

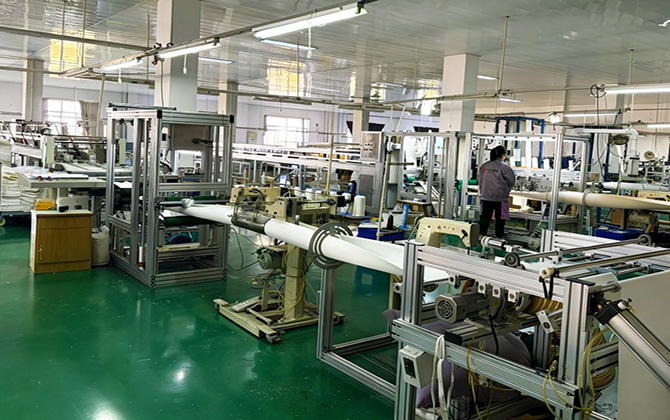

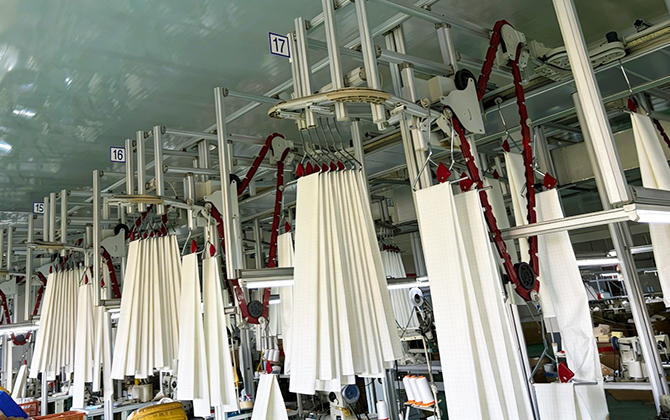

Multiple state-of-the-art imported European roll production lines, automated sewing/thermal-bonding lines and a large number of specialized one-person machines at FiltEdge China manufacturing site enable fast and flexible production of prototypes, trial orders, large-scale orders and customized products, and ensure you fast and on-time deliveries globally through our warehouses in China and the United States. - Full Life Cycle Free Technical Support
FiltEdge experts had been supporting you from pre-sale, middle sale to after sale for helping identify root causes early and avoid repeated operational mistakes. Delivery is not the ending.

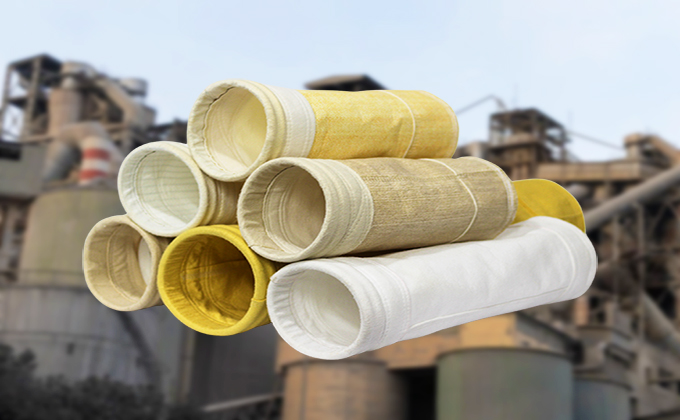

Dust Extraction Filter Bags vs Dust Collection Filter Bag
In practice, “Dust Extraction Filter Bags” and “Dust Collection Filter Bag” are often used interchangeably, but there is a clear difference between the two at the system level. For large-scale industrial dust removal systems, it is recommended to refer to: Dust Collection Filter Bag.
- Control Method: source capture
- System Size: small / decentralized / localized
- Equipment: dust extractor (suction equipment)
- Working form: mainly intermittent

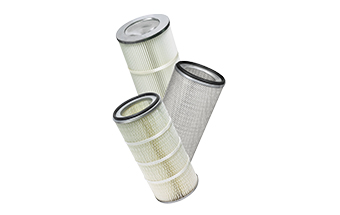

- Filter bag form: compact small bags, round bags, flat bags / panel filter bags, pleated filter cartridges, non-standard
- Typical Applications: woodworking, furniture, workshop
- Control Method: centralized processing
- System size: large/centralized
- Equipment: Baghouse
- Working form: continuous type mainly
- Filter bag form: standard industrial filter bag, cylindrical filter bag maily
- Typical Applications: cement, power plants, iron and steel
Most can be reused after cleaning, but they require periodic replacement.
Like your Dust Collection Filter Bag, it can be washed in principle, but it is not recommended. Regardless of how it is washed, it will generally not achieve the same results as a new filter bag; improper washing will affect the performances and may even cause significant damage to your dust collection system and production. Replacing your filter bag according to the recommendations and instructions is the best option.
FiltEdge does not recommend this, as the operating pressure environments differ.
Dust Extraction Filter Bags is designed to capture dust and transport airflow by pumping fumes under high negative pressure, which requires high air permeability and high filtration efficiency, in most cases, although dust collection filter bag can be barely used, but its effectiveness and service life are not as good as the specially designed Dust Extraction Filter Bags. FiltEdge specially designs the thickness, weight, density, fiber ratio, ultra-fine surface layer and finishes according to the characteristics of your Dust Extraction Filter Bags, and carries out in-depth glazing and heat-setting to ensure better performance.
In Dust Extraction, the end of bag service life is not determined by how long the bag has been in use, but rather by its residual pressure drop and the actual filtration performance. Static pressure varies as filtration progresses, providing direct feedback on the degree of bag clogging.
Initial State: differential pressure 200 – 400 Pa
Normal Operation: 600 – 1200 Pa
Warning Stage: 1200 – 1500 Pa(Cleaning Recommended)
ReplacementStage: > 1800 – 2000 Pa
When the differential pressure of the filter bag exceeds 1800Pa and cannot be returned to the normal operating differential pressure after dust removal, it is generally considered that it needs to be replaced. However, due to the different raw materials, basis weight, thickness and density of the filter media, there are differences in various differential pressure values, and the system and equipment will also have an impact, so FiltEdge suggests that when the Residual Pressure Drop cannot be returned to within 2.5 times of the initial pressure drop after a cleaning cycle, replacement can be considered.
Of course, FiltEdge understands the non-standard nature of Dust Extraction Filter Bags, and with its professional ability and rich application experience, FiltEdge can customize the development and processing of suitable filter media, bag dimensions, shapes, sealing mechanisms, internal/external filtration configurations, connection types, and more based on your operating conditions and specific needs.
Recommended Related Filter Solutions

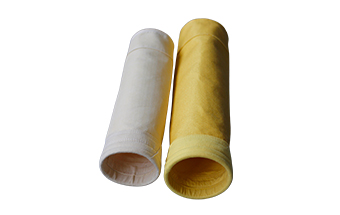

Suitable for centralized industrial dust removal system, can handle large air volume and continuous operation conditions.

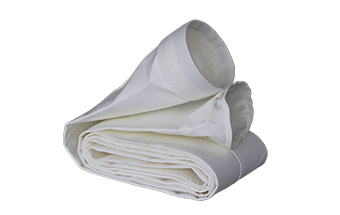

Polyester(PET) Filter BagsGeneral-purpose filter bags with good air permeability and cost-effectiveness for regular dust environments, mainly using polyester needled felt filter media in dust extractors.

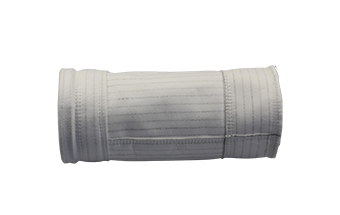

Anti Static Filter BagsSuitable for woodworking and static dust-prone environments, improving operational safety.
