What Is a Pleated Filter Cartridge?
FiltEdge pleated filter cartridges are ideal for your high-efficiency dust removal system, especially for locations where space is limited or where low emissions are critical. Unlike traditional filter bags, pleated filter cartridges do not require additional bag cage support and feature a rigid or semi-rigid structure reinforced with impregnated resin to ensure a stable shape and a larger filtration area, allowing your dust removal system to perform better.
Its outstanding surface filtration not only improves filtration efficiency, but also effectively reduces initial pressure drop, helping you reduce energy consumption and extend equipment life. Choose FiltEdge pleated filter cartridges to make your dust collection system run more consistently and efficiently while reducing maintenance costs.

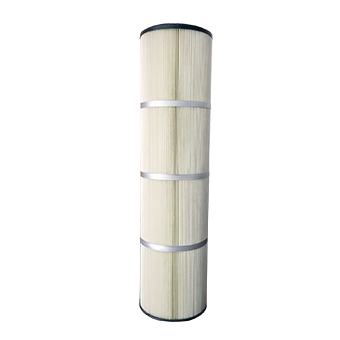

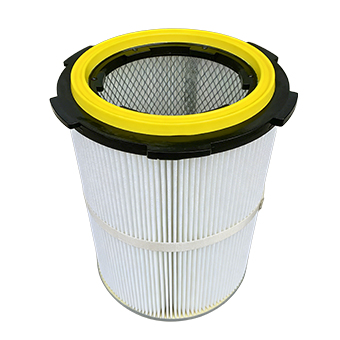

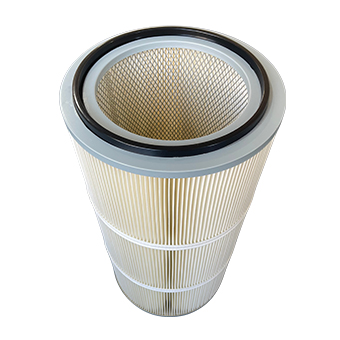

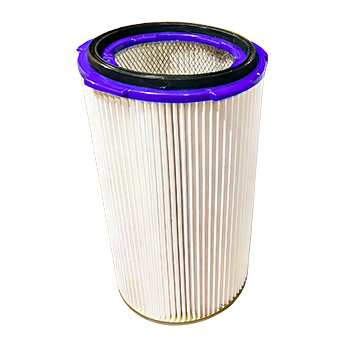

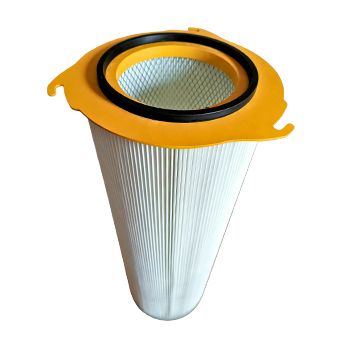

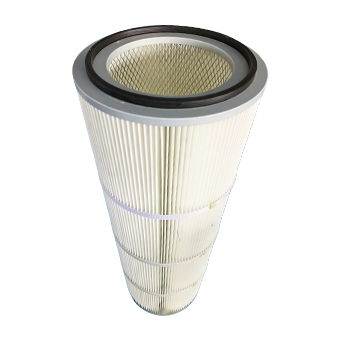

Pleated Filter Cartridge Filter Media Options and Composite Structures
Your pleated filter cartridges typically use rigid or reinforced nonwoven media, often in composite structures.

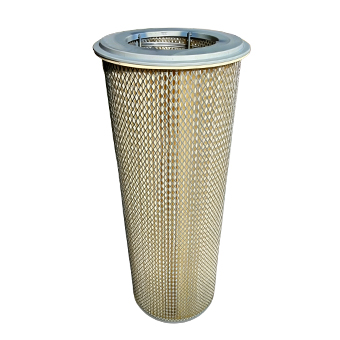

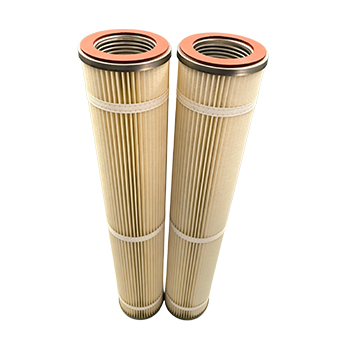

For elevated temperature or chemically aggressive environments, PPS ,aramid or PTFE-based nonwovens may be used, usually combined with reinforcement layers to maintain structural integrity. While polyester spun cartridge filters and polyester pleated cartridge filters with impregnated resin are used more widely.
Currently, many different fiber types, combinations, composites, and post-treatment methods are used in industrial dust collection pleated cartridge filters; the examples shown here represent only a normal portion of them for you.
For information specific to your dust collector conditions, please contact FiltEdge experts for more details.
Diverse FiltEdge High-Performance Dust Collector Pleated Filter Cartridges Series
From Standard OEM Replacements for global brands like Donaldson, Camfil, and Nederman 100% compatible with your dust collector to high-capacity Oval and Conical geometries, FiltEdge provides precision-engineered pleated filter cartridge solutions for every condition. Beyond standard cartridges, our core strength is built on Custom Engineering Services—tailoring media, dimensions, and end caps to solve your specific airflow and filtration challenges, ensuring superior emission control, maximum system uptime and minimum system’s TCO.

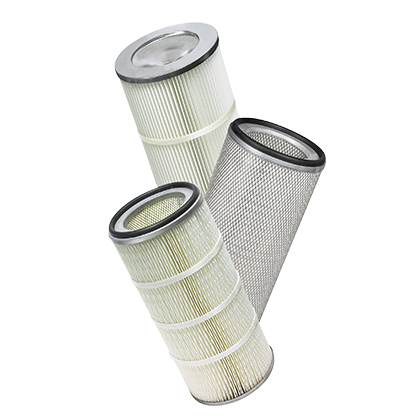

Standard OEM Replacement Filter Cartridge SeriesGuaranteed direct perfect fit for Camfil Farr, Nederman, and AAF. Original-grade sealing ensures total zero-bypass performance at a fraction of OEM costs.

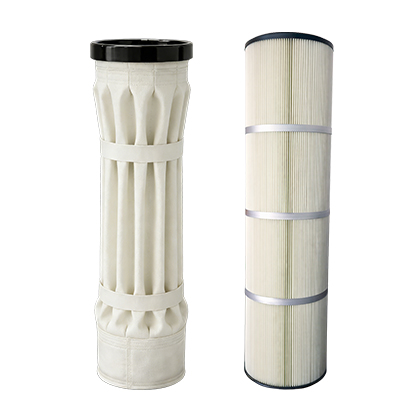

Filter Bag-to-Cartridge Conversion SeriesBy replacing traditional filter bags with our pleated cartridges, you can triple your filtration area and meet modern emission standards with retrofitting your aging baghouse.

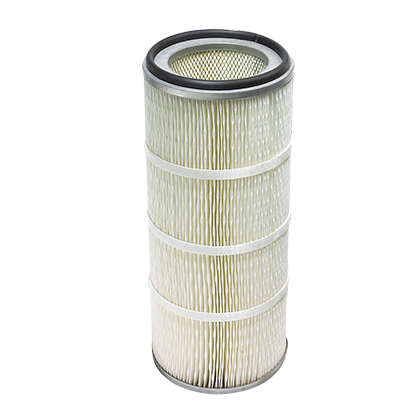

High-Efficiency PTFE Membrane Filter Cartridge SeriesComparable to GORE-TEX performance. Superior surface loading ensures easy dust release for sticky or fine chemical powders.

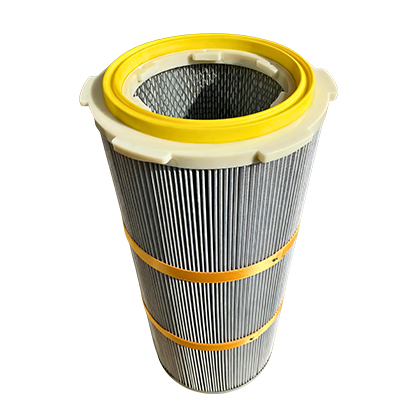

Explosion-Proof (Anti-static) Filter Cartridge SeriesATEX‑compliant conductive media for grain & metal dust collection.Designed to dissipate electrostatic charge and reduce ignition risk in explosive dust collection environments.

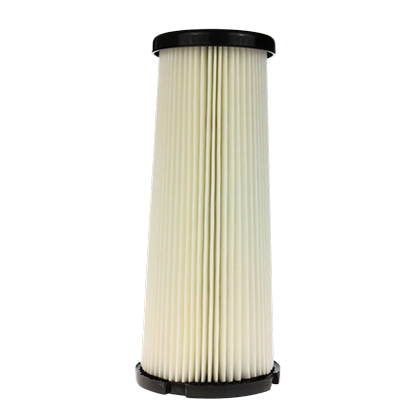

Airflow-Optimized Conical Filter Cartridge SeriesTapered design for high dust loading filtration systems.
Reduces inter-filter airflow velocity to minimize secondary dust re-entrainment.

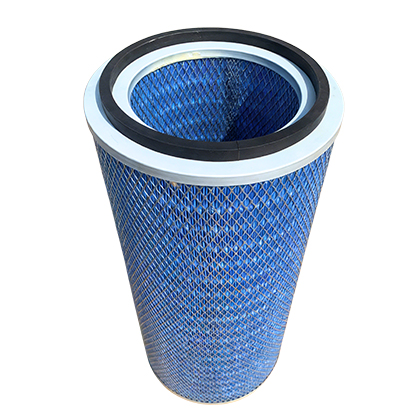

High-Density Oval Filter Cartridge SeriesForm-fit design compatible with Donaldson DFO style collectors.
Enhanced filtration area in compact dust collectors helps lower operating pressure drop.

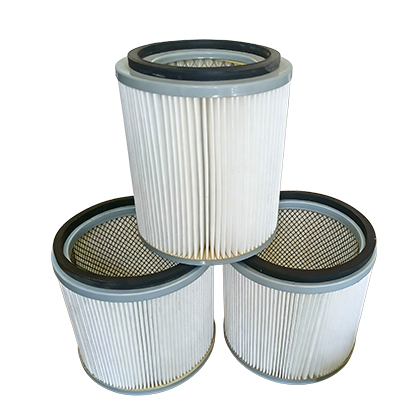

Filter Cartridge Custom Engineering ServicesFiltEdge develops application-specific end-cap designs and media structures to ensure fit and stable operation.Support for discontinued Wheelabrator® and BHA systems.

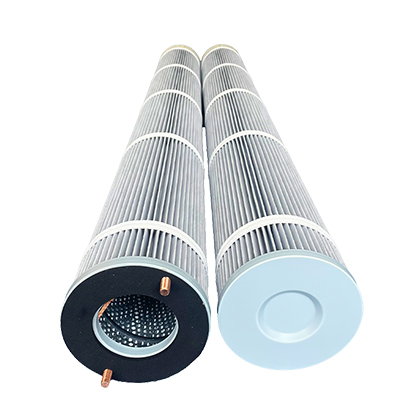

Horizontal Mount SeriesDesigned for side-access collectors like Donaldson Downflo style; ensures tool-free, secure alignment to prevent gasket bypass in horizontal airflow.
Key Features of FiltEdge Pleated Filter Cartridge
Pleated design provides 3-5x more filtration area than filter bags. It ensures a lower air-to-cloth ratio and stable pressure drop.
FiltEdge ensures surface-only loading for effortless dust release and lower operational resistance to avoid permanent clogging and high energy bills by utilizing premium PTFE membranes or nanofiber layers.
High markups and long leads for brand-name replacements. FiltEdge’s pleated filter cartridges are perfect compatible with Donaldson, Camfil, and other major housings.
Automated one-shot molding creates a seamless, elastic seal between the filter media and header, guaranteeing zero-leakage and helping you pass strict environmental audits.
FiltEdge uses industrial-grade heat-cured resins to create a permanent metal End-caps bond, ensuring the pleated filter cartridge remains intact even in high-vibration or high-temp environments.
Proprietary hot-melt and band pleat spacing fix keeps every fold open and functional to avoid “blind spots”, maximizing effective surface area for more efficient filtration.
The integrated structural design prevents pleat geometry distortion and maintains consistent filtration airflow. It significantly reduces mechanical wear and simplifies the installation process.
FiltEdge enables <5 mg/Nm³ emissions via synchronized manufacturing and your systematic synergy, ensuring your Pleated Filter Cartridge meets strict EPA standards.

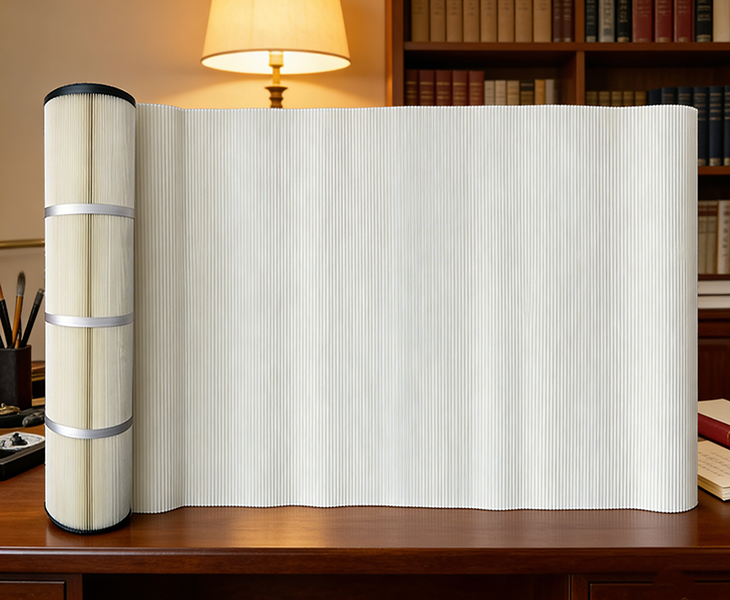

Key Advantages of FiltEdge Pleated Filter Cartridges
Pleated filter cartridges offer several clear advantages when applied within their appropriate operating condition:
- Extremely high effective filtration area per element (3-5X, even more)
- Compact system footprint for space limitation
- Low initial and operation pressure drop for longer service life
- High filtration efficiency, especially for fine dust
- No need for filter bag cages
- Energy saving due to lower cleaning pressure and system fan consumption
These advantages make pleated filter cartridges particularly attractive for equipment manufacturers and end users seeking compact, modular dust collection solutions.
If you are unsure whether pleated filter cartridges are suitable for your application, please contact FiltEdge experts for technical consultation.

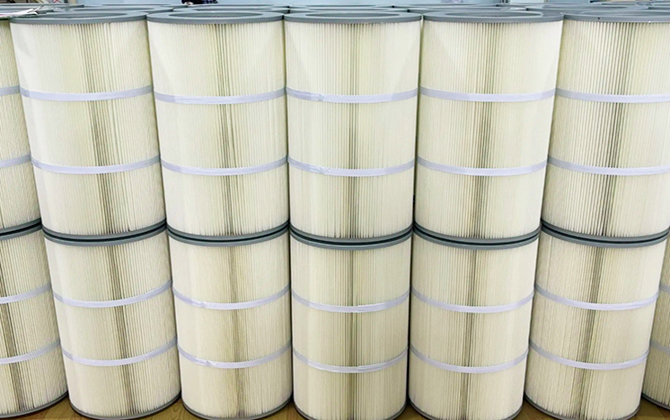

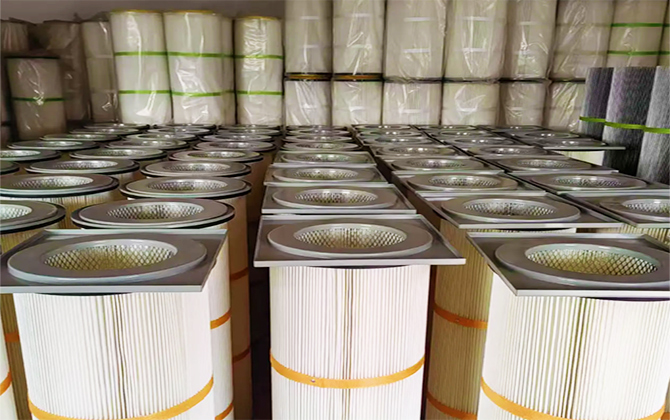

Why is FiltEdge Your Trusted Pleated Filter Cartridge Supplier Partner?
Pleated filter cartridges are highly sensitive to airflow velocity, dust loading, and structural consistency.
Misapplication or fragmented sourcing often leads to rapid pressure rise and short service life.
FiltEdge combines engineering evaluation and integrated supply to reduce these risks before installation.
- Proven Application Experience
20+ years of filtration practice and over 1 million filters supplied annually support reliable parameter selection. - Engineering-Based Selection
Dust characteristics, filtration velocity and cleaning intensity are evaluated before defining pleat design and media structure. - Integrated In-House & Outsourced Supply
Own manufacturing plus validated external sourcing ensures integrated system compatibility and clear responsibility. - Free Sampling & Flexible Production
Sample cartridges and small-batch trials reduce trial-and-error before volume supply. - Stable Delivery Support
100,000 m² production base in China and U.S. local warehouse help ensure consistent and timely replacement. - Zero-Risk Support
Free engineering audits and technical supports throughout pre-sales, during-sales, and after-sales to ensure pleated filter cartridge compatibility and compliance.

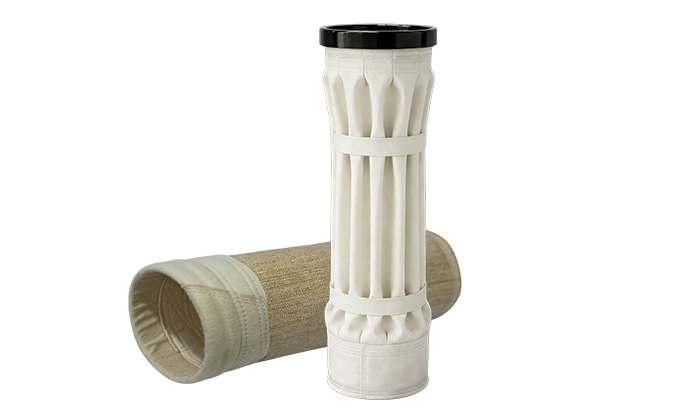

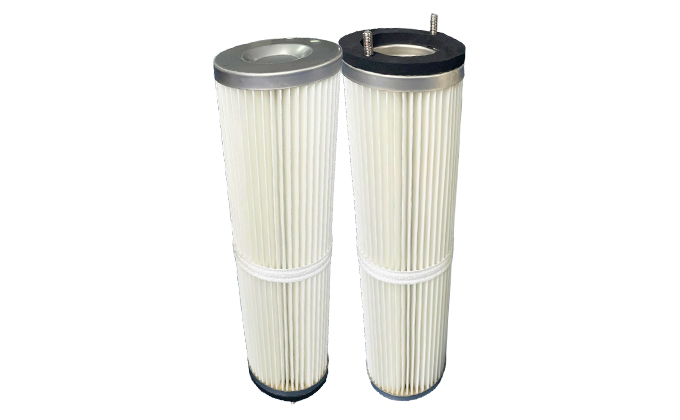

Pleated Filter Cartridge vs. Filter Bag Solutions
Compared with your filter bag–based solutions, pleated filter cartridges represent a different engineering approach, not simply a different format.
Key distinctions include:
- Pleated filter cartridges rely on rigid geometry and surface filtration, while filter bags rely on flexible media and depth filtration (or membrane-assisted surface filtration)
- Pleated filter cartridges typically operate at higher system filtration velocities and lower effective media air-to-cloth.
- Filter bags offer greater tolerance to dust variability and operating fluctuations
- No matter standard filter bags or pleated filter bags have more filter media options
- Pleated filter cartridges need professional specific designed cartridge dust collector.
As a result, pleated filter cartridges are best viewed as a high-efficiency solution for controlled conditions, rather than a universal replacement for filter bags.
If you still have questions about various filter elements, please browse our relevant pages or contact FiltEdge experts for direct consultation.

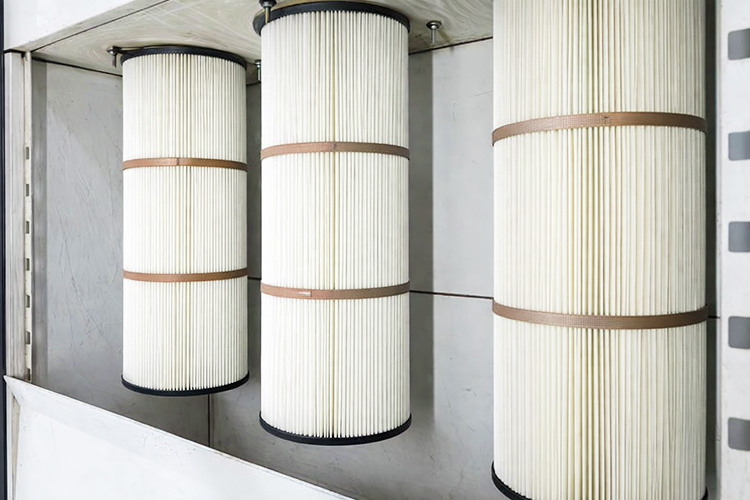

Pleated Filter Cartridge Typical Applications and System Types
Pleated filter cartridges are commonly used in following conditions:
- Industrial production facilities with dust-laden gas streams entering compact industrial dust collectors located in limited spaces.
- Continuous or intermittent dust-generating processes
Industries and applications:
- Metal processing and welding fumes
- Cement, mineral, and chemical dust
- Battery materials, carbon dust, powder handling
- Boilers, incinerators, heat-treatment exhaust (medium temperature)
These applications typically share the following characteristics:
- High total dust mass loading handling capacity (5-200kg/h)
- Relatively low inlet dust loading concentration(≤5-10g/Nm³)
- Reverse-direction flow pulse-jet cleaning (high & low energy pressure) required normally
- Long-term continuous operation
- Dry, free-flowing particulate
- Stable airflow and process conditions
The above suggestions are not exhaustive or absolute and are for your reference only. Given the complexity of your real dust collection applications, please consult with FiltEdge experts for a thorough evaluation.
Pleated Filter Cartridge Basic Structural Features and Self-Supporting Design
The defining characteristic of a FiltEdge pleated filter cartridge is its self-supporting design and structural rigidity.
Typical structural elements include:
- Rigid or semi-rigid filter media
- Integrated internal support core (metal or plastic)
- End caps bonded to the filter media pack
- Stable pleats, with a pleat spacing of 10-25mm and a pleat depth of 15-50mm (dependable).
- Integrated circumferential reinforcement banding structure for locking, preventing fatigue damage.
This structure allows the cartridge to remain dimensional stable with more effective filtration area during your operation and pulse-jet cleaning, even at relatively higher system filtration velocities.
However, this rigidity also reduces tolerance for deformation, dust bridging, and incomplete dust release, making your proper application selection essential.
The information above is not exhaustive for you; please contact FiltEdge experts for more information.
Pleated Filter Cartridge Application Limitations and Operating Considerations
Despite their advantages, FiltEdge pleated filter cartridges have clear limitations.
They are generally not suitable for:
- Sticky, oily(>0.3%), or hygroscopic dust
- High-moisture gas streams
- High dust concentration (>15-20g/Nm³)
- Particle size is either too small or too large (<5μm or >150-200μm).
- The dust particles are sharp, rigid, angular, and highly abrasive.
- The dust particles have high hardness, with a Mohs hardness of ≥ 6.
- Processes with large fluctuations in airflow or dust characteristics
In such conditions, surface blinding, rapid pressure rise, and reduced cleaning effectiveness can significantly shorten your pleated cartridge filter service life.
The information above is not comprehensive; a thorough assessment and evaluation based on your specific dust collection conditions are required. Please contact FiltEdge experts for further discussion.
Pleated Filter Cartridge Cleaning Methods and Performance Considerations
Pulse-Jet Cleaning
Pulse-jet cleaning is the primary cleaning method for pleated filter cartridges in industrial applications.
Effective cleaning requires:
- Proper high-energy pulse-jet pressure (0.4-0.6MPa）and duration(0.1-0.2s);
- Or low-energy reverse-direction flow pulse pressure (0.05-0.3 MPa) and duration (0.2-0.8s);
- Correct nozzle alignment;
- Matched solenoid pulse valve port size;
- Uniform airflow distribution across the cartridge surface
Because pleated filter cartridges rely heavily on surface filtration, low-pressure and middle-frequency pulse cleaning is suggested to get better cleaning effectiveness and extend its service life directly
Other Cleaning Approaches
In light-load or intermittent systems, alternative cleaning methods are rarely used. However, these are generally limited to niche applications and are not suitable for high-load industrial environments.
All dust cleaning methods and parameter settings are designed to achieve a balance between effectively removing the dust cake and maintaining the pleated filter cartridge’s strength. Precise adjustments of these variables are necessary based on your actual dust collection conditions. Please contact FiltEdge experts for assistance in making these determinations.
Pleated Filter Cartridge Service Life and Maintenance Factors
The service life of pleated filter cartridges is influenced by your:
- Dust characteristics
- Dust load and concentration
- Filtration velocity
- Cleaning efficiency (Pulse pressure, duration, interval, solenoid pulse valve port size)
- Proper selection of filter media options with right surface properties
- Air flow distribution
- Suitable operation(Pre-coating except for pleated membrane filter cartridge and balanced pressure drop)
- Stable system and gas condition
- On-time maintenance
Once surface blinding or embedded dust develops, your pleated filter cartridges typically exhibit limited recovery, making timely replacement critical to maintaining your system performance.
Unsure about the service life of your pleated filter cartridge? Contact FiltEdge experts for a technical consultation.
FiltEdge Integrated System Engineering Technical Support & Service Beyond Pleated Filter Cartridge
Superior performance is never the result of a Pleated Filter Cartridge alone. It comes from Systematic Synergy—a precise alignment of pre-sale site evaluation, advanced media manufacturing, your post-installation, routine operation and scheduled maintenance.
At FiltEdge, we don’t just supply pleated filter cartridges; we provide End-to-End Technical Intelligence. FiltEdge’s experts evaluate your specific dust properties and system condition to determine the optimal configuration. FiltEdge ensures your investment delivers maximum reliability, better operation performance, extended service life, and secured EPA compliance through the total filtration life cycle by selecting specialized media or providing ongoing maintenance guidance.
If you have any doubt, please contact FiltEdge technical experts for free, comprehensive, and timely assistance.
Legal Disclaimer
Trademarks & Compatibility: All manufacturer names, model numbers, and logos are used for reference and cross-compatibility purposes only. FiltEdge products are high-quality alternative replacements and are not affiliated with, sponsored, or endorsed by the original equipment manufacturers (OEMs).
Performance & Application: Technical data, performance ratings, and application suggestions provided by FiltEdge are based on controlled laboratory testing or typical industry conditions and are intended for general reference only. Since actual performance is significantly influenced by variable factors—including dust characteristics, air-to-cloth ratios, moisture levels, and temperature—these figures do not constitute a legal guarantee of performance in any specific environment. Customers are advised to consult with our engineering team for a site-specific assessment to ensure optimal filter selection.
A filter cage is a separate supporting structure located inside the filter bag, made of carbon steel or stainless steel wire.
A self-supporting filter cartridge is a structure completely integrated with the filter cartridge, usually located inside the cartridge, and made of plastic, carbon steel, or stainless steel expanded mesh or perforated plate.
Their function is to support the filter element and prevent the your filter bag from collapsing or pleat from deforming.
If you would like to learn more, please contact FiltEdge experts.
Reinforcement rings or banding are critical for pleated filter products to ensure structural stability, maintain filtration efficiency, and withstand cleaning cycles. They prevent pleat deformation, increase filtration capacity, and improve service life.
No. Although both serve a reinforcement function, they are structurally and functionally different.
| Item | Pleated Filter Bag | Pleated Filter Cartridge |
| Reinforcement term | Anti-collapse ring / Pleat support ring | Banding / Reinforcement band |
| Structural nature | Flexible filtration element | Rigid, self-supporting filtration element |
| Integration with media | Sewn or attached to the outer surface | Bonded directly to the pleated media |
| Integration with support structure | Indirect (works together with bag cage) | Works in combination with inner support core(It depends, usually not) |
| Typical reinforcement material | Polyester tape, PPS or aramid fabric tape | Support band, hot-melt adhesive, PU adhesive, epoxy resin |
| Typical reinforcement spacing | 200-400 mm (application-dependent) | 150-300 mm (more stringent) |
| Primary mechanical function | Prevent pleat collapse and reduce abrasion against the cage | Lock pleat geometry and prevent fatigue or pleat deformation |
| Cleaning behavior impact | Limits excessive radial deformation during pulse cleaning | Stabilizes pleats under high-energy pulse reverse-direction flow cleaning |
| Structural rigidity | Low to medium | High |
If you are still confused with reinforcement ring and banding, please contact FiltEdge experts for a consultation.
Industrial pleated filter cartridges are designed for your dust collection systems with continuous operation and active cleaning, such as pulse-jet. Air filter cartridges are used for your air intake or environmental filtration under low dust loading and are typically static or lightly cleaned.
| Item | Industrial Fleated Filter Cartridge | Air Filter Cartridge |
| Primary purpose | Industrial dust collection | Air intake / air purification |
| Typical application | Welding, metalworking, cement, woodworking, chemical processes | HVAC, compressors, engines, workshops |
| Dust loading | Medium to high | Low |
| Operating mode | Continuous | Intermittent or static |
| Cleaning method | Pulse-jet or reverse air | Static, vibration, or low-pressure cleaning |
| Cleaning frequency | Frequent, automatic | Rare or none |
| Structural rigidity | High, reinforced | Moderate |
| Reinforcement banding | Required | Usually not required |
| Internal support core | Mandatory | Optional or light-duty |
| Media durability | High abrasion resistance | Focus on airflow and fine filtration |
| Typical pressure drop | Higher operating tolerance | Low initial pressure drop |
| Service environment | Industrial, harsh conditions | Clean or semi-clean environments |
| Replaceability | Designed for repeated cleaning | Often disposable |
| Interchangeability | ❌ Not interchangeable | ❌ Not interchangeable |
If you would like to learn more about the differences between industrial dust collector filter cartridges and other filtration products, please contact FiltEdge experts for technical consultation.
In most cases, no.
Pleated filter cartridges are generally not suitable for your standard baghouse dust collectors. Baghouses are designed for flexible filter bags and cages, while cartridges with rigid and integrated structure require different cleaning mechanics, nozzle positioning, and airflow patterns. Proper system redesign or modification for your current baghouse is necessary for reliable operation, otherwise installing cartridges in a existed baghouse can lead to inefficient cleaning, rapid pressure drop increase, and premature cartridge failure.
To elevate your current baghouse condition, please contact FiltEdge experts for assistance.
Filtration velocity has a direct impact on cartridge service life. When the velocity is too high, dust strikes the pleat peaks more aggressively, increasing abrasion and accelerating fatigue of the filter media, especially for pleated membrane filter cartridge. High velocity also causes uneven dust loading, faster pressure drop rise, and more frequent cleaning cycles, all of which shorten service life.
Lower and well-controlled filtration velocity promotes uniform dust cake formation, gentler cleaning, and more stable long-term performance.
Would you like to know which range of filtration velocity is better for your specific dust collector, please contact FiltEdge experts for technical consultation.
Pleated filter cartridges can handle moderate dust loading, but they are generally not recommended for very high dust load or heavy particulate loading conditions. Excessive dust concentration increases surface accumulation on pleat peaks, leading to rapid pressure drop rise, incomplete cleaning, and early surface blinding. Suggested range for dust loading handling capacity of 5-200kg/h, and dust load concentration of ≤5-10g/Nm³.
In applications with high dust loading, standard filter bags or pleated filter bags with wider pleat spacing typically provide better tolerance and longer service life.
Still unsure which type of filter element is more suitable for your specific condition, please get in touch with FiltEdge experts for assistant.
Strictly speaking, your industrial pleated filter cartridges do not have a reverse air cleaning method like bag filters. The reason some people refer to it as “reverse air cleaning” is due to a misunderstanding. During cleaning, the compressed air pulse jet is directed from the inside of the industrial dust filter cartridge outwards, which is the opposite direction to the flow of dust-laden flue gas during filtration (from outside to inside). This reverse direction of the pulsed airflow is mistakenly referred to as reverse air cleaning, confusing it with the reverse air cleaning method used in bag filters.
Dust collector filter cartridges primarily utilize pulse jet cleaning, which can be divided into high-pressure and low-pressure cleaning depending on your actual operating conditions. People often confuse low-pressure pulse jet cleaning with reverse air cleaning.
If you are interested in different types of dust collector cleaning methods, please contact with FiltEdge experts for more details.
In many applications, yes — but only under suitable conditions.
Membrane-laminated media can reduce particle penetration, stabilize pressure drop, improve surface filtration and emission control. However, aggressive cleaning intensity or high dust loading may cause membrane damage at pleat peaks, reducing service life, careful application evaluation is needed for your pleated membrane filter cartridge.
To learn more about membrane knowledge and application tips, please consult with FiltEdge experts
Premature failure of pleated filter cartridges is usually caused by a combination of factors such as high filtration air-to-cloth, excessive cleaning intensity, unsuitable dust characteristics, improper gas moisture, elevated temperature, and uneven airflow distribution etc, which can lead to accelerated wear at pleat peaks, dust bridging between pleats, incomplete dust release, and rapid pressure drop increase. In severe cases, membrane cracking or structural fatigue may occur, significantly shortening service life.
If you expect to avoid premature failure happen as possible as you can, please contact with FiltEdge experts for technical elevation.
