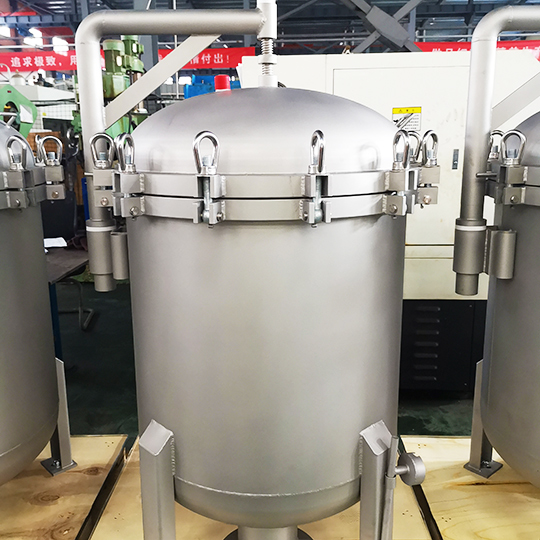

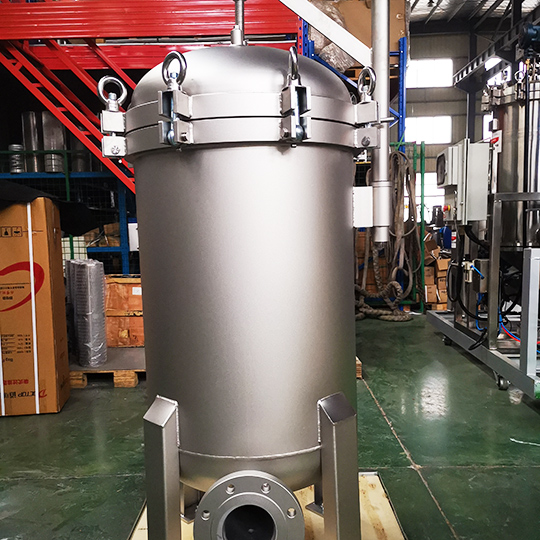

FiltEdge's Chemical Filter Housings Solve Your Filtration Pain Points!
We can provide you with SS304/SS316/PVDF/High-end alloy filter housings to solve the problem of chemical liquid corrosion caused by rusting through the housings, and eliminate the liquid contamination caused by metal ions. Improve your product quality and reduce your cost of use.
FiltEdge’s chemical filter housings cover a range of filtration precision from 0.1-2000μm, with a variety of precision adapted to your process liquids to ensure the purity of your downstream products.
Our chemical filter housings are available in more than 100 styles, with quick-open design and automatic self-cleaning modes, allowing you to quickly maintain your equipment and replace filter bags/elements, reducing your downtime and costs.

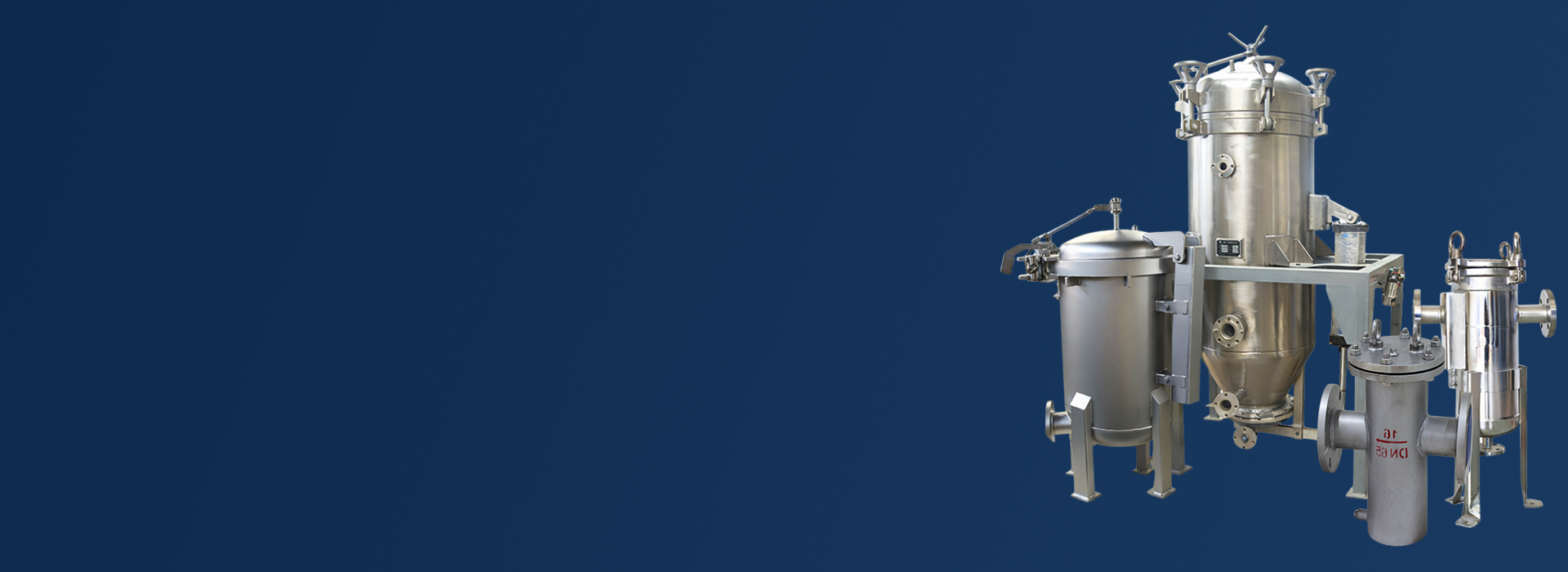

What is FiltEdge's Chemical Filter Housing?
FiltEdge’s Chemical Filter Housing is a filter specifically designed for chemical, pharmaceutical, petrochemical, coatings, and fine chemicals. Depending on your process needs, it serves primarily as a pressure-bearing, filtering, or slag-collecting device in your filtration system. It is the centerpiece of your entire filtration system and is a critical component in maintaining the quality of your product and keeping your production line up and running.
Our FiltEdge chemical filter housings are ISO, CE, and FDA certified. For processes with stringent aseptic hygiene and safety requirements, we can upgrade your materials and surface processes to meet your industry compliance. We can also design and manufacture filters to ASME standards.
Chemical Filter Housing Selection
For chemical fluids, FiltEdge’s chemical filter housings can be pre-filtered, fine-filtered, and integrated into a complete coarse-to-fine filtration system depending on your process requirements. Provide your working condition parameters, we help you do the selection analysis.

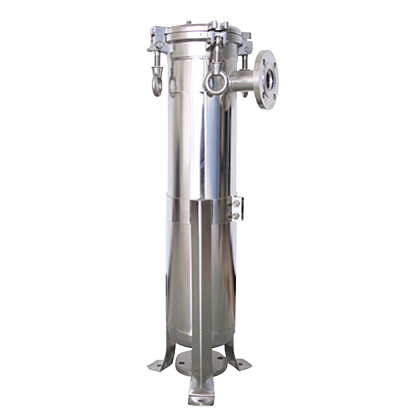

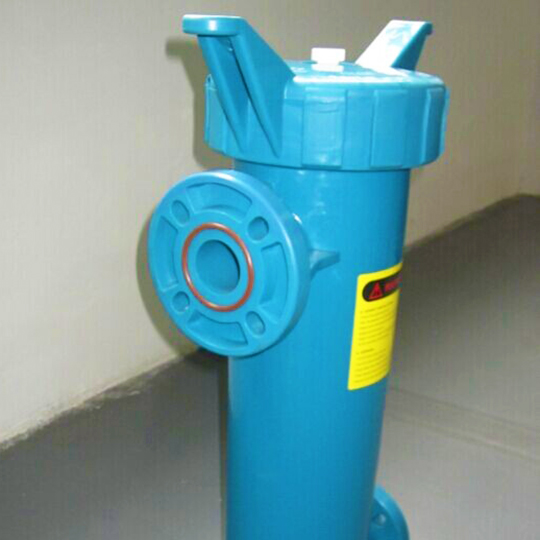

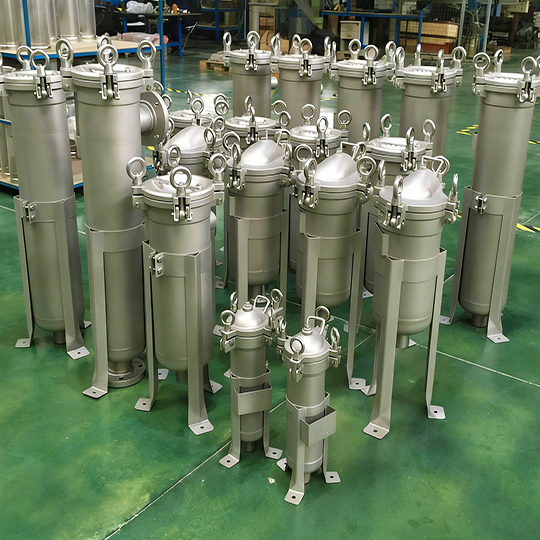

Single Bag Filter HousingMade of stainless steel and PVDF, single bag top entry precision filter suitable for low pure small flow rate of chemical liquids.

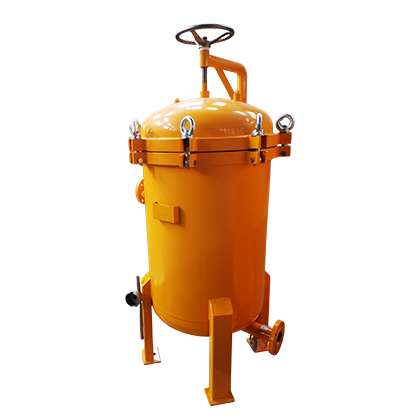

Multi-bag Filter HousingQuick-open/rocker/clam-open and other opening and closing methods, flow rate up to 5000+GPM, suitable for large flow continuous operation.

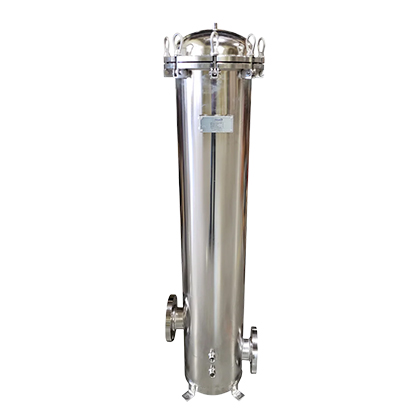

Cartridge Filter HousingSingle cartridge to 200 cartridges are available, up to 0.1μm high precision, can be used with other filters for fine or coarse filtration.

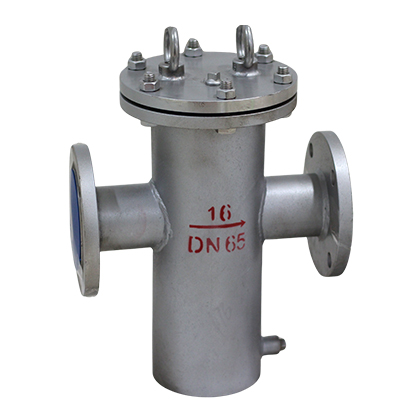

Basket FilterMade of stainless steel, corrosion-resistant and high-pressure resistant, suitable for coarse filtration of chemical liquids.

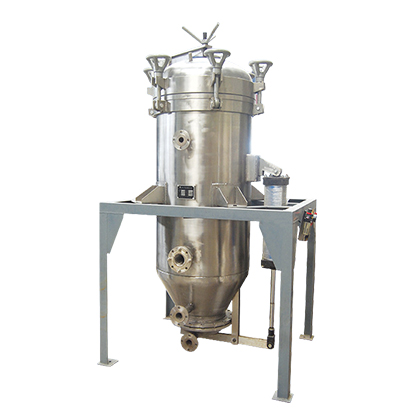

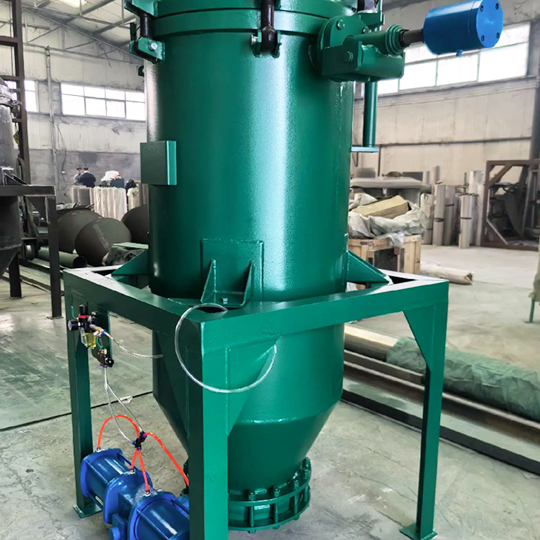

Candle FilterFull-automatic filtration equipment, precision filtration up to 0.1μm, can be widely used for fine chemicals and pharmaceuticals.
Features and Advantages of Chemical Filter Housings
For harsh chemical working conditions, our chemical filter housings have been upgraded in all aspects from material to technology. No matter what kind of working conditions you are facing, we have a filter that can match it precisely.
SS304/SS316/PVDF/high-end alloy, compatible with a variety of chemical liquids and will not be corroded and rusted through.
In addition to conventional sandblasting, there are polishing, PTFE coating, pickling and passivation, which can not only beautify and protect the equipment, but also eliminate the breeding of bacteria and prevent batch contamination.
FiltEdge’s chemical filter housings can cover 0.1-2000μm, there is always an accuracy for your chemical liquid.
Our regular pressure is 0.6-1.0MPa, and can be customized up to 2.5MPa.
A single filter unit can flow up to 5,000+ GPM, and using the parallel mode can expand the accepted flow of the filter again.
Chemical filter housings have ISO,CE,FDA certificates, if you need other certificates, please inquire in detail.
Flanges, threads, and quick-fit standards are common to international ISO standards, and DIN/ANSI/JIS standard interfaces should be negotiated by contacting sales.
Filter bags/elements can be generalized to what can be purchased in the market, no matter the brand, as long as the size is compatible. You can also replace the filter bag/cartridge with different materials according to your filter slurry.

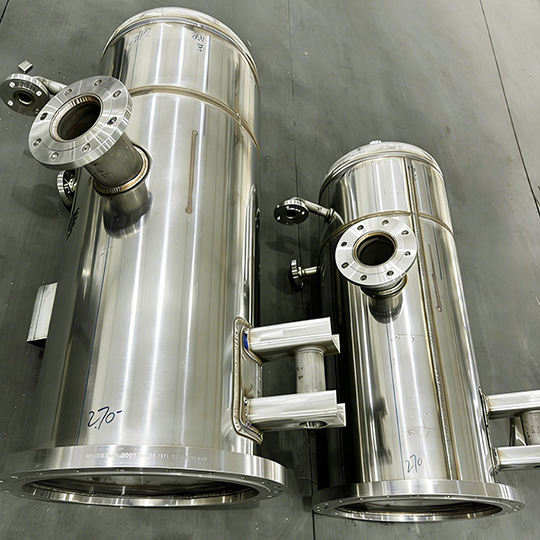

Customized Chemical Filter Housings
We at FiltEdge can customize chemical filter housings to fit your process requirements based on the characteristics of your chemical fluids, such as from material selection, seals, linkages, inlet and outlet orientation, automation, system functionality, and more. Whether you are building a new production line or replacing an old filter, we can make the filter housing match your plant layout and piping.
Engineering Support for Chemical Filter Housings
FiltEdge will do working condition analysis and chemical filter housing selection analysis for you according to the chemical nature of your filtered liquid, flow rate, pressure and other factors, and provide you with the design that matches your plant piping layout and the design that extends the life of the filter equipment. After you receive the filter, we support remote technical support, and we can also arrange technical personnel for your door-to-door installation and commissioning, as well as maintenance and operation training.

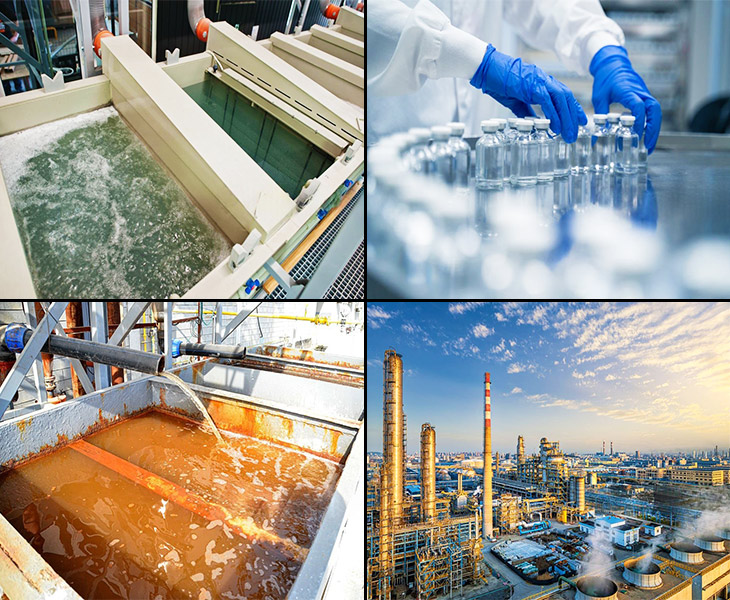

Application of Chemical Filter Housings
FiltEdge’s chemical filter housing has a wide range of applications and can be used in chemical, pharmaceutical, petrochemical, paint, fine chemical and other industries. It can filter particulate impurities from acid and alkali solutions, organic solvents, paints and coatings, formulation fluids and other liquids. According to your process requirements, use different filtration precision, set in the front or back end of your process pipeline, play the role of coarse filtration to protect your downstream equipment, or high efficiency filtration to improve the quality of your products.

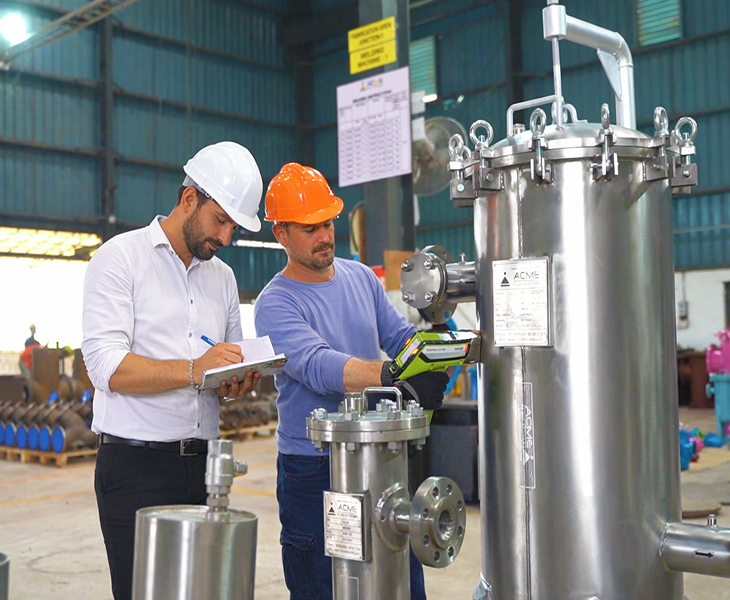

Quality Inspection of Chemical Filter Housings
FiltEdge strictly controls the quality of each chemical filter housing for you. From PMI spectral analysis of raw materials to PT inspection of welded seams and 1.5 times pressure test of finished products, etc., we have a complete set of quality inspection process to ensure that you receive high-quality filters.

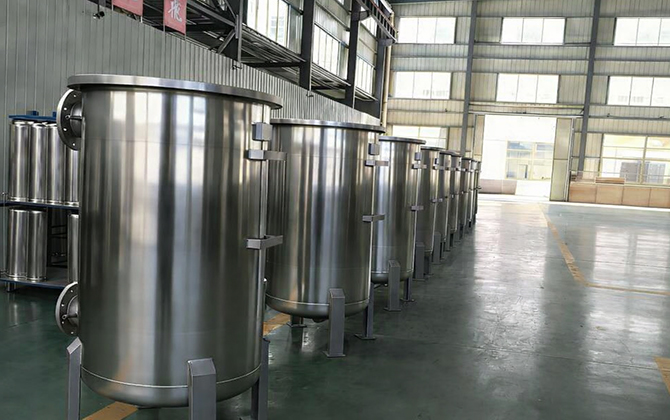

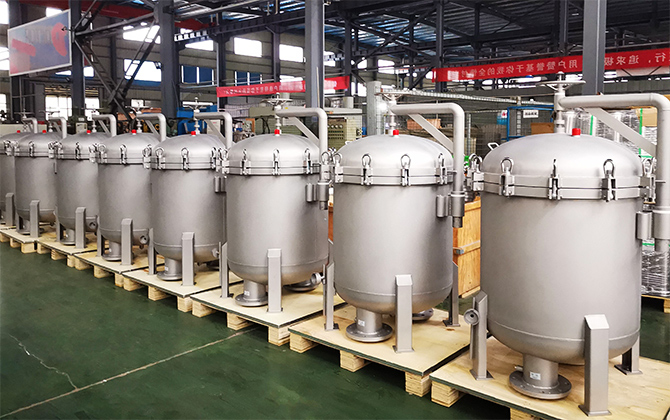

Why Choose Chemical Filter Housing From FiltEdge?
FiltEdge is a custom chemical filter housing supplier, we have our own warehouse in the United States can improve the regular parts and equipment for you within 24 hours. We have our own chemical filter housing factory in China, with 3600 square meters of manufacturing space, and over 6,000 units of shipments per year, to guarantee the supply cycle of your equipment.
From the beginning of your conversation with us, we will provide you with 24-hour timely pre-sales and after-sales service. We will not only help you to do working condition analysis, selection analysis, customized design, etc., but also help you to arrange the cargo transportation and assist you to clear the customs quickly. We accept TT, LC and other payment methods to protect your money. For long-term cooperation partners or large-scale projects, we implement wholesale ladder price for purchasing chemical filter housings.
FiltEdge has 20 years of experience in filtration industry, participated in more than 30 professional filtration industry exhibitions, and cooperated with our partners in more than 100 countries. We hope that in the future you can also become our global partners.
Technical Parameters of Chemical Filter Housings
Below are the technical specifications of FiltEdge’s chemical filter housings to give you a quick overview of the performance of our chemical filter housings. If the filters below don’t quite meet your requirements, please contact us with your operating conditions and we will customize the equipment for you.
- Technical Parameters of Chemical Filter Housings
| Product Type | Model / Bag / Cartridge Qty | Bag / Cartridge Specs | Material | Filtration Rating | Design Pressure | Operating Temp | Inlet / Outlet Connection | Flow Capacity |
| Single-Bag Filter Housing | 1S / 2S / 3S / 4S | #1 / #2 /#3/ #4 bag | SS304 / SS316L / PVDF / Carbon Steel | 1 – 1000 μm | 6 – 10 bar | 0–95°C (metal), PP ≤70°C, PVDF ≤90°C | Flanged / Threaded / Clamp | 20–40 m³/h (#2 bag) |
| Quick-Open Bag Filter Housing | 3–23 bags | #1 / #2 bag | SS316 / High-quality O-ring | 1 – 1000 μm | 6 – 16 bar (optional 10–25 bar high-pressure model) | -20°C – 120°C (EPDM); up to 150°C (PTFE/Viton) | Flange / Threaded / Clamp / Custom orientation | 175–4000+ GPM |
| Mussels Open Bag Filter Housing | 3–23 bags | #01 / #02 bag | SS304 / SS316 | 1 – 1000 μm | 6 – 16 bar (optional high-pressure up to 25 bar) | -20°C – 120°C (EPDM); up to 150°C (PTFE/Viton) | Flanged | 525–4000+ GPM |
| Rocker-Arm (Manual) Bag Filter Housing | 2–32 bags | #01 / #02 bag | Q235 Carbon Steel / SS304 / SS316L | 1 – 1000 μm | 6 – 10 bar | -20°C – 120°C (seal dependent up to 150°C) | Flanged | 350–5600 GPM |
| Cartridge Filter Housing | 1–200 cartridges | DOE / 222/Fin / 226/Flat | SS304 / SS316L / PVDF | 0.1 – 100 μm | 10 – 25 bar | -20°C – 120°C (EPDM / Viton / Silicone / PTFE) | Flanged / Tri-clamp | Customizable based on cartridge qty and medium viscosity |
| Candle Filter | 1–150 cartridges | φ60–φ86 × 760–2800 mm | SS304 / SS316L | Customizable based on media | Customizable (10–25 bar high-pressure) | Customizable (ambient – 150°C) | Flanged / Custom | Customizable based on cartridge qty and filter area |
Normally, stainless steel is more suitable for chemical liquids because of its acid and alkali resistance, high pressure resistance and high temperature resistance. Carbon steel filter surface coating and other anti-corrosion technology, can also be used in ordinary corrosive chemical liquids, is a relatively economical filtration solutions.
The precision of the cartridge filter housing is higher than that of the bag filter housing, which can reach 0.1μm and is used for high-precision filtration. Bag chemical filter housing usually can not reach this precision, but its cost is lower than the cartridge, and can handle a wider range of flow. In short, there is no absolute good or bad in the two types of filter housings, and it is most important to choose a chemical filter housing that best suits your working conditions.
The main difference between the two types of filters is the difference in the range of processing flow. Secondly, both chemical filter housings are made of stainless steel, single-bag chemical filter housings are also made of PVDF/PP which are two kinds of plastic materials, and multi-bag type is not made of plastic materials in most cases. They have different ways of opening the lid, multi-bag chemical filter housing, especially when you need a high flow rate, usually use the labor-saving quick-open design structure, while the single-bag type usually does not do quick-open. You need to go for the right filter for you according to the chemical nature of the filtered liquid, flow rate, precision, temperature, pressure and so on.
Routinely speaking, you need to replace the filter bag/cartridge of chemical filter housing in 1-3 months, exactly when to change needs to depend on the impurities of your filter media and the use and maintenance. In addition, you can install a differential pressure gauge on the filter housing, you can observe the differential pressure to determine whether to replace the filter bag.
