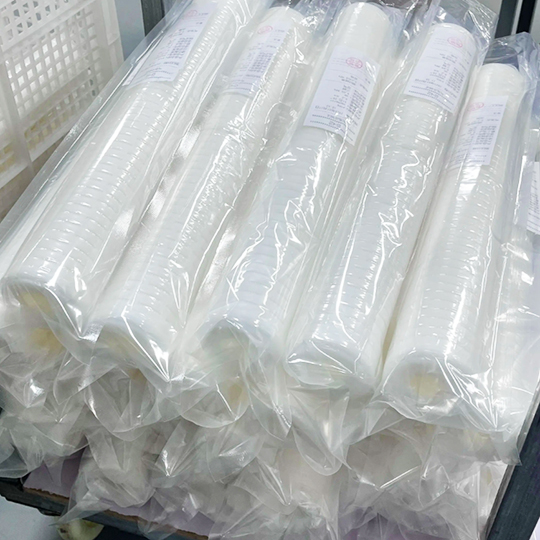

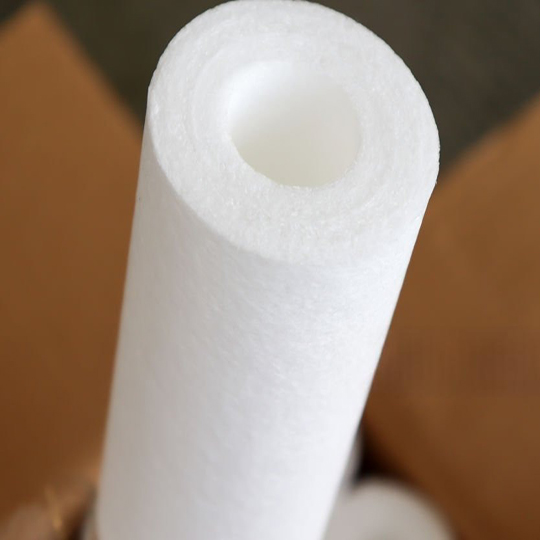

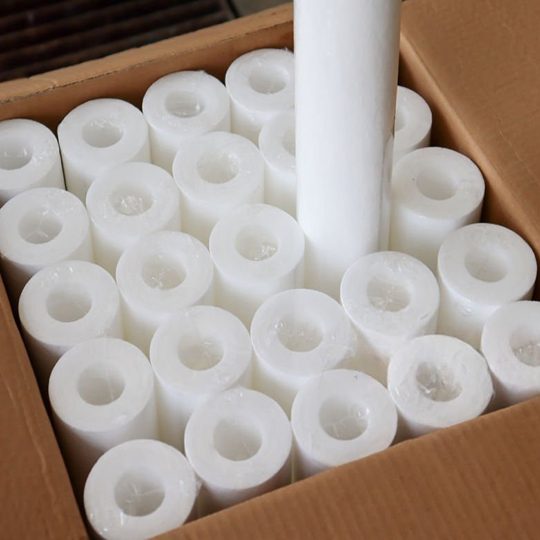

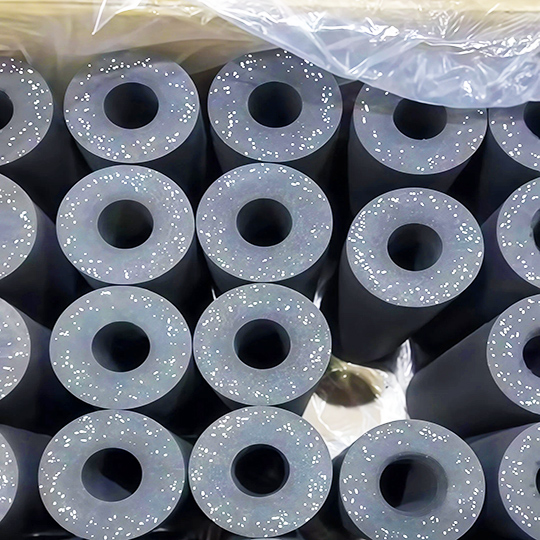

Why Choose FiltEdge 5-Micron Filter Cartridges?
FiltEdge can redefine the standard of deep filtration. Firstly, the 5-micron filter cartridge adopts hot-melt self-bonding technology, which gives you the security of zero media shedding and zero fiber shedding problems, and prolongs the service life of reverse osmosis membrane. Secondly, the FiltEdge 5-micron filter cartridge adopts a three-layer gradient density process, the outer layer captures large particles, the inner layer accurately intercepts 5-micron impurities, and the dirt-holding capacity is greatly increased. And the FiltEdge 5-micron filter cartridge optimizes the fiber fineness distribution, extremely low initial pressure drops, high flow rate at the same time, system resistance is smaller.
At the same time, we insist on using 100% polypropylene, no additives or surfactants, with high chemical compatibility. When you choose FiltEdge, you’re not just choosing purity, you’re choosing cost control over the entire life cycle of fluid filtration.
What is a 5-Micron Filter Cartridge?
The 5-micron filter cartridge is the physical barrier and gold standard in industrial fluid treatment, designed for micron-sized particles, providing excellent influent water quality (SDI<3), saving you 15% on chemical cleaning costs. FiltEdge 5-micron filter cartridges provide accurate pre-filtration, blocking more than 98% of rust and colloid, and protecting expensive RO membranes downstream. FiltEdge 5-micron is also a key point to reduce the energy consumption of the system. The very low initial pressure drop eliminates the need for the pump to operate under high loads. Widely used in the chemical, electronics and food industries, where material purity is critical.
5-Micron Filter Cartridge Series

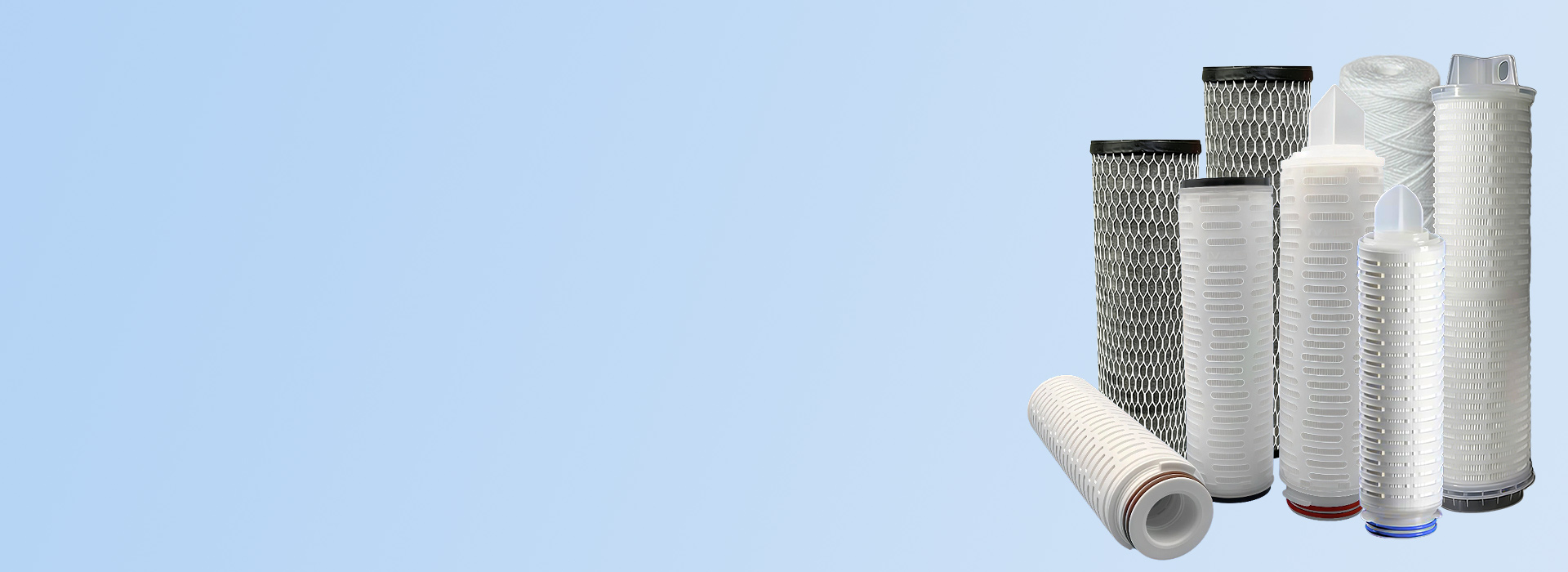

The FiltEdge 5-micron filter cartridge series includes 5-micron PP melt blown filter cartridge, 5-Micron high flow Pleated Filter Cartridge, 5-micron polypropylene string-wound filter cartridge and 5-micron sintered activated carbon filter cartridge.

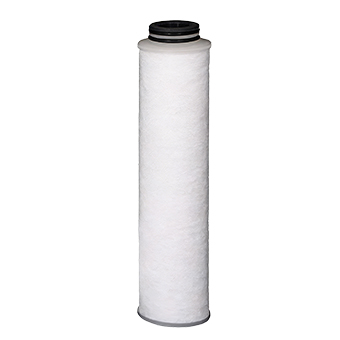

Fully automated melt blown technology for high consistency and 99% interception, very low operating pressure drop, and a reinforced center frame for pressure resistance up to 4.0 bar.

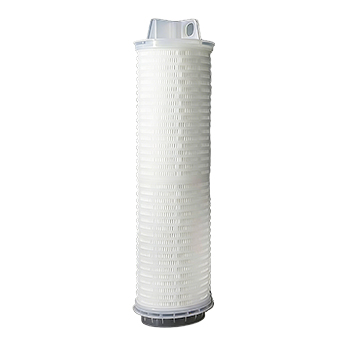

High flow design with a capacity of up to 80 cubic meters per hour gives you the ultimate in stable equipment integration and a tight seal to effectively eliminate particle bypass leakage completely.

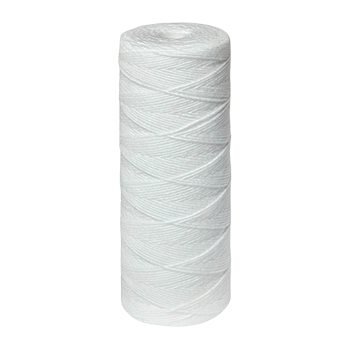

Open filtration channels for longer backwash intervals, reduced wear from frequent valve switching. Special cross-winding logic intercepts tiny suspended particles in circulating cooling water, protects the main filtration system, saves 12% expenditure on fine filtration consumables.

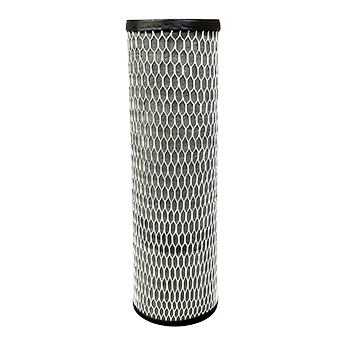

High-density activated carbon matrix optimized for simultaneous chlorine removal and FiltEdge 5-micron retention, more compact filtration unit design, and impact-resistant design to maintain integrity in high-vibration environments, saving 12% on wastewater treatment compliance retrofits.
Key Features of FiltEdge 5-Micron Filter Cartridge
The 5-micron filter cartridge features low pressure drop and high flow rate, broad chemical compatibility, 100% pure pp and a reinforced center skeleton.
Optimized microscopic fiber arrangement, maximum open flow channel. Very high flux ratio ensures high uniformity of the five-micron cut-off layer, which saves about 10% of annual energy expenditure.
The inertness of polypropylene material eliminates the need to stock multiple models for different fluids and provides excellent chemical compatibility, ranging from desalination to fine chemicals, saving up to 20% on filtration system modifications.
One-piece molding by hot-melt spraying process, no adhesive, the ultimate guarantee of zero chemical precipitation, uniform fiber diameter with more stable interception accuracy and throughput, reducing the scrap rate by 12%.
Reinforced center backbone provides high mechanical safety, prevents bypass leakage during high pressure operation, and effectively prevents media migration, reducing life cycle by more than 18%.

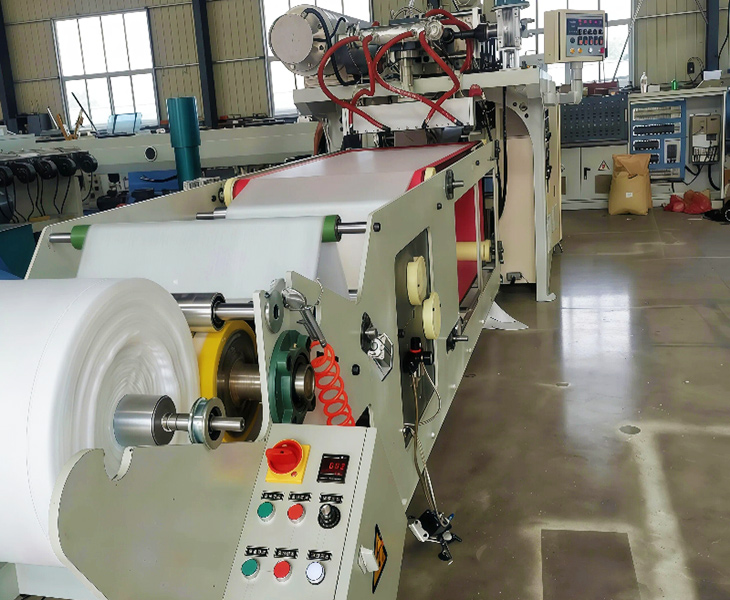

FiltEdge Surface Modification and Charge Capture Technology
FiltEdge™ has developed a surface modification and charge capture technology, which introduces a permanent electrostatic electret into the 5-micron polypropylene fibers to achieve deep spatial trapping through an electrostatic field, distributing the impurities uniformly across the cross-section of the cartridge. By introducing a permanent electrostatic electret into the 5-micron polypropylene fiber, the electrostatic field enables deep spatial trapping, which evenly distributes impurities across the cross-section of the cartridge, increasing the dirt-holding capacity of the cartridge by more than 1.5 times compared to traditional 5-micron cartridges. At the same time, the surface hydrophilic coating modification reduces the friction resistance when the fluid passes through, and the single machine processing throughput is higher. This process gives you a high degree of downstream safety because it effectively captures fine colloids and bacterial debris with a physical diameter of less than 5 microns, which is sufficient to penetrate conventional barriers. In addition, charge electret technology enhances the capture of micron-sized suspended solids, alters the energy distribution on the fiber surface, and provides exceptional chemical compatibility and physical stability, enabling the cartridge to maintain 99% interception in acidic, alkaline, salt spray, or high-temperature environments, as well as strong structural rigidity and resistance to contamination, providing you with consistent water quality around the clock and keeping your operating costs competitively low. Expenditures.

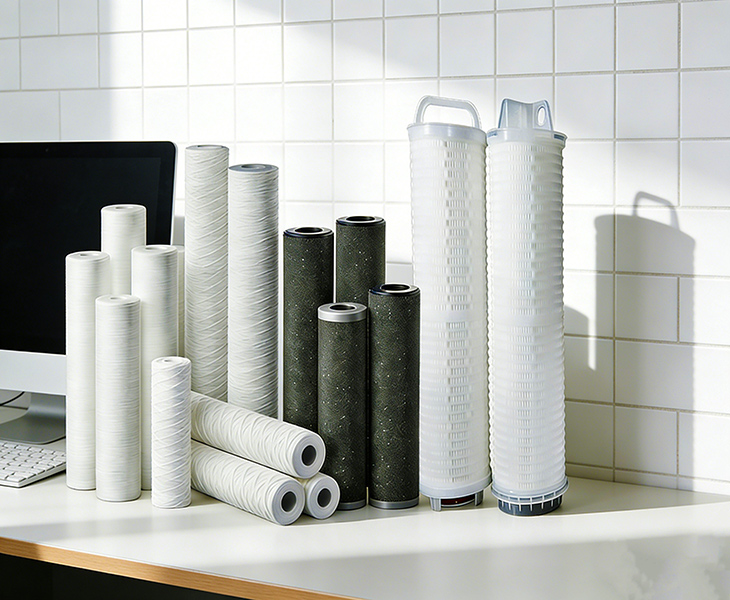

FiltEdge OEM Value Added Branding and Customized Services
Standard FiltEdge 5-micron filter cartridges are not always a perfect fit for every complex industrial site, so FiltEdge brings you in-depth customization of all dimensional geometries and end cap styles, from product to packaging, with a full range of branding solutions. Whether it’s special lengths (from 5” to 70”), non-standard inner and outer diameters, or sealing interfaces such as DOE, 222/Flat, 226/Fin, etc., our engineering team can provide you with 100% physically compatible and precise solutions, and we can also provide you with private labeling and customized laser coding services, so that each cartridge meets your brand’s visual standards. Our one-stop OEM service provides you with strong market differentiation and a zero-barrier system installation experience, which saves you about 15% of the initial installation cost due to the replacement of filter housings or modification of piping. Meanwhile, we have customized material certifications to meet global compliance standards, including FDA, NSF and EU food-grade certifications, which saves you 25% of overseas access testing costs and customs clearance time. Customized central backbone reinforcement, using modified polypropylene or stainless-steel cores, ensures absolute retention accuracy of 5 microns at 4.5 bar differential pressure.
Why Choose FiltEdge as Your 5-Micron Filter Cartridge Supplier?
FiltEdge has been present at the Amsterdam Water Show, the American Water Quality Association Show, and the Shanghai International Water Show. We have been focusing on the research and development of high performance 5-micron cartridges for more than 20 years, and as a professional industrial grade supplier in the filtration field, we have a modern production base of 4,000 square meters, 6 fully automated production lines, and 120 professional technicians. All of our products have passed ISO 9001 quality management system certification and strictly comply with international health and safety standards such as FDA, RoHS and REACH.
Applications of FiltEdge 5-Micron Filter Cartridge

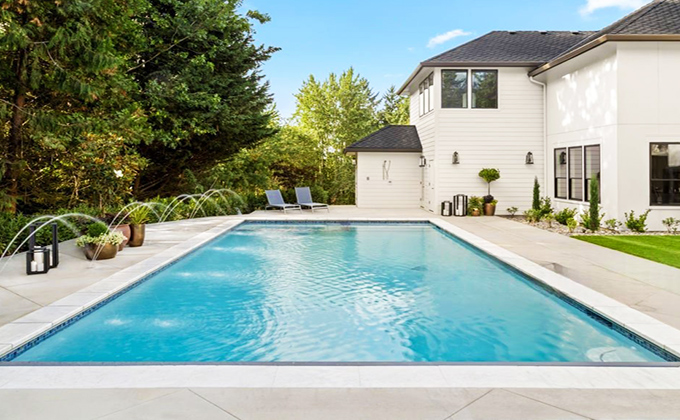

FiltEdge 5-micron filter cartridges can be used in whole-house and commercial central water purification systems, swimming pool and landscape water circulation, reverse osmosis pre-filtration, and industrial equipment cooling water circulation.

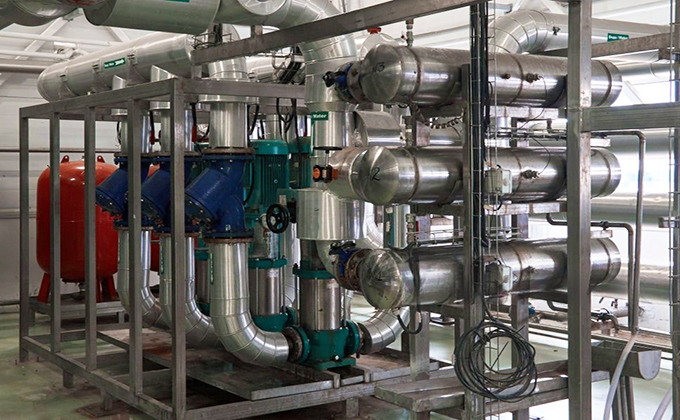

Five-micron cartridges provide a clean environment for cooling media and zero-wear operation of critical pumps and valves, preventing biofilm and scale buildup on heat exchanger surfaces and saving 15% on replacement costs.
Stable pressure drop in case of large high flow circulation demand, even under heavy full load condition, it still operates steadily efficiently, smoother water circulation and longer better ROI.

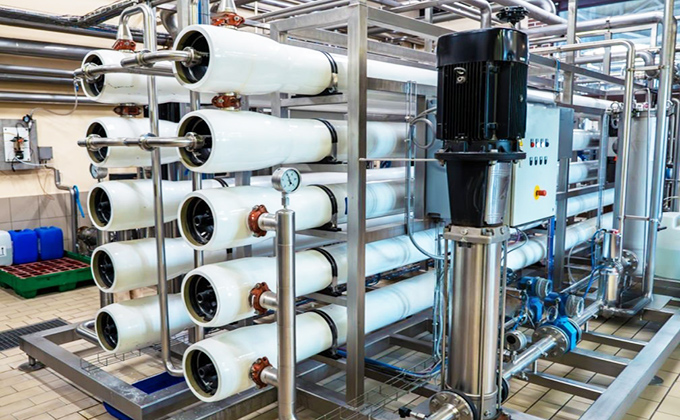

Stable pore size control, bringing consistently extremely low sludge density index (SDI<3) to effectively prevent fine impurities from seriously scratching the precious membrane surface efficiently.

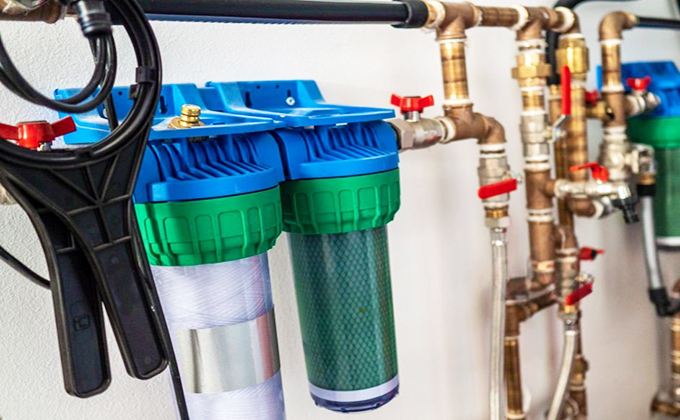

Accurately intercepts rust, sediment and micro-suspended matter, ensures zero contamination of fluid output through virgin PP material, protects whole-house plumbing, and reduces unclogging and cleaning costs by 10%.
Technical specifications
- Technical specifications
| Materials | PP |
| Length | 10”, 20” |
| Micron rating | 5 µm |
| Max. Differential Pressure | 0.41MPa |
| Max operating Temp | 140℉/ 60℃ |
| Outer diameter | 60 mm |
A 5-micron filter normally operates for 3 to 6 months, but we recommend that you monitor the differential pressure. When the differential pressure of the filter reaches 0.21MPa, the water flow may become significantly smaller, so please be sure to replace the filter at this time.
A 5-micron filter is mainly used to intercept physical impurities and biological contaminants. Physical contaminants include pipe rust, sediment, fine gravel, and coal dust. Biological contaminants are parasites, eggs, and some colony polymers.
No. Linting is a common problem with many inexpensive filter cartridges. FiltEdge hot-melt, self-bonding process, with no added glue or active agents, guarantees that there will be no fiber shedding, and no need to worry about water hammer pressure.
No problem at all, FiltEdge provides customized service, no matter your equipment is old or imported with special specifications, we can customize the length, inner and outer diameters, and interface shape for you, we can provide customized lengths ranging from 5“ to 70”, and a variety of cap end styles such as 222/226, or flat cap.
