What is Sock Filter Housing?
FiltEdge’s Sock Filter Housing, also known as Bag Filter Housing, plays a key role in high pressure support and filtration in filtration systems. Our filters are available in SS316/SS304/PVDF/PP/carbon steel with 1-1000μm precision, which can efficiently filter different flow rates, particles, and highly corrosive slurries with zero bypass, and are plug-and-play compatible with your various production processes, such as chemicals, pharmaceuticals, food and beverage, and environmental protection.
Sock Filter Housing Classification and Selection
FiltEdge has a variety of types of Sock Filter Housing for you to choose from, the following type display is not complete, you can provide us with your working condition parameters, we help you to do the selection and analysis, and can be customized according to your needs.
Pressure up to 25 bar, sturdy and durable, ensure full safety of your workshop.
Large lid, single person can operate, reduce your labor frequency

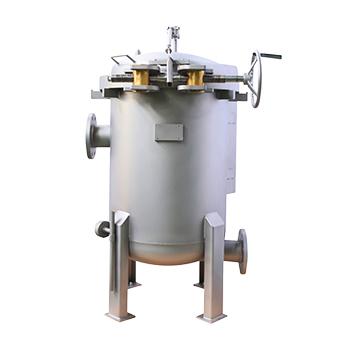

Quick-opening in 15 seconds, allowing you to quickly replace the filter bag and shorten the downtime of your production line.

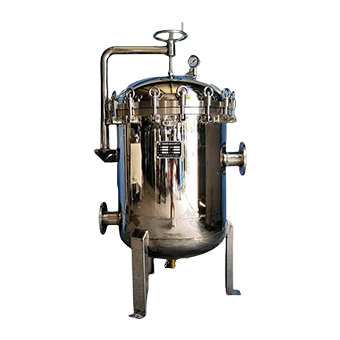

The stated mirror-polished interior finish is Ra ≤ 0.8μm. Confirm surface-finish records, material documentation and cleaning-validation requirements for the selected housing; a sterile process or GMP acceptance is not guaranteed.

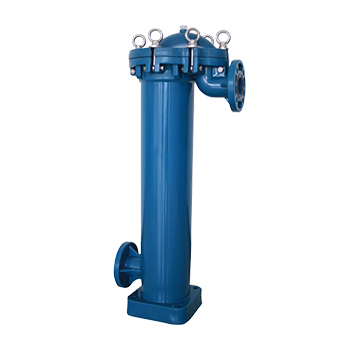

Seamless linkage structure, suitable for harsh acidic and alkaline chemical liquids, prolonging the service life of your equipment.

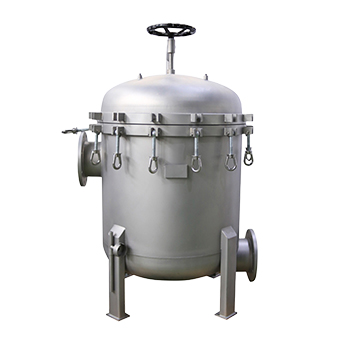

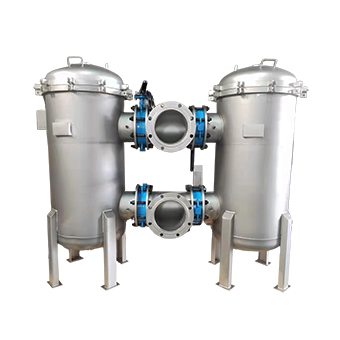

Duplex Bag Filter System One-use, one-supply mode, breaking through the problem of instantaneous high-pressure clogging, so that your line will never shut down.
Features and Benefits of Sock Filter Housing
FiltEdge provides you with high precision, high flow, high performance, zero leakage Sock Filter Housing and fluid filtration system solutions.
FiltEdge provides 1-32 bags of Sock Filter Housing, which supports 175GPM to 5000+GPM high flow slurries, stabilizes your pressure drop and ensures that your production line will be in continuous production for 24 hours without any downtime.
Providing a full range of precision from 1-1000μm, no matter coarse or fine filtration, to meet your complex process needs, helping you to efficiently produce the ideal high yield products.
FiltEdge is available in SS316/SS304/carbon steel/PVDF/PP materials, suitable for corrosive, high-pressure and extreme temperature conditions, eliminating corrosive spots on the equipment and extending the service life of your Sock Filter Housing.
FiltEdge offers sandblasted/electropolished/PTFE coated/acid washed passivated surface finishes to ensure that the filters are sterile, easy to clean, and help your production process easily meet GMP and industry compliance.
FiltEdge can provide 25bar (2.5MPa) ultra-high pressure Bag Filter Housing, which can resist extreme pressure fluctuations and maintain your production safety.
FiltEdge’s Sock Water Filter Housing is compatible with international standard/FSI standard filter bags and cartridges, giving you the flexibility to choose your filtration accessories and lowering your long-term consumable costs.
Provide quick-open/clam-open/rocker design, extremely fast opening within 15 seconds, one person can operate and maintain independently, saving you time and labor.
Provide skid blocking/parallel design/runner interface customization, compact structure, matching your plant space, footprint and piping, saving your production line investment.
Sock Filter Housing Selection Analysis
Wrong selection leads to frequent clogging, filter bag bursting, and long-term downtime and production stoppages.FiltEdge provides 6-dimensional professional selection consulting (flow rate, viscosity, impurity content, temperature, chemical compatibility, site conditions), to ensure that the filter and your production process are perfectly matched, to help you reduce costs and increase efficiency.
Sock Filter Housing Zero Leakage Patent

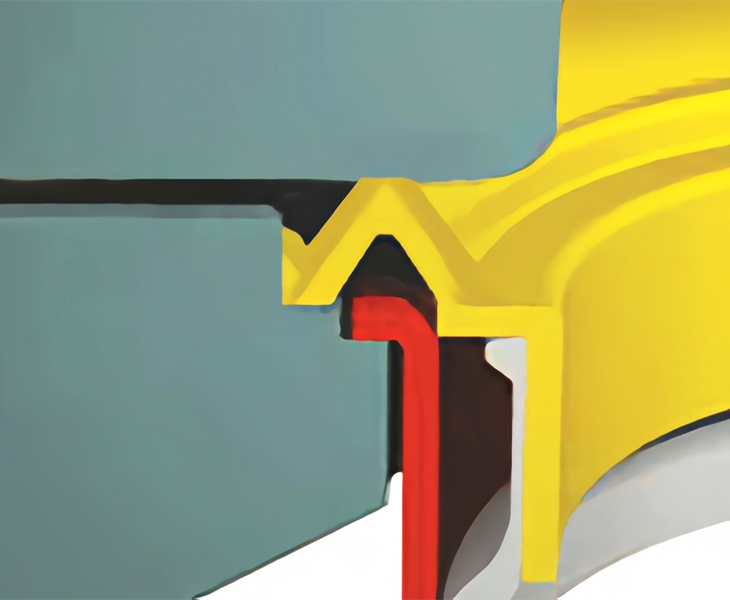

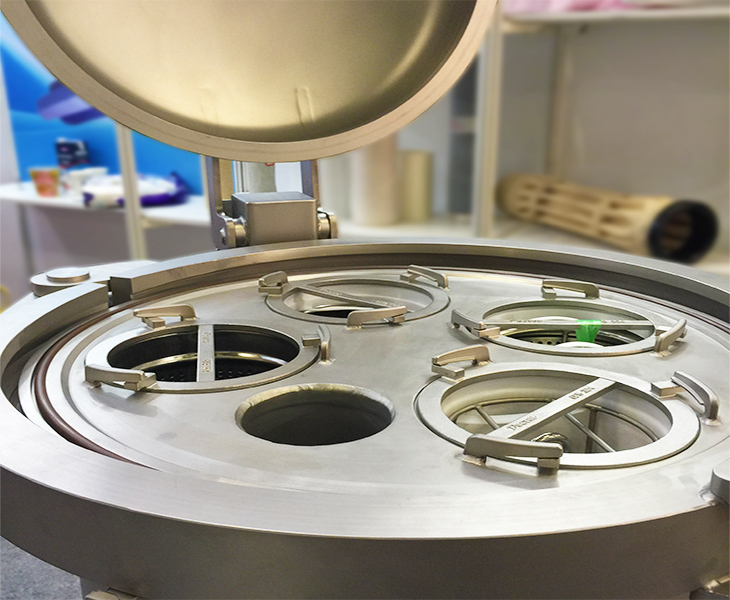

The specified three-point locking and double-step sealing arrangement is intended to secure individual filter bags. EPDM, PTFE, Viton or silicone seals can be reviewed against fluid chemistry and temperature. Confirm compatibility and inspection requirements; leak-free operation and complete particle interception are not guaranteed.

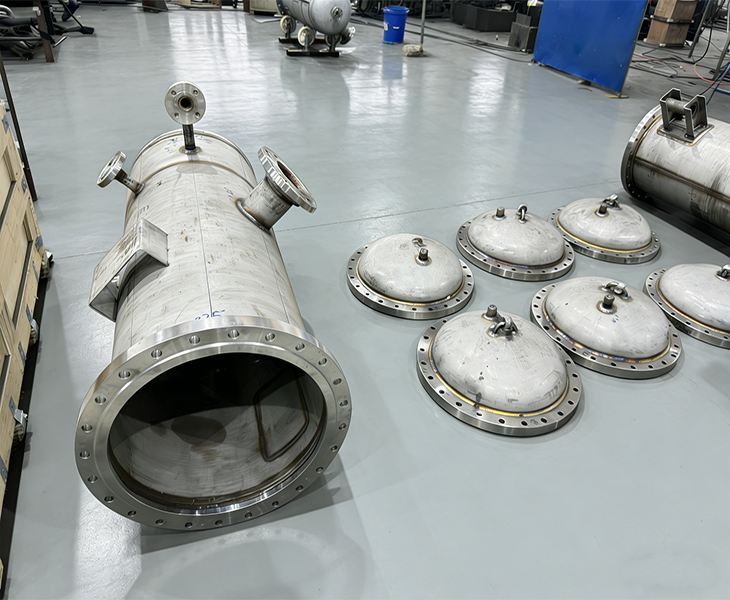

Customized Sock Filter Housing
FiltEdge offers non-standard customization of port locations, skid integration, special coatings, and sizes and materials to suit your fluid characteristics and field space.
Compared to standardized filter housing, customized Sock Filter Housing can fit 100% of your piping layout, reduce on-site modifications, and significantly reduce your installation investment and maintenance costs.

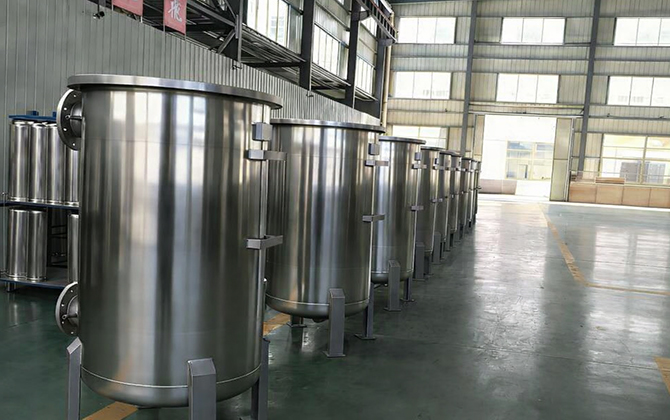

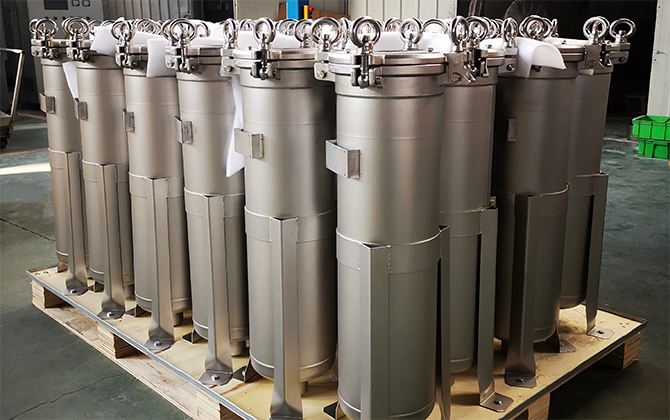

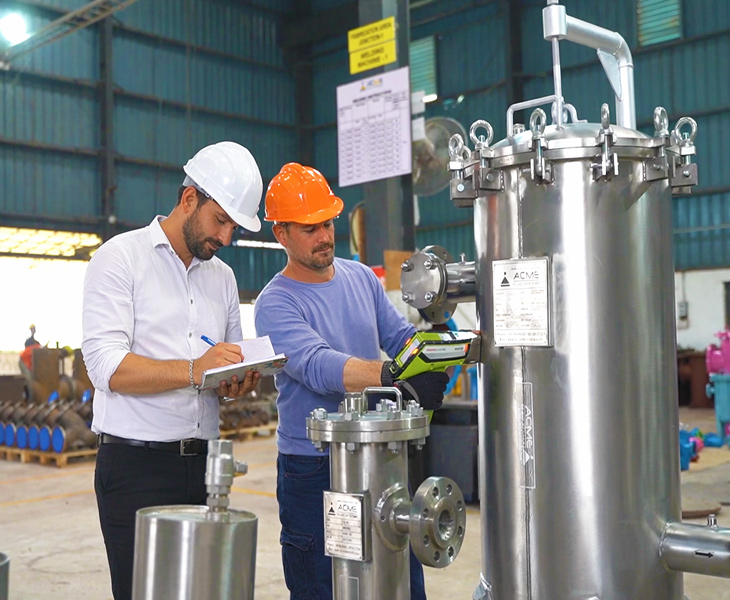

Quality Inspection of Sock Filter Housing
FiltEdge requires strict quality inspection at every step of the process, from the raw material coming into the factory to your filter leaving the factory, to provide you with high quality filters.
- Strictly verifying the MTR report of the raw material and conducting ultrasonic thickness measurement on it to ensure that your filter base material is 100% up to standard.
- Perform color penetration testing (PT) on the core of the weld, and surface fine testing to eliminate micro-porous leakage and guarantee the smoothness of the inner wall to meet compliance requirements.
- Before leaving the factory, every Sock Filter Housing is double tested with 1.5 times water pressure and air pressure to ensure that your filter operates stably under extreme working conditions.

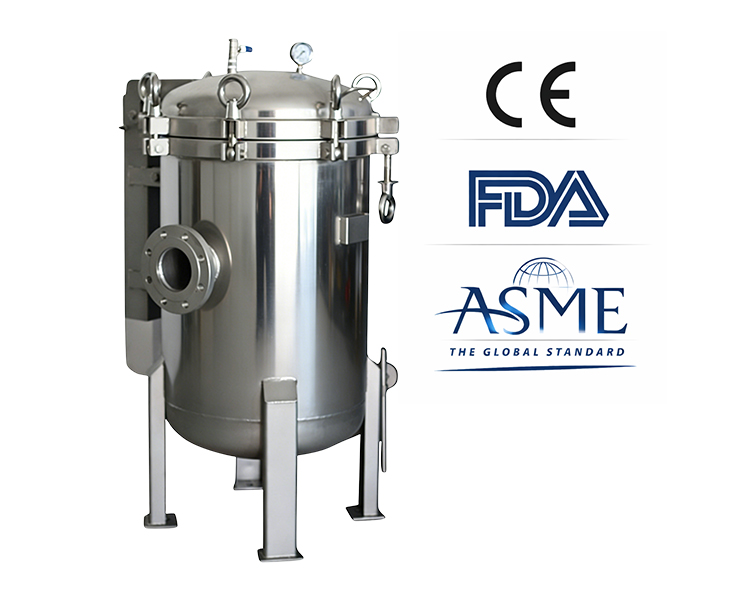

Certifications for Sock Filter Housing
Confirm applicable quality and compliance requirements for the selected product before ordering. Request supporting documents for the exact model, material and manufacturing entity. Food or pharmaceutical suitability, third-party inspection and any certification must be agreed separately; audit acceptance is not guaranteed.
Why Choose FiltEdge's Sock Filter Housing?
FiltEdge LLC is a U.S. company established in 2023, supported by SFFILTECH in China, established in 2006. Manufacturing support is provided through SFFILTECH in China. Confirm product specifications, available quality documents, pricing and delivery in the quotation. Certificates must be checked for the relevant entity, facility and product. Support is arranged during business hours; any on-site service or warranty terms require separate agreement.
Application of Sock Filter Housing
FiltEdge’s Sock Filter Housing is widely used in petrochemical, water treatment, food and beverage, fine chemical, automotive manufacturing and other industries. Submit your working conditions and we will make a filtration system program for you.
For food, beverage, resin, paint and ink applications, confirm the bag sealing arrangement, retention performance and material compatibility against the process requirements. Actual bypass control and product quality depend on the selected construction and maintenance; no fixed reduction in defects is guaranteed.
In large scale water treatment, petrochemical, and paper industries. With huge flow and pressure, Sock Filter Housing is easy to burst the bag and cause downstream equipment damage and shutdown. FiltEdge provides CE/ASME thickened filter housing, which passed 1.5 times design pressure test. This ensures that your production line can run smoothly, reducing the failure rate by more than 40%, and avoiding hundreds of thousands of dollars of downtime loss in one day.
In electroplating, pickling, and pharmaceutical intermediate applications. Chemical corrosives can cause damage to housings, environmental penalties, and wasted raw materials. FiltEdge manufactures your Sock Filter Housing using a corrosion-resistant 316L substrate and Viton/PTFE seals. Dramatically extends seal replacement intervals by 30%-50%, ensures 100% leak-free filters, and enables safe production so you can easily respond to local regulatory audits.
Specification & Parameter of Sock Filter Housing
- Quick Opening Sock Filter Housing

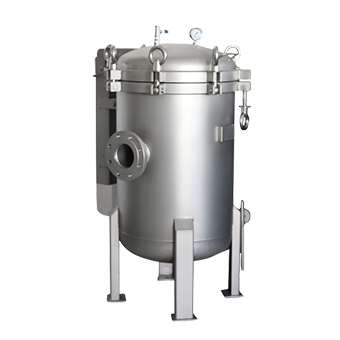

- Mussels Open Sock Filter Housing

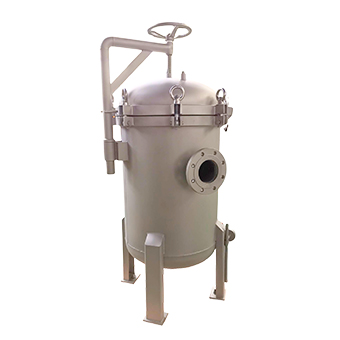

- Rocker-Arm Sock Filter Housing

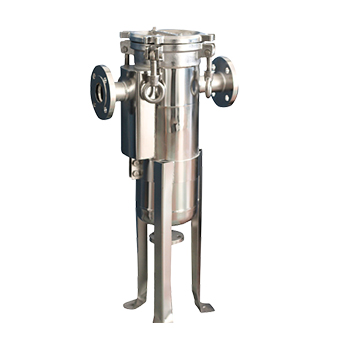

- Top-in Single Sock Filter Housing
| Item | Specification |
| Number of Filter Bags | 3 / 4 / 5 / 6 / 8 / 12 / 17 / 23 bags |
| Material | Stainless Steel (SS316 optional), high-quality O-ring |
| Seal Material | EPDM / Viton / PTFE (FDA Compliant / Food Grade available) |
| Opening Method | Quick-opening, vertical cover, gravity-assisted, single-finger operation |
| Replacement Time | ≤15 seconds ON/OFF quick filter bag replacement |
| Design Pressure | 0.6–1.6 MPa (6–16 bar) (Optional higher customization: 10–25 bar high-pressure model) |
| Operating Temperature | -20°C to 120°C (EPDM); up to 150°C (PTFE/Viton) |
| Filtration Rating | 1 – 1000 μm optional (commonly used 1 / 5 / 10 / 25 / 50 / 100 μm) |
| Bag Size Compatible | #1 (7“ × 16”) / #2 (7“ × 32”) — Standard sizes, other sizes available upon request |
| Flow Capacity (based on #2 bag) | 175GPM to 4000+GPM (depending on bag quantity and media viscosity). |
| Inlet & Outlet Connection | Flange/Threaded/Clamp/Custom Orientation Standard Orientation Options: Side→Bottom/Side→Side/Top→Bottom |
| Design Standard | ASME Section VIII Div.1 / CE-PED / GB150 |
| Application | High-impurity liquid filtration, industrial liquids, chemical processing, pharmaceuticals, food and beverage |
| Features | – Quick filter bag replacement – Safety chain + balanced lid opening assistance – Multiple units can be installed in parallel – Saves pipeline space – Boosts production efficiency and reduces labor costs |
| Special Features | Modular / Parallel installation possible, High-efficiency filtration, Reduced downtime |
| Item | Specification |
| Structural Type | Mussels Open Type Multiple Bag Filter Housing |
| Number of Filter Bags | 3 / 4 / 5 / 6 / 8 / 12 / 17 / 23 bags |
| Flow Capacity (based on #2 bag) | 525GPM-4000+GPM (depending on bag quantity and media viscosity) |
| Material | Stainless Steel – SS304 / SS316 |
| Cap Opening Method | Eye-bolt bolt-tightened cover + Spring-balance assisted mechanism (enabling cover to remain open at any angle) |
| Sealing System | High-quality O-type elastomer sealing ring |
| Seal Material | EPDM / Viton / PTFE (FDA Compliant / Food Grade available) |
| Filter Bag Compatible Models | #01 / #02 Standard Filter Bag (Optional Filter Bag or Cartridge) |
| Connection Method | Flanged connection |
| Filter Structure Features | Three-point pressing device, Reinforced support mesh |
| Design Pressure | 6–16 bar (customizable high-pressure models up to 25 bar) |
| Design Standard | ASME Section VIII Div.1 / CE-PED / GB150 |
| Operating Temperature | -20°C – 120°C (EPDM); up to 150°C (PTFE / Viton) |
| Filtration Rating | 1 – 1000 μm (commonly used: 1 / 5 / 10 / 25 / 50 / 100 μm) |
| Surface treatment | Internal surface can be polished to Ra ≤ 0.8 μm; external sandblasting or mirror finish optional |
| Installation method | Floor-mounted vertical design (upright, small footprint, multiple units can be connected in parallel) |
| Applicable liquids | Various acidic, alkaline liquids, solvents, neutral liquids |
| Item | Specification |
| Structural Type | Rocker-Arm Multi-Pocket Bag Filter Housing |
| Bag Capacity Range | 2–23 standard bag configuration; single machine max. up to 32 bags |
| Flow Capacity (based on #2 bag) | 350GPM to 5600GPM (depending on bag quantity and media viscosity). |
| Applicable liquids | Various acidic liquids, alkaline liquids, solvents, neutral chemical liquids, and high-pollutant waste liquids |
| Material Options | Q235 Carbon Steel / SS304 / SS316L |
| Seal Material | EPDM / Viton / PTFE (FDA Compliant / Food Grade available) |
| Cap Opening Method | Quick-Opening + Rocker-Arm Assisted Top Cover |
| Surface treatment | Sand-blasting surface |
| Design Pressure | 6–10 bar (higher specifications available upon request) |
| Design Standard | ASME Section VIII Div.1 / CE-PED / GB150 |
| Operating Temp | -20°C – 120°C standard sealing; up to 150°C maximum (depending on seal material) |
| Filtration Rating | 1 – 1000 μm (standard 1 / 5 / 10 / 25 / 50 μm filter bags) |
| Bag Size | Standard #01 / #02 filter bags |
| Inlet/Outlet | DN80 – DN300 range |
| Connection | Standard Flanged Connection |
| Installation method | Vertical floor-mounted, multiple units can be connected in parallel for use in scenarios requiring extremely high flow rates. |
| Design Highlights | Dual exhaust + dual drainage design High-strength stainless bolts & nuts Excellent welding quality |
| Item | Specification |
| Model Range | 1S / 2S / 3S / 4S |
| Filter Bag | Compatible with FSI Standard #1, #2, and #4 filter bags |
| Filter precision | 1μm – 1000μm |
| Filter Flow Rate (based on #2 bag) | ≈ 20 – 40 m³/h (Depends on medium viscosity and precision) |
| Materials Available | SS304 / SS316L / Carbon Steel / PP / PVDF |
| Sealing Method | Patent multi-sealing ring / O-ring seal |
| Connection Method | Flanged/ Threaded / Clamp |
| Inlet/Outlet | Top-in inlet / Bottom-out outlet |
| Design Pressure | 6 bar – 10 bar |
| Operating Temperature | -20°C to 95°C (metal) / PP ≤ 70°C / PVDF ≤ 90°C |
| Surface Treatment | Internal polishing / External sandblasting or electrolytic polishing |
| Installation Method | adjustable legs |
| Filter Bag Replacement Method | Quick-opening top cover, ring-free quick-change structure |
| Application Medium | Chemicals, RO pretreatment, inks, cleaning solutions, solvents, food liquids, acids and alkalis, wastewater, etc. |
| customization | OEM dimensions / pressure / materials / connection types are all customizable. |
Get a Fast Quote from FiltEdge
Contact FiltEdge with your technical-document, sample and pricing requirements. Inquiries are handled during business hours; availability and quotation terms are confirmed for the selected product.
FilEdge’s Top-entry filter housing features a 360° compression seal that completely eliminates fluid bypass, while the Side-entry models provide a more cost-effective solution for standard applications. FiltEdge supports customized nozzle orientations to ensure that the filter bag housing fits perfectly into your existing piping.
Our bag filters have Universal Compatibility and can be ANSI/ASME Flange, DIN Standard, JIS or NPT/BSP Threaded. No matter what country your project is in, we can provide a seamless interface with your piping to reduce your installation costs.
Agree required technical documents before ordering, including available material records, inspection reports, drawings and operating instructions. Certification documents must be confirmed for the exact product and destination.
Confirm spare-parts availability, seal compatibility and estimated shipping time with your inquiry. Stock and dispatch schedules vary; local replacement parts must match the approved specification.
Every FiltEdge Multi-Bag Sock Filter Housing is equipped with a Safety Vent Valve and Pressure Relief design, which allows the operator to safely relieve the pressure inside the filter before opening the lid, preventing splashing of liquids due to residual pressure. This Fail-safe design protects your On-site personnel safety.
