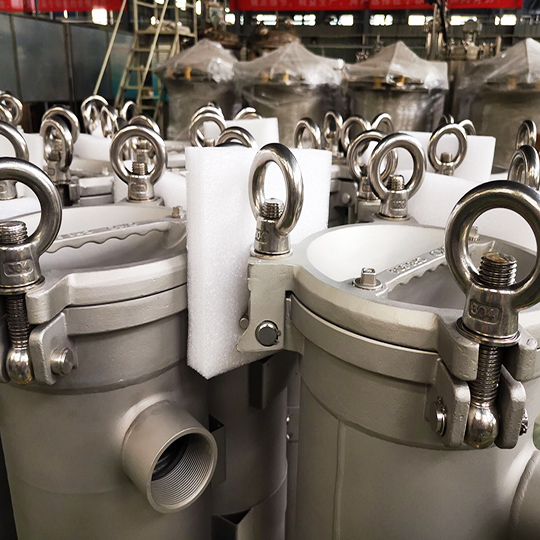

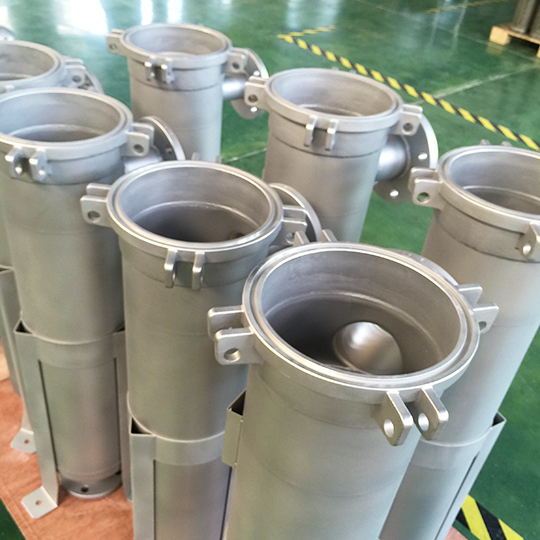

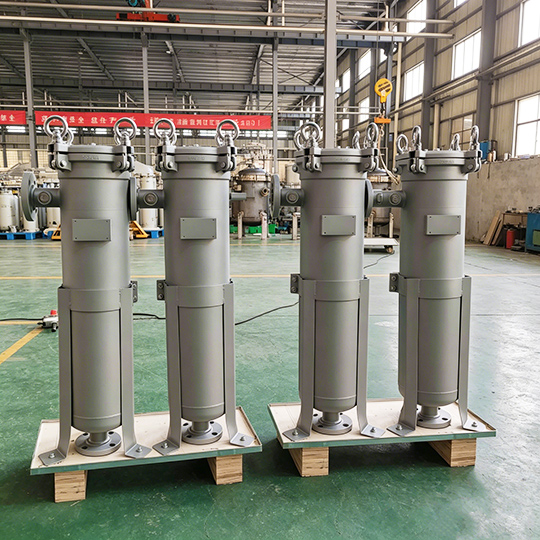

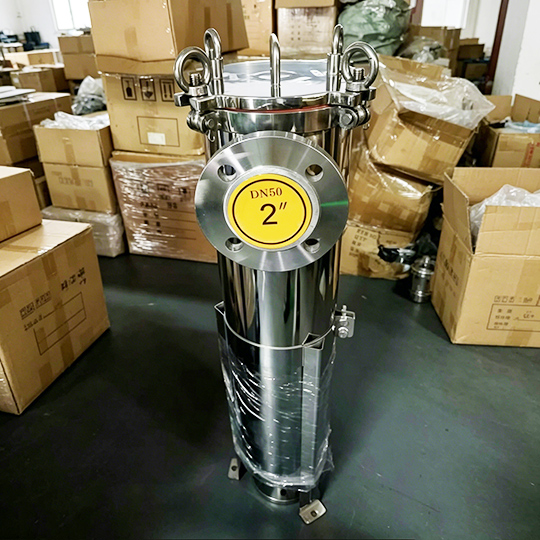

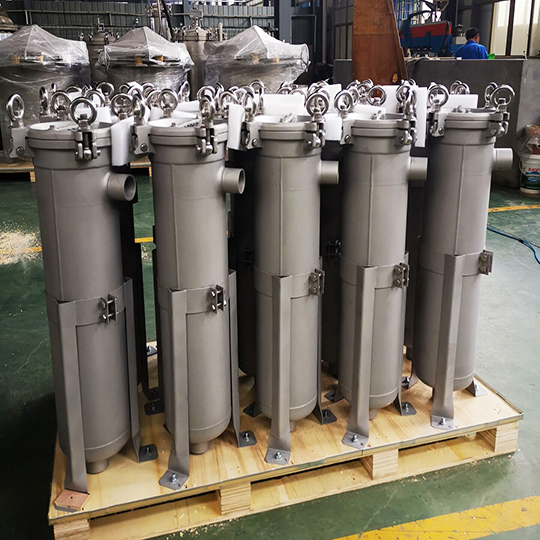

Why Choose FiltEdge's Size 2 Bag Filter Housing?
Work condition refinement: we do not blindly recommend large size 2 bag filter housing to you, combined with the physical state and chemical properties of your liquid, that is, just enough to intercept impurities, but not cause clogging.
Cost saving: the internal flow path of size 2 bag filter housing is optimized, which can extend the service life of the filter bag by about 20% while reducing the pressure drop, and can help your pump save electricity.
Consumables management: According to your sewage volume, we plan different programs for you such as basic filter bag/high efficiency folded filter bag, which reduces your consumables cost.
Types Of Size 2 Bag Filter Housing
FiltEdge has served customers in more than 100 countries, and faced with a variety of working conditions. Below are the size 2 bag filter housing for different working conditions for your reference. You can also contact us, we will analyze and design the filtration solution for you.

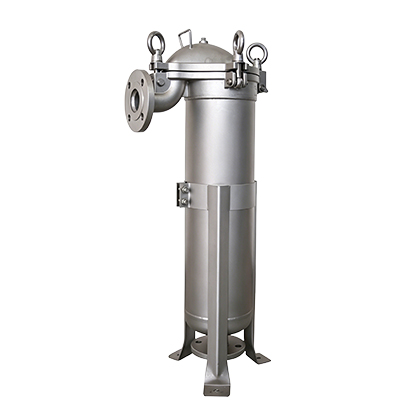

Top Entry Size 2 Bag Filter HousingBetter sealing from the structure, 100% avoiding bypass flow, suitable for high-value pharmaceuticals and fine chemicals.

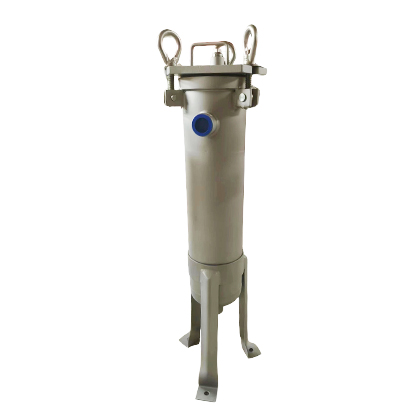

30 seconds to open the cover design, suitable for frequent replacement of filter bags in the production line to save time and improve production efficiency.

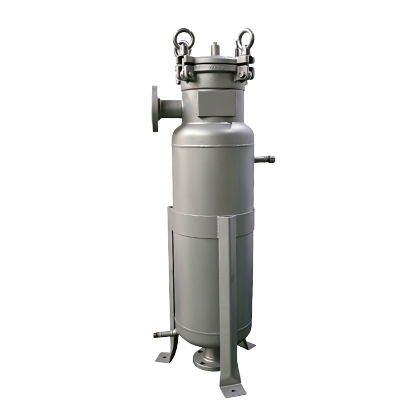

Steam surrounds the filter and keeps it at a constant temperature to prevent the liquid from solidifying. Suitable for liquids that solidify easily at low temperatures, such as resins, asphalt, and high-viscosity chocolate.

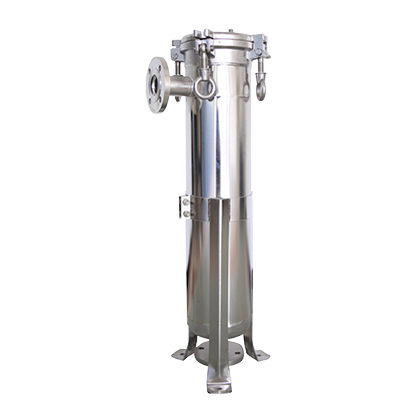

Corrosion-resistant Size 2 Bag Filter HousingStainless steel housing lined with PVDF is strong and long-lasting corrosion resistant. Suitable for strong acids, alkalis, PCB plating wastewater, etc.

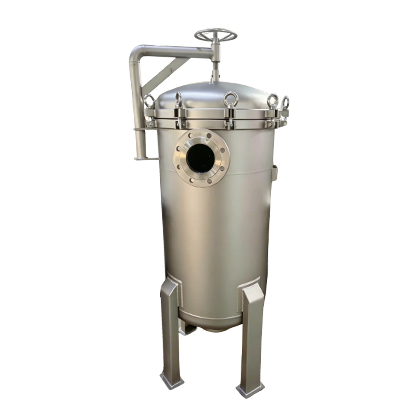

Available in 2-23 bags with flow rates up to 1000+ GPM, suitable for filtering large quantities of impurities in chemical plants and bulk water treatment.

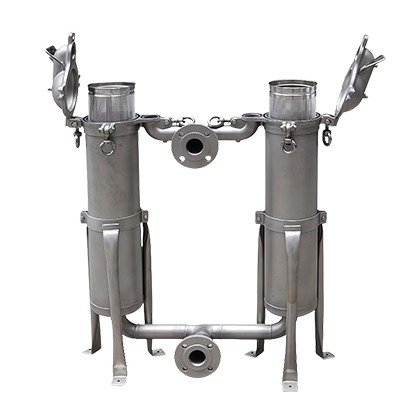

Use one to prepare one, rotate and alternate use, can achieve the purpose of 24 hours without stopping.
Features Of Size 2 Bag Filter Housing
For different liquid processes, FiltEdge’s size 2 bag filter housing follows up the performance from different dimensions to provide you with consistent high quality filtration and output.
ISO/CE/FDA, raw material certification, weld PT/UT report, hydrostatic test report and a whole set of compliance documents for size 2 bag filter housing.
According to your industrial fluid characteristics, pressure, temperature, etc., we design and optimize the number of bags, structure, surface technology, connection method, etc., to match your process needs.
Optimized flow path to achieve low pressure drop, help you to extend the life of the filter bag, save the energy consumption of the pump, reduce operating costs.
Double step design structure, 100% eliminates liquid bypass, ensuring size 2 bag filter housing can intercept every drop of liquid.
High-quality stainless steel and Hastelloy materials, as well as sealing rings in line with your process, to eliminate corrosion leakage, to protect your production safety.
Thickened and sturdy housing and support blues can withstand high pressure up to 2.5MPa, providing stable production.
1-200μm precision range allows you to use as coarse filtration, fine filtration, wide range of applications.
It can be used by connecting the pipeline, allowing you to manage and control the project site remotely without delaying the production progress.
Services From Size 2 Bag Filter Housing Suppliers
FiltEdge is not only a size 2 bag filter housing manufacture, but also a supplier of designing filtration system, providing filtration solution and one-stop purchasing service of industrial filtration products.
We rely on our 3600 square meters filter housing factory in China, and our office/warehouse in USA to provide you with efficient services. Some of our services are listed for your reference, please contact us for more information.
According to the pressure, temperature and chemical properties of your slurry, we will comprehensively evaluate and design the most suitable filtration system for you.
According to the result of working condition analysis, we will calculate the input cost of the whole filtration system, the saving of electricity cost/consumable cost, and how long it takes to pay back the cost.
Arrange technicians to come to your home to install and debug the size 2 bag filter housing, as well as provide systematic training for workers. Let you save more worry.
For emergencies, we support 24-hour video and other remote support, for you to quickly troubleshoot the problem and propose temporary solutions.
For size 2 bag filter housing, you can choose online monitoring, so that you can check the differential pressure, flow rate, operation and other conditions on your cell phone.
FiltEdge has professional testing instruments, each size 2 bag filter housing will be tested and issued a report to you. Some testing items can be sent to a third party testing organization for testing.
A full set of compliance documents, including raw material certificates, factory inspection reports, quality assurance documents, etc., are attached with the shipment, which can help you quickly pass the environmental protection requirements and open the production line.
Non-standard customization can be quickly shipped to you within 7 days, such as special interfaces, high temperature resistance, high pressure resistance, etc..
Size 2 Bag Filter Housing for Automobile Painting
Automobile painting line, in the electrophoresis paint link is most afraid of encountering small debris, resulting in uneven paint surface counterwork, FiltEdge through the duplex size 2 bag filter housing to realize 24 hours without stopping, high precision removal of impurities, to avoid thousands of dollars per unit of rework costs.

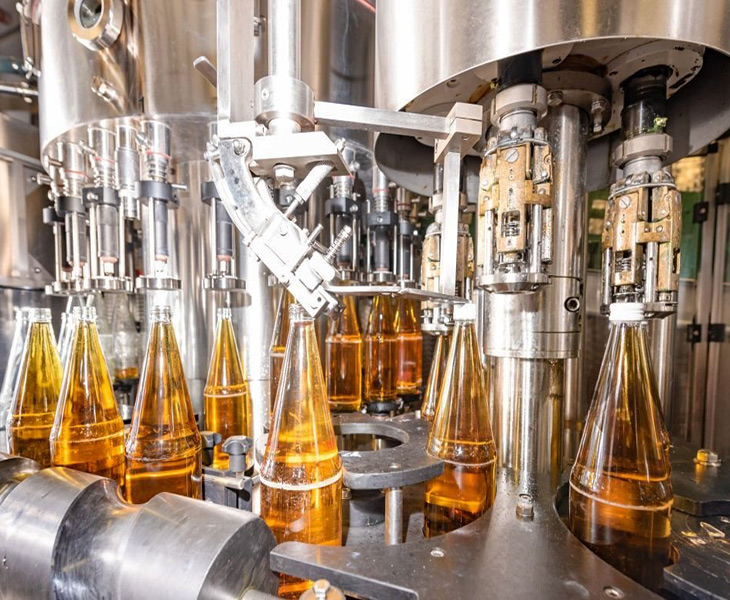

Size 2 Bag Filter Housing for Food & Beverage
The food industry is afraid of the problem of bacterial growth, Size 2 bag filter housing can be used for specific food products, the dead-angle-free design, as well as the mirror polishing process, so that the filter interior does not hang wall, 100% emptying, easy to clean, to ensure the safety of your food.

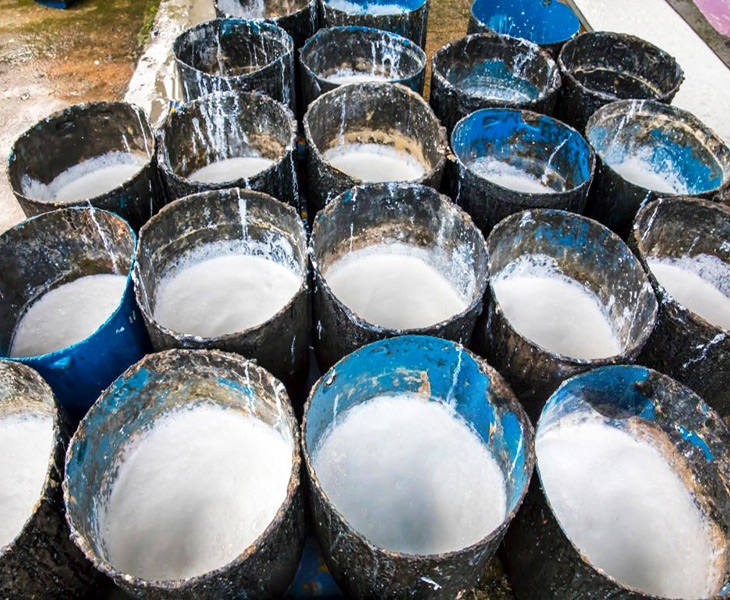

Size 2 Bag Filter Housing for Fine Chemicals
When filtering slurry that is extremely easy to solidify such as resin, glue, etc., Size 2 bag filter housing adopts a constant temperature jacket structure, which maintains the temperature below 120℃ for a long time through steam, water, oil, etc., preventing your slurry from solidifying and clogging up the filter and avoiding downtime. And it can reduce the material residue by about 45%.

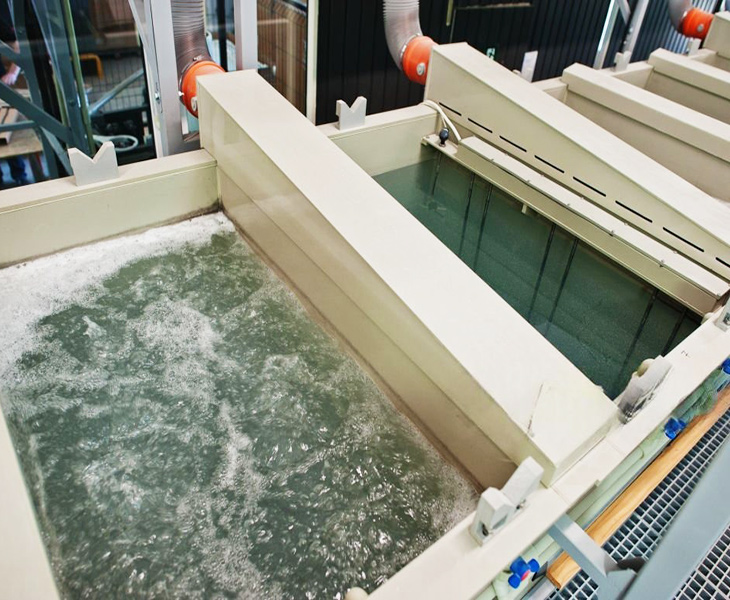

Size 2 Bag Filter Housing for Semiconductors
Strong acid and alkali corrosion and trace metal ions in the liquid are the biggest hazards for chips/boards, FiltEdge adopts corrosion-resistant PVDF size 2 bag filter housing, together with micron-sized filter bag, to improve the downstream wafer/substrate plating yield for you.

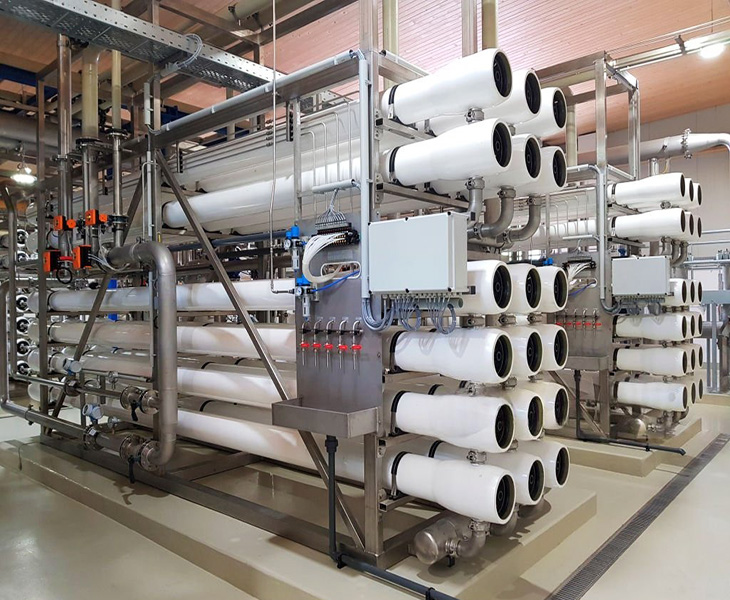

Size 2 Bag Filter Housing for Water Treatment
Sand, gravel, and algae in the water can break the RO membrane, so we will always set up at least one pre-filtration program for you in ultra-pure water applications. One of our power plant customer’s ultrapure water preparation project, using 6 bag size 2 bag filter housing, as the last block before RO membrane, their RO membrane cleaning cycle has been extended from 3 months to 9 months.
Size 2 Bag Filter Housing for Oil
In the process of desulfurization and decarbonization, if you stop the machine to change the bag, it will not only cause the production interruption, but also will be accompanied by the leakage of high-pressure hazardous gases, which will lead to safety accidents. Our customer uses a set of high pressure quick-open duplex size 2 bag filter housing system. Under the high pressure of 1.6MPa, seamless switching of fluids, that is, no interruption of production, workers can also be comfortable pressure relief exhaust, to avoid high-risk material spray.
Technical Parameters of Size 2 Bag Filter Housing
Fluid working conditions are different, our engineers are better at designing and customizing low-pressure drop, long-life size 2 bag filter housing solutions for you.
- Size 2 Bag Filter Housing Specification
- Dimension Reference
| Parameter / Feature | Specification Details (Standard & Custom Options) |
| Compatible Filter Bag Size | Size 2 (Standard Bag: Diameter 180 x 810 mm) |
| Design Flow Rate (Water) | 35 – 45 m3/h (154 – 200 GPM) per single bag |
| System Scalability (Bag Qty) | Available from 1-Bag up to 23-Bag vessels (For flow rates up to 1000 m3/h) |
| Effective Filtration Area | 0.50 m2 (5.4 ft2) per single 2# bag |
| Liquid Hold-up Volume | Approx. 25 Liters (Single Bag Housing) |
| Max. Allowable Pressure | 1.0 MPa (10 bar) / Custom heavy-duty up to 1.6 MPa (16 bar) |
| Max. Operating Temperature | Up to 150°C (with Viton) / Up to 120°C (with EPDM) |
| Recommended Change-out DP | 0.12 – 0.15 MPa (1.2 – 1.5 bar) |
| Housing & Basket Material | Stainless Steel 304 / Stainless Steel 316L / PTFE Lined / PVDF Plastic |
| O-Ring / Seal Material | NBR / EPDM / Viton / PTFE Encapsulated Viton |
| Surface Finish Options | Industrial Sand Blast / Mechanical Polish / Mirror Polish (Ra < 0.4 um) |
| Lid Closure Style | Standard Swing Bolts with Eye Nuts / Quick-Open Mechanism with Handwheel |
| Dimension & Setup Item | Standard Configuration & Engineering Notes |
| Inlet / Outlet Size | DN50 (2 Inch) or DN80 (3 Inch) for single bag |
| Connection Types | Flange (ASME / DIN / HG) / Sanitary Tri-Clamp / NPT or G Thread |
| Flow Orientation Layout | Side-In & Bottom-Out / Side-In & Side-Out (Loop-style) |
| Total Housing Height (H1) | Approx. 1150 mm (Standard Single Bag Unit) |
| Bag Clearance Height (H2) | >= 850 mm (Minimum required vertical space above for bag replacement) |
| Vent & Pressure Gauge Port | 1/4 Inch or 1/2 Inch NPT/F (At the highest point of the lid) |
| Drain Port Size | 1/2 Inch or 3/4 Inch NPT/F (At the absolute bottom for 100% draining) |
| Duplex Switching System | Available for 24/7 non-stop loops (One side working, one standby) |
Although the diameter of the size 2 bag filter housing is the same as the size 1, the height of the housing is different, the size 2 bag filter housing is twice as large as the size 1, and the filtering area is also twice as large as the size 1. Therefore, its dirt-holding capacity can be doubled.
Liquid is not evenly distributed to each filter bag, which can lead to a high breakage rate of individual bags. Our size 2 bag filter housing is equipped with a special fluid diverter tray and CFD simulation deflectors. This ensures that the fluid entering the filter cartridge is guided uniformly into each filter bag.
The length of the filter bag inside the Size 2 bag filter housing is 810mm, so you need to have space to pull the bag out when changing the filter bag, and it is usually easier to leave at least 850mm above the filter cover.
