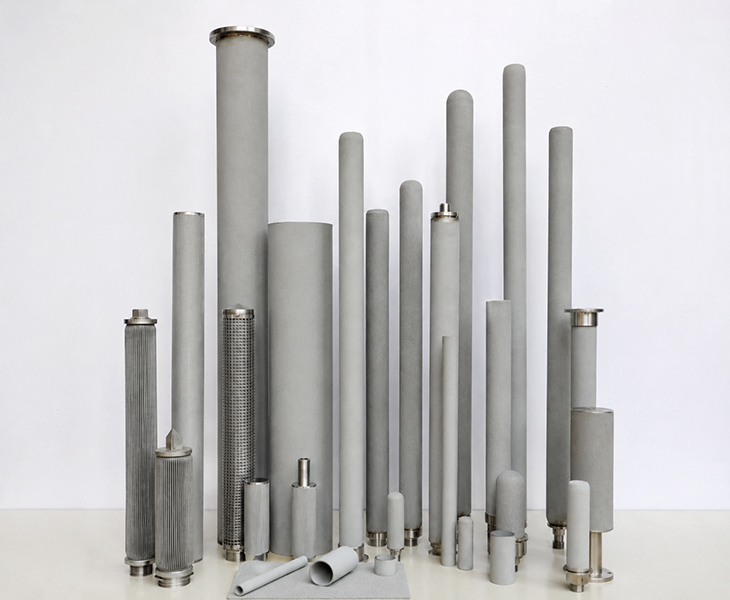

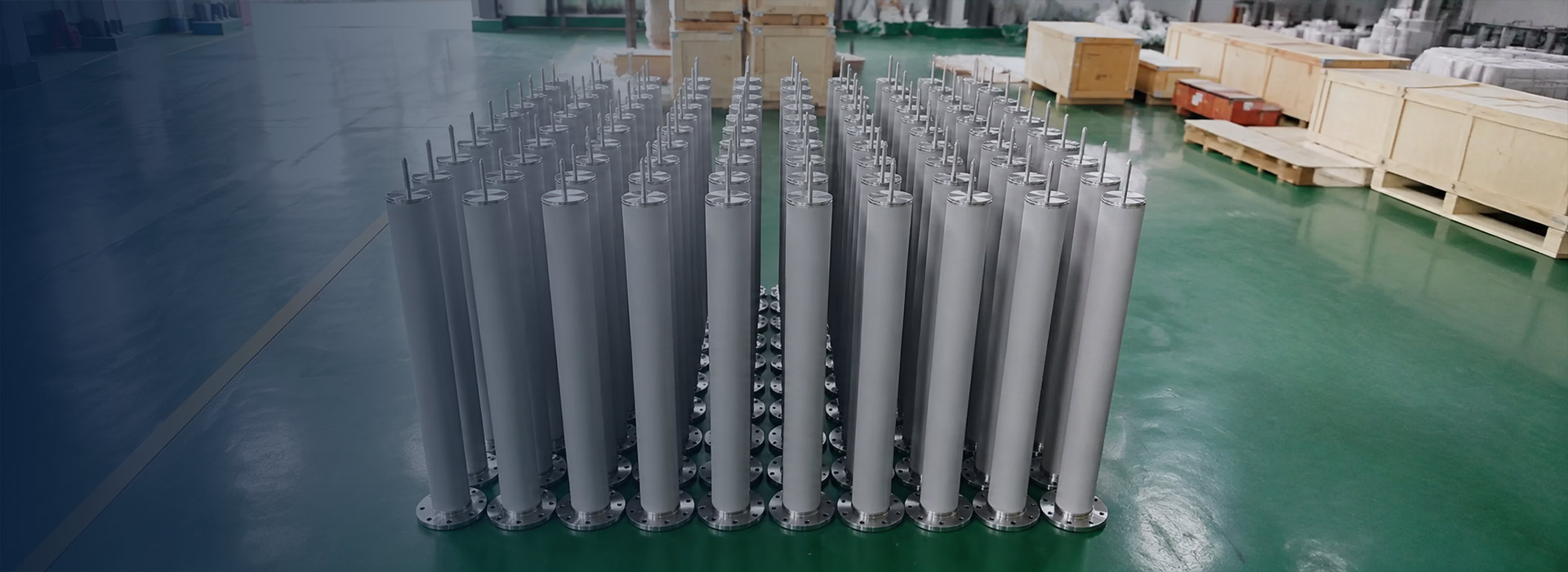

What is FiltEdge's Sintered Metal Filter?
FiltEdge’s sintered metal filter is also known as sintered metal filter elements or sintered porous metal filter.
Sintered metal filter is a durable filtering element that can save you long-term comprehensive costs. It includes 304/316 sintered stainless steel filters, titanium, nickel alloy, and duplex steel materials, which can adapt to your different needs and working conditions. In your filtration system, it is the most essential component that directly determines the filtration quality and system stability.
In addition to the conventional sintered metal filter, FiltEdge can also provide OEM/ODM customized design for you, helping with your production process and market brand.
Classification of Sintered Metal Filters
As a supplier of sintered metal filters, FiltEdge can provide you with over 100 types of sintered metal filters, covering different materials, sizes, shapes, and more.
DOE、SOEWith over 222/226 interfaces, you can easily connect to your existing filtering system.
Specially designed for large factories, OEM merchants, and filtration equipment factories, allowing you to easily carry out secondary processing.

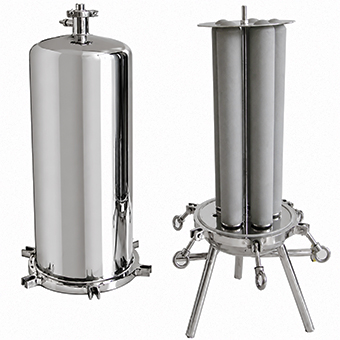

Specially designed for fully automatic backwash systems and cake filtration systems, achieving high efficiency recovery in continuous backwash/backwash operations.

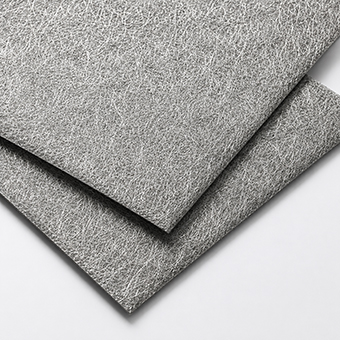

Sintering metal non-woven fibers into a three-dimensional porous structure can achieve a porosity of up to 85%, greatly improving the ability to hold pollutants.

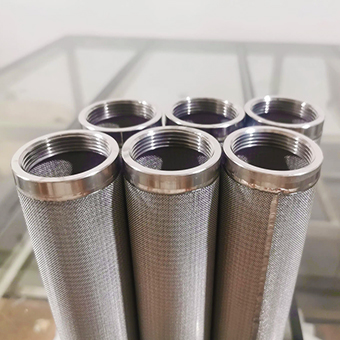

Multi layer metal woven mesh sintered, low pressure drop, high flux, easy to clean.

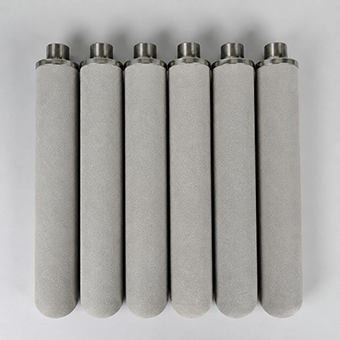

Adopting spherical metal powder sintering, it has precise pore size distribution and a hard microstructure, which can withstand higher impact forces.

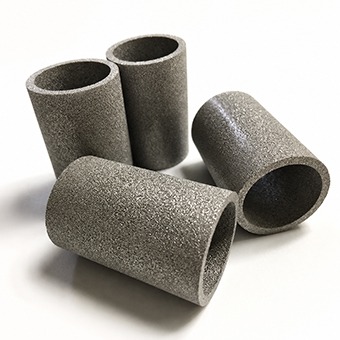

The accuracy covers 0.2 μ m-100 μ m, and the size and filtering structure can be customized according to the diagram.

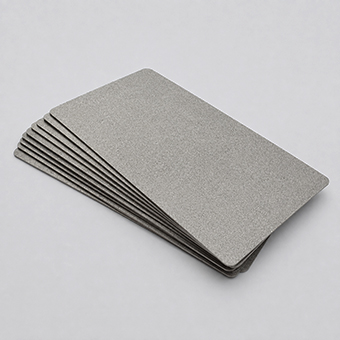

Heavy duty porous filter plate, specially designed for large-scale solid-liquid separation, gas diffusion and other working conditions.
Characteristics of Sintered Metal Filter
FiltEdge’s sintered metal filter has excellent performance, which can improve filtering efficiency and reduce overall operating costs for you.
It can withstand high temperatures of up to 900 ℃ under a pressure difference of 20MPa without collapsing or deforming.
Under high-intensity vibration and blowback, no metal particles fall off, protecting downstream precision equipment.
The pores in each layer are evenly distributed to ensure stable retention rate and flux.
Provide various materials such as 316L, Titanium, Hastelloy, etc. to cope with various corrosion situations.
Washable Metal Filter, non disposable consumables. It can be regenerated repeatedly through reflux, ultrasonic or chemical cleaning to reduce your consumable costs.
Support customized drawings for various forms such as cartridge, disc, tube, sheet, and interfaces.

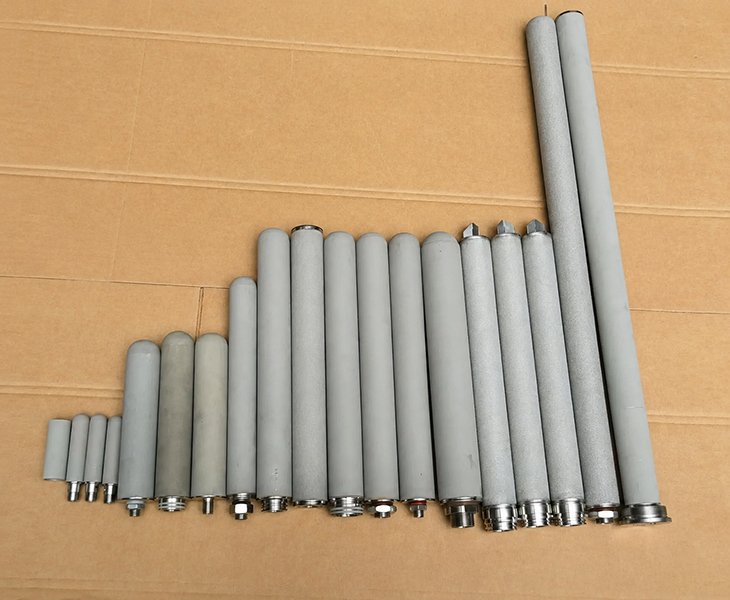

Customized Sintered Metal Filter
FiltEdge can customize sintered metal filters for you from various aspects such as material, size, precision, structure, craftsmanship, brand, etc. You just need to put forward your requirements, and our engineers will design and provide drawings for you to confirm. Within 7 days, we will create the first sample of a sintered metal filter for you. After you conduct usage experiments on the samples, we will mass produce them for you.

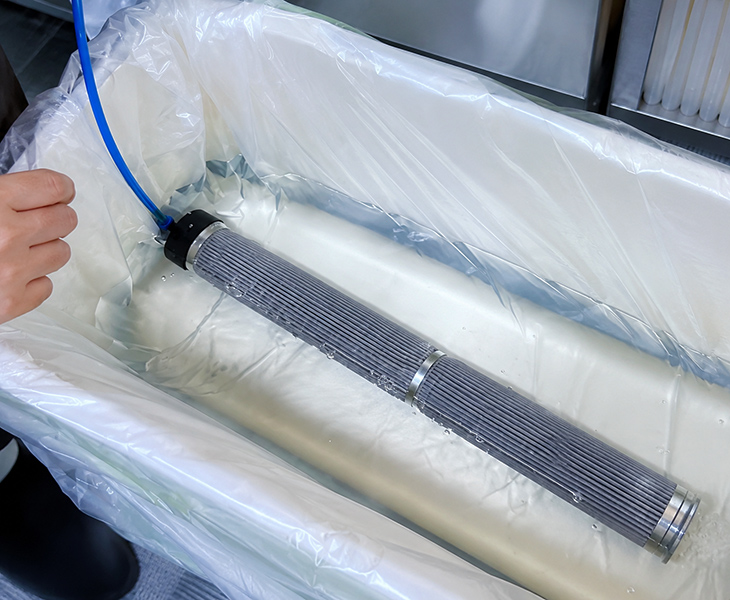

Quality Inspection of Sintered Metal Filter
After each batch of sintered metal filters is produced, it undergoes Bubble Point Test, Air/Liquid Permeability&Flow Rate Test, size measurement, Lead Testing, PMI Test, Burst/Pressure Test, and other tests in accordance with ISO standards; You can also arrange third-party testing agencies to test the sintering formation and particle size distribution for you, such as Particle Shedding Test. By following compliant production and testing processes, we ensure the quality of your sintered metal filter.

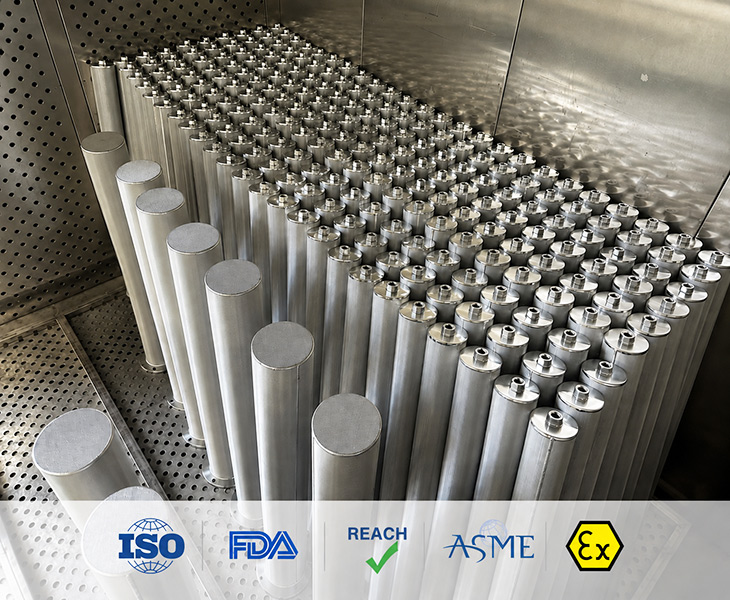

Certification of Sintered Metal Filter
Confirm applicable quality and compliance requirements for the selected product before ordering. Request supporting documents for the exact model, material and manufacturing entity. Food or pharmaceutical suitability, third-party inspection and any certification must be agreed separately; audit acceptance is not guaranteed.

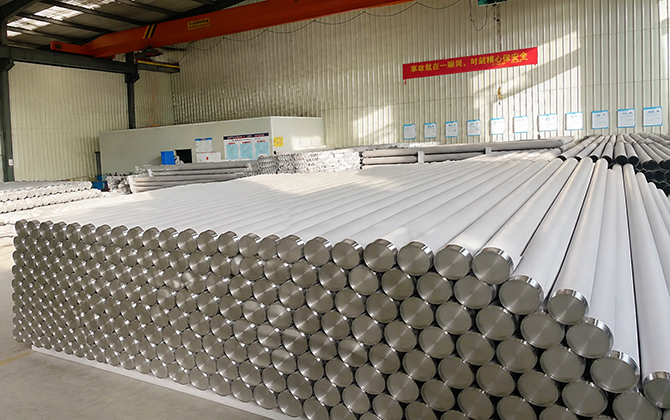

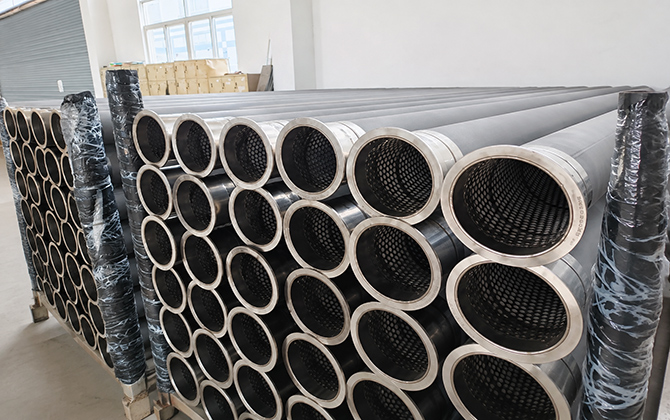

Why Choose FiltEdge's Sintered Metal Filter?
FiltEdge LLC is a U.S. company established in 2023, supported by SFFILTECH in China, established in 2006. Manufacturing support is provided through SFFILTECH in China. Confirm product specifications, available quality documents, pricing and delivery in the quotation. Certificates must be checked for the relevant entity, facility and product. Support is arranged during business hours; any on-site service or warranty terms require separate agreement.
Application of Sintered Metal Filter
Sintered metal filters have superior properties such as high temperature resistance, acid and alkali resistance, and can handle various working conditions for you, with a wide range of applications.
High temperature gas and flue gas dust removal in refineries;
Catalyst recovery and interception in hydrogenation reactors and slurry bed reactors;
Amine/desulfurization liquid filtration;
High pressure natural gas/hydrogen filtration.
Clarification and filtration of concentrated sulfuric acid, nitric acid, hydrofluoric acid, and sodium hydroxide solutions;
Gas distribution and liquid uniform flow;
Polymer and melt filtration.
Liquid medicine and decolorization carbon black filtration;
Industrial fermentation gas and steam filtration;
Powder isolation in pneumatic conveying.
Carbonation/Nitrification of Beer, Beverages, and Drinking Water;
Filtration of edible oil or syrup;
CIP/SIP system sterilization steam filtration.
UHP Gas filtration;
LCD/chip panel wet cleaning solution filtration.
Pre protection filtration of RO system;
Ozone explosion and water purification
Cooling water and gas filtration for nuclear power plants;
Hydrogen energy and fuel cells;
Pneumatic silencing and flame retardant.
Specification of Sintered Metal Filter
FiltEdge provides technical parameters, material comparison, and selection recommendations for your reference and selection. We can also tailor a sintered metal filter for you based on your actual working conditions and needs.
- Technical Specifications
- Material Comparison Matrix
- Selection Tips
| Parameter | Specification Range | Industry Remarks / Selection Notes |
| Micron Rating | 0.2 µm – 100 µm | Common ratings: 0.5µm, 1µm, 2µm, 5µm, 10µm, 20µm, 50µm |
| Porosity | 30% – 50% | Higher porosity increases flow rate but reduces mechanical strength accordingly |
| Operating Temperature | -200°C to 900°C+ | Material-dependent: 316L (≤450°C), 310S (≤900°C), Inconel (≤1000°C) |
| Max Differential Pressure | 3.0 MPa – 20.0 MPa (30–200 bar) | Extremely high collapse/burst pressure resistance; suitable for high-pressure backwashing |
| Outer Diameter (OD) | 10 mm – 300 mm+ | Customizable to fit equipment ports |
| Length | 100 mm – 1500 mm (can be welded/spliced for longer lengths) | Standard industrial lengths: 10″, 20″, 30″, 40″ |
| Structure Type | Powder (sintered powder), Wire Mesh (sintered wire mesh), Fiber Felt (sintered fiber felt) | Wire mesh offers high flow capacity; powder provides high precision and hardness; fiber felt features high dirt-holding capacity |
| End Connections | DOE, SOE, Thread (NPT/BSP), Flange, 222/226 | Custom non-standard mechanical threads and flanges available per drawings |
| Parameter | Representative Grade | Temperature Limit | Corrosion Resistance | Key Strengths | Typical Applications |
| Standard Stainless Steel | 316L | ~450°C | Good (resistant to weak acids, organic solvents, steam) | Most versatile, high mechanical strength, excellent cost-performance | Industrial gas/liquid filtration, water treatment, general steam filtration |
| High-Temp Stainless Steel | 310S (2520) | ~900°C | Moderate (excellent oxidation resistance at high temperatures) | Highly cost-effective high-temperature choice, resistant to oxidation spallation | High-temperature flue gas purification, heat treatment furnace gas filtration, exhaust gas treatment |
| Pure Titanium | Titanium (Gr1/Gr2) | ~300°C | Excellent (highly resistant to seawater, wet chlorine, hypochlorites) | Lightweight, excellent biocompatibility, strong chlorine/seawater corrosion resistance | Pharmaceutical sterilization, seawater desalination, PEM water electrolysis for hydrogen production (PTL) |
| Hastelloy | Hastelloy C-22 / C-276 | ~650°C | Superior (resistant to strong acids: hydrochloric acid, hydrofluoric acid, sulfuric acid) | “Ultimate choice” for extreme chemical corrosion environments | Fine chemical processing, strong-acid reactors, highly corrosive gas filtration |
| Inconel | Inconel 600 / 625 | ~1000°C | Excellent (high temperature + strong oxidizing/reducing atmospheres) | Combines very high temperature tolerance with high-temperature stress corrosion resistance | Aerospace, nuclear power plants, high-temperature syngas/catalyst recovery |
| Monel | Monel 400 | ~480°C | Excellent (specifically resistant to hydrofluoric acid, caustic alkalis, and salt water) | Extremely stable performance in high-concentration strong alkalis and hydrofluoric acid media | Hydrofluoric acid alkylation units, refinery caustic scrubber towers |
| Parameter | Specification Range | Selection Tips |
| Micron Rating | 0.2µm – 100µm Common ratings: 0.5, 1, 5, 10, 20, 50µm | Sterile/final filtration → 0.2–0.5µm; Clarification of process fluids → 5–10µm; Prefiltration/coarse filtration → 20–100µm |
| Porosity | 30% – 50% | High-viscosity fluids or high-flow processes → ≥40%; High-pressure applications or high mechanical strength required → ≤35% |
| Operating Temperature | -200°C to 1000°C+ Material inflection points: 316L ≤450°C / 310S ≤900°C / Inconel ≤1000°C | General-duty applications → 316L; High-temperature flue gas → 310S; Ultra-high temperature or thermal shock conditions → Inconel |
| Max Differential Pressure | 3.0 – 20.0 MPa (30–200 bar) | High-pressure backwash systems → ≥10MPa; General liquid filtration → 3–5MPa is sufficient |
| Dimensions | OD: 10 – 300mm+ Length: 100 – 1500mm (can be welded/spliced for extended lengths) | New build projects → OD and length can be customized; Retrofit/replacement applications → match standard lengths: 10″, 20″, 30″, 40″ |
| Structure Type | Powder Sintered / Wire Mesh Sintered / Fiber Felt Sintered | High precision + high strength → Powder Sintered; High flow capacity + easy cleaning → Wire Mesh Sintered; High dirt-holding capacity + depth filtration → Fiber Felt Sintered |
| End Connections | DOE / SOE / Thread (NPT/BSP) / Flange / 222 / 226 / Custom non-standard | General replacement/retrofit → DOE or SOE; High-pressure systems → Flange or Thread; Clean-in-place / food / pharmaceutical applications → 222 or 226 |
| Dirt-Holding Capacity & Regenerability | Dirt-holding capacity: varies by material and rating Regeneration cycles: up to 10–20+ times | High dirt-holding materials (e.g., Fiber Felt) extend replacement intervals; Processes requiring frequent backwashing → prefer Wire Mesh or Powder Sintered (robust structure) |
It depends on your requirements for filtration accuracy, fluid flux, and pollutant capacity. The accuracy of the sintered metal powder filter is higher by 0.2-20 μ m, and the hardness is stronger; Although the accuracy of the sintered wire mesh filter is lower, ranging from 5-200 μ m, it has low fluid resistance, high porosity, larger dirt capacity, and is easier to clean.
There are three main cleaning methods for sintered metal filters:
- Backwashing/Backblowing: Suitable for automated online cleaning, can remove surface filter cake.
- Ultrasonic Cleaning: Suitable for deep filtration filters such as powder sintering, which need to be removed from the filter for cleaning.
- Chemical Cleaning: Suitable for deep regeneration with strong adhesion, chemical scaling, or organic polymer blockage.
Most sintered metal filters can handle pressure differentials of 3-5 MPa, while a few high-pressure resistant sintered metal filters can achieve pressure differentials of up to 20 MPa.
