What is the Industrial Candle Filter?
FiltEdge’s Industrial Candle Filter is a highly efficient, fully enclosed pressure filtration system with no moving parts, and is the most central and critical component of the entire filtration system. It performs all key functions independently, from the feeding of the slurry, to the clarification of the liquid, to the final drying and discharging of the filter residue. It is not just a simple filtration equipment, but also the core lifeline to control the quality of your final product.
Why Choose FiltEdge's Industrial Candle Filter?
Industrial Candle Filter is one of the most important parts of the whole filtration system.
Because it carries the core function of the filtration system, a malfunction could result in wasted material, cloudy liquids, leakage of hazardous materials, or even put you at risk of shutting down production at any time.
FiltEdge industrial candle filter manufacturer has 20 years of manufacturing experience, strictly follow the ISO/CE quality certification standards to improve the high quality of the filter to maximize the applicability to your high viscosity and high solid content slurry, to ensure the long-term stable operation of your equipment, minimize your risk.
FiltEdge Supply Industrial Candle Filter Types
FiltEdge offers different types of industrial candle filters to better suit your production process. In case of extreme conditions, we can deeply customize the filter according to your needs.

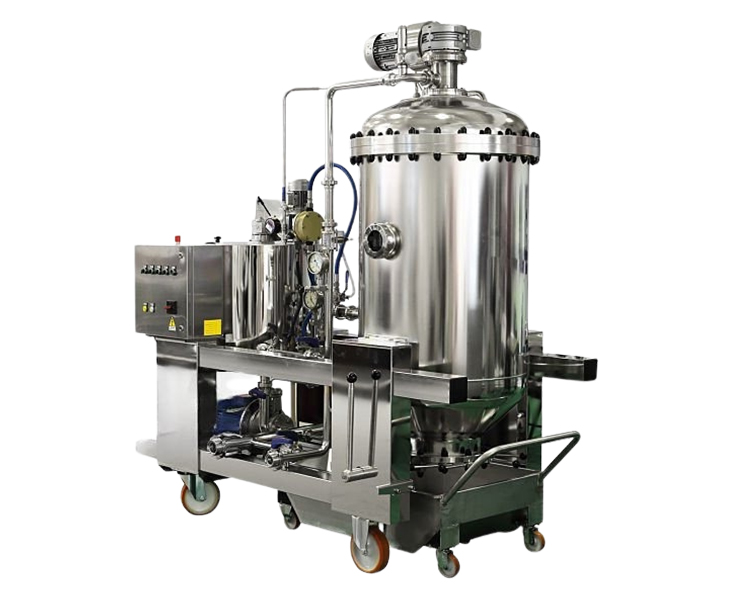

It significantly releases labor cost and realizes 24/7 uninterrupted production. Designed for stable continuous high flow conditions, the fully automatic blowback and sludge removal keeps the filtration system at consistently optimal performance entirely without human intervention.

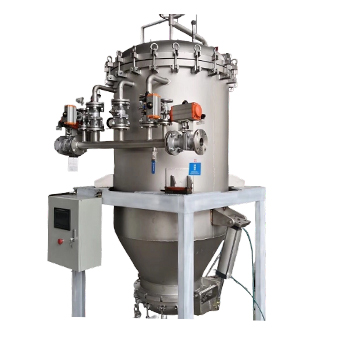

The ultimate sealing to protect your safety and compliance. Fully Enclosed Pressure Structure completely eliminates the risk of volatilization, dripping and hazardous material contact, which is the first choice for leakage prevention in pharmaceutical, strong corrosion and fine chemical industries.

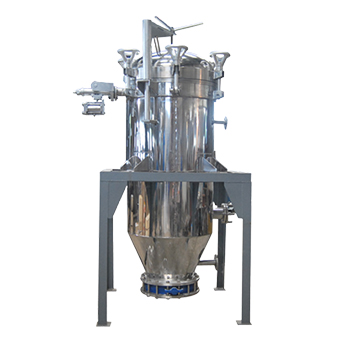

It meets the stringent requirements of GMP, controlling purity of every gram of material for you. Specifically designed for API and pharmaceutical intermediates, the machine has no dead space and zero residue structure, which realizes 100% filter cake recovery and eliminates the risk of cross contamination. It is ideal choice for your pursuit of high compliance and ultimate yield.

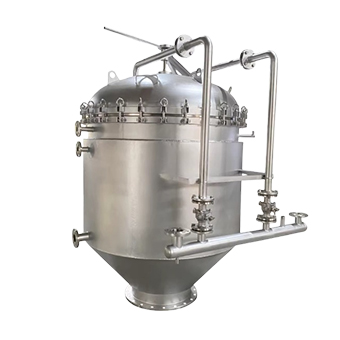

Industrial grade durable cornerstone, with 20 years of manufacturing process to define cost-effective. Selected high-grade stainless steel (304/316L/2205), combined with FiltEdge’s superb welding and surface treatment. No matter what kind of general chemical conditions, can provide you with long-lasting stable, low maintenance cost precision filtration protection.

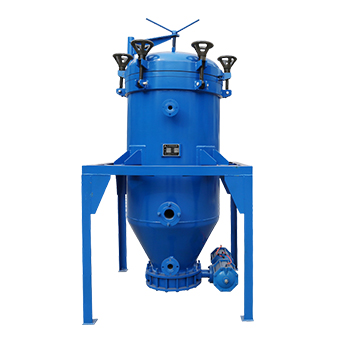

Easy to handle high-viscosity slurry, greatly enhance the subsequent process efficiency. It is specially optimized for 1%-20% high solid content materials, and through the efficient thickening cycle technology, it can quickly push the originally difficult to handle slurry to the best separation state. It is the “efficiency booster” for doubling the production capacity of lithium-ion and new energy material production lines.

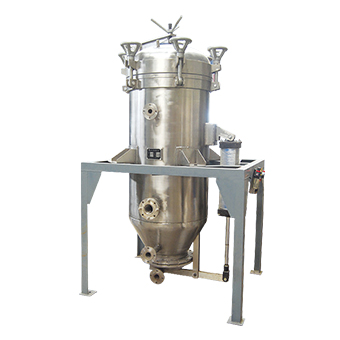

It challenges the limit of clarification and guards the last gate of product quality. Equipped with an ultra-high-precision filter element structure, the filter stably realizes ultra-precision filtration at the 0.1μm level. Even micron-sized suspended impurities can be precisely retained, ensuring that your final product has the ultimate clarity and helping your product stand out in the high-end market.

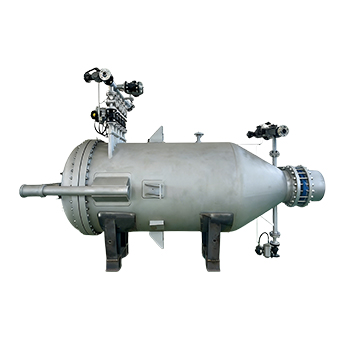

The ultimate in filter press drying, minimizing material loss and transportation costs. The unique backblast discharge system produces an extremely dry cake with a moisture content of <20%. No additional drying process is required for direct recovery or rapid disposal of solids, making your resource cycle more efficient and economical.

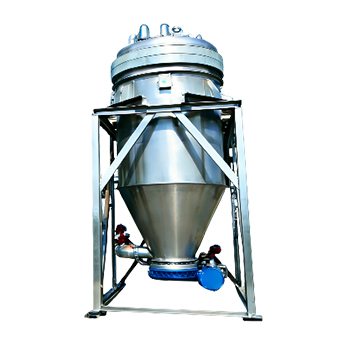

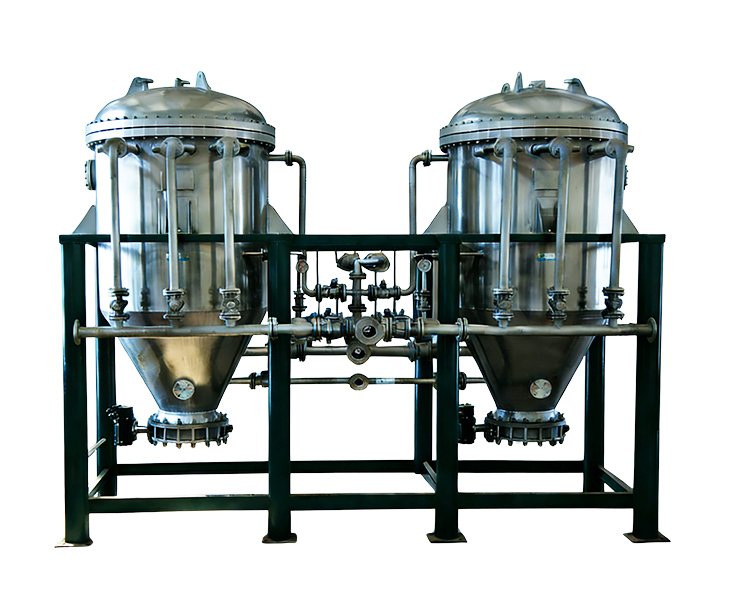

It is designed for large-scale industrial production and can easily handle a large number of filtration tasks. Adopting compact multi-tube bundle structure, it provides huge filtration area in a very small footprint. Designed for petrochemical, large-scale water treatment and other high-flow, high-continuity conditions, to ensure that your plant still has excellent system stability under continuous full load operation.
Features of Industrial Candle Filter
The superior performance of FiltEdge’s Industrial Candle Filter produces clarified filtrates, dry recoveries, increases your productivity and reduces your operating costs.
It is designed for fully enclosed pressure operation. It directly cuts off the volatilization path of flammable and toxic materials, eliminates the risk of dripping from the source, and helps your workshop pass the environmental safety audit easily.
There are no rotors, motors or other moving parts inside the system. This “static operation” means virtually zero wear and tear, saving you from costly seal replacements and downtime.
It is available with a wide range of high-performance microporous filter media with an accuracy of up to 0.1μm. This allows you to filter even the finest suspended contaminants, providing laboratory-grade clarification for your downstream processes.
It utilizes a highly efficient blowback press to produce a very dry cake with less than 20% moisture content. Recycling without secondary drying significantly reduces the hidden costs of solid waste disposal and transportation.
From feeding, filtration, washing, drying to discharging, the whole process is PLC controlled, and there is no need for manual attention after one key start, which not only saves manpower, but also avoids the batch instability caused by manual operation.
From 316L, Hastelloy to PTFE lining, we can customize according to your material pH. Whether it’s strong acid corrosion or high purity grade requirements, we have the proven material library to back it up.
It specializes in 1%-20% high-solids applications. With its unique thickening cycle design, it can rapidly increase the consistency of slurry in a small space, which is the key to “doubling the capacity” of subsequent centrifugal equipment.
It fully supports fully automated in-situ cleaning. No need to dismantle the machine for maintenance, it can be thoroughly cleaned during batch changeover, which is a mandatory safeguard against cross-contamination in API and sterile pharma.

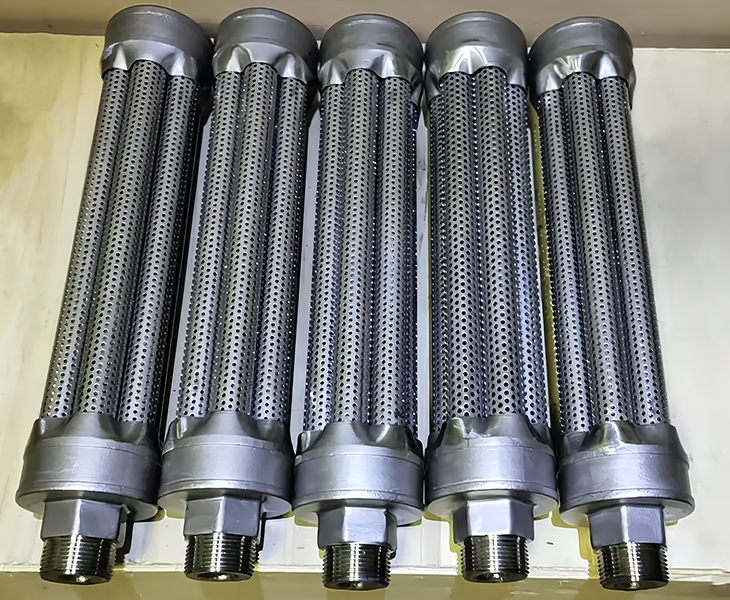

6-Segment Petal-Shaped Design's Industrial Candle Filter
Can’t get the cake out? You’re not using the right cartridge. FiltEdge’s Industrial Candle Filter has a secret weapon: a 6-segment petal-shaped filter element. At the moment of blowback, the filter cartridge will pop open like a flower petal, and it will shake off all the sticky filter cake. With no hang-ups and no clogging, your filter cloth will naturally last longer than others.

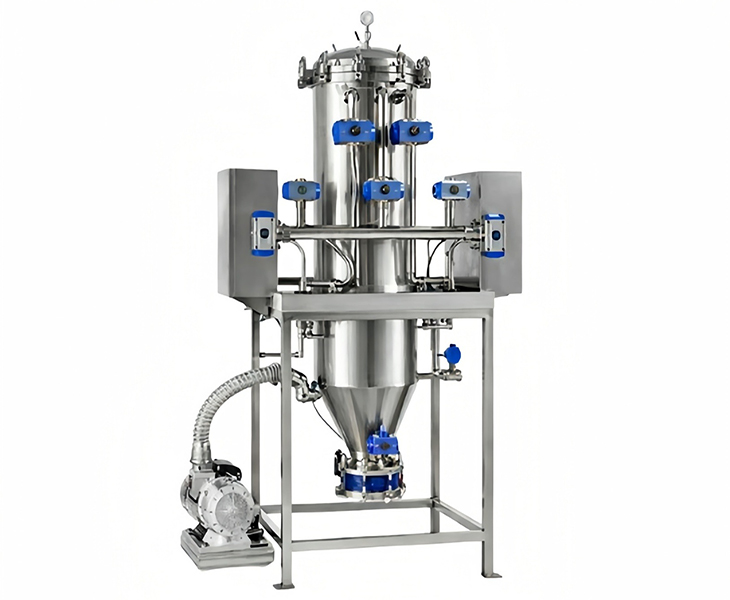

Skid Block Modular Industrial Candle Filter
Don’t waste your time with installation. FiltEdge has taken the complexity of the Industrial Candle Filter and made it a complete package, ready to use out of the box. We help you match up the lines and valves, haul it to your plant, hook it up and turn it on. In as little as half a day, your production line will be up and running, and all that will be saved is your labor time.

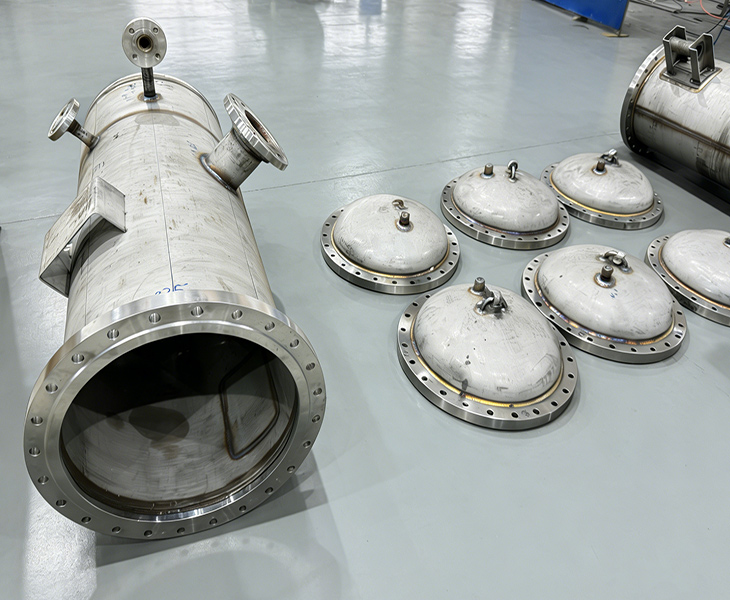

Customizing Industrial Candle Filter's Functional System
Customize your filter like building blocks. Beyond the basics of size and pressure, FiltEdge’s Industrial Candle Filter can be built like a building block, with features you can customize to your needs. Want automatic circulation? Want to wash the filter residue cleaner? Or do you want to leave no residue at all? Just name it: circulation, clarification, washing, batch processing, spray cleaning, pre-coating, thickening, zero residual liquid – you name it.
Applications for Industrial Candle Filter
The “heart” of all industries. Not only can it be used in the pharmaceutical, fine chemical, petrochemical, food and beverage industries, but it can also be used in the following applications:
- Decolorized Activated Carbon Filtration|Catalyst recovery and filtration
- Lithium electrolyte additive filtration|Inorganic salt production
- Plasticizer de-alkaline salt|Flue gas desulfurization filtration
- Calcium sulfate filtration in lactic aci| PLA polylactic acid adsorbent filtration
It doesn’t pick any job, it specializes in the troublesome conditions of high viscosity and high solid content, and it helps you to guard the first gate of product quality.

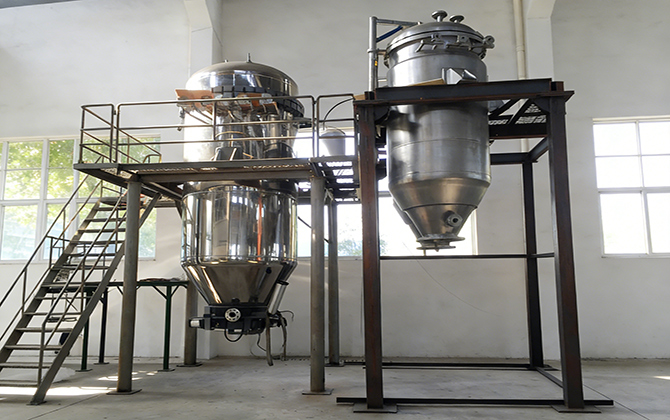

FiltEdge: Your Quality Partner for Industrial Candle Filters
FiltEdge is a Industrial Candle Filter factory in the filtration industry for over 20 years. With our deep professional background, we can quickly respond to your diversified needs and provide you with a wide range of Our Industrial Candle Filter is a supplier of Industrial Candle Filter with 20 years of experience in the filtration industry. Our Industrial Candle Filter is designed according to this concept to help you solve all kinds of solid-liquid separation challenges.

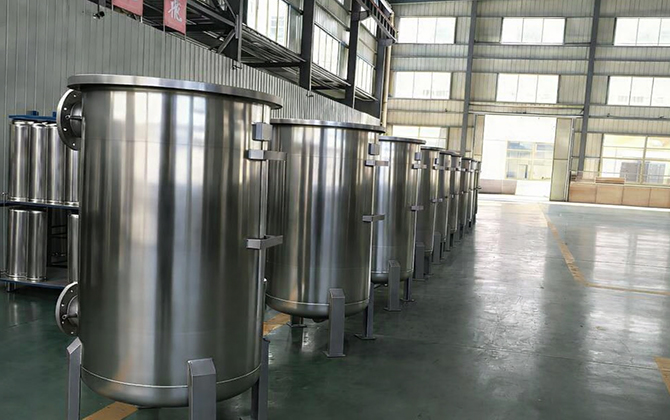

We have a 2,000 square meter production base equipped with advanced CNC machine tools, CNC rolling machines, stamping presses and automated welding equipment, as well as several pieces of laboratory equipment, including air tightness testers, pressure testers and flow testers. The complete configuration of these equipments and technologies ensures that the Industrial Candle Filter you receive can meet the most stringent performance requirements.
Through long-term technology development deposits, we continue to optimize the performance of our products, so that FiltEdge is always at the forefront of filtration technology, ensuring that you can get the most advanced and reliable filtration solutions.
Why Choose FiltEdge Company for Industrial Candle Filter?
Choosing a quality Industrial Candle Filter supplier not only reduces the amount of time you spend choosing a filter, it also eliminates concerns about the quality of your equipment and reduces the stress of maintaining it while it’s running. Choosing FiltEdge is the beginning of your choice to save heartache, effort and expense.
- FiltEdge has 22 utility model patented technologies for solid-liquid separation, covering opening and closing technology, cartridge structure, sludge discharge technology, and sealing technology. These innovations ensure that you experience the benefits of state-of-the-art technology when using the Industrial Candle Filter.
- FiltEdge has a professional testing laboratory, you can send materials to us for simulation testing, to provide scientific data support for your later equipment selection.
- FiltEdge has an annual production capacity of 3,200 units of liquid filtration equipment, which can easily cope with all kinds of large-scale projects.
- We have a professional purchasing team with more than 10 years of experience, strictly follow the purchasing process to control the quality of each raw material and spare parts, to ensure that the Industrial Candle Filter you get is always of high quality.
- Strictly according to ISO9001:2015 quality standards and 6S site management for production management, all equipment through the CE certification, to ensure that when you choose FiltEdge, you can get the most stable and reliable filter equipment.
- FiltEdge has warehouses in both the US and China to ensure that you have quick access to regular small equipment and accessories (e.g. filter bags, cartridges, O-rings, etc.). We are committed to providing you with one-stop shopping service.
- For non-standard customized equipment, we can achieve the fastest delivery of 4 days, to meet your timeliness needs.
- In pre-sales, we provide you with technical analysis, sample analysis, selection analysis, customized design, rapid prototyping and other services to ensure that your needs are accurately understood and met.
- After sale, for common problems, FiltEdge provides you with remote debugging and diagnostic services to assist your operators in solving problems. We also provide services such as dispatching technicians for on-site installation, maintenance, technical guidance and personnel training to ensure the long-term stable operation of Industrial Candle Filter equipment.
Technical Specifications of Industrial Filter Housing
The parameters of FiltEdge’s Industrial Candle Filter are for your reference to choose the suitable product, and can be customized according to your needs if required.
- Technical Specifications of Industrial Filter Housing
| No. | Product Model | Filter area (m²) | Dimension (mm) | Filter media size(mm) | Quantity of Filter Media (pcs) |
| 01 | DCF-1 | 1 | ф377*1600 | ф60*760 | 7 |
| 02 | DCF-2 | 2 | ф450*2000 | ф60*1070 | 10 |
| 03 | DCF-3 | 2 | ф450*2500 | ф60*1600 | 10 |
| 04 | DCF-5 | 5 | ф550*2400 | ф60*1400 | 19 |
| 05 | DCF-8 | 8 | ф700*2500 | ф60*1520 | 29 |
| 06 | DCF-10 | 10 | ф700*3500 | ф60*1830 | 29 |
| 07 | DCF-15 | 15 | ф900*3500 | ф60*1830 | 44 |
| 08 | DCF-20 | 20 | ф900*3500 | ф60*2450 | 44 |
| 09 | DCF-30 | 30 | ф1250*4500 | ф86*2300 | 49 |
| 10 | DCF-45 | 45 | ф1500*4800 | ф86*2600 | 64 |
| 11 | DCF-60 | 60 | ф1800*5000 | ф86*2600 | 86 |
| 12 | DCF-80 | 80 | ф2000*5500 | ф86*2800 | 108 |
| 13 | DCF-100 | 100 | ф2200*5500 | ф86*2200 | 172 |
| 14 | DCF-120 | 120 | ф2200*6000 | ф86*2600 | 172 |
| 15 | DCF-150 | 150 | ф2500*6400 | ф86*2600 | 214 |
Filter Elements for Industrial Candle Filter

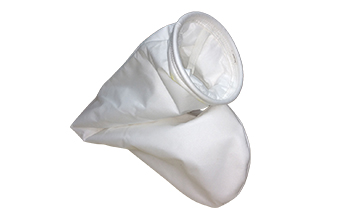

PP Candle Filter BagPrecision:1-200μm

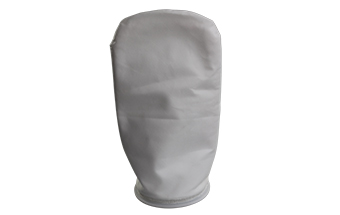

PET Candle Filter SockPrecision:1-200μm

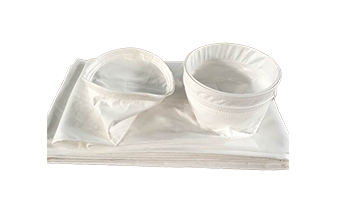

PTFE Candle Filter SleevesPrecision:1-200μm

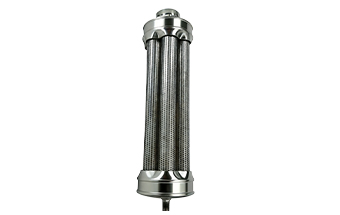

Replaceable Candle Filter ElementsAccuracy: 1-200μm
Get a Customized Industrial Candle Filter Proposal Now
You don’t need to be indecisive about choosing the right Industrial Candle Filter! Whether it’s process analysis, model selection, custom design, proposal comparison and order preparation, FiltEdge – the world’s leading manufacturer of Industrial Candle Filters – can provide you with a fast, accurate and cost-effective solution for every filtration need.
Choose the next step that’s best for you:
- Download Technical Information Packages
Want to learn more about Industrial Candle Filter product details, technical specifications, or conduct a project evaluation? Contact us and you’ll get instant access to a complete technical resource kit containing a PDF selection guide, dimensional drawings, material specifications, and more to help you make a quick decision. - Request a Project Consultation
Still confused by the tedious selection of parameters? Worried about poor filtration or clogging problems? Submit your process requirements and FiltEdge engineers will provide you with free, customized selection advice and process optimization solutions to ensure your filtration system maximizes performance. - Get a Professional Quote
Provide flow rate, fluid characteristics (e.g., solids, pH, etc.), pressure, temperature, installation space, and other pertinent parameters, and our team will provide you with a detailed quote and delivery schedule within 24 hours, ensuring that you can get your project started early and delivered on time.
Contact a FiltEdge engineer today for a customized solution and quote for your filtration needs to improve productivity and optimize your process!
In the industry, it is also often referred to as the Candle Pressure Filter, Tubular Pressure Filter, or Backwash Candle Filter.Regardless of what the device is called, the FiltEdge design is based on the same highly effective solids-liquid separation principles that power your filtration system.
Your customized stainless steel filter housings or skid mounted systems are usually shipped to you within 30 days. Standard filter bags and sleeves are in stock at our US and China warehouses and can be shipped to you the next day after ordering.
Absolutely.
We offer PTFE-lined candle filters and Hastelloy filter housings specifically designed for strong acid or hazardous chemical filtration to ensure that your filters are corrosion resistant.
The lifespan of an Industrial Candle Filter is primarily based on a combination of material of manufacture, usage and frequency of maintenance. If you maintain it properly, your filter can last up to 10 years.
Automatic Self-cleaning Filter relies on the cartridge to separate the slurry into mother liquor and filter residue, the filter residue adsorbed on the surface of the cartridge, and so on, when the pressure reaches a certain level, the backblowing device will be activated automatically, through the backblowing technology will be stripped of the filter residue discharged to achieve the filter element of the automatic cleaning demobilization, and automatically enter the next filtration. Automatically enter the next filtration. In the operation process you do not need any manual intervention operation, to give you a continuous high flow of slurry for full filtration.
Our filters use high-precision cartridges, combined with dregs filtration technology, the precision can be increased to 0.1μm such as high-precision, it depends on what precision is suitable for your actual filtration media, and we configure the appropriate precision to ensure that your final product is of high quality.
FiltEdge’s candle filters are usually vertical filters with a small footprint that requires upward space. You can tell us the condition of your plant, and we will design the layout according to your actual space.
Safety interlocks are standard on our filters. All actuators of the system are “normally closed” or with “fail-safe” position. Once your filter encounters a power failure, its valves will automatically close, locking the material in the tank and preventing it from getting out, improving your production safety.
