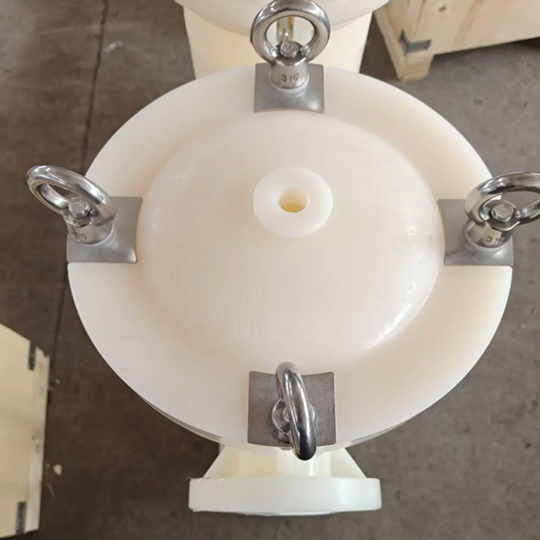

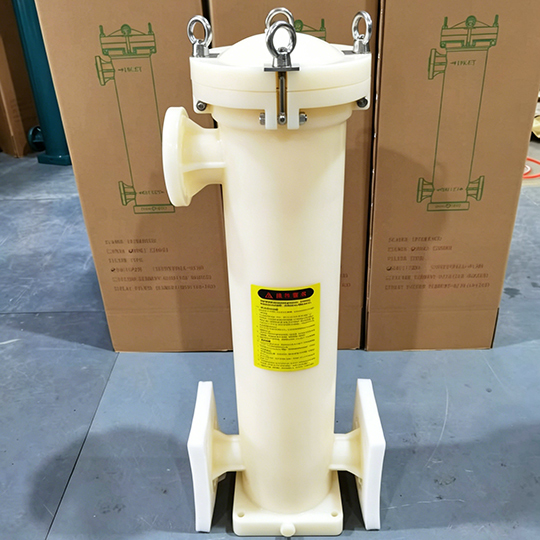

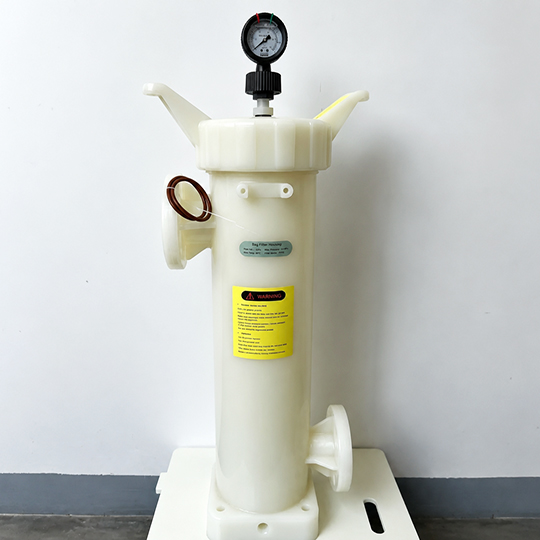

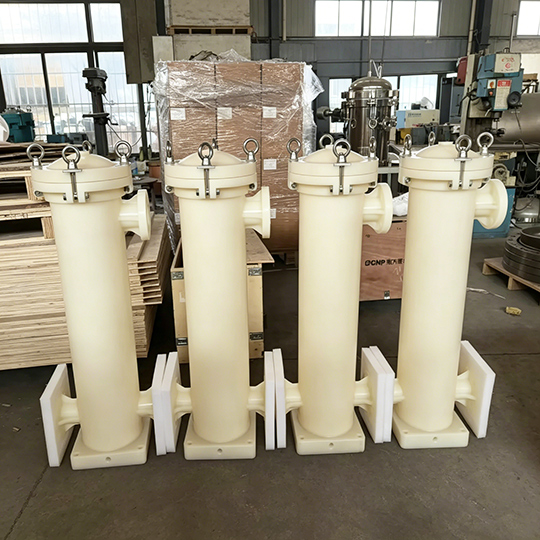

What Is FiltEdge's PVDF Filter Housing?
FiltEdge’s pvdf filter housing is a plastic filter housing. Its biggest advantage is that it will not produce metal ions like metal filters, when you use pvdf filter housing filtration, the whole process will not produce metal free ions, which is especially suitable for some high-end conditions, such as high-purity water, semiconductors, electronic chemicals in the pre-filter, which can protect your downstream equipment, but also improve the purity of the product.
Types of PVDF Filter Housing
The excellent chemical properties of FiltEdge’s PVDF Filter Housing are an important factor in the wide range of applications in high-end industries. We have more than a dozen styles for you to choose from. Or you can choose to customize the filter that best matches your working conditions.

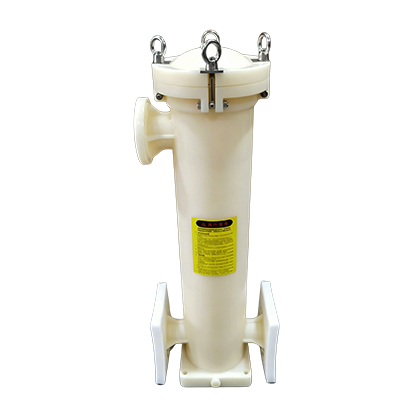

We can provide 1-2 bags, top entry/side entry structure. Ensure that there will be no flange deformation or liquid leakage.

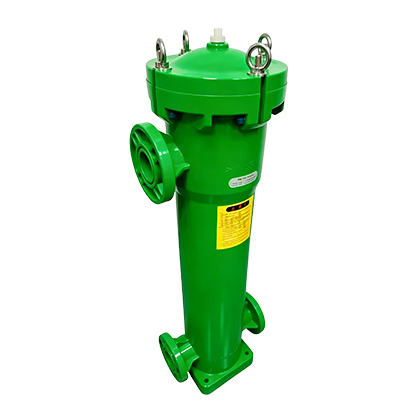

PVDF Cartridge Filter HousingAvailable in 1-7 round sizes for semiconductor and photovoltaic cleaning lines.

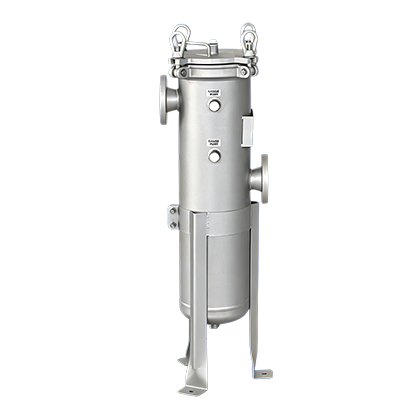

A filter that combines the high-pressure and high-temperature resistance of a stainless steel filter with the extreme corrosion resistance of PVDF plastic, making it a cost-effective filtration solution for demanding applications.
Advantages of PVDF Filter Housing
With the common plastics prone to deformation and leakage, and metal shells that are not resistant to strong acids and metal precipitation, FiltEdge’s PVDF Filter Housing is designed to address your industrial pain points and apply our technological strengths to ensure that your system operates stably, long-lastingly, and with zero contamination under strong corrosive conditions.
With excellent chemical compatibility with acids, alkalis, oxidizers and a wide range of solvents, PVDF Filter Housing is highly resistant to corrosion.
Never precipitate organic carbon (TOC), fluoride ions, additives, stabilizers, metal ions and other precipitates, suitable for working conditions with extremely high purity requirements.
All-plastic PVDF Filter Housing can be operated continuously at temperatures ranging from -20 to 90°C, and instantaneously at temperatures up to 120°C, providing long-lasting and stable temperature resistance.
The key parts of the main body, such as the cylinder and connectors, are 100% pure PVDF, and the non-contact parts, such as the bracket, are made of PP/PVC to ensure the purity of the process.
Adopting high performance PFA/FEP covered Viton sealing ring and precision injection molded deep dovetail groove design to eliminate the possibility of leakage.
Supports ANSI/DIN/JIS standard flange connections, high pressure Union and classic NPT/BSPT threaded connections, as well as individually designed Vent, Drain, and Differential Pressure gauge function holes to ensure smooth connections to your existing system.
PVDF Filter Housing is extremely resistant to UV and ozone degradation and will not deteriorate in mechanical strength even after years of outdoor use.
The material characteristics of PVDF Filter Housing make its inner wall surface extremely smooth, which is not easy to harbor bacteria and difficult to scale, and is suitable for pharmaceuticals, ultrapure water, and viscous liquids.

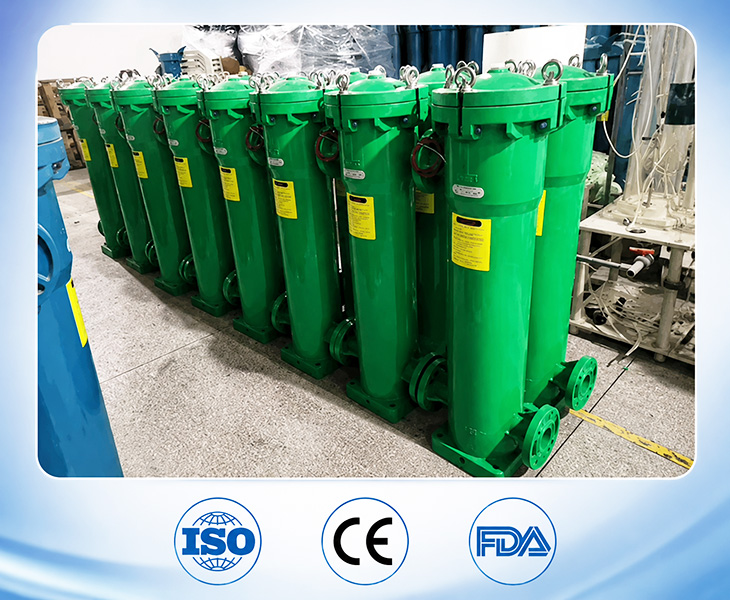

Certification of PVDF Filter Housing
Request inspection records and applicable quality or compliance documents for the selected PVDF filter housing. Certificates must be checked for their entity, product and scope. Food or pharmaceutical suitability and any third-party testing require application-specific confirmation.

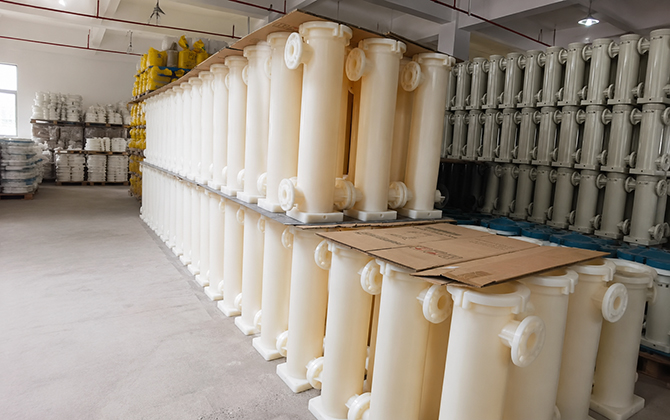

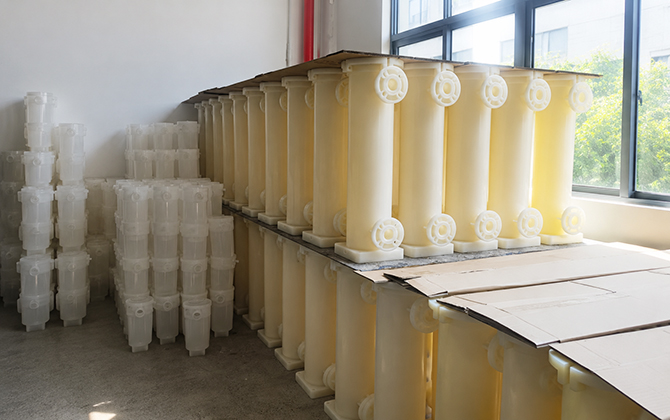

Services of PVDF Filter Housing Manufacturer
FiltEdge LLC is a U.S. company established in 2025, supported by SFFILTECH in China, established in 2006. Manufacturing support is provided through SFFILTECH in China. Confirm product specifications, available quality documents, pricing and delivery in the quotation. Certificates must be checked for the relevant entity, facility and product. Support is arranged during business hours; any on-site service or warranty terms require separate agreement.
Why Choose FiltEdge's PVDF Filter Housing?
FiltEdge’s PVDF Filter Housing can provide you with solutions to industrial problems such as the medium is too corrosive, ordinary PP or metal housing is not stable enough; precipitation and contamination; seal leakage, incomplete drainage, and so on.
PP filters are easy to oxidize and become brittle when facing high concentration of nitric acid and chromic acid; stainless steel filters are easy to pitting and perforation when encountering hydrofluoric acid or high concentration of chlorine ions; FiltEdge’s PVDF Filter Housing can maintain the absolute stability of the molecular structure when filtering strong acids, alkalis, oxidants or highly toxic solvents. This eliminates corrosion-induced bulging and perforation at the source, preventing long downtime and economic losses.
For high-purity applications, confirm the PVDF housing construction, wetted materials and extractables or ionic-contamination test data. Compatibility with ultra-pure water and strong acids requires review of actual operating conditions; zero contamination or improved yield is not guaranteed.
In the production process, the most afraid of spraying, especially strong corrosive liquids, FiltEdge’s PVDF Filter Housing adopts precision injection molding “dovetail groove anti-migration” design, together with PFA/FEP coated rigid and flexible integrated perfluorocarbon seals, in the alternation of heat and cold, the resilience is still durable, to ensure that the PVDF Filter Housing will not be affected by any leakage. This ensures the sealing of the PVDF Filter Housing and protects your personal safety and production safety.
Drain-port options can be reviewed for the selected PVDF housing. Before replacing consumables, follow the approved equipment isolation, depressurization, draining and decontamination procedure and use the required protective equipment. Opening the drain valve alone does not establish safe access.
Applications of PVDF Filter Housing
PVDF Filter Housing is known as the king of plastics. Based on its excellent performance, you can use it for corrosive liquids, acid and alkaline filtration, high-purity liquid filtration and so on, such as the following common scenarios.
Filtration of highly concentrated acids such as HCl, HF, HNO3 and H2SO4;
Filtration of sodium hypochlorite, chlorine dioxide, ozone water, hydrogen peroxide and other strong oxidizing agents and bleaching agents;
Clarification and impurity retention of various alcohols, hydrocarbons and some chlorinated solvents in chemical industry.

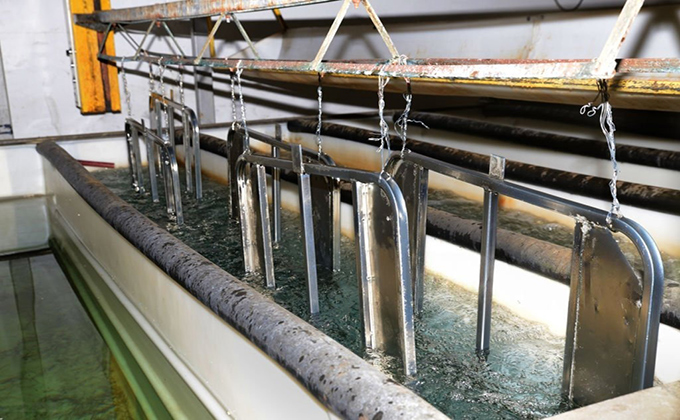

Circulation filtration of copper plating, nickel plating, chromium plating and precious metals (gold plating, silver plating) in electroplating baths;
Filtration of acidic/alkaline etching solution generated in metal printed boards (PCBs);
Filtration of physical high-flow mixed-acid cleaning solution used in the pre-electroplating process for automotive and aerospace parts.
Used in UPW system circuits in semiconductor and photovoltaic panel factories;
Pre-protection for deionized water and reverse osmosis.
Filtration of highly concentrated APIs such as slurries and reaction solutions with strong acids and bases or organic solvents;
Bioreactor acid-base regulator purification;
Sterilization system and high temperature CIP/SIP cleaning.
High concentration soy sauce and brine filtration;
For filtering high temperature concentrated acid and alkali detergents used in automatic cleaning of food lines;
For clarification of citrus and other highly acidic fruit juices.
Technical Parameters of PVDF Filter Housing
The technical parameters below are provided for reference. Contact us for product-specific details; inquiries are handled during business hours.
- PVDF Filter Housing Specification
- Chemical Compatibility for PVDF Filter Housing
| Technical Parameter | All-Plastic PVDF Type | PVDF-Lined Steel (Pressure-Rated) Type |
| Housing Type | Single-Cartridge, Multi-Cartridge, Single-Bag | Multi-Cartridge, Single-Bag, Multi-Bag |
| Body Material | 100% High-Purity Ultra-Clean PVDF Resin | External: Carbon Steel or 304/316L Stainless Steel Internal: Tightly Lined High-Purity PVDF Layer (3-5mm) |
| Filter Compatibility | Pleated Cartridge / Filter Bag | Pleated Cartridge / Filter Bag |
| Element Size/Length | Cartridge Lengths: 10″, 20″, 30″, 40″ Bag Sizes: No.1, No.2, No.3, No.4 | Cartridge Lengths: 20″, 30″, 40″ Bag Sizes: No.1, No.2 |
| Cartridge Adapter Style (Important Supplement) | 222/Flat, 222/Fin, 226/Flat, 226/Fin, DOE (Double Open End) | 222/Fin, 226/Fin, DOE (customized according to internal tube sheet) |
| Inlet/Outlet Connection | Union, Flange (ANSI/DIN/JIS), Industrial Thread, Infrared Butt Fusion / Socket Fusion | High-Pressure Flange Connection (ANSI/DIN/JIS) |
| Connection Size (Important Supplement) | 1/2″ to 3″ (matched to flow rate and number of cartridges) | 2″ to 12″ (suitable for high-flow pipelines) |
| Max Operating Pressure | 0.6 MPa @ 25°C 0.2 MPa @ 90°C (Note: Pressure for all-plastic material decreases with temperature) | 1.0 MPa ~ 1.6 MPa (No rigidity reduction with temperature) |
| Design/Burst Pressure (Important Supplement) | Design Pressure: 0.8 MPa Burst Pressure: ≥ 2.0 MPa | Design Pressure: 1.6 MPa ~ 2.5 MPa |
| Max Operating Temperature | -20°C ~ 90°C (Max transient: 120°C) | -30°C ~ 130°C (Max extreme limit: 140°C) |
| Seal Material | Standard: FEP/PFA Encapsulated O-ring (Fluororubber core) Optional: FFKM (Perfluoroelastomer) | Standard: FEP/PFA Encapsulated O-ring, PTFE Gasket Optional: PTFE-Encapsulated EPDM |
| Drain and Vent Options | Top: 1/4″ or 1/2″ NPT Vent Port / Pressure Gauge Port Bottom: 1/2″ or 1″ Union/Threaded Drain Port | Top: 1/2″ Flanged/Threaded Vent Port Bottom: 1″ or 2″ Full-Drain Flanged Drain Port |
| Surface Finish (Important Supplement) | Machined / Integral Injection Molded, Mirror-Grade Smooth Inner Surface (Ra ≤ 0.4 μm), Scale-Resistant | External: Shot Blasting + High-Performance Anti-Corrosion Topcoat Internal: Seamless Heat-Fused PVDF Liner, Pinhole-Free |
| Chemical Compatibility | Excellent. Perfect resistance to high-concentration strong acids (e.g., HCl, HF, Aqua Regia), strong bases, strong oxidizers (Ozone/H₂O₂), and most organic solvents except certain highly polar solvents. | Excellent. Fluid contacts only the internal PVDF liner; chemical compatibility is identical to pure PVDF. |
| Mounting Style | Wall-Mounted Bracket (small units) / All-Plastic Floor-Standing Tripod or Quadruped Base (large units) | Carbon Steel/Stainless Steel Integrated Heavy-Duty Floor-Standing Legs / Lifting Lugs |
| Chemical Name | Common Concentration | Temperature 22°C (72°F) | Temperature 60°C (140°F) | Temperature 90°C (194°F) |
| Inorganic Acids | ||||
| Hydrochloric Acid (HCl) | 37% (Conc.) | A | A | A |
| Hydrofluoric Acid (HF) | 48% (Conc. / Semiconductor Grade) | A | A | A |
| Sulfuric Acid (H₂SO₄) | 98% (Conc.) | A | B | C |
| Nitric Acid (HNO₃) | 65% (Conc.) | A | A | B |
| Phosphoric Acid | 85% | A | A | A |
| Aqua Regia | Mixed Acid | A | B | C |
| Bases | ||||
| Sodium Hydroxide (NaOH) | 50% | A | A | B |
| Potassium Hydroxide (KOH) | 50% | A | A | B |
| Ammonium Hydroxide | 28% | A | A | B |
| Oxidizers & Others | ||||
| Hydrogen Peroxide (H₂O₂) | 30% / 50% | A | A | A |
| Sodium Hypochlorite (Bleach) | 15% (Available Chlorine) | A | A | A |
| Ozonated Water | Saturated | A | A | A |
| Chromic Acid | 50% | A | A | B |
| DI/UPW (Deionized / Ultrapure Water) | 18 MΩ·cm | A | A | A |
| Organic Solvents | ||||
| Alcohols (e.g., Ethanol, Isopropanol/IPA) | 100% | A | A | A |
| Hydrocarbons (e.g., Toluene, Xylene) | 100% | A | A | B |
| Chlorinated Solvents (e.g., Trichloroethylene, Chloroform) | 100% | A | A | B |
| Acetone / Ketones | 100% | D | D | D |
| Highly Polar Solvents (e.g., NMP, DMF, DMSO) | 100% | D | D | D |
| Esters (e.g., Ethyl Acetate) | 100% | B | C | D |
| Compatibility Rating Key: A (Excellent) – No attack; material is fully resistant. Suitable for continuous service. B (Good) – Slight attack; minor weight loss or swelling possible. Generally suitable for most applications. C (Fair) – Moderate attack; limited service life. May be acceptable for short-term or intermittent use. D (Poor / Not Recommended) – Severe attack; material is not suitable for service. | ||||
When the medium you need to filter has very high oxidizing, concentration, temperature over 60℃, PP filter can’t withstand it; have very high requirements for filtration, can’t have metal ions precipitation, or the working condition is strong acid, high chlorine ions, stainless steel filters can’t be used; you have to use PVDF Filter Housing. If you are not sure, you can contact us and we will help you to do fluid analysis and select or customize for you.
Bag PVDF Filter Housing has an accuracy of 1-200μm, while Cartridge PVDF Filter Housing has an accuracy of 0.02-1μm sub-micron. In summary, Bag PVDF Filter Housing is suitable for coarse filtration, large particle interception, and Cartridge PVDF Filter Housing is suitable for fine filtration, such as terminal fine filtration, ultrapure water recirculation, and semiconductor wet chemical particle interception, or you can tell us about your working condition, and we will analyze it for you and provide reliable suggestions.
You can choose from Union, ANSI/DIN/JIS flanges, NPT threads; Vent & Drain Options for PVDF Filter Housing are 1/4“ or 1/2” air vent port, air vent, and zero residual liquid drain port.
