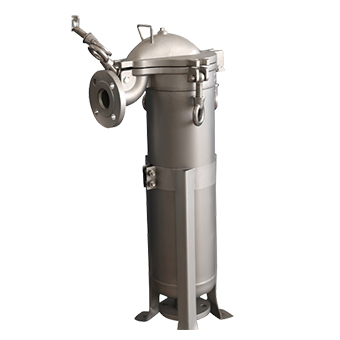

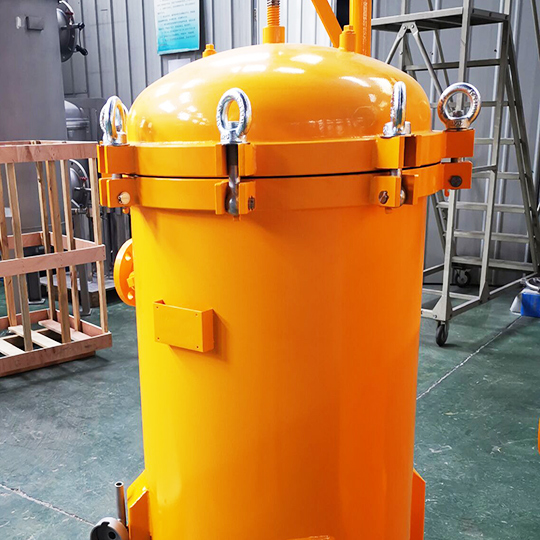

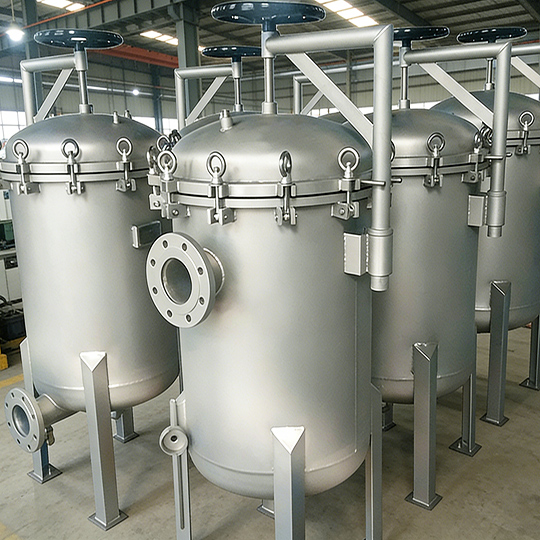

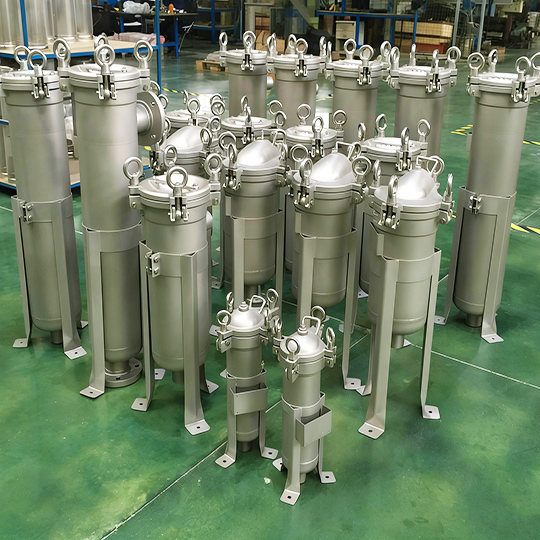

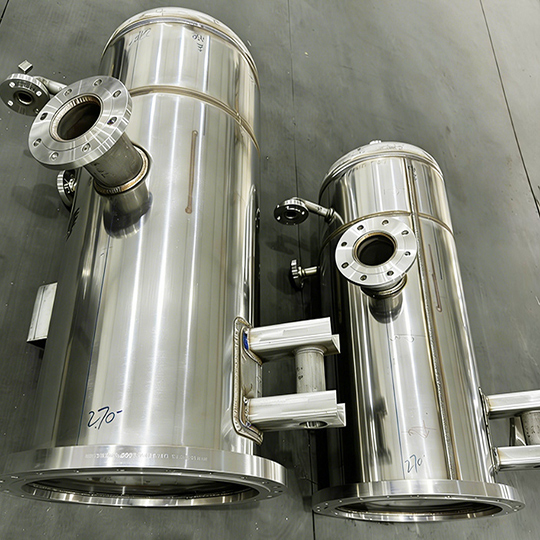

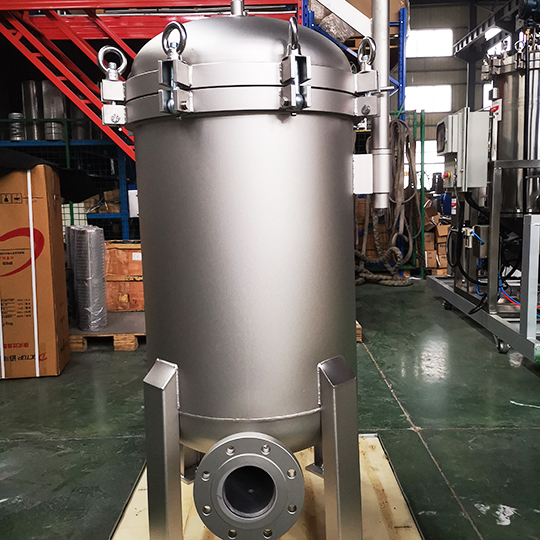

Custom Filter Housing Solves Your Problems
We custom design port sizes and orientations to solve your plumbing challenges;
Adjust your flow rate by customizing the internal dimensions;
For corrosive fluids, we provide stainless steel/carbon steel/PVDF/PP and coating processes;
For high temperature and high pressure environment, we can customize the material and structure of medium and high pressure design for you, and seal the filter;
For parts and components, we can customize filters for you as universal parts, solving your problem of difficult parts replacement;
We have warehouses in China and the United States, 24-hour stocking routine inventory, non-standard customized samples within 7 days.
What is Custom Filter Housing?
A custom filter housing is a pressure vessel that is customized to your specific process using a non-standard vessel. It is better suited to your filter media and operating conditions than a generic filter. It reduces your overall costs in terms of long term operation.
When your standard filters are faced with pressure drop surges due to highly viscous fluids, the risk of leakage from corrosive media, or extremely tight installation spaces in existing pipelines, custom filter housing has the solution for you.
Custom Filter Housing Options
Customized filters and filtration systems are available for processes in the petroleum, chemical, pharmaceutical, food and beverage, water treatment, new energy, automotive oil, chip and other industries.

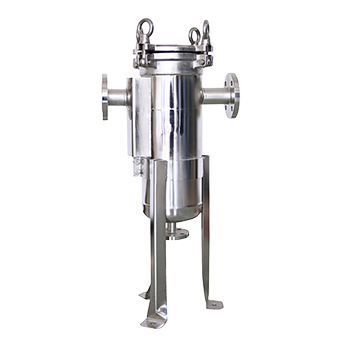

Designed for food and beverage processing to ensure food safety.

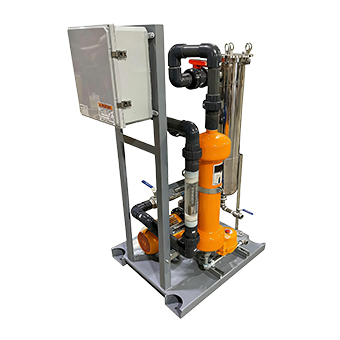

Adjusting the installation method according to the site layout, the modular filter can be installed in half a day.
Economical filtration solution, customized size, material and interface for you. Suitable for low and medium flow rate.
A variety of materials and precision can be selected, which can be used for coarse filtration and fine filtration.

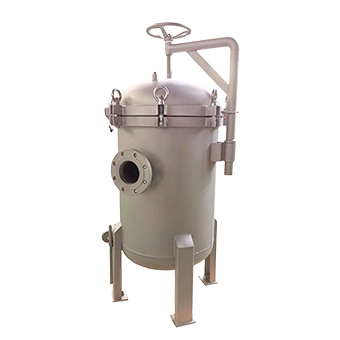

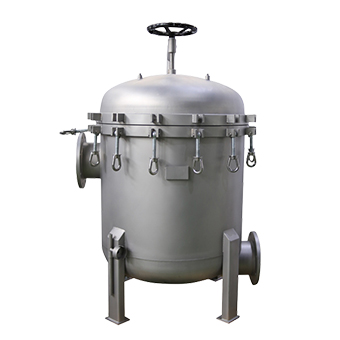

Multi-bag filter housings are suitable for high flow rates, reducing your total maintenance frequency and operational downtime.

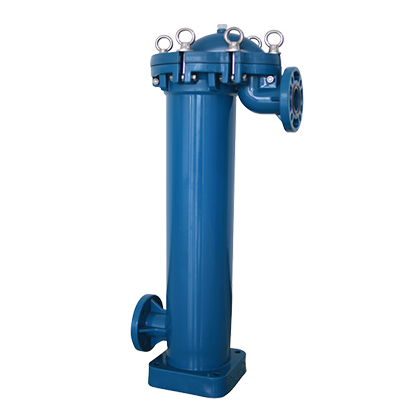

PVDF/PP two kinds of plastic material, PVDF is the king of plastic to deal with corrosion, PP can provide you with an economical filtration solution.
Provide resistance to high pressure, high temperature and corrosion, and can meet the high standard requirements of food grade and sanitary grade.

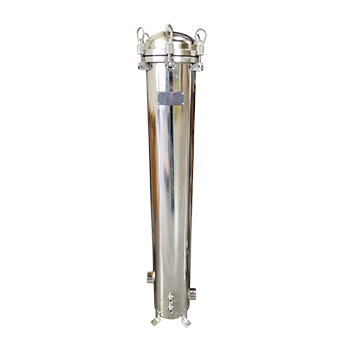

Meet the demand of high precision, can install more than 200 cartridges.
Product Features of Custom Filter Housing
Whether it’s high pressure, high temperature or corrosive conditions, we have the solution, customized for your liquid process.
Customizable from 0.6MPa to 2.5MPa to meet your high pressure environment.
SS304/SS316/Carbon steel/PVDF/PP/High-end alloys can be customized to suit different slurry chemistry.
Quick disassembly in 15 seconds, one person can operate and maintain, or fully automated operation, to reduce your operating costs.
Customized ANSI, DIN, JIS, ISO flanges, NPT threads, sanitary quick-open ports, and more.
Customized filters for over 5000+ GPM per unit.
ISO, CE, FDA and other compliance approvals available
Customizable from 0.1μm-2000μm, covering your needs in every industry.
Customized filter configurations to match the conditions of your plant.

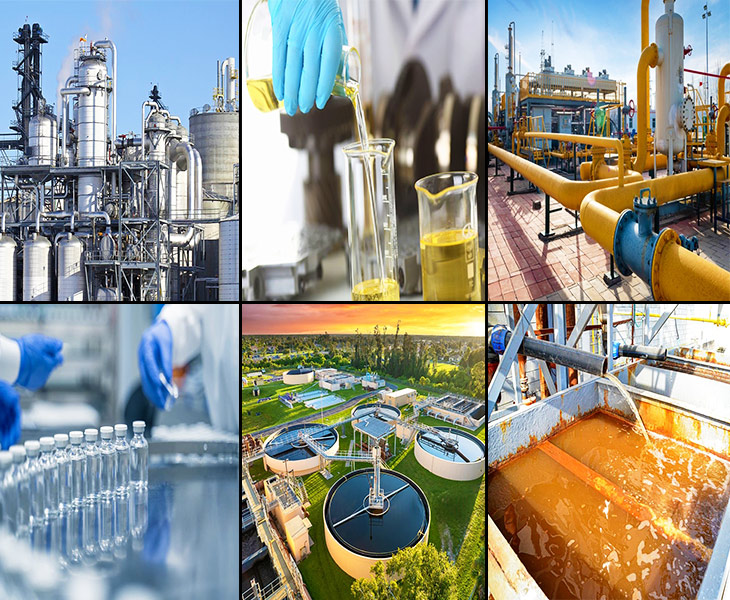

Custom Filter Housing Applications
FiltEdge’s Filter Housing can be designed according to your industry, such as chemical, pharmaceutical, food, petrochemical, water treatment, to match the material, pressure, flow path, temperature, size, etc., to prolong the life of the equipment, while maximizing the filtration efficiency and ensuring the quality of the product.

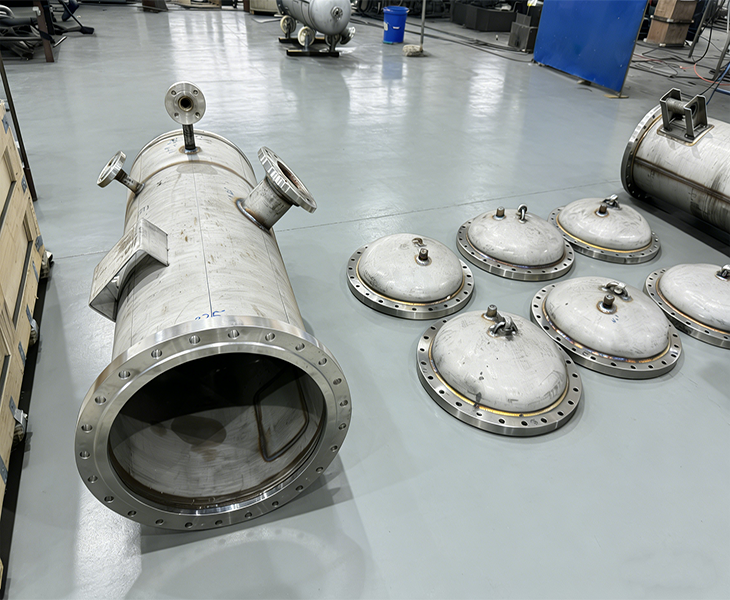

Custom Filter Housing
We can customize the material, sealing method, number of filter bags/cartridges, automation, special process, etc. according to your slurry chemical properties; we can also customize the shape, inlet/outlet direction, series/parallel connection, modularization, and skidding according to your plant and pipeline layout, which can save you the transformation cost.

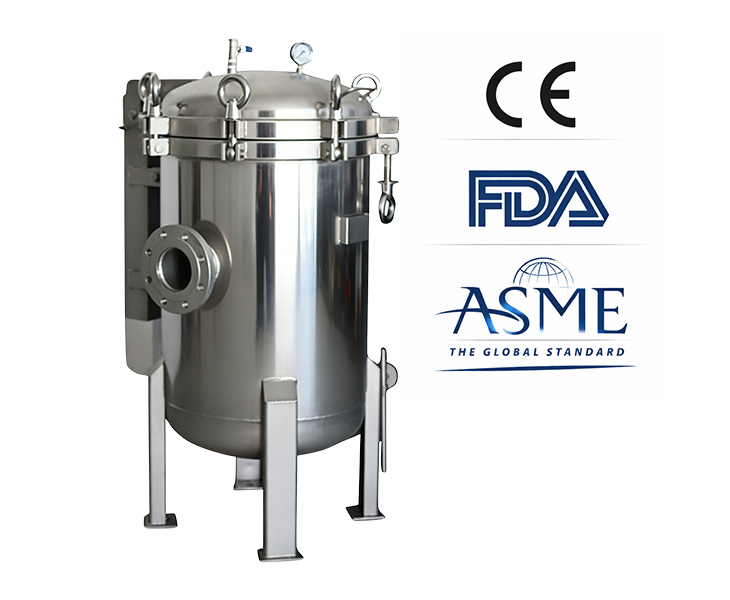

Certification of Custom Filter Housing
FiltEdge’s custom filter housing can be customized according to ISO/European Standard/American Standard/Japanese Standard. Our filters are commonly offered with ISO, CE, and FDA certifications. If your industry needs to meet industry compliance, we can provide a complete set of compliance documents such as material certificates, weld inspection certificates, etc. to get you through compliance requirements quickly.

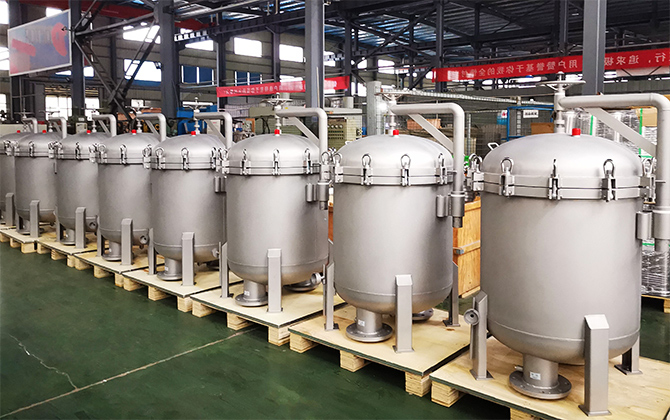

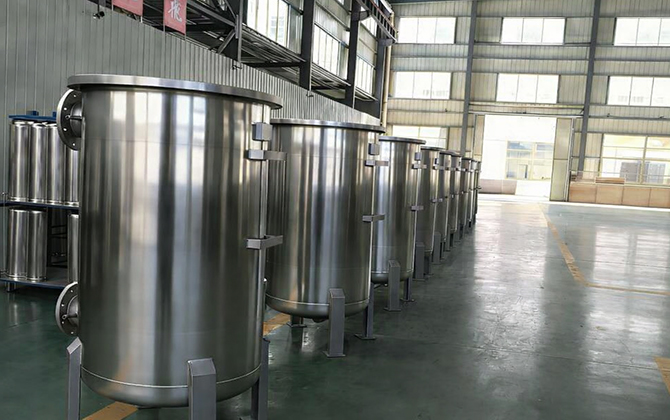

Why Choose FiltEdge's Custom Filter Housing?
If you choose FiltEdge filter housing manufacturer to customize your filter housing, you will be able to get stable supply and technical support.FiltEdge’s 3600 square meters plant, over 6000+ sets of annual production capacity, over 15 years of R & D team and 22 patented filters are your guarantee for purchasing filters with peace of mind. The guarantee conditions.
From the beginning of your consultation in FiltEdge, our technical team will start to provide you with 24-hour services, including sample analysis, product selection, customs clearance services, on-site installation and commissioning and maintenance services, as well as 24-hour remote technical support. We can provide you with peace of mind from the consultation to the later use.
Specification of Custom Filter Housing
Our custom filter housing has manual, semi-automatic and automatic products; bag, cartridge, basket and one-piece type. There are hundreds of products. You provide the working conditions and process requirements, we will provide you with detailed product process and parameters suitable for you.
- Specification of Custom Filter Housing
| Item | Specification / Description |
| Structural Type | Single-basket / Multi-bag / Rocker-arm multi-bag / Modular multi-bag/Backwash/Blade type/Candle/Fully automatic (customizable) |
| Number of Filter Bags / Cartridges | 1–32 bags / Up to 200+ cartridges (depending on model) |
| Flow Capacity | 50–5600 GPM (depending on bag quantity, liquid viscosity, and medium) |
| Applicable Liquids | Acidic, alkaline, solvents, chemical liquids, food & beverage, high-pollutant waste liquids, high-viscosity liquids, water treatment fluids |
| Material | SS304 / SS316 / Carbon Steel / PVDF / PP / High-end alloys (customizable) |
| Lid Opening Method | Quick-open, rocker-arm assisted, bolt-tightened cover, gravity-assisted; single-person operation possible |
| Sealing System | High-quality O-ring or custom elastomer seals (EPDM / PTFE / Viton/Silicone) |
| Design Pressure | 0.6–2.5 MPa (customizable high-pressure models 10–25 bar) |
| Operating Temperature | -20°C – 120°C (standard seals); up to 150°C depending on seal material |
| Filtration Rating | 0.1 – 2000 μm (commonly 1 / 5 / 10 / 25 / 50 / 100 μm; customizable) |
| Filter Bag / Cartridge Size | #01 / #02 International Standard or FSI Standard; other sizes available on request |
| Connection Type | Flanged (ANSI/DIN/JIS/ISO), Threaded (NPT), Sanitary Quick-Open, Custom orientation |
| Surface Treatment | Internal mirror polish Ra ≤ 0.8 μm; external sandblasting or mirror finish optional |
| Installation Method | Vertical, floor-mounted; multiple units can be connected in parallel or modular configuration |
| Design Standards | ASME Section VIII Div.1 / CE-PED / GB150 |
| Applications | Industrial liquid filtration, chemical processing, pharmaceuticals, food & beverage, high-flow/high-contamination liquid filtration |
Get Custom Filter Housing Solutions Now!
Provide us with your operating flow rate, maximum pressure, media and other information, and we’ll provide you with a custom filter solution within 24 hours.
FiltEdge
FiltEdge’s samples for non-standard custom filter housing are completed within 7 days. Large shipments are based on order quantity and process complexity, and are usually delivered within 30 days.
FiltEdge high end alloys, SS316, PVDF can be used for corrosive liquids, SS304, carbon steel, PP can be used for corrosive liquids after some processing, such as anticorrosive coating.
The precision of custom filter housing can be from 0.1μm to 2000μm, our candle filter can reach the ultra-high precision of 0.1μm by using cake filter; bag filter can have the precision of 2000μm for coarse filtration.
Our custom filter housing has bag type, core type, basket type and automatic filter. Bag, core and basket type have quick-opening structure, and one person can finish the operation of replacing filter elements. Full-automatic filter housing does not require manual operation, and automatically cleans the filter element for the next use.
