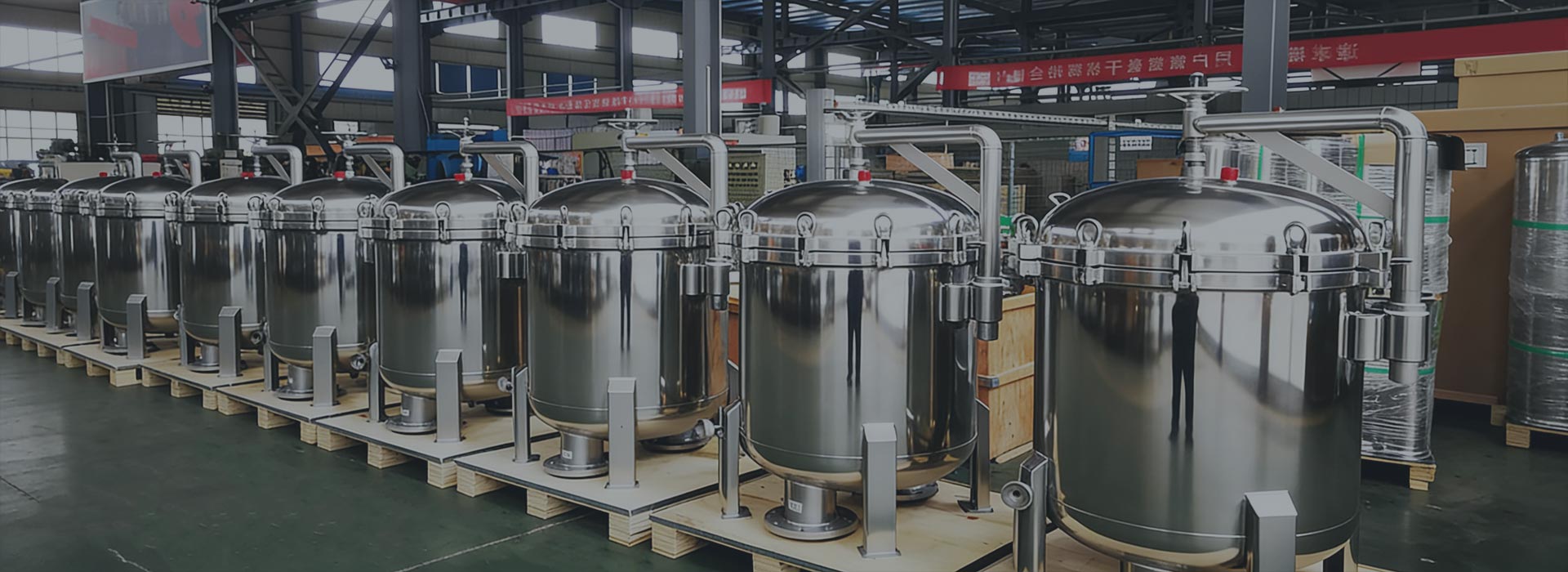

What Is A Hygienic Filter Housing?
FiltEdge’s hygienic filter housing, also called sanitary filter, is a filter housing with CIP/SIP function, which can meet the requirements of asepsis, hygiene and safety, and integrates filtration function and pressure-bearing capacity.FiltEdge’s hygienic filter housing is mainly made of 316 stainless steel, with the interior made of electrolytic polishing, which is mainly used in the food and beverage, pharmaceutical, and fine chemical industries for You improve product quality and prevent cross-contamination between batches.
Hygienic Filter Housing Models
FiltEdge offers over 100 hygienic filter housings, so choose the filter that fits your process needs and find the filtration solution that matches your production line.

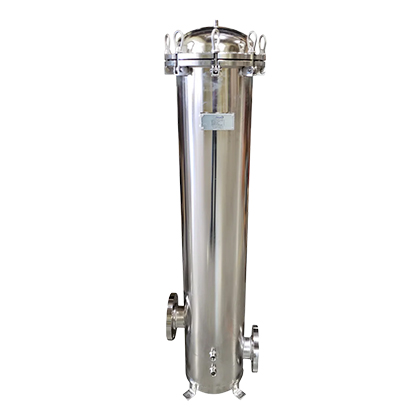

Single Cartridge Hygienic Filter HousingUsed routinely with 20-inch and 40-inch cartridges, suitable for low flow conditions or laboratory use.

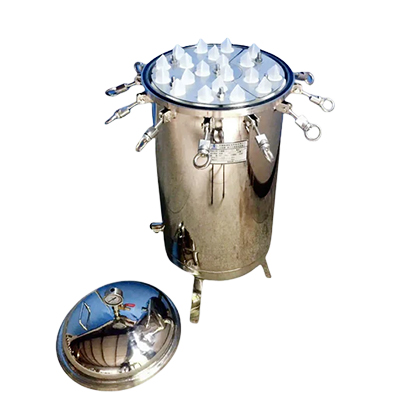

Multi Cartridge Hygienic Filter Housing2-24 pieces of multi-cartridge design, a variety of ways to open and close, suitable for high flow conditions.

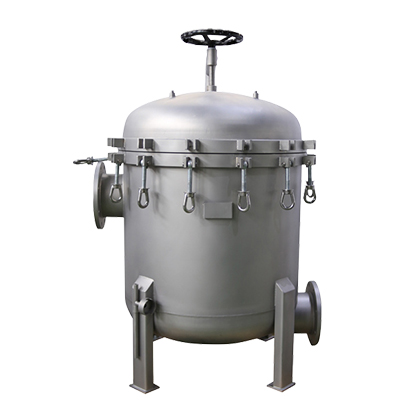

Bag Filter Hygienic HousingInner wall polishing Ra <0.8μm, suitable for food industry use of sanitary filters.

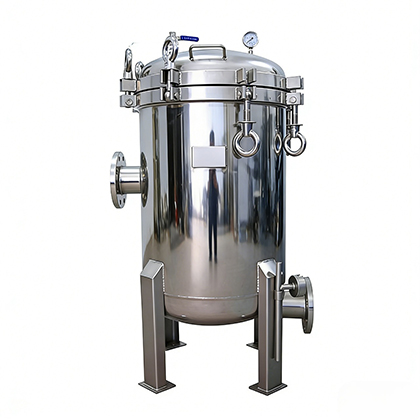

Sanitary Filter Housing StainlessSS316/SS304 material, with electrolytic polishing, making Ra <0.4μm, preventing bacteria breeding.

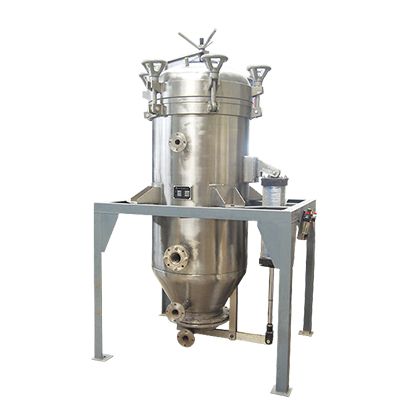

Hygienic Candle FilterFully automatic self-cleaning and automatic residue discharge sanitary filter housing, precision up to 0.1μm, suitable for automation needs.
Features of Hygienic Filter Housings
FiltEdge is fully designed and built to improve the technical advantages of hygienic filter housings for you, making your production line more efficient and maintenance easier.
Ra＜0.4μm and no dead space design make the inner wall as smooth and fluid as a mirror, easy to clean, so there is no place for bacteria to hide.
Stainless steel material can withstand strong acids and alkalis and other corrosive, to prevent corrosion and rust through, to protect your production safety.
The sanitary filter housing can be operated by one person, reducing your downtime and maintenance costs.
0.1-100μm, choose the suitable precision according to your working conditions to improve your filtration efficiency.

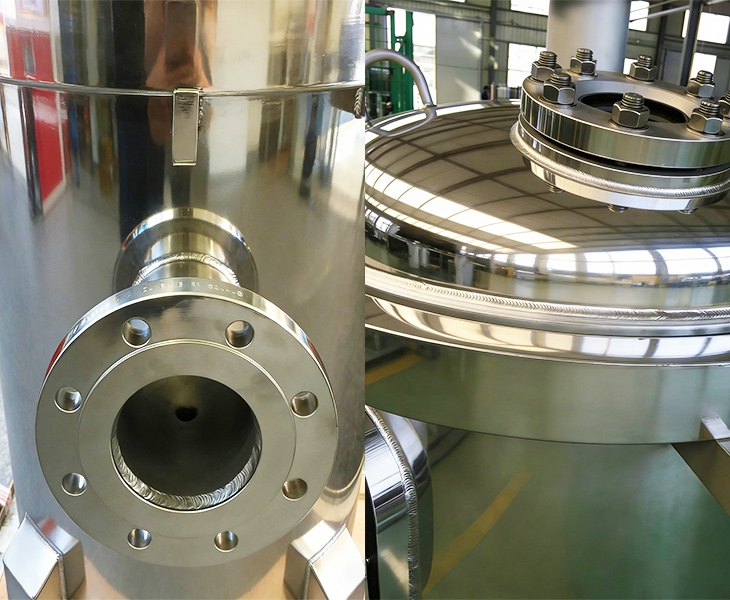

Design of Hygienic Filter Housing
The most important thing about hygienic filter housing is to meet the sterile safety standard, to ensure that the product is free of pollution and batch-to-batch cross-contamination.FiltEdge’s hygienic filter housing uses SS316 stainless steel and pickling passivation process, so that your filter won’t be corroded and rusted through; the internal do no dead-end design makes it super easy to wash and clean, and won’t hide dirt and dirt, so that your products won’t be cross-contaminated between batches; electrolytic polishing makes Ra <0.4μm or 0.8μm, making the surface of the filter smooth, so that bacterial dirt doesn’t breed easily, improving your product quality and compliance requirements.
Application of Hygienic Filter Housings
Applications in the food and beverage, pharmaceutical, fine chemical, and water treatment industries, such as juices, syrups, wines, buffers, high-purity water, emulsions, oils, flavors, recirculating water, and paints.FiltEdge’s bag hygienic filter housings are suitable for providing coarse filtration for your production process, taking on high flow rates, and protecting your downstream equipment; our cartridge sanitary filter housings are suitable for use in your high-precision, medium- to high-flow rate terminal link; and our fully automatic sanitary filter housings are also used for terminal filtration, suitable for you to use in high-pressure environments and working conditions with high efficiency requirements.

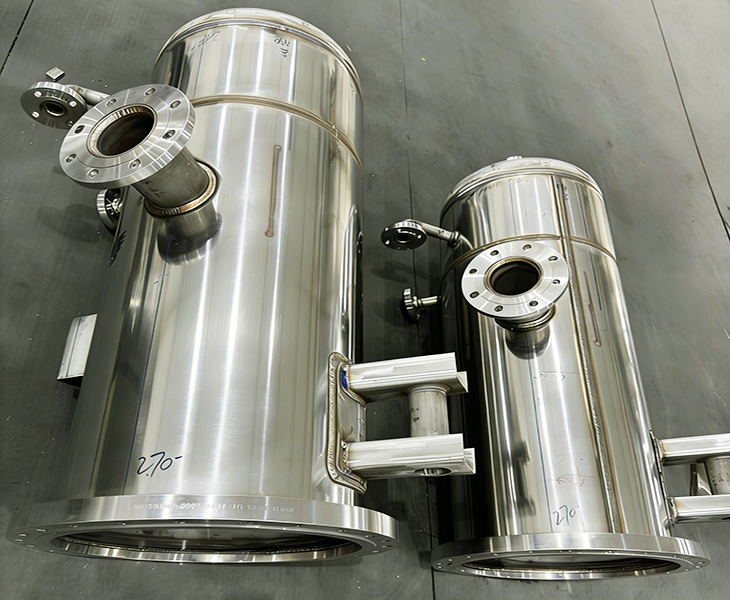

Customized Hygienic Filter Housing
If your working conditions are special, the conventional hygienic filter housing is not suitable for your production process requirements. We can customize it for you in all aspects from system function, automation, precision, pressure, temperature, piping connection and so on. Reduce your pre-investment costs for plant piping, improve filtration efficiency, and increase your output and quality quality.

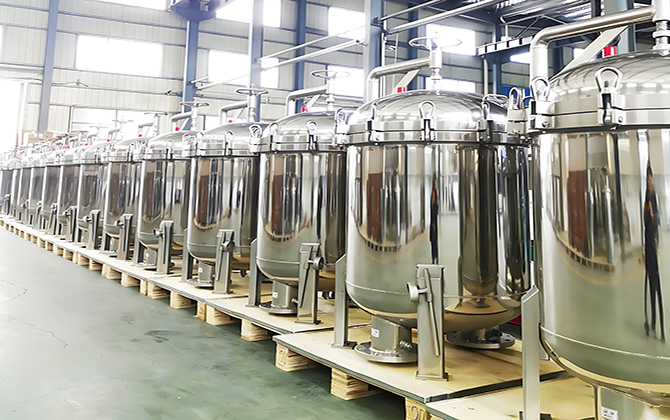

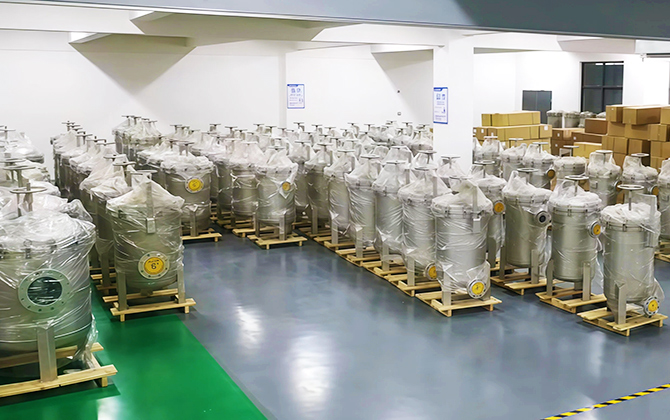

Why Choose FiltEdge's Hygienic Filter Housings?
FiltEdge has 20 years of industry experience and more than 100 countries of cooperative customers, can provide you with difficult suggestions and systematic hygienic filtration solutions in working conditions. We can provide you with 24-hour prompt response, customized service, as well as after-sales installation and commissioning, personnel operation training, remote technical support and other services. Our sanitary filter housings have 22 filter patents, so you can use the latest filtration technology to improve production capacity; as well as ISO/CE/FDA and other certifications, so that your filtration system meets industry standards and regulatory requirements.
Parameters of Hygienic Filter Housings
The following are some of the parameters of hygienic filter housings to give you a quick understanding of such products and help you make a purchase decision. If it is not very suitable for your working conditions, please contact us, we will do the working conditions analysis and product selection analysis for you within 24 hours.
- Parameters of Hygienic Filter Housings
| Type | Model / Capacity | Filter Bags / Cartridges | Dimensions (L × D / Dia.) | Filtration Rating | Material | Design Pressure | Operating Temperature | Flow Capacity | Connection | Features / Notes |
| Bag Filter | 3–23 Bags | 3 / 4 / 5 / 6 / 8 / 12 / 17 / 23 Bags | #1 (7″×16″) / #2 (7″×32″) | 1–1000 μm | Stainless Steel 316L (optional), High-quality O-ring | 0.6–1.6 MPa (Optional high-pressure 10–25 bar) | -20°C ~ 120°C (EPDM) / Up to 150°C (PTFE/Viton) | 175–4000+ GPM (depending on bag quantity & liquid viscosity) | Flange / Threaded / Clamp / Custom | Quick bag replacement ≤15 sec; Safety chain + balanced lid; Parallel installation possible; Saves pipeline space; Boosts production efficiency |
| Cartridge Filter | SCF Series (SCF-1 ~ SCF-12 / Custom up to 200 cartridges) | 1–12 Cartridges (customizable) | Length 10″–40″ / Vessel Diameter Φ102–Φ1500 mm | 0.1–100 μm | Stainless Steel 316L / EPDM, Viton, Silicone, PTFE Seals | 150 PSI (10 bar) Standard / Up to 360 PSI (25 bar) High Pressure | – | – | Flange / Tri-clamp | DOE Standard / 222/Fin / 226/Flat cartridge socket; High-precision filtration; Large-capacity customization |
| Candle Filter | DCF Series (DCF-1 ~ DCF-150) | 7–214 Candles | Vessel Diameter Φ377–Φ2500 × Height 1600–6400 mm | Filter Media Size Ф60–Ф86 mm | Stainless Steel 316L | – | – | – | – | Modular / Parallel installation; High-efficiency filtration; Reduced downtime; Filter area 1–250 m² |
Contact Us For A Quote On Hygienic Filter Housing
Contact us, you can get effective information such as hygienic filter housing catalog, 3D design drawing and so on.
Our engineers will respond to your needs in a timely manner within 24 hours and provide customized services for your special needs.
FiltEdge
Theoretically bag hygienic filter housings are able to filter liquids with viscosity, but they are not suitable for high viscosity slurries. If the viscosity of your slurry is too high, it will lead to low filtration efficiency, rapid increase in differential pressure, and a high risk of clogging and breakage of the filter bag. Typically, core filters, candle filters and fully automatic squeegee filters are more suitable for high viscosity conditions. Bag sanitary filter housings are not preferred as filtration equipment for high viscosity slurries.
The question of whether the CIP/SIP cleaning needs to be shut down mainly depends on what type of operation mode of the filter housing you have purchased. If you use a single manual mode of hygienic filter housing, it is necessary to stop the machine for cleaning, because filtration and cleaning can not be carried out at the same time; then if you buy the filter is used in parallel mode/duplex sanitary filter housing, you can stop the need to clean the one filtering equipment, so that another device then work, so as to achieve the purpose of filtration and cleaning cleaning at the same time cleaning; that a fully automatic sanitary filter housing, you can carry out CIP/SIP cleaning operation online, without stopping, the whole automated operation.
The temperature range that FiltEdge’s sanitary filter housings can withstand depends mainly on the material of the seals and filter elements. The housings are basically made of stainless steel and can withstand high temperatures. Seals that are made of PTFE/Viton will allow your filter to withstand temperatures up to 150°C. The regular pressure of our filters is 0.6-1.0MPa, and you can choose to customize the maximum pressure of 2.5MPa. For specific parameters, please contact our engineers for details.
