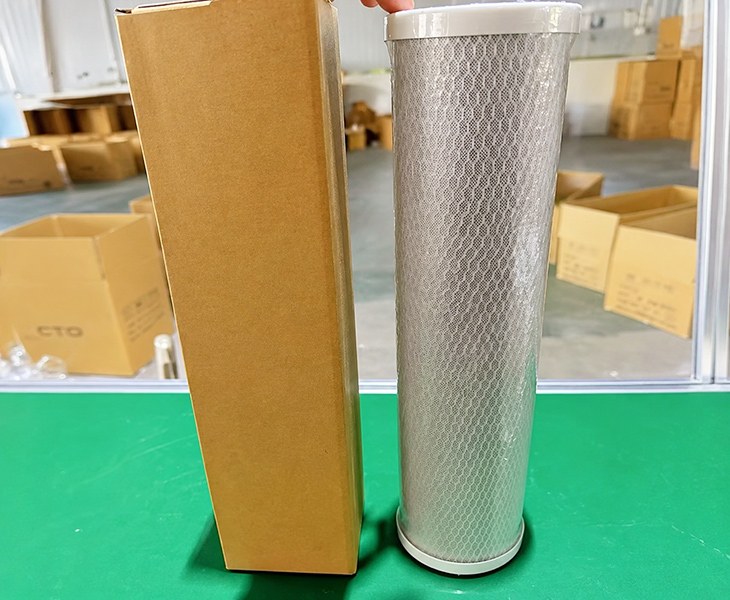

What Is A High Flow Carbon Block Filter?
FiltEdge’s high flow carbon block filter is a 4.5-inch OD filter cartridge designed to address high flow and pressure sensitive filtration systems. Relying on advanced sintering technology and progressive porous structure, High flow carbon block filters have a wider filtration surface area and extremely low water flow resistance compared to ordinary carbon filters. They can not only adsorb impurities in your liquid, but also cope with continuous, high load filtration scenarios, such as commercial water purification and Pre RO systems.
Classification Of High Flow Carbon Block Filters
FiltEdge not only has multiple High Flow Carbon Block Filters, but also can customize filters for you.
Compact, suitable for light commercial use, such as small and medium-sized catering terminals and villa front facing.

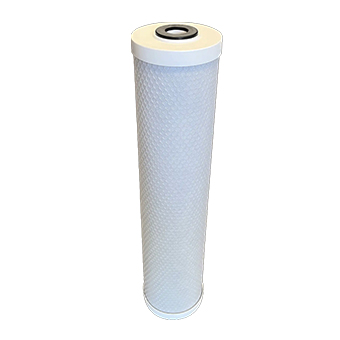

Doubling the filtration area, specifically designed for medium to large commercial water purification and Pre RO systems.
Deep purification provides higher physical interception and catalytic adsorption accuracy.
The water resistance is smaller and the pressure drop is extremely low, which can ensure excellent chlorine removal effect while maintaining flow rate.
Advantages Of High Flow Carbon Block Filter
FiltEdge relies on advanced sintering technology to provide you with high flow carbon block filters, ensuring the water quality of your filtration system and reducing your operating costs.
A 10 inch high flow carbon block filter can reach a flow rate of 3-5 GPM, and a 20 inch high flow carbon block filter can reach 7-10 GPM, ensuring your continuous water supply.
At rated flow rate, the initial pressure drop is ≤ 2-4 psi, reducing the operating burden of your high-pressure pump and extending the lifespan of your equipment.
Large capacity adsorption, residual chlorine removal rate>95%, eliminating oxidative damage to the post RO reverse osmosis membrane caused by residual chlorine.
It has strong microporous catalytic adsorption ability for volatile organic compounds and total organic carbon, purifying invisible chemical pollution in water for you.
The high flow carbon block filter adopts a “gradient pore size” sintering process with outer sparsity and inner density, which increases the pollutant holding capacity by more than 30% and reduces your core replacement frequency.
Strictly following the internationally recognized 10 “/20” Big Blue industry standard size specifications for design, compatible with mainstream standard fat filter bottles on the market, reducing your consumable costs.
The High flow carbon block filter uses High purity Coconut Shell Charcoal and food grade polymer hot melt adhesive.
Carbon rod integrated molding, no dust falling, rejecting secondary pollution.
Application Of High Flow Carbon Block Filter
The High Flow Carbon Block Filter is widely used and can provide multiple solutions for water treatment in your industry.
The High Flow Carbon Block Filter can be used as a pretreatment to intercept impurities in the water flow, protect the RO membrane, and extend the lifespan of the RO system.
Widely used in business offices, hotels, hospitals, and central water boiler systems.
Efficiently removes odors, residual chlorine, and VOCs from water, suitable for use in milk tea shops, cafes, restaurants, and food processing lines.
Can be applied to villa underfloor heating, water heaters, etc., as the POE front core of villas.
Single or multi-stage filtration systems for various household and terminal usage points provide pure purification guarantee for the inlet pipeline.
Suitable for community direct drinking water stations, small water plants, or municipal water quality secondary upgrading and renovation.

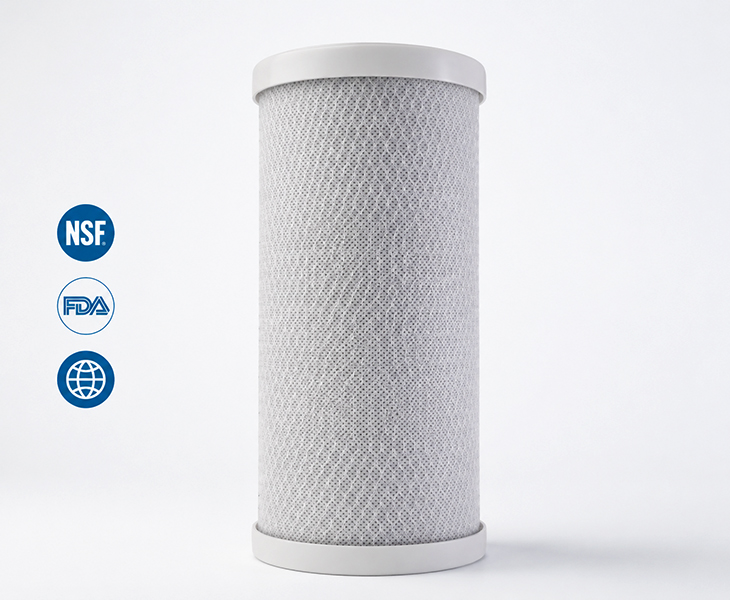

Certification Of High Flow Carbon Block Filter
FiltEdge’s high flow carbon block filter is NSF/FDA/ISO certified and can be tested by third-party testing agencies. We provide you with high-quality and guaranteed high flow carbon block filters.

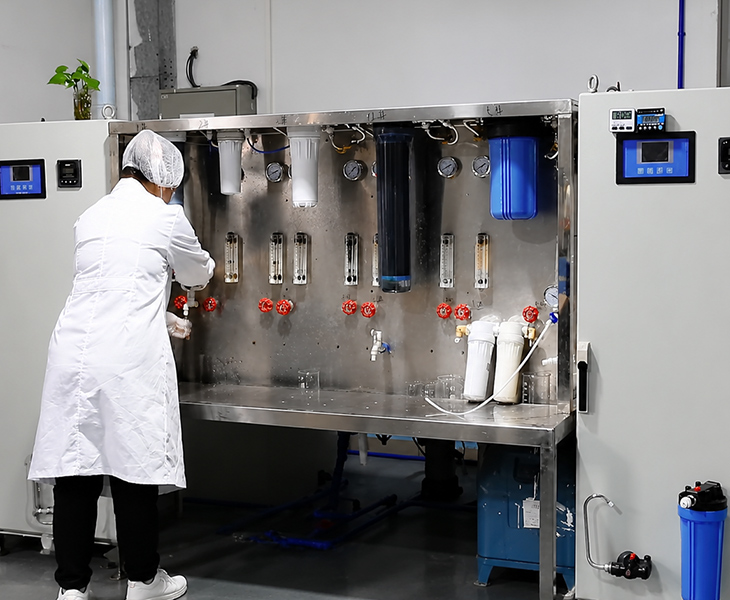

Testing High Flow Carbon Block Filter
Each high flow carbon block filter of FiltEdge undergoes rigorous testing, including structural integrity testing and fluid dynamics testing, to ensure the uniformity of internal sintered microchannels, eliminate bypass, and ensure stable operation.

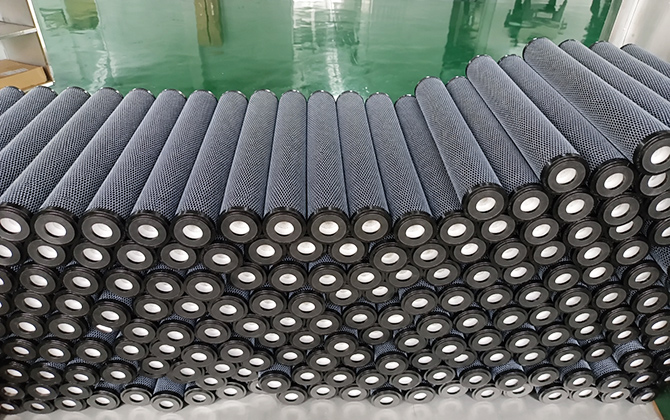

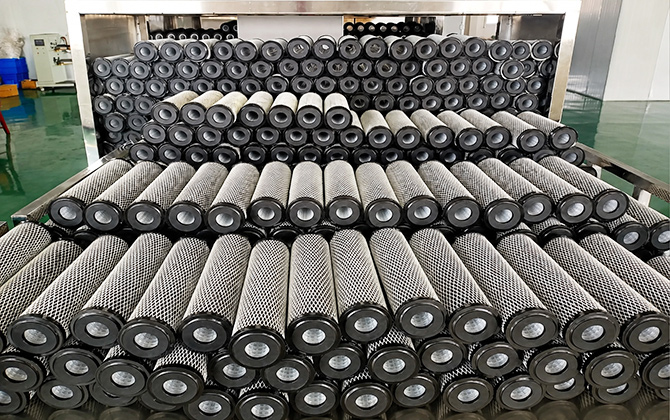

Why Choose FiltEdge's High Flow Carbon Block Filter?
FiltEdge not only provides you with a High Flow Carbon Block Filter, but also plans a complete water treatment system to help you solve filtration problems. We rely on American companies, warehouses, and filter factories in China to provide you with timely communication services, as well as 24-hour shipping services, and to send you customized designs within 7 days.
In the early stages of the project, we can conduct water quality analysis, filtration system analysis and selection, 3D drawings, etc. Later on, we can provide on-site installation, maintenance, and remote technical support to help you quickly solve the problems encountered by High Flow Carbon Block Filter and provide quality assurance.
Technical Parameters Of High Flow Carbon Block Filter
The following are the parameters of FiltEdge’s regular high flow carbon block filter for your reference. You can also contact us directly for more detailed information.
- Specification of High Flow Carbon Block Filter
- Carbon Filter Media Comparison
| Parameter Item | 10″ Big Blue Series | 20″ Big Blue Series |
| Outer Diameter | 4.5 inches (114 mm) | 4.5 inches (114 mm) |
| Length | 10 inches (254 mm) | 20 inches (508 mm) |
| Standard Micron Rating | 5 μm / 10 μm | 5 μm / 10 μm |
| Custom Micron Available | 0.5 μm / 1 μm / 20 μm (custom options available) | 0.5 μm / 1 μm / 20 μm (custom options available) |
| Rated Flow Rate | 3 – 5 GPM (11.4 – 18.9 L/min) (varies slightly with micron rating) | 7 – 10 GPM (26.5 – 37.8 L/min) (varies slightly with micron rating) |
| Initial Pressure Drop | ≤ 2.5 psi @ 3 GPM (0.17 bar) | ≤ 3.5 psi @ 7 GPM (0.24 bar) |
| Max Operating Pressure | 120 psi (8.2 bar) | 120 psi (8.2 bar) |
| Max Operating Temperature | 125°F (52°C) | 125°F (52°C) |
| Media Material | High-performance sintered activated carbon | High-performance sintered activated carbon |
| End Cap / Seal Type | DOE (Double Open End) / EPDM gasket (silicon/FKM available upon request) | DOE (Double Open End) / EPDM gasket (silicon/FKM available upon request) |
| Compatible Housing Size | 10″ Standard Big Blue Housing | 20″ Standard Big Blue Housing |
| Dimension | High Flow Carbon Block | Standard Carbon Block (CTO) | Pleated Carbon Filter (Composite Carbon) | Granular Activated Carbon (GAC / UDF) |
| Physical Form | Large-diameter solid carbon block + outer protective net / pre-filtration fabric (Figure 1) | Small-diameter solid carbon block | Activated carbon fiber / composite fabric pleated structure + plastic cage (Figure 2) | Plastic housing filled with loose granular activated carbon |
| Rated Flow Rate | Extremely High (High to Excellent) 3 – 10 GPM (benefits from large diameter) | Low to Medium 1 – 2 GPM | Excellent / Maximum 10 – 20+ GPM (benefits from large pleated surface area) | Medium 1.5 – 2.5 GPM (limited by flow rate vs. contact time) |
| Pressure Drop (Flow Resistance) | Low Initial ≤ 2.5 – 3.5 psi | High Sensitive to system pressure | Extremely Low Almost no flow resistance | Medium Low initial resistance, but unstable due to channeling effects |
| Chlorine & Odor Reduction Efficiency | Excellent ≥ 95%, high carbon content, deep adsorption | Very Good Adequate adsorption at low flow rates, but low total treatment capacity | Very Good Very fast adsorption rate, but less carbon material compared to carbon blocks | Fair Prone to “water channeling,” resulting in incomplete chlorine removal |
| Dirt Holding Capacity (Sediment Filtration) | High Gradient pore structure (outer coarse to inner fine) provides physical interception | Low Surface easily clogged by sediment, leading to rapid blockage | Excellent Large pleated surface area, extremely high total dirt-holding capacity | Very Poor No physical interception capability; easily contaminates carbon surface |
| Service Life | Long Gradient dirt-holding + high carbon content = low replacement frequency | Short to Medium Prone to surface clogging or early saturation due to limited carbon volume | Long Very resistant to sediment clogging, but carbon saturation occurs slightly faster | Medium Often used as a consumable; requires regular flushing or frequent replacement |
| Typical Use Cases | Commercial high-flow pre-RO pretreatment, whole-house central filtration, high-load food service water systems | Under-sink residential RO systems (3rd stage), low-flow point-of-use filtration | Industrial ultra-pure water pre-RO (where pressure sensitivity is critical), high-flow industrial water reuse applications | Residential RO systems (2nd stage pretreatment, low-cost option), basic coarse filtration and taste/odor reduction |
Mainly relying on the adsorption properties and sintering process of activated carbon in the High Flow Carbon Block Filter. The increased surface area and porous structure of activated carbon after sintering are beneficial for adsorbing odors; The catalytic active sites on the surface of carbon will undergo chemical reduction reactions with free residual chlorine in water, converting chloride ions into harmless ions.
The replacement cycle is usually 6-12 months, and it actually depends on the usage of the filter element. If the water flow rate of the system significantly decreases or chlorine penetration is detected, the high flow carbon block filter should be replaced.
High flow carbon block filter is suitable for standard 10 “/20” Big Blue Housing.
