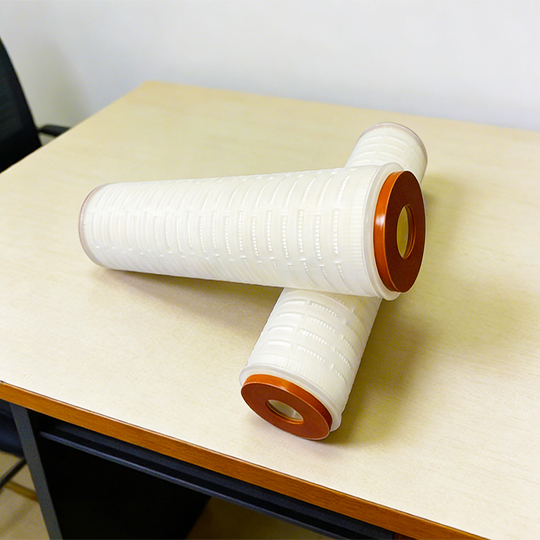

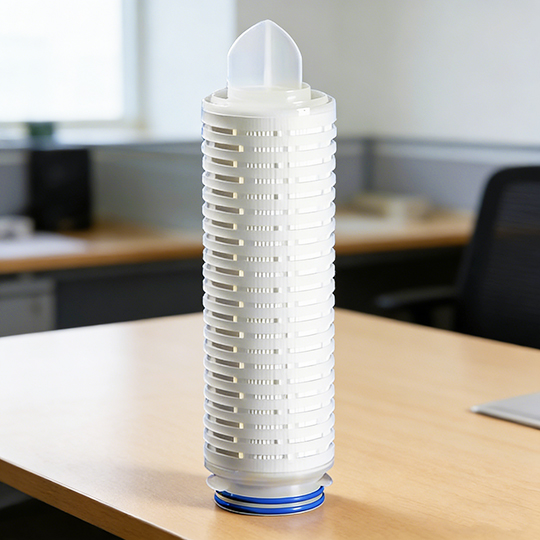

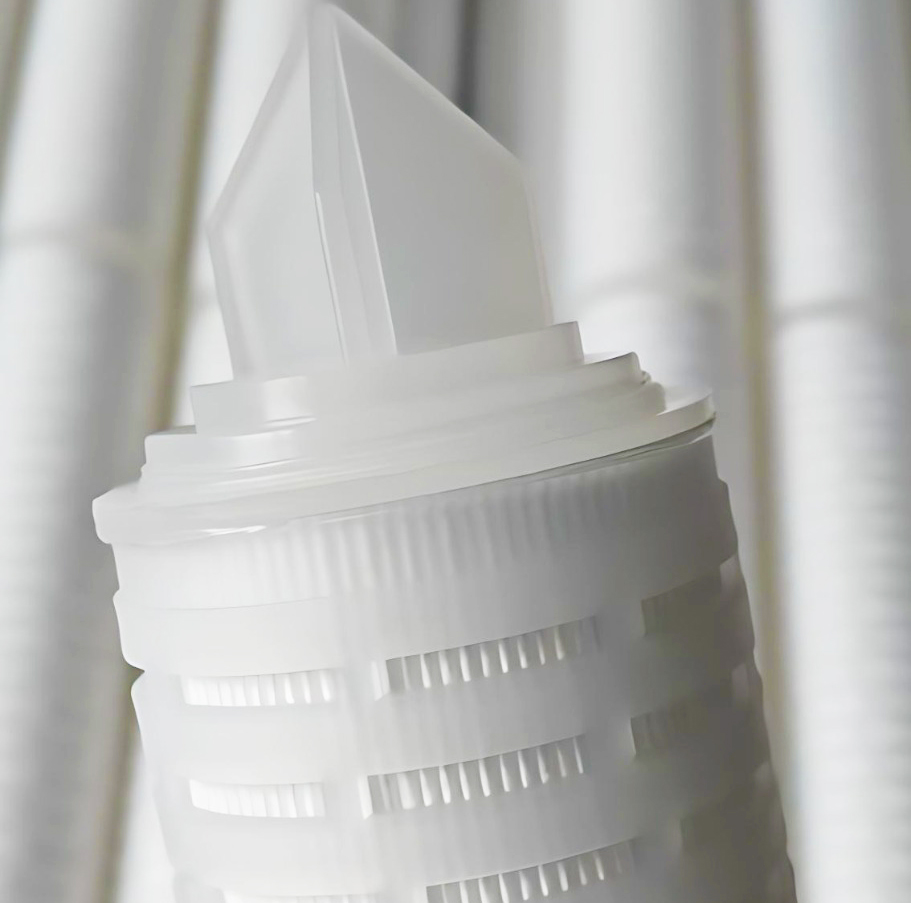

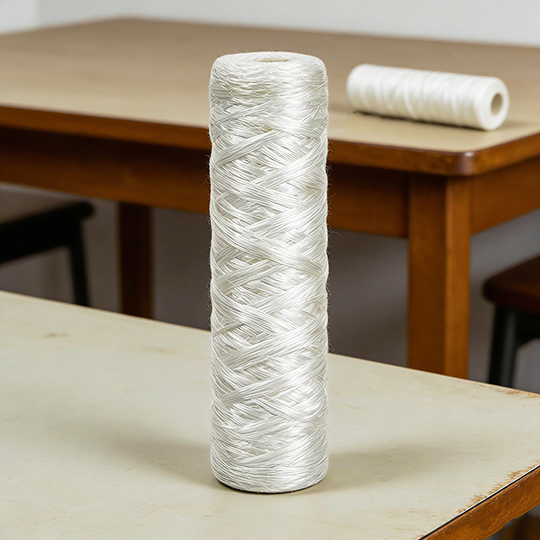

What is a Glass Fiber Filter Cartridge and Why Is It Your Best Choice?
The Glass Fiber Filter Cartridge is made of ultra-fine borosilicate glass fibers through a non-woven process. If ordinary polypropylene is compared to a fishing net, the Glass Fiber Filter Cartridge is like a dense shrub. It is the only solution when faced with complex working conditions containing colloids, denatured proteins or high viscosity liquids. The extremely fine borosilicate glass fibers have a void ratio of typically 80-90%, which allows liquids to pass through with low resistance and fast flow rates. Glass has greater adsorption capacity and mechanical strength than ordinary filter cartridges. Choosing FiltEdge’s GF cartridges gives you the stability to maintain high accuracy at high temperatures and high differential pressure. Its superior deep retention capability saves you 50% of the pre-filtration process, and what would otherwise require two processes can now be accomplished with a single FiltEdge Glass Fiber cartridge.
Why Choose FiltEdge Glass Fiber Filter Cartridges?
- German manufacturing process, based on Industry 4.0 automated production process, fully automated production line to eliminate gutter flow, each cartridge quality is stable and consistent.
- Zero pollution standards, the use of molecular-level heat fusion process, no fiber shedding lint trouble, iso 7, ultra-pure quality.
- 20 years of experience, comfortable to deal with complex working conditions, whether it’s the extreme temperatures or the PPT level of ultra-pure chemical products.
FiltEdge Glass Fiber Filter Cartridges Series
FiltEdge glass fiber cartridges are the professional solution for low pressure drop, high efficiency filtration of high-viscosity fluids and ultrapure water processes.

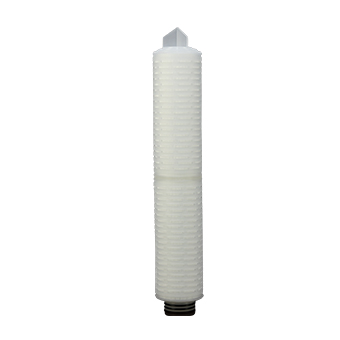

This specification is for laboratories, pilot plants and small flow rates for fine chemicals. Its compact structure removes colloids and denatured proteins, ideal for polishing and filtration of high-value pharmaceutical solutions or small batches of specialty chemicals.
The 20″ series is standard in the food and beverage and microelectronics cleaning industries. It strikes the perfect balance between flow rate and dust holding capacity, effectively retaining fine suspended matter and ensuring excellent clarity for bottled water and electronic grade reagents.

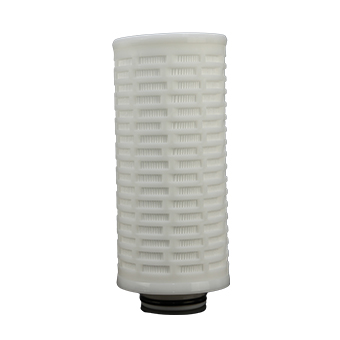

For high throughput prefiltration needs in the petrochemical and fermentation industries. Its 3D gradient matrix provides extra long flow paths to handle impurities in high viscosity fluids, ensuring high removal rates while significantly reducing changeover frequency and optimizing operating costs.

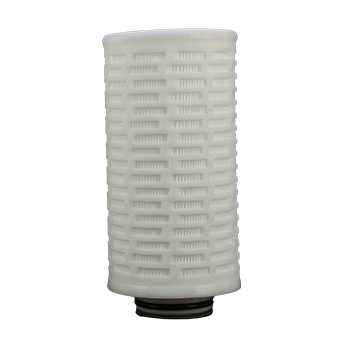

Designed for large-scale desalination and reverse osmosis (RO) pre-protection. A single cartridge with 850g ultra-high dust capacity continuously intercepts colloids and particles under high-flow conditions, the core barrier for cost reduction and efficiency in ultra-large-scale water treatment plants.
Key Features of FiltEdge Glass Fiber Filter Cartridges
FiltEdge Glass Fiber Filter Cartridges are designed with a gradient matrix structure, 120°C temperature resistance, and high dirt-holding capacity.
Graduated density layering technology, from 10 micron to 0.5 micron layer by layer reduction, the efficient filtration area is 200% more than the ordinary filter element.
Extremely wide chemical resistance spectrum and corrosion resistance to most organic solvents, strong acids and oxidizers. Physical properties are stabilized in extreme environments from pH 1-12.
It can adsorb gel and grease viscous liquid, glass fiber oleophilic and hydrophobic, high load pollution still remain stable, maintain low pressure drop.
Comply with FDA approval, very low extractables, protect your downstream products from contamination.

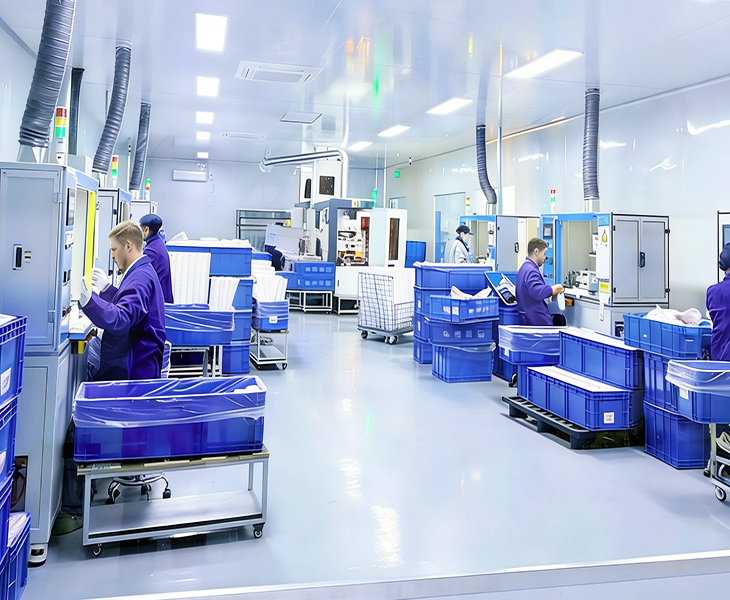

FiltEdge Glass Fiber Filter Cartridges Are the Perfect Blend of German Craftsmanship and Automated Production Lines
FiltEdge’s production site is equipped with an automated multi-axis production line based on the German Industry 4.0 architecture, which digitally controls the entire production process of Glass Fiber Filter Cartridges, from the lay-up of the material to the ultrasonic welding of the cartridge. In the core coiling process, we have introduced a “Laser Doppler Shift Monitoring System” to monitor the uniformity of the filter material and the tension deformation of the filter material in real time, controlling the error within ±0.05mm. The extreme precision ensures the pore size distribution of each cartridge and eliminates the common gutter effect. In addition, the online integrity of the automatic calibration test, the consistency of the pore size retention efficiency of each cartridge has passed the β ≥ 5000 (99.98% interception rate) test, reducing the initial pressure drop, and through the automation of the production line of the advantages of the high Yield Gain, for you to strip more than 15% of the invisible cost. For customers seeking the ultimate in stability, the FiltEdge German process ensures that Bubble Point pressure fluctuations are kept within a very narrow range of ≤2% from the first cartridge to the 10,000th cartridge. For the customer, this precision process provides a 15% improvement in filtration consistency and eliminates batch-to-batch filtration variations. What’s more, by utilizing the raw materials in our automated production, we save you 10%-15% in purchasing costs and achieve both high quality and cost-effectiveness.

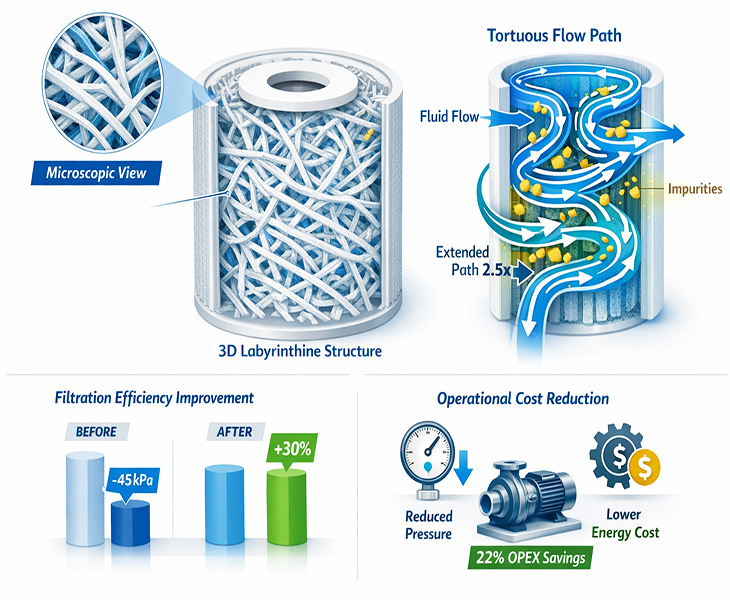

How Filtedge Is Reinventing Efficiency Through Microfiber Technology
At FiltEdge, we understand that the performance of Glass Fiber Filter Cartridges depends on aspect ratio and spatial geometry. We use an “ultrasonic fiber spreading process” to ensure that the glass fibers are distributed inside the cartridge in a completely irregular 3D labyrinth, which breaks down the traditional orientation of the fiber bundles rather than a simple mechanical stack. In this way, when the fluid passes through the cartridge, the internal porosity is precisely locked at more than 92%, and the contact path is extended by 2.5 times, thus increasing the probability of impurities being captured. When the fluid passes through the matrix, its tortuosity is extended by a factor of 2.5, greatly increasing the probability of collision interception under Brownian motion while maintaining high throughput. In the polar solvent recovery project of a large petrochemical company, the measured data showed that the FiltEdge cartridge, with its extremely low Tortuosity Factor, reduced the system operating pressure drop by 45 kPa and increased the overall filtration efficiency by 30%. More economically, based on the significant reduction in fluid resistance, the circulating pump’s shaft power loss was significantly reduced, saving the customer 22% in OPEX over the long run.

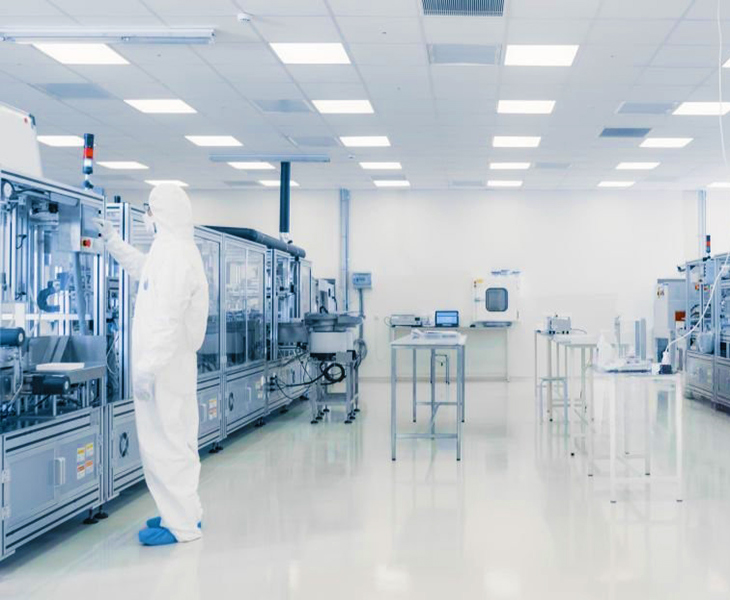

Filtedge Glass Fiber Filter Cartridge's Demanding Clean Room Environment and Zero-Contamination Material Purity Standards
The entire production chain of FiltEdge Glass Fiber Filter Cartridges is controlled in an ISO 7 (Class 10,000) clean room environment, and for the extreme demands of the microelectronics and pharmaceutical industries, we have developed our exclusive Thermal Fusion Binderless Process, which eliminates the need for precipitant-producing glues.
After 24 hours of immersion in 18MΩ ultrapure water, our cartridges have a near-zero TOC increase. This extreme pursuit of material purity effectively eliminates catalyst poisoning or particle contamination due to organic precipitation, reducing your product quality risk by 18%. During use, the extremely low pre-rinse water requirement saves you 40% of the preparation time for ultrapure water, allowing your production line to be switched over and started up more quickly, increasing overall productivity by more than 10%. This ultimate control of material purity reduces the risk of end-process defects (PPM) by 18%. The extremely low Total Organic Extract (TOE) level reduces system pre-flush water requirements by 40% due to minimal hydrophobicity shift as a result of the high surface energy activation of the filter media surface. This means you can save nearly half of your ultrapure water consumption during line changeover cycles and increase overall availability by more than 10 percent, achieving the perfect balance of stringent quality and superior efficiency.

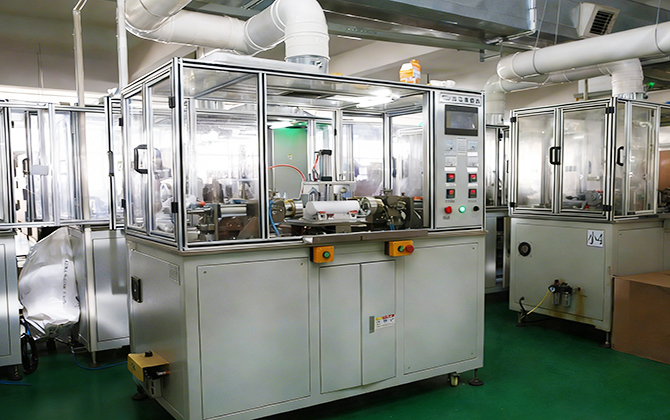

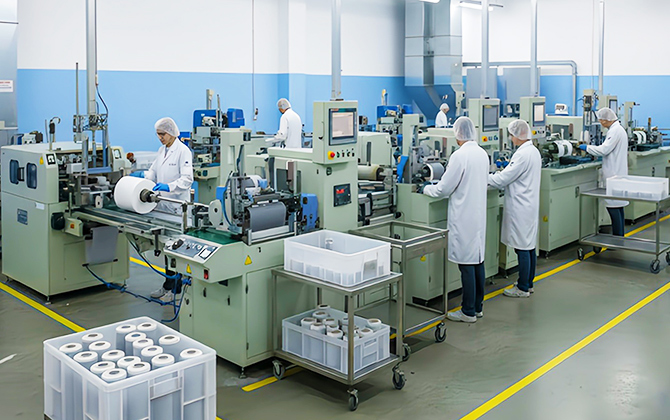

Why Choose FiltEdge as Your Glass Fiber Filter Cartridge Supplier?
At FiltEdge, we specialize in providing efficient glass fiber filter cartridge solutions to our customers worldwide.
With over 20 years of experience in the industry, we have served thousands of customers with customized, high quality products. Our modern factory covers an area of more than 4,000 square meters, equipped with 6 automated production lines, and a team of 120 highly skilled technicians ensures that each cartridge meets stringent quality standards. All products have passed ISO 9001 quality management system certification and comply with international certifications such as FDA, ROHS and REACH. With strong production capacity and fast delivery service, FiltEdge provides consistent product quality and reliable supply security to customers worldwide, ensuring that each customer’s needs are met in a timely and efficient manner. By choosing FiltEdge, you will experience superior glass fiber cartridge products and first-class customized service.
Applications of FiltEdge Glass Fiber Filter Cartridges
FiltEdge Glass Fiber Filter Cartridges can be used for biochemical and gasoline production, industrial water pre-treatment, pre-filtration of fermentation gases.
Utilizing the hydrophilicity and hydrophobicity of glass fiber, the cartridges can efficiently intercept suspended and gelatinous impurities in crude oil. Structural stability at 0.5 MPa differential pressure ensures constant downstream fractionator $\beta$ ratio and prevents fouling.

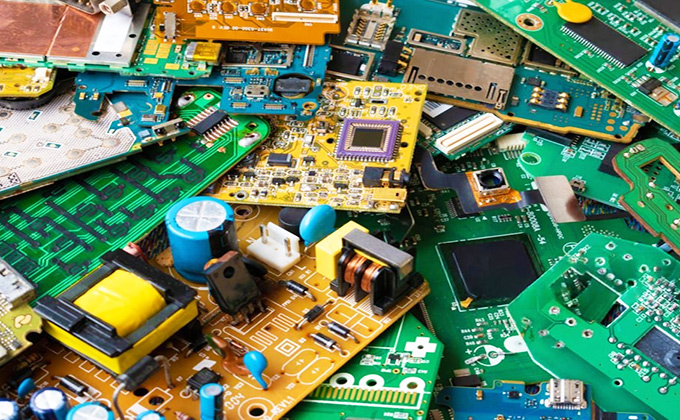

Removes micron-sized particles through a deep gradient matrix for reagents such as photoresists. The low TOC analysis control ensures that the chemical resistivity is stabilized to meet the stringent particle size requirements of PPT grade cleanliness and semiconductor processes.

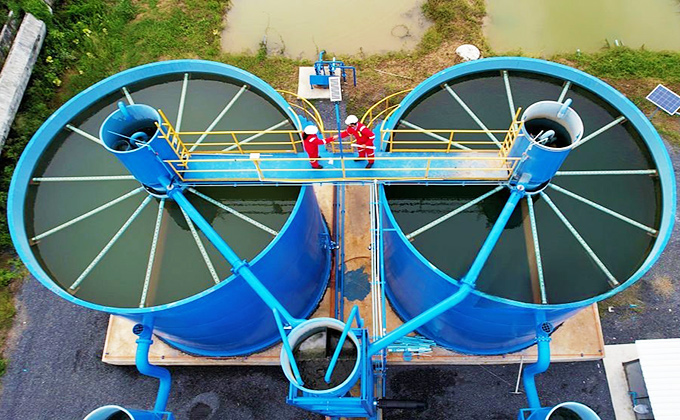

Excellent performance in high-flow recirculating water, three-dimensional interception technology allows a single cartridge to hold more than 500g of dirt. Reduced filter redundancy and equipment footprint, providing a more economical Cost per Gallon solution.

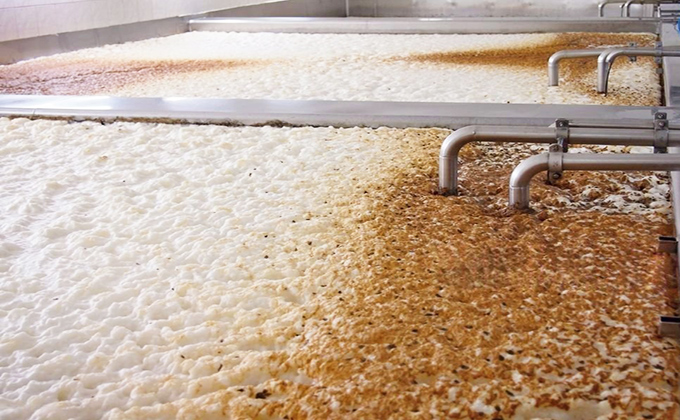

Removes aerosolized oil droplets and particles from the gas stream prior to sterilization and filtration. This prevents hydrophobic imbalance in the back-end cartridge due to moisture and ensures continued high cleanliness of the fermentation system after steam sterilization at 121°C.
Technical specification
- Technical specification
| Outer diameter | 69mm |
| Length | 10”，20”，30”，40” |
| Material | Glass Fiber (GF) |
| End caps | Polypropene |
| Max Operating Temp | 80℃ |
Glass fiber (GF) is a high-performance deep filtration material. Its core advantage lies in its extremely high porosity and finer fibers, which can capture more impurities in the same volume and effectively capture colloidal and viscous substances. Although the single cost is higher, it has a longer service life, lower replacement frequency, and its high temperature resistance is much higher than PP, which is suitable for filtration of high-temperature process fluids.
Our triple protection mechanism completely solves this shedding hidden danger, firstly, we use high quality special resin reinforcement or composite non-woven fabric coating technology. The high quality glass fiber cartridge is firmly locked in the structure, which can effectively prevent the migration of fibers, the surface of fibers is treated with special chemical bonding, and we will undergo high pressure differential cycling test before leaving the factory, so long as you use it within the recommended maximum pressure differential and flow rate, it can fully meet the cleanliness requirements of electronic grade and food grade.
Generally the most scientific measure is the differential pressure, when the differential pressure reaches when the differential pressure reaches 0.20MPa-0.25MPa cartridge will generally tend to be saturated, it should be replaced in time to prevent the flow rate drop or the cartridge structure is damaged.
Glass fiber itself has excellent compatibility with acids and organic solvents. However, the overall compatibility of the cartridge also depends on the material of the center tube, end caps and seals (e.g. PP, stainless steel, Viton, etc.). If used in strong alkaline environments, please consult our technical support as strong alkalis may corrode the glass fibers and other materials may need to be considered.
Fiberglass cartridges are typically designed for Absolute Rating, with interception efficiencies of 99% or greater (value). This makes them ideal for use as pre-filtration prior to critical processes such as membrane filtration, which significantly reduces the wear and tear pressures of expensive cartridges at the back end.
As glass fiber is a deep filtration material, impurities are embedded within the fiber and are usually difficult to remove completely by simple backwashing. In order to ensure the consistency of filtration accuracy and avoid cross-contamination, we recommend one-time use. Forced cleaning may destroy the microporous structure between the fibers, resulting in a decrease in filtration efficiency.
