Advantages of FiltEdge Fiberglass Air Filters
- Standard and non-standard size customization
Only Fiberglass Air Filter is available in 47 regular sizes. We can also customize the size for you according to your specific working conditions, so as to avoid installation mismatches - OEM and bulk supply capability
Filitedeg as an established Fiberglass HVAC Filter supplier, we support customers brand label, custom outer box, single pack, long service HVAC dealers, Filter agents and equipment manufacturers. - Stable product quality
Filtedeg is a stable supplier from glass fiber filter material, with frames and supporting nets, and every batch of raw materials, we will test to ensure stable material performance and consistent quality of batch products. - Extensive experience in global project services
With more than 30 industry exhibitions, serving customers covering more than 100 countries, and accumulated 10,000+ cases, we can provide you with more efficient cooperation for different market specifications, packaging and logistics requirements.
What Is a Fiberglass Air Filter?
Fiberglass Air Filter Types We Offer

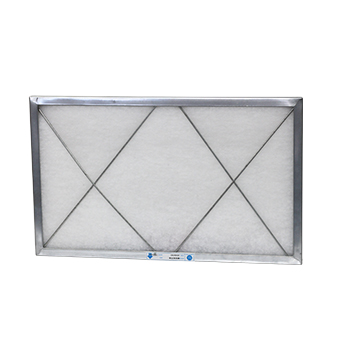

It adopts flat glass fiber filter material, which has simple structure, easy installation and low wind resistance. It is mainly used for primary filtration of HVAC system.

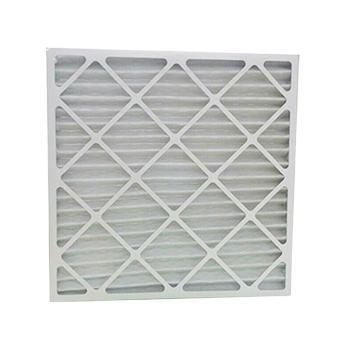

This air filter type folds the glass fiber filter material, with the same space as Flat Panel Fiberglass Air Filter
Can effectively increase that filtration area by 30%-50%

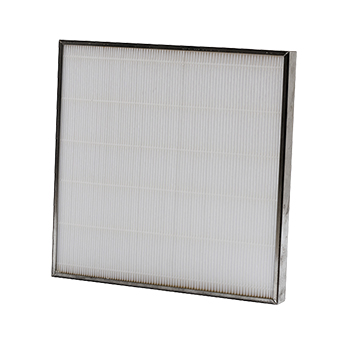

Featuring ultra-fine fiberglass filter paper and a densely pleated structure, this generic is suitable for systems with high filter efficiency and large processing area.

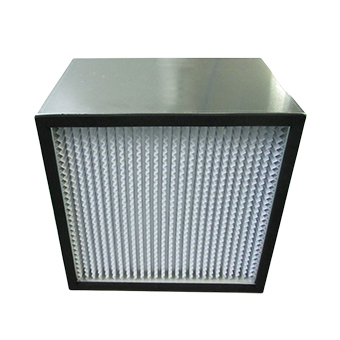

This model is made of fine glass fiber filter paper and sealing structure, which is used in places with high requirements for fine particle control.
Key Benefits of Filtedeg Fiberglass Air Filters
Fiberglass Air Filters have many advantages. We can customize a variety of structural sizes according to your needs in different scenarios
The fluffy glass fiber structure can effectively reduce wind resistance, which is more suitable for HVAC equipment with air volume requirements. The lower resistance helps reduce the load on the fan and keeps the system running steadily.
The density reduction structure of Fiberglass HVAC Filter from sparse to dense is that particles of different sizes are distributed at different depths of the Filter material, which is not easy to cause blockage and can fully use the dust capacity.
Fiberglass Air Filters have a variety of choices such as mesh surface, metal support, paper frame support, dispensing support, etc. on the border and supportable mesh selection, which can provide effective support for fluffy glass fiber filter material and prevent Air filter displacement or deformation.
Filter material and frame directly We adopt continuous bonding and sealing design, which can prevent the possibility of edge air bypassing the filter material and help the air filter better fit the mounting slot.

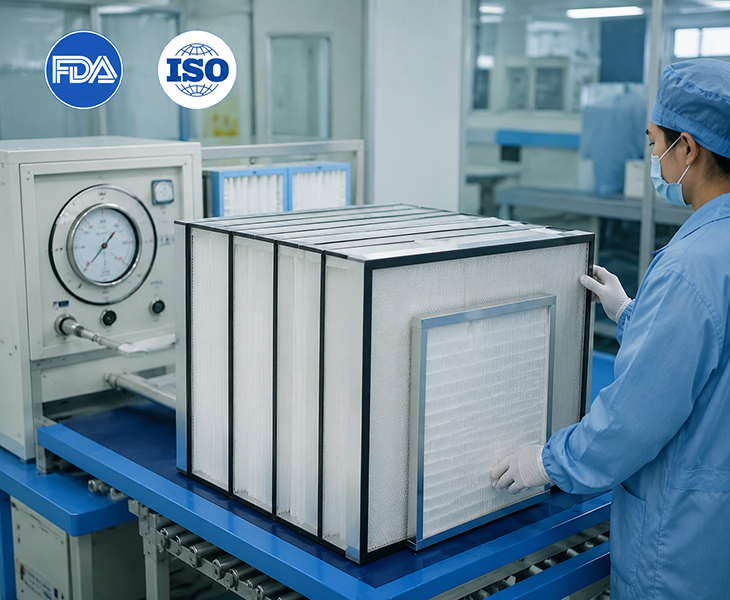

Fiberglass Air Filters Authentication and Testing
Our Fiberglass Air Filters have strict testing and qualifying certifications from sourcing raw materials to finished products:
- Products have FDA, CE, ISO certification
- Length, Width & Thickness Tolerance Verification
- Sample delivery testing of each batch of filter material
- The firmness of the supporting net
- Air filter cosmetic integrity
- Anti-bypass leak detection
- Are airflow directions and labels accurate
- Initial resistance and filtration efficiency sampling
- Product sample retention to ensure consistent quality of batch products
- Check quantity before delivery
Filtedeg attaches importance to every test to ensure that it provides you with qualified products, we serve many customers, and more than 90% will choose to be our long-term partner.

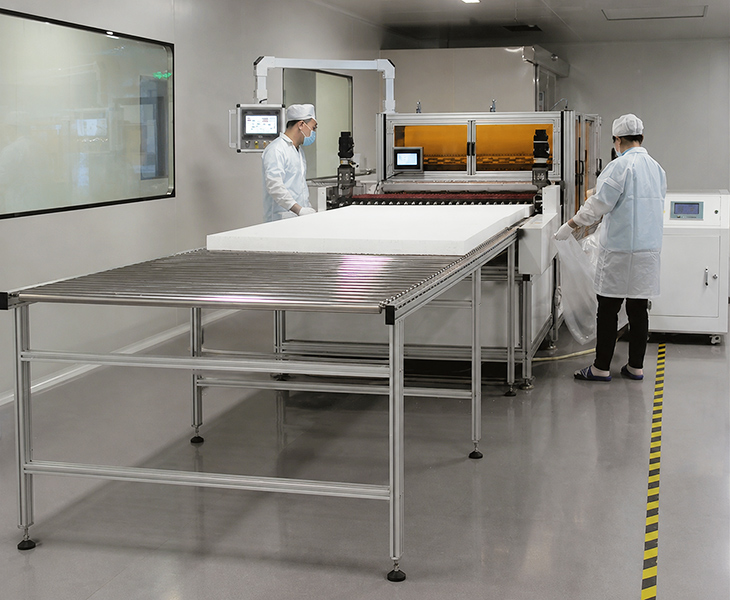

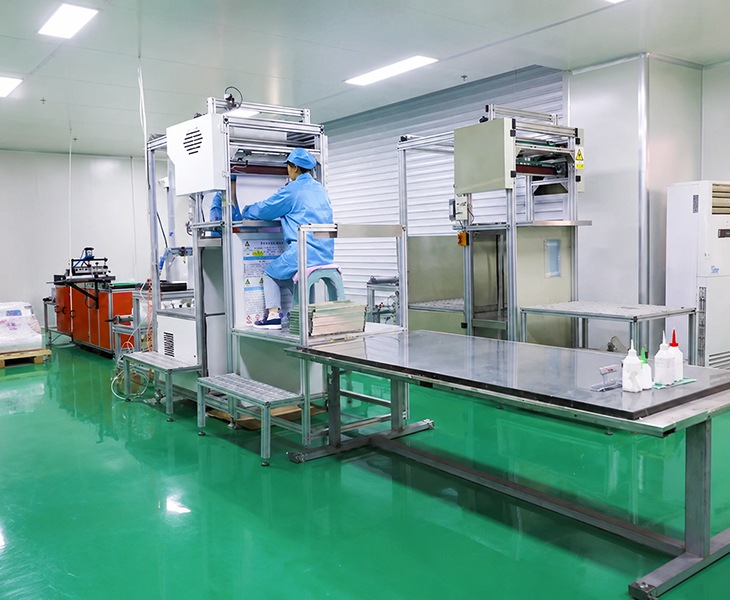

Fiberglass Air Filters Process
Filtedge Fiberglass Air Filters The main processes are:
- Gradual density filter material process
- Filter sealant fixation
- Double-sided support reinforcement technology
- Frame die-cutting and forming
- Corner sealing and sealing
Our above processes are all assembly line operations, which can completely ensure the consistent performance of each batch of Air filtration products, and provide you with stable quality products. Choosing Filtedge Fiberglass Air Filters manufacturer is your best solution.

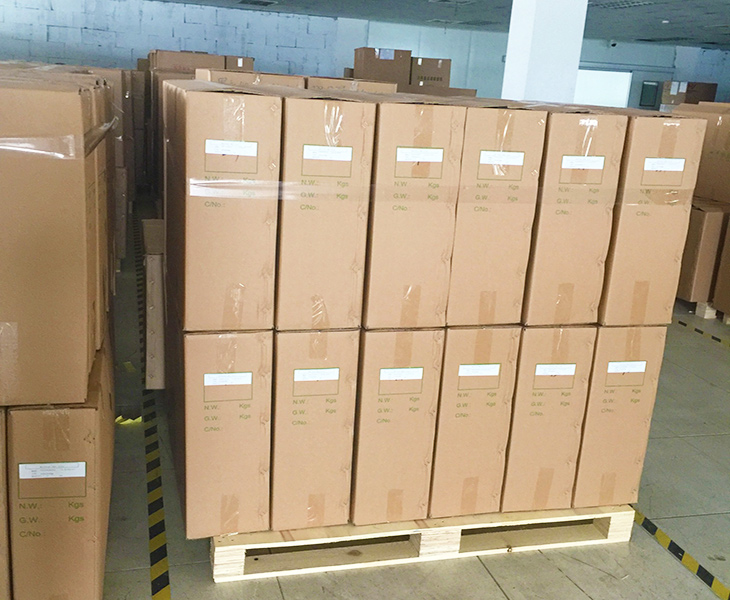

Fiberglass Air Filters Packaging and Shipping
For the problem that Fiberglass Air Filters are easy to squeeze and deform during transportation, we provide you with the following solutions:
- Products are neatly placed and boxed
- Large size of paper frame with additional partition
- Corner reinforcement of packing box
- The outer packaging shall be marked with the product size and quantity
- Tray fixing and wrap film protection
- OEM Custom Label for Outer Packaging
In addition to the above schemes, we will make adjustments according to your specific needs to ensure the safe delivery of the products to you

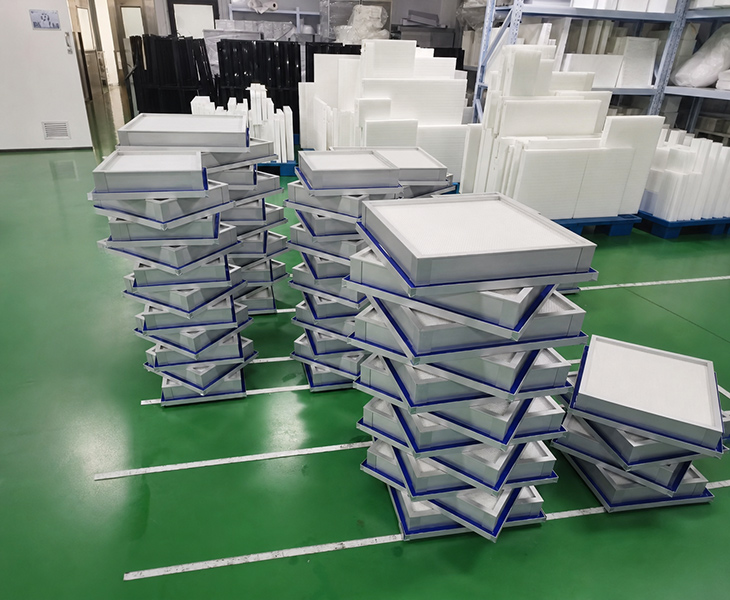

Fiberglass Air Filters Customization
Filtedeg Fiberglass Air Filters manufacturer Available in a variety of specifications, or can be customized for you as follows:
- Nominal and actual size customization
- Special thickness customization
- MERV Grade Customization
- Filter density and sealing treatment
- Cardboard, metal frame, plastic frame optional
- Airflow Label and Product Detail Label
- Multi-size combination packing
- Standing and batch orders
We will meet your various needs and provide you with the most suitable air filtration products to help you reduce your operating costs.

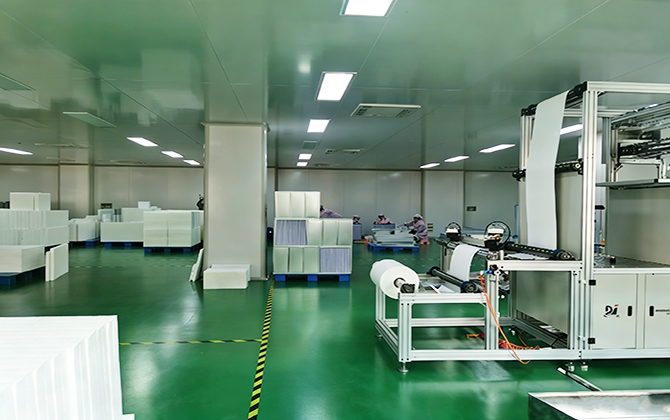

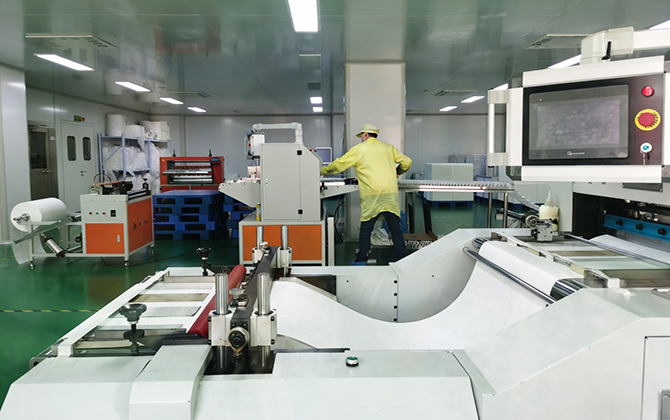

Why Choose Filtedg Fiberglass Air Filters?
As an air filter supplier with more than 20 years of experience, Filtedg has accumulated a lot of high-quality solution data, and is familiar with the air volume, resistance, size and installation requirements of commercial HVAC and industrial ventilation systems, and can provide you with the right fiberglass filter materials, frames and support structures,so we can provide you with the right products.
Filtedge has experience serving customers in more than 100 countries and regions, and can cooperate to provide specifications, labeling, packaging and logistics requirements for different markets.
Having attended more than 30 exhibitions, Filtedeg has a wide range of HVAC dealers, industrial customers and equipment manufacturers, so we understand the needs of air filters in real-world operating conditions
Fiberglass Air Filter Applications
Filtedge glass fiber air filter is widely used in commercial buildings, industrial plants, warehousing and logistics, residential heaters and other multi-stage filtration systems. It can effectively intercept large dust, hair and fibers, protect fans and coils, and effectively reduce energy consumption and operating cost

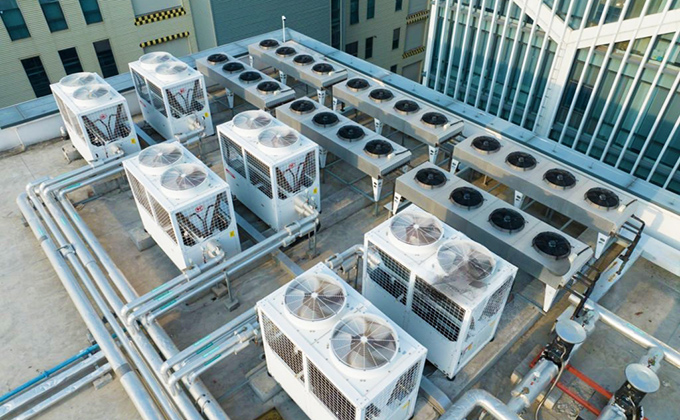

If you need to purchase air conditioning systems for office buildings, hotels, schools, and shopping malls, then Filtedge fiberglass air filters can be used as primary air filtration products to help you protect fans, coils and heat exchangers, etc. The commonly used sizes are generally 1 inch and 2 inch

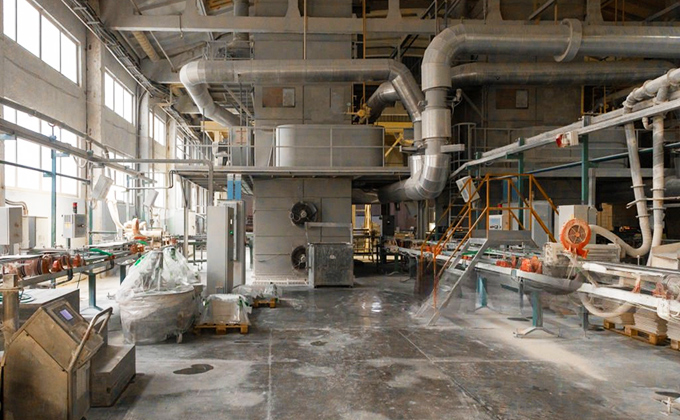

In industrial plants, problems such as excessive dust in the workshop, frequent dust accumulation in equipment, increased energy consumption, etc. may increase your production cost and affect your EIA. Filtedeg Glass Fiber Air Filter has some excellent characteristics, fluffy Fiber gradient, high dust capacity and low wind resistance, which can help you increase the dust capacity. Under normal working conditions, its life is up to 6-12 months, which reduces consumables and maintenance costs by more than 30% for you. It can also effectively protect the back-end Air Filter, so that the overall energy consumption of the ventilation system in the factory can be reduced by 10%-15%, and the energy-saving benefits of long-term operation are remarkable.
Fiberglass Air Filter Specifications
Fiberglass air filters are mainly used to trap hair, batting, fibers and larger dust particles to reduce the accumulation of pollutants in fans, coils and equipment.
- Fiberglass Air Filter Specifications
| Item | Description |
| Product structure
| Flat type, folding type, bag type, box type |
| Mode of use | One-time use, need to be replaced regularly |
| Main Functions | HVAC equipment protection, large particle pre-filtration
|
| Whether it can be washed | not cleaned |
| Filter Media Type | Fluffy glass fiber, continuous glass fiber or other glass fiber filter material
|
| Density Direction | Gradually denser from the air inlet side to the air outlet side |
| Filter Media Color | white, green, blue |
| Filter Media Treatment | Sizing, bonding or fixation treatment |
You will need the following information when purchasing:
- Test standards adopted
- Test Air Volume and Windward Wind Speed
- Product size and thickness
- Initial resistance in test state
Filtede can select the appropriate filter material and structure according to your needs, and the final MERV grade should be subject to the test report of the specific model.
There is no definite replacement cycle for fiberglass air filters, which is determined by the following factors:
- HVAC system running time
- Dust concentration
- Filtration area of filter
- System rated air volume and onward wind speed
- Initial and final resistance of the filter
The normal condition of the cycle that needs to be replaced is as follows:
- Regular shopping malls usually take 6-12 months
- High dust environment usually takes 3-6 months
- Clean scenes typically take 18-24 months
Any air filter will have air resistance, which is inevitable. However, the airflow resistance of glass fiber filter is extremely low, and its material is fluffy, which has a relatively low impact on the system air volume. Generally, the airflow of the plate air filter and the non-folding structure is relatively smooth, but if it is not replaced for a long time, it will cause blockage and the resistance will gradually increase. Therefore, not only to choose the right Fiberglass AC Filter, you also need to maintain it regularly.
Glass fiber air filters are usually less resistant and economical, while folding air filters have a larger filtration area. They differ as follows:
| Compare Items | Fiberglass Air Filter | Folding Air Filter
|
| Structure | Loose type | folded type |
| Filter Grades | Common MERV1 – MERV4 | Common MERV8 – MERV13
|
| Initial resistance | usually lower | higher |
| Filtration area | smaller | larger
|
| Fine particle filtration capacity | Limited | Good |
| Dust Holding Capacity | Low | Relatively High |
| Main Application | Equipment protection，pre-filter | Fine filtration |
Fiberglass air filter has a variety of borders to choose from including: kraft cardboard, moisture-proof cardboard, plastic, galvanized steel and aluminum, etc. You can choose the right material according to your working conditions.
- Kraft paper border
Light weight, low cost, suitable for commercial HVAC, cannot be used in humid and corrosive environments. - Moisture-proof paper frame
It has better moisture resistance than kraft paper, and is suitable for environments with humidity but no moisture condensation. - Plastic border
Compared with kraft paper frame and moisture-proof paper frame, it is moisture-resistant, but cannot be used in high-temperature environment, and has the advantage of stable structure. - Galvanized steel frame
Galvanized anti-rust, high mechanical strength, suitable for more commercial HVAC systems, can operate in high air volume environment - Aluminum frame
Lightweight, corrosion-resistant, moisture-resistant, generally used in precision equipment environment, its price is more expensive than paper-framed glass fiber air filter.
Fiberglass Air Filter Common Nominal Dimensions
| 10×10×1 in. | 10×20×1 in. | 10×24×1 in. | 10×25×1 in. |
|---|---|---|---|
| 10×30×1 in. | 12×12×1 in. | 12×16×1 in. | 12×20×1 in. |
| 12×24×1 in. | 12×25×1 in. | 12×30×1 in. | 14×20×1 in. |
| 14×24×1 in. | 14×25×1 in. | 14×30×1 in. | 15×20×1 in. |
| 16×16×1 in. | 16×20×1 in. | 16×24×1 in. | 16×25×1 in. |
| 16×30×1 in. | 18×20×1 in. | 18×24×1 in. | 18×25×1 in. |
| 20×20×1 in. | 20×24×1 in. | 20×25×1 in. | 20×30×1 in. |
| 22×22×1 in. | 24×24×1 in. | 24×30×1 in. | 25×25×1 in. |
