Advantages of FiltEdge Double Bag Filter Housing
Traditional filter housings need to be shut down as soon as the equipment is maintained and the filter bags/cartridges are replaced. Once the filter housing is shut down, your whole production line needs to be stopped, wasting capacity. Compared with the traditional single-barrel filter housing, FiltEdge’s double bag filter housing uses double barrels, allowing you to use one barrel to prepare one barrel, realizing 24 hours of no downtime and no stoppage of production, no pressure to change the filter bag, and continuous generation.
What is Double Bag Filter Housing?

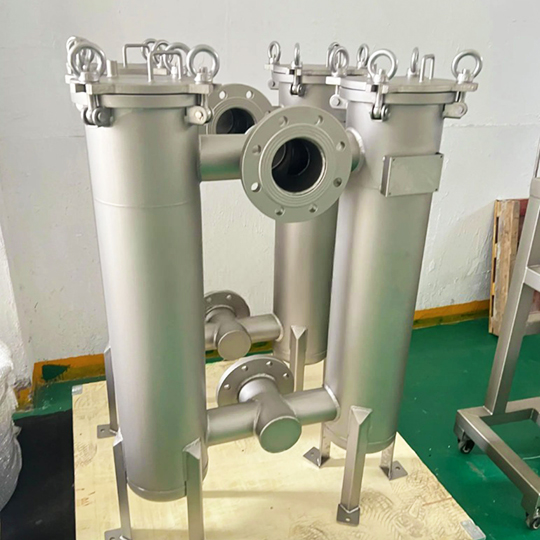

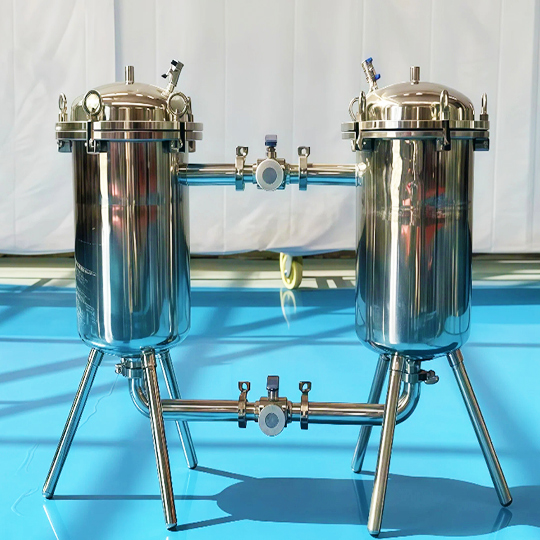

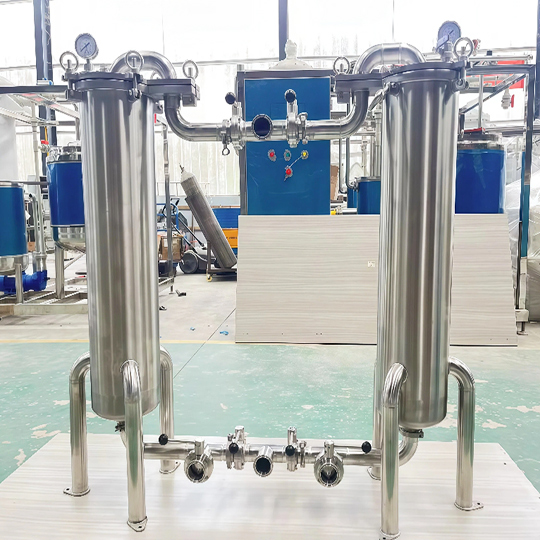

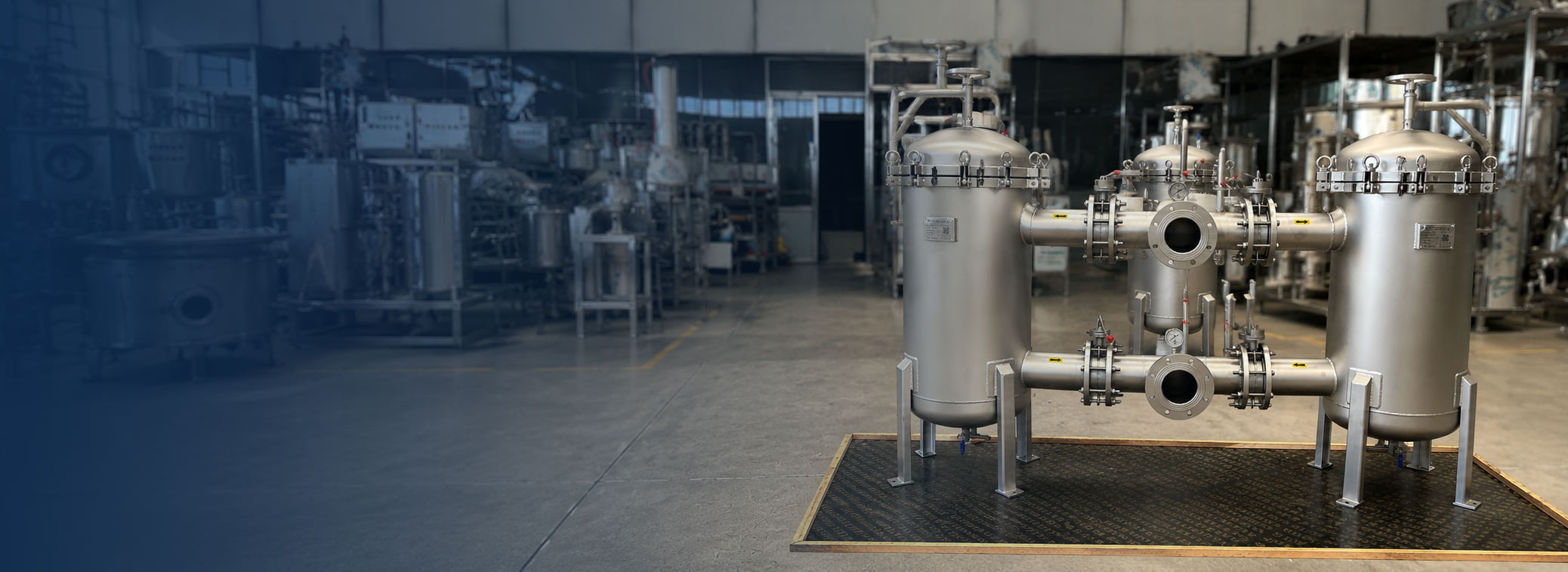

FiltEdge’s double bag filter housing is a duplex filter housing. It is two identical filters connected together in a U-shape or side-by-side to allow you to have a backup filtration unit. When the pressure difference reaches a set value, you can switch the filter slurry from the main drum to the backup drum manually or electrically. This process doesn’t have instantaneous flow rate and sudden pressure increase, and it allows you to generate your production line in a stable and continuous manner. You can clean the main filter drum and replace the filter bag without time pressure, which will not cause your capacity to drop.
Our double bag filter housing can be mainly used in chemical, food and beverage, paint, ink and other industries. According to your actual working conditions, we can provide you with SS304, SS316, carbon steel filters and corresponding seals. If the working condition is special, we can also provide OEM/ODM customized service for you.
Types of Double Bag Filter Housing

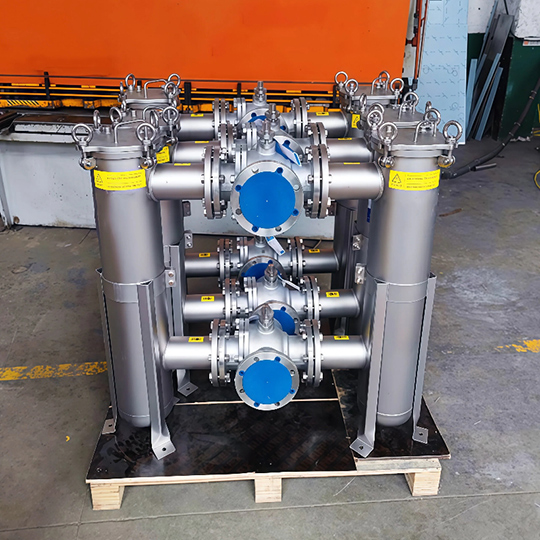

FiltEdge’s regular double bag filter housing is mainly used for the number of bags below 8 bags. However, we can customize the filter housing with up to 24 bags for high flow conditions. You can provide your working conditions and requirements, our engineers will do the working conditions analysis and equipment selection for you.

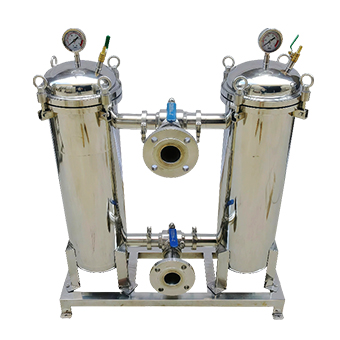

Mainly made of 304 stainless steel and 316 stainless steel, these two materials are corrosion-resistant and safe and hygienic in high-pressure working conditions.

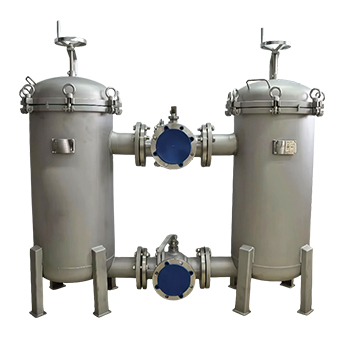

The use of carbon steel and internal coating allows you to achieve the filtration requirements with minimal cost.

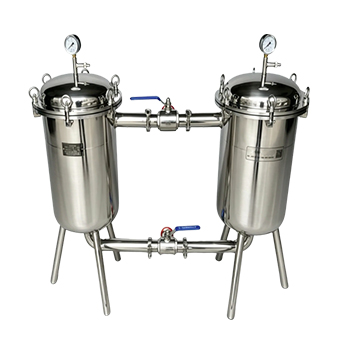

Switch the direction of slurry flow manually through a three-way ball valve or a linked butterfly valve.

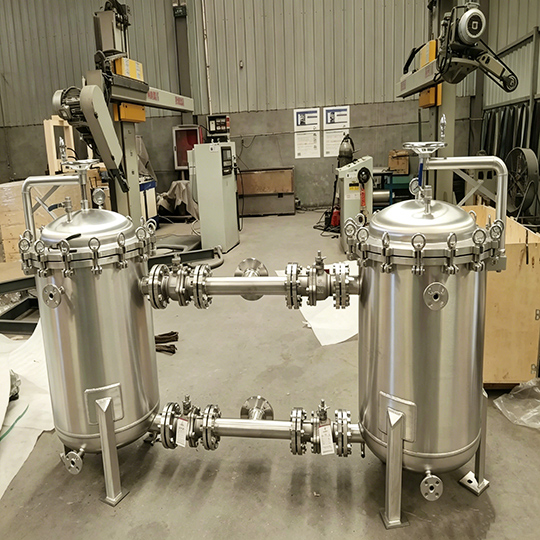

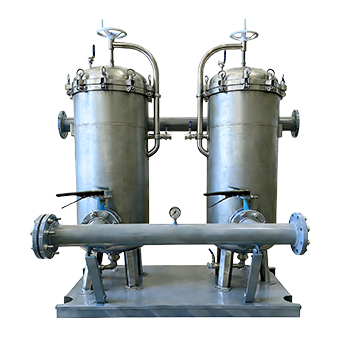

The filter drum, valves, piping, pressure gauges, etc. are assembled in a single chassis, which is ready for use when you receive it and connect it to the external piping.
Features of The Double Bag Filter Housing
FiltEdge’s research and development staff designed the double bag filter housing to allow you to filter complex liquids in the simplest way possible, with rugged durability that saves you money in the long run.
Double-step sealing and three-point locking are designed to help control bypass and leakage when correctly installed and maintained.
For heavy-duty equipment, we can provide you with a quick-open design that allows a single person to open the lid.
Thickened stainless steel support basket reduces bag breakage.
Confirm applicable standards and available conformity documentation for the selected unit before ordering.
From 1-200μm, can be used for coarse filtration and fine filtration.
Stainless steel housing, coating process and EPDM/Viton/PTFE seals for extended equipment life.
Optimized design of flow channel reduces filtration resistance and saves your electricity cost.
Sandblasted and polished, making your equipment beautiful and durable.
Applications of Double Bag Filter Housing
The main application areas of Double Bag Filter Housing are chemical, pharmaceutical, water treatment, food and beverage, such as solvents, catalysts, inks, cooling water, wine, juices, edible oils and so on. Depending on the precision of your choice and the quality of your final product, our double bag filter housing can be used at the front end of the production line for coarse filtration, or at the end of the filtration system for fine filtration of impurities in the slurry. If you are not sure, you can tell us the nature of the liquid you need to filter and our engineers will analyze it for you.
Quality of Double Bag Filter Housing

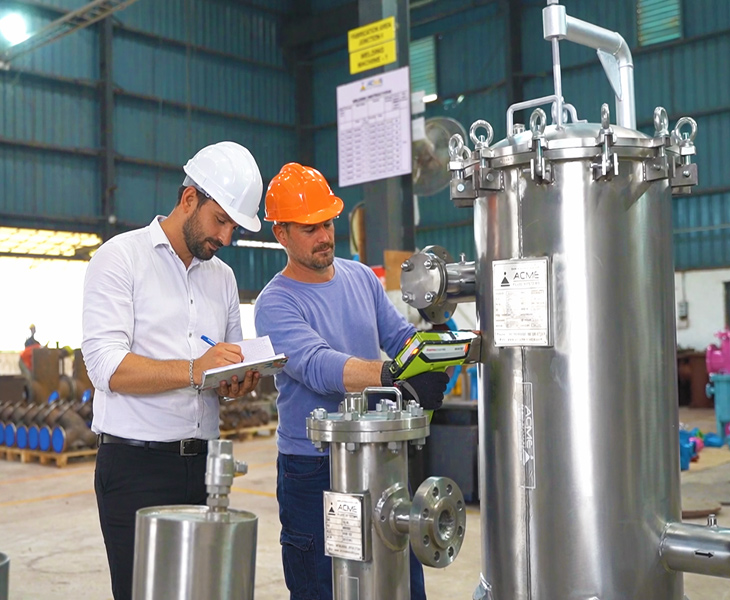

FiltEdge’s double bag filter housing has strict quality inspection process. Starting from the raw material entering the factory, we will check the raw material through PMI spectral analysis; after welding, we will pass the PT test to ensure no leakage of welding and air holes; before leaving the factory, we will also do a half-hour 1.5 times water pressure test for each of your filters. Our series of tests are only to ensure that you can receive a qualified and durable filter.
Packaging of Double Bag Filter Housing

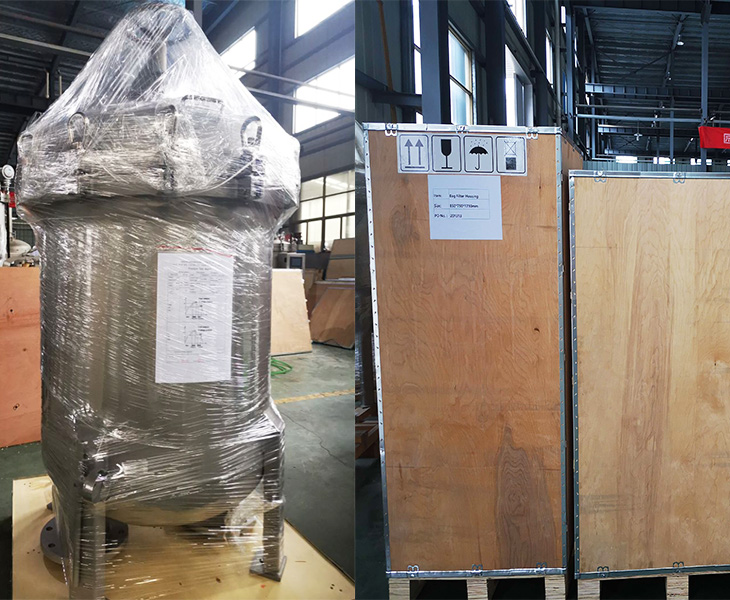

We will pack your double bag filter housing in an efficient and compliant manner. The outer layer is made of fumigation-free wooden crates, so that your filter has a separate space and is not prone to missing tiny parts; the key parts of your filter are wrapped with sponges to prevent damages; and the whole filter will be fixed with wrapping straps and trays to prevent it from shifting around in the box and causing unnecessary damages.

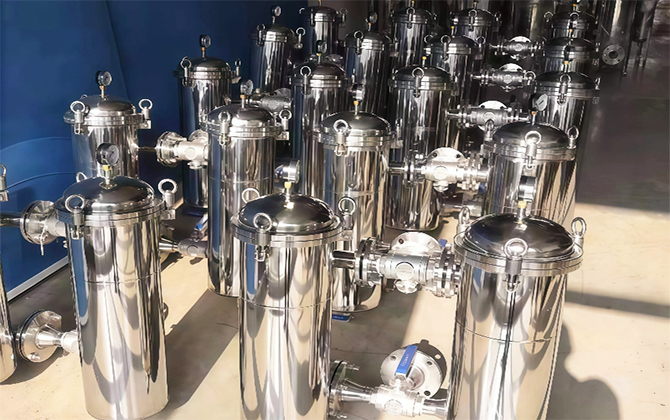

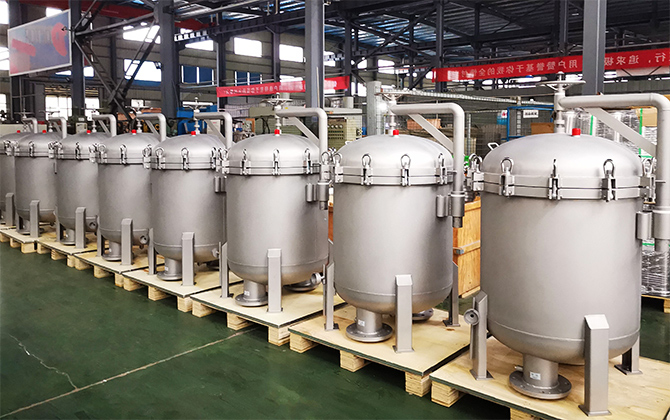

Why Choose Double Bag Filter Housing From FiltEdge?
FiltEdge LLC is a U.S. company established in 2023, supported by SFFILTECH in China, established in 2006. Manufacturing support is provided through SFFILTECH in China. Confirm product specifications, available quality documents, pricing and delivery in the quotation. Certificates must be checked for the relevant entity, facility and product. Support is arranged during business hours; any on-site service or warranty terms require separate agreement.
The FiltEdge Advantage of Double Bag Filter Housing
Production availability and delivery schedules are confirmed for each order.
Manufacturing support is provided through SFFILTECH in China. Confirm availability of housings and spare parts, customization requirements and delivery schedules in the quotation.
Technical support is coordinated during business hours. Any on-site installation, commissioning, maintenance or training requires a separate agreement on scope, availability and costs.
After years of industry precipitation, our company has a perfect upstream and downstream supply chain, which can not only provide you with liquid double bag filter housing, but also provide you with supporting consumables. You can make one-stop purchase with us, saving your time and energy.
Payment methods, trade terms and responsibilities for shipment are confirmed in the sales agreement. Review the agreed commercial terms before placing an order.
Technical Parameters of Double Bag Filter Housing
Below are the general parameters of double bag filter housing from FiltEdge. For detailed information, please contact us, our engineers will design the filter for you according to your working condition.
- Technical Parameters of Double Bag Filter Housing
| Item | Standard Specification |
| Number of Filter Bags | 2 Bags (Optional: Duplex 2+2 Bags system for continuous flow) |
| Compatible Bag Size
| #01 Bag (7” × 16”) / #02 Bag (7” × 32”)
(International Standard / FSI Standard) |
| Flow Capacity
| ≈ 40 – 80 m3/h (175 GPM – 350 GPM)
Note: Actual flow depends on micron rating and fluid viscosity. |
| Material Options | Stainless Steel SS304 / SS316L
(Carbon Steel Q235 or Anti-corrosive PP/PVDF available upon request) |
| Design Pressure | 0.6 – 1.0 MPa (6 – 10 bar)
(High-pressure customization available up to 1.6 – 2.5 MPa / 25 bar) |
| Operating Temperature
| -20°C to 95°C (Standard Metal)
Up to 150°C (with High-temperature Viton / PTFE O-rings) |
| Filtration Rating | 1 mu m – 1000 mu m (Common: 1 / 5 / 10 / 25 / 50 / 100 mu m) |
| Inlet & Outlet Size | DN50 – DN100 (2″ / 3″ / 4″) |
| Connection Method | Standard Flanged Connection (ANSI / DIN / JIS)
(Threaded or Tri-clamp available for specialized models) |
| Orientation Options
| Side → Bottom / Side → Side / Top → Bottom |
| Cap Opening Method
| Quick-Opening Top Cover
(Swing-bolt / Rocker-Arm with spring-balance assistance for single-person operation) |
| Sealing System | High-quality O-ring / Multi-sealing ring (EPDM / Viton / Silicone / PTFE) |
| Surface Treatment | Internal: Mirror Polishing / Electrolytic Polishing (Ra ≤0.8 mu m)
External: Sand-blasting / Mirror Finish |
| Design Standards | ASME Section VIII Div.1 / CE-PED / GB150 |
FiltEdge’s double bag filter housing of course has matching filter bags, not only filter bags and other consumables, including seals, pressure gauges and other spare parts can also be provided.
It is recommended that you install a differential pressure gauge on the double bag filter housing so that you can check the value of the gauge during regular maintenance of the unit. When the differential pressure reaches 0.15-0.2MPa, it is time to replace the filter bag.
The quotation of FiltEdge’s double bag filter housing includes not only the main part of the filter housing, but also the support basket, bag presser and sealing ring. It is a complete unit that you can put together and use. The bag filter is not included. If you have other needs, you can contact our sales staff for an additional quote.
This is not recommended as a rule. The appearance of the double bag filter housing is the same as that of some cartridge machines, but the internal structure is not quite the same. If you need to use a cartridge machine, you can communicate with our factory to see if your filter can be adjusted internally and changed into a cartridge machine.
