What is a Baghouse Filter Bag?
FiltEdge baghouse filter bag is fabric filter used to capture dust particles from industrial exhaust gas or separate useful powders from gas stream.
In simple terms, it works like a high-tech “mask” for your factory: air passes through, dust stays behind easily .
Different dust characteristics, temperatures, and emission limits require different bag designs and filter media to avoid high pressure drop (ΔP) , frequent bag change, or unstable emissions. Whether you are running a hot asphalt plant or a high-moisture chemical line, FiltEdge filter bags stop the “clogging” that leads to emergency shutdowns.
FiltEdge Complex Baghouse Filter Bags by Filter Medias
FiltEdge categorizes baghouse filter bags by filter media to match your dust types, emission targets, temperature range, chemical conditions, and maintenance expectations by over 20 years application expertise.

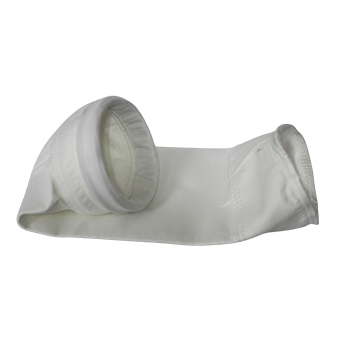

The versatile workhorse for general dry dust, stable and economical.

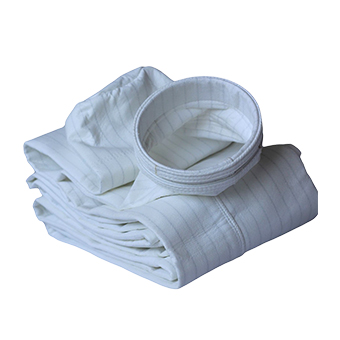

Safety-first solution is your essential “grounding wire” for explosive dust, using conductive fibers to eliminate static sparks.

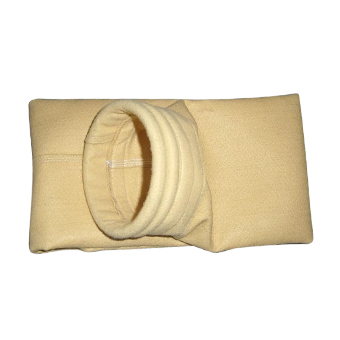

Acid & hydrolysis warrior made from 100% polyphenylene sulfide fibers perfect for coal-fired boilers and acidic environments.

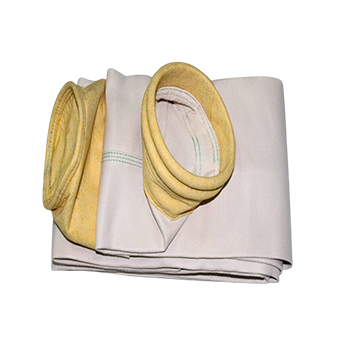

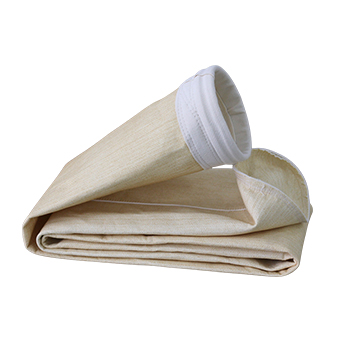

A woven/felt armor that survives furnace extreme heat at a fraction of the cost of exotic synthetics.

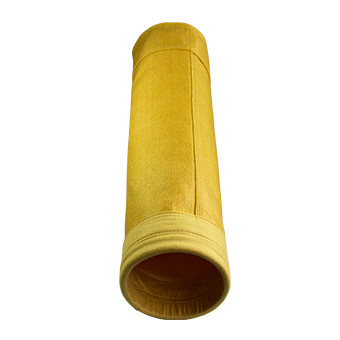

This high temperature specialist handles intense cement & steel kiln heat waves without losing shape, keeping asphalt plants running smoothly and reliably nonstop.

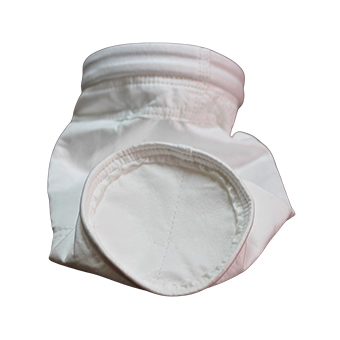

The chemical shield is essential for the harshest waste incineration sites.

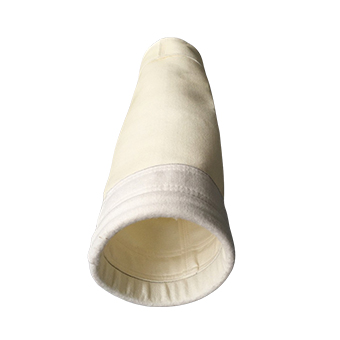

Bridge gap polyester & high-temp fibers in humid low-acid conditions, acting like “industrial raincoat”.
High airflow experts with unique trilobal fiber cross-section catches sub-micron dust others miss, helping cement kilns meet strict emission limits without system upgrades.
Bridge the gap between polyester and high-temp fibers in high-humidity and low-acid conditions, acting like your tough protective “industrial raincoat”.
FiltEdge Typical Baghouse Filter Bags among Full Scenario Series
Baghouse filter bags vary widely in material selection, filter media structure, finishes, installation style and bag configuration. With broad manufacturing capability and application experience, FiltEdge helps you quickly match the right bag options to your specific condition—reducing installation risk and trial cost, realizing easy operation and maintenance, reaching steady pressure drop and ultra low emission.

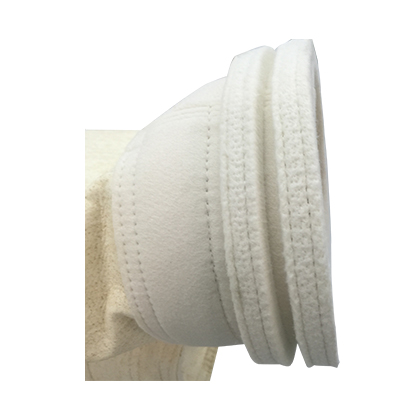

Snap Band Top Filter BagsEnsures consistent sealing, fast simple easy “pop-in” installation and minimized maintenance time during bag change by using FiltEdge high-tensile manganese spring steel as snap band.

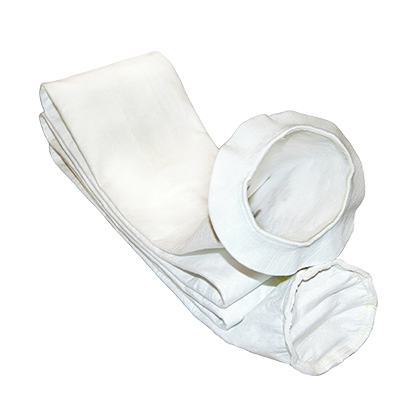

Flange & Cord Top Filter BagsDesigned for traditional top-load structure dust collectors., FiltEdge reinforced flanges provide extra gasket thickness. This “pressure-cooker” seal offers reliable mechanical fixation.

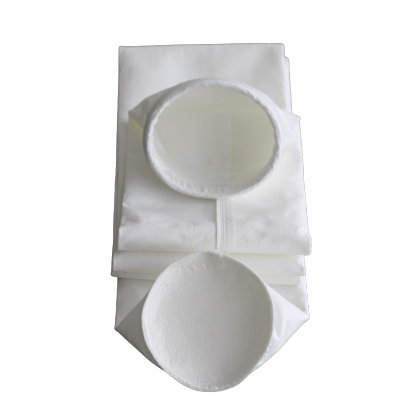

Bottom Load Styles Filter BagsPerfect for low-headroom, FiltEdge bags have heavy-duty cuffs, precision clamps, ensuring slip-proof grip, making bag changes safe and fast from chamber or hopper side.

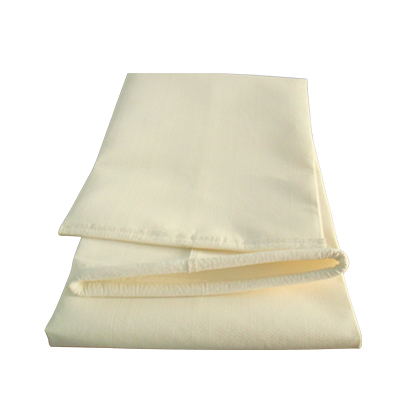

Envelope Filter BagsFiltEdge Compact shapes maximize your filtration area in limited space, guarantee smooth airflow and easy dust release.

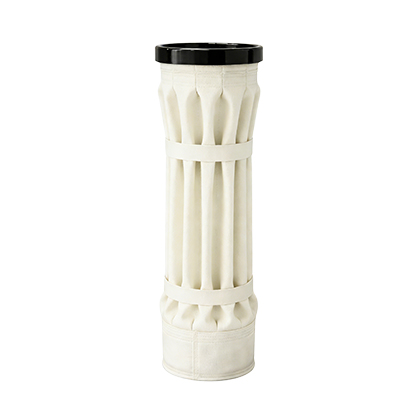

Increased surface area by 150-250% without expanding your baghouse like “accordion-style” to lower your air-to-cloth ratio in overloaded systems

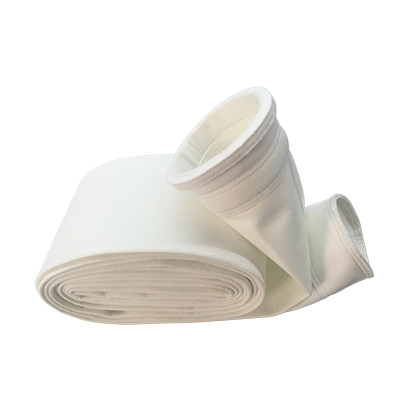

Ultra-Fine Surface Layer Filter BagsFiltEdge specialized designed microfiber surface layers improve dust release with better abrasion resistance.
Key Features of FiltEdge Baghouse Filter Bags
Baghouse filter bags quality depends on structure, media treatment, and manufacturing control, while performance counts on feature and real condition oriented application. FiltEdge is dedicated to design and deliver each feature to reach stable filtration, easier maintenance, predictable service life and EPA compliance.
FiltEdge specialized spring steel for snap band elasticity and enforcement flange tolerance to keep seal fit with tube sheet.
FiltEdge automated stitching and heat bonding with reinforced seam design reduce weak points, eliminate dust leak and lower the risk of unplanned shutdowns.
Precise cutting and manufacturing process ensures dimension fit with cages and tube sheets perfectly.

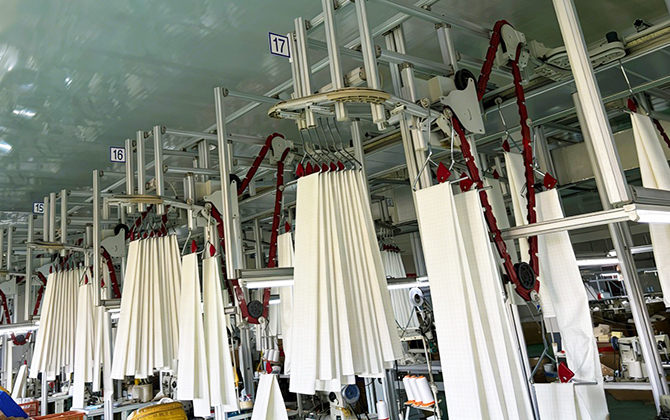

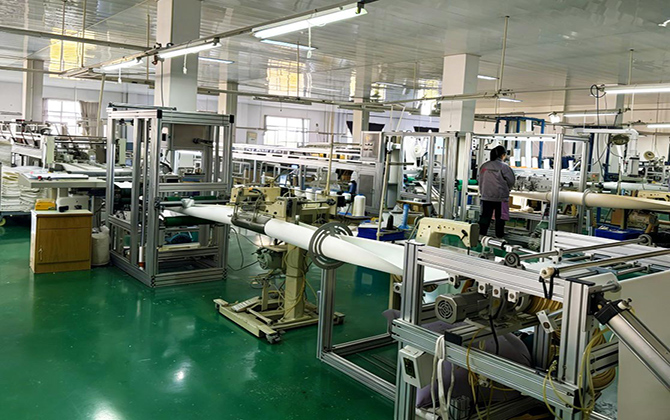

Controlled mass production with advanced imported machines and skilled workers ensures FiltEdge process capability, repeatability & reproducibility compliant with ISO standard.
FiltEdge optimized fiber structure and finishes supports stable emissions, even near-zero.
Balanced permeability with low emission avoids violent pressure drop (ΔP) fluctuations.
Compatible with different dust characteristics, chemical & temperature fluctuating, airflow ranges, and system designs.
Excellent and stable virgin raw material from original brand suppliers combined with FiltEdge outstanding processes and matched applications ensure longer service life.

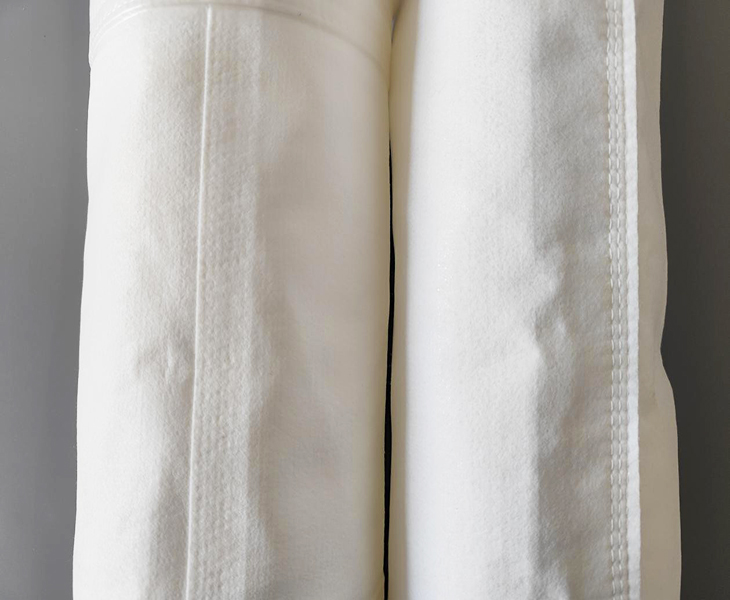

FiltEdge Baghouse Filter Bag Artistic Level Sewing & Sealing Quality Ensures Zero Leakage
Many baghouse filter bag failures start at seams, not filter media. Our construction focuses on quantified sewing & sealing reliability.
- Automatic three-needle stitching (8–10 stitches/inch) ensures uniform seam density, preventing skipped or dropped stitches.
- Thread material matching based on operating temperature and chemical exposure.
- Auomatic hot-melt bonding seam eliminating needle holes, reaching bypass under pulse pressure ≥0.6 MPa.
- Reinforced wear zones with double-layer cuffs protect high-stress areas or bag cage wear & tear during frequent pulsing.
- Precision top sealing tolerance ±0.5 mm ensures airtight contact with the tube sheet, eliminating leakage paths.

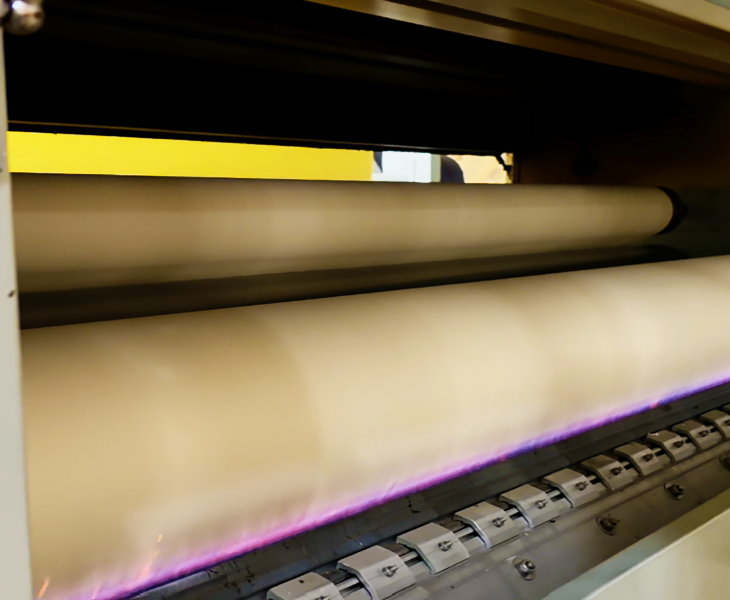

FiltEdge Baghouse Filter Bag Filter Media Professional Post Treatment Technologies Lead to High Performance
Filter Media treatment helps reach better emission stability and cleaning behavior, especially for fine or sticky dust.
- Mechanical Treatment
Heating set, singeing , glazing and calendaring with ±1℃ accuracy by imported machine prevent dust embedding for easy cleaning and shrinkage for stabilizing structure - Chemical Treatment
PTFE/Oil-repellent dipping and coating with FiltEdge proprietary, custom-formulated emulsions and additives. stop chemical rot and moisture clogs. - Membrane
PTFE laminated developed by FIltEdge with uniform pores and stable strength enables surface filtration for ultra-low emission targets, even near-zero emissions.
FiltEdge professional finishes ensure your baghouse filter bags breathe better and last longer.
Why Choose FiltEdge for Baghouse Filter Bag？
FiltEdge combines 20+ years of filtration experience with integrated manufacturing and outsourcing to deliver over 1 million filter bags annually across 50+ countries by engineering-driven selection, free samples, and stable long-term supply to ensure 100% compatibility and zero-blame accountability.
- One-Stop Filtration Sourcing Capability
Combined in-house manufacturing with mature external sourcing help you avoid compatibility issues, repeated communication, and hidden system risks. - Application-Oriented Engineering Matching Capability
Baghouse filter bag itself doesn’t perform well without application matching. FiltEdge evaluates your dust properties, operating conditions and emission targets for more stable performance. - Proven Global Supply Reliability through Scalable Production
Whether sampling, trial order, mass volume or customized filter bag for your specific condition, FiltEdge always deliver on time through scalable production base in China and warehousing support in U.S with proven global supply record for over 20 years. - Free Technical Support During the Lifecycle
FiltEdge experts had been supporting you from pre-sale, middle sale to after sale for helping identify root causes early and avoid repeated operational mistakes. Delivery is not the ending.
FiltEdge Advanced Baghouse Filter Bags Typical Applications
Standard filter bags fail in specialized environments. FiltEdge tailors fiber type & density and surface treatment technology to your specific flue gas condition, turning costly replacement and frequent maintenance filter bags into value center with less energy consumption, easier operation and longer service life.

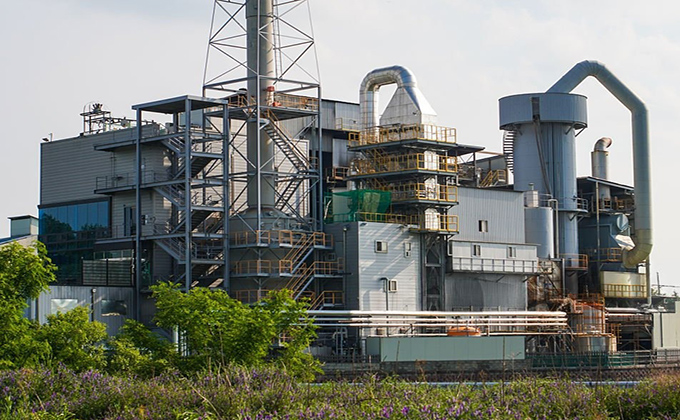

-The Environment
Corrosive SOx/NOx gases and high-moisture acid dew points.
-The FiltEdge Solution
100% PPS with acid-resistant treatment, 100% premium PTFE felt or blend
-The Result
Over 2 years of stable operation without fiber brittleness or “acid rot.”
-The Environment
High-velocity abrasive high load dust and 200°C+ thermal peaks.
-The FiltEdge Solution
Reinforced Nomex (Aramid) with high-density scrim.
-The Result
30% higher abrasion resistance and zero shrinkage during temperature peaks.
Improper Baghouse Filter Bag Installation Impact Risks and FiltEdge Optimized Solutions
The quality of baghouse filter bag installation has a decisive impact on the performance of baghouse dust collectors. Improper installation can directly lead to decreased filtration efficiency, abnormal pressure difference, shortened filter bag service life, and even cause equipment failure and emissions non compliance
- Direct Impact on Filtration Efficiency and Emissions
Poor sealing leads to “bypass leakage”
Filter bag damage causes penetration leakage - Increased Risk of Filter Bag Wear and Damage
Cage problems cause mechanical damage
Installation deviations lead to localized friction
Concentricity deviations cause contact friction - Impact on Pressure Difference and System Operating Stability
Abnormally high pressure difference
Abnormally low pressure difference - Reduced Cleaning Effectiveness and Equipment Service Life
Ineffective cleaning
Shortened filter bag service life
Increased maintenance costs and downtime risks
Key Countermeasures for Optimized FiltEdge Installation
- Preparation before installation
Clean the tube sheet and housing, and ensure the filter cages are free of burrs and deformation. - Standard operating procedures
Use protective sleeves to prevent scratching, avoid stepping on the filter bags, and follow the “install filter bags first, then filter cages” method. - Precision control
Ensure the filter bag verticality is ≤0.5%, the filter cage concentricity deviation is <3mm, and the distance from the bottom to the ash hopper is maintained at least 180-200mm. - Quality verification
After installation, perform a fluorescent powder leak test to confirm there are no leaks before pre-coating with dust and starting operation.
CTA: [Get Further Installation Guide from FiltEdge Expert]
FiltEdge Specialized Designed Baghouse Filter Bags for Three Types of Cleaning Methods
Proper dust cleaning is crucial to the effective performance of filter bags; failed or improper cleaning will lead to increased pressure drop, filter bags damage, and premature failure. A perfect match between the cleaning method and the filter bag design will contribute to long-term stable operation. This is FiltEdge’s long-lasting mission-engineering application oriented solution rater than a single filter bag.
Pulse-Jet Cleaning
Pulse jet cleaning utilizes short bursts of high-pressure airflow to rapidly inject air into the filter bags, causing them to expand and shake off dust from top to bottom. This cleaning method offers strong cleaning power, excellent performance, and high adaptability. Based on this, FiltEdge adjusts the seam density, sewing thread parameters, reinforcement layers, and filter media structure to effectively cope with the strong cleaning force, thereby preventing seam failure and extending service life.
Reverse Air Cleaning
In contrast to pulse jet cleaning, reverse air cleaning utilizes low-to-medium pressure airflow to collapse and flatten the filter bags from the outside to inside, achieving the cleaning purpose. This method uses less force, allowing for longer filter bags and extending their service life. However, it generally results in a lower filtration velocity, requiring a larger equipment footprint. Based on this, FiltEdge has developed highly permeable, dimensional stable filter media and added support rings. FiltEdge offer not only traditional woven fabrics but also superior needle-punched felt options to maintain effective cleaning without fabric deformation or dust retention.
Mechanical Shaking
Mechanical shaking is a dust removal method that uses a mechanical device to apply periodic vibrations to the filter bags, causing the dust layer attached to the filter surface to detach due to inertial forces. It was widely used in early baghouse dust collectors. Its advantages include simple structure, low manufacturing and maintenance costs, no need for an additional air source, and low operating energy consumption. However, it suffers from uneven dust removal, secondary dust generation, and lower operating efficiency, and requires filter materials with high flexural strength and rigidity. Based on this, FiltEdge has developed woven fabrics with improved fatigue resistance to enhance dimensional stability and vibration resistance, balancing better filtration performance and service life.
Failure to consider cleaning methods and parameters in conjunction with filter bag design can easily lead to mismatched failures. FiltEdge evaluates cleaning intensity, frequency, mechanical pressure, filter media selection and structure based on your specific operating conditions, helping you avoid trial-and-error costs and achieve the expected performance and service life.
Of course Not.
You can use many synonyms words to describe the same product.
FiltEdge provides high-performance baghouse filter bag (also known as industrial filter Sleeve, dust collector filter bag or pulse Jet filter bag) designed to fit any system. Whether you call them filter sock or fabric filter bag, our precision-fit designs ensure zero-leakage performance.
If differential pressure is still high after cleaning or you see visible dust leaking, it’s time for a FiltEdge 1:1 replacement when you are sure that baghouse body & instruments and meters, and operation is normal.
It’s a self-sealing round spring steel with 2-3cm width which is sewn/stick into the bag top. It “snaps” into the tube sheet with clear sound without using special tool and reach airtight fit. It is made of
FiltEdge snap bands are made of 65Mn carbon steel or SUS316 stainless steel depending on different operating conditions. In special cases, 3Cr13 and 301 stainless steel are also available. In extreme conditions, such as highly corrosive chloride environments, the alloy steel ensures stable sealing without corrosion or failure.
In some cases, pleated filter bags can replace traditional standard baghouse filter bags to address space constraints or meet emission standards.
However, due to the inherent limitations of pleated filter bags, such as limitations on length, and non-ideal performance in high airflow and high dust concentration environments, they cannot completely replace traditional filter bags that can handle a wide range of operating conditions.
Increased pressure drop in baghouse dust collectors is a common malfunction during operation, usually caused by a combination of factors. The most likely causes are filter bag blockage or a malfunction in the cleaning system, followed by uneven airflow distribution, changes in dust conditions, and instrument misreadings.
Filter bag-related problems
Moisture or condensation on filter bags due to cold air ingress or inadequate insulation of the dust collector.
Caking of high-humidity, highly sticky, or oily dust on the filter bag surface.
Dust clogging the pores as filter bag aging.
Poor cleaning effect due to cleaning system malfunction
Abnormal pulse jet cleaning system.
Compressed air quality issues.
Blowing pipe problems.
Uneven airflow distribution.
Operating conditions and external factors
Excessively high dust concentration or abnormal particle size.
System air leakage or abnormal negative pressure.
Severe dust accumulation in the hopper.
Instrument misreading.
Other potential causes
Abnormal fan speed or impeller damage.
The lifting valve is not operating or is not sealing properly.
Anti-static baghouse filter bags release static electricity through conductive fibers within the filter bag, thus preventing electrostatic sparks from igniting or detonating flammable or explosive dust or gases.
This is primarily achieved by weaving conductive yarns into woven fabrics or needle-punched felt scrims, or by uniformly mixing conductive fibers into the needle-punched felt to provide uniform conductivity throughout the entire filter felt. There are many types of conductive fibers; for baghouse filter bags, the most common conductive fibers include carbon fibers, stainless steel fibers, and binary composite conductive fibers.
Yes.
FiltEdge can custom you baghouse filter bags in terms of material, density, thickness, media option, bag configuration and SIZE according to your specific condition. Any other custom requirements, consult our experts for further details.
Yes.
FiltEdge had been supporting you during pre sale, middle sale and after sale for any technical issues, including your system troubleshooting. FiltEdge is dedicated to supply application oriented system solution, not only consumble standard filter bag.
