What is FiltEdge Automatic Candle Filter?
The FiltEdge Automatic Candle Filter is a fully intelligent precision filtration system designed for demanding applications. It has a candle-like arrangement of filter elements, no rotating parts, and static filtration through pressure in a fully sealed housing, achieving solid-liquid separation by means of residue filtration. It can guarantee the filtration quality and purity better than you use industrial centrifuge, and it has more price advantage than you use expensive 2-in-1 equipment. In fine chemicals, pharmaceuticals, food and other high viscosity and high solid content industries that require high precision filtration, FiltEdge’s Automatic Candle Filter is your choice to reduce manual maintenance, lower the cost of use, and improve the quality of your products and brand competitiveness.
FiltEdge Series Automatic Candle Filter Type Selection Guide
FiltEdge offers conventional, easy-to-install, sanitary and sterile, high-pressure, high-temperature, corrosion-resistant, dry-cake, and special-application automatic candle filters for your specific application. If your application is very special, we can customize automatic candle filters for you.
When your filtered product shows turbidity, unstable color and batch variation, this Automatic Candle Filter is for you.
Automatic Candle Filter forms a stable filter cake in the range of 0.1-100μm by means of multi-layer filter jacket (e.g. PP/PET/PTFE) + pre-coated filter aid, intercepting the particles in your mother liquor that lead to turbidity and color return, and making your effluent turbidity stable less than 1NTU.
When your filter media wears through your filter cloth filter bag like sandpaper, it’s not just a matter of changing your filter bag a few more times, it’s a matter of increasing the risk of damage to your equipment.

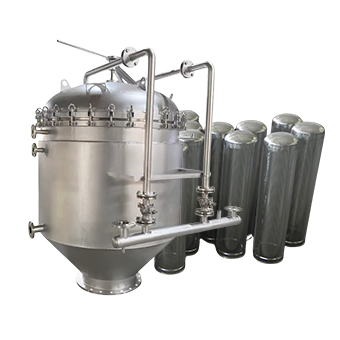

The Automatic Candle Filter uses 316L stainless steel as plum support skeleton with washable metal mesh to resist impact of high temperature, high pressure, highly abrasive filter media, so you don’t spend a lot of money on consumables year after year.
When your filter cake is as wet as mud, the entrained mother liquor and catalyst can only be disposed of as costly hazardous waste, and your profits are slowly quietly lost.
The Automatic Candle Filter utilizes backblowing and zero residue technology to reduce cake wetness to <20%, effectively recovering mother liquor and valuable solids, and putting back into your hands vital resources that would otherwise go to waste.

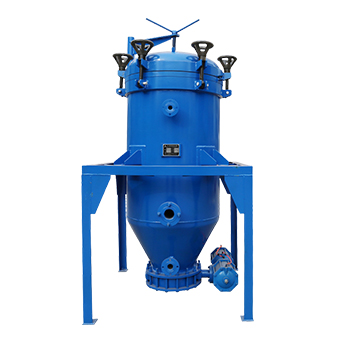

The slurry is too thin, your downstream equipment (centrifuge/dryer) is forced to process a lot of useless liquid, and you’re paying unnecessary processing fees for water and solvents.
The Automatic Candle Filter thickens the slurry at the filtration stage, allowing your subsequent equipment to process only the worthwhile solids thick slurry.
Project site all kinds of piping, instrumentation, pumps can not match, full of looking for parts, you not only waste time delay the schedule, but also miss valuable production window.

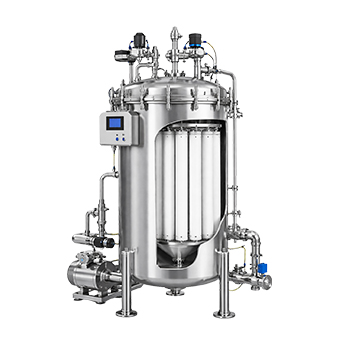

FiltEdge provides pre-integrated skid mounted module Automatic Candle Filter, allowing you to install and debug in half a day.

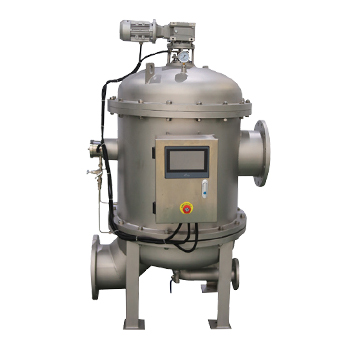

When your working conditions exceed the pressure limit of ordinary filters, leaks and safety hazards can occur at any time.
FiltEdge’s Automatic Candle Filter is designed to comply with ASME / PED standards, allowing you to stabilize production under high-pressure processes without fear of leakage.

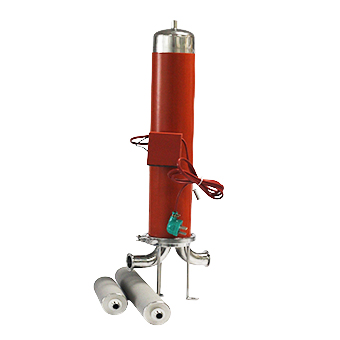

When your material crystallizes and clogs the filter at the first sign of cooling, you are often faced with uncontrollable downtime.
The Automatic Candle Filter utilizes jacketed heating technology to provide a precise controlled lock on the stability of the critical filtration process, keeping you steadily in production.

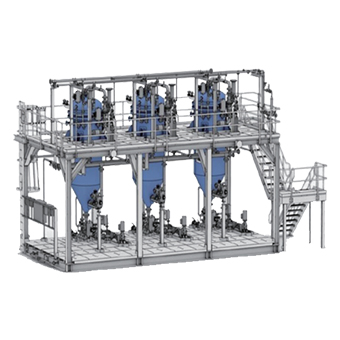

When you scale up from lab conclusions to the actual production line and the filtration results all fall apart, that’s when you need predictable data.
The Automatic Candle Filter provides 1-5 square meters of compact filter pad area, giving you process-level experimental data and solid technical support for your subsequent production runs.
Why Choose FiltEdge's Automatic Candle Filter Technology?
The excellent performance of FiltEdge Automatic Candle Filter accomplishes its three quality cornerstones of reliability, precision and automation. Its excellent quality is also the guarantee that you can produce high quality products without stopping production.
Precision filtration stage, capable of filtering very high solids from 1% – 20%, you don’t need to worry about clogging
Can handle up to 5,000 – 10,000 cp or more of media with heat assistance
Accuracy of up to 0.1 μm stabilizes the quality of your product
With zero manual operation during operation, you can keep your material running and filtrating 24/7
The main body has no rotating structure, static operation filtration, your maintenance frequency is extremely low
Fully enclosed production operation maintains your personnel’s safety and improves the purity of your products
The dry cake moisture content is less than 20%, which helps you to effectively recover high-value solids
The design of back-blowing air/backwashing liquid makes your filter element clean automatically, without your need of dismantling and washing.

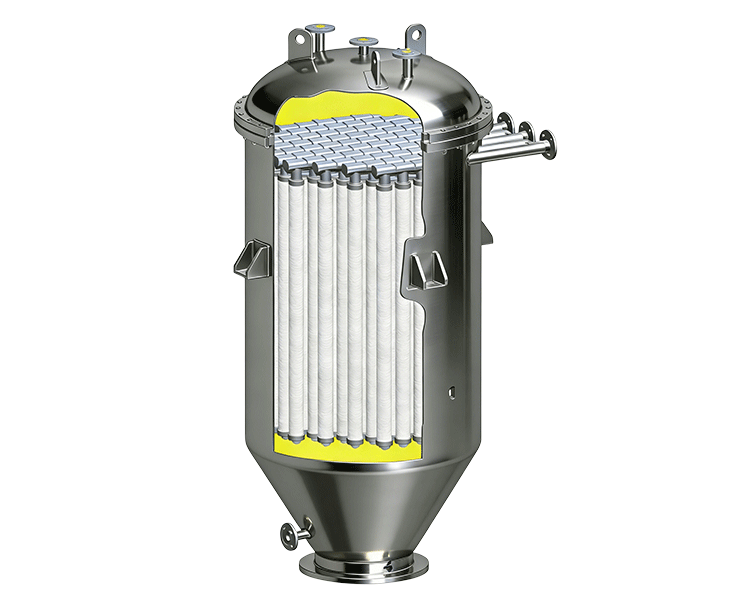

The Advantage of Automatic Candle Filter Static Design
When you have to shut down production because of dynamic elements inside the filter that require maintenance, you have to pay high maintenance costs, and you are faced with cloudy, unstable filtrate, FiltEdge’s Automatic Candle Filter ensures the ultimate in stable filtration and unnecessary maintenance by eliminating rotating parts through a static design. The FiltEdge Automatic Candle Filter The static-operating Candle Filter cartridge quickly forms a cake, avoiding cracks and breakage, and ensuring complete recovery of high-value materials, helping you increase productivity and maximize material recovery.

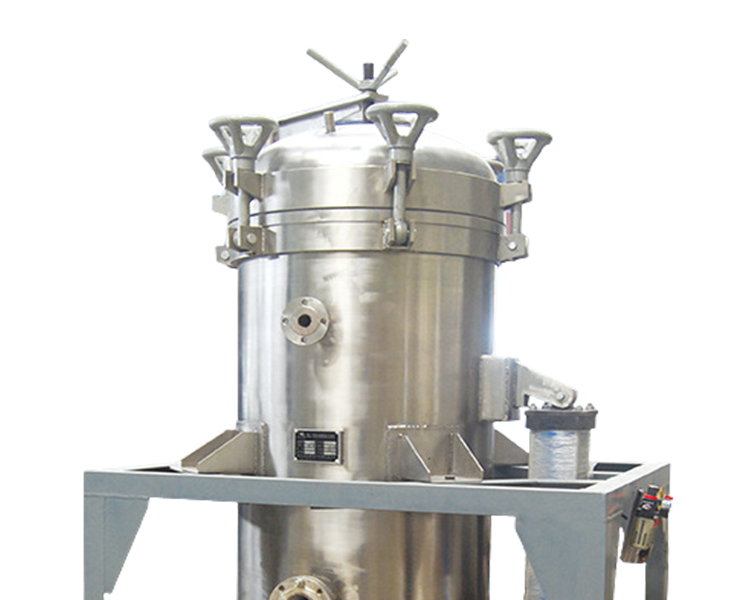

Cost-Performance Master: The Ultimate Alternative to Centrifuges and 2-in-1 Machines for Automatic Candle Filter
FiltEdge’s Automatic Candle Filter is a fully enclosed equipment with high filtration precision. Compared with centrifuges, which have wild processing and rough finished products, FiltEdge’s Automatic Candle Filter has no leakage phenomenon, which can better improve the quality of your products; compared with two-in-one equipments, which cost more than one hundred thousand US dollars, FiltEdge’s Automatic Candle Filter has 2-4 times lower price, which makes your investment cost more expensive. Compared with the two-in-one equipment which costs more than ten thousand dollars, FiltEdge’s Automatic Candle Filter can achieve the same functions of high-precision filtration, washing, drying, and slag removal, while the price is 2-4 times lower, which makes your investment cost lower and the flexibility is better than the two-in-one equipment. When you need to deal with high solids and high viscosity materials, and ensure the filtration efficiency and quality as well as consider the comprehensive investment cost, FiltEdge’s Automatic Candle Filter is the best balance for your choice.

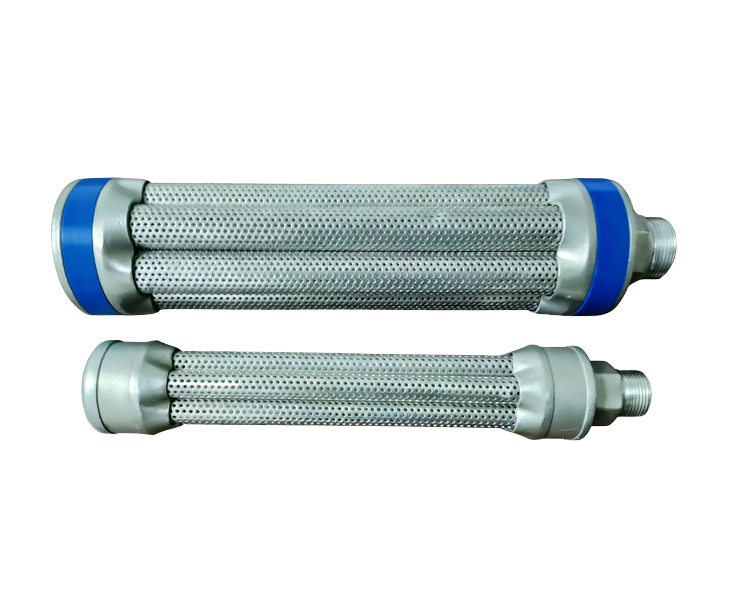

Core Component 1: Hex-Petal Design Candle Element for Automatic Candle Filter
At the end of the filtration process, the filter cake is stuck to the cartridge, and you have to arrange for workers to open the lid and poke the cake down with a stick, which is not just a matter of maintenance difficulties, but also puts hazardous materials at risk of leaking, jeopardizing the health of your workers, as well as undermining the hygienic and aseptic production process compliance, which leads to the failure to market your products. FiltEdge’s Automatic Candle Filter features a molded and manufactured 6-petal plum shape. It effectively locks in the filter cake and also ensures thorough cleaning by its unique plum shape, which instantly pops open the cake during backblow through an extremely strong deformation. FiltEdge offers SS, PP and PVDF cartridges to suit your different acidic, alkaline and abrasive working conditions.

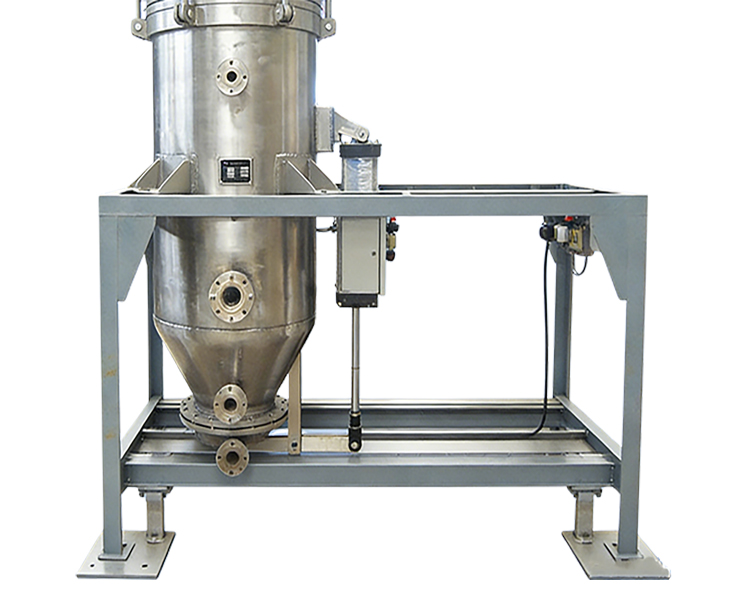

Core Component 2：Modular Skid-Mounted Systems for Automatic Candle Filter
FiltEdge’s can provide you with filter skid blocking modularization services. Both skidding and modularization involve integrating valves, pumps, instrumentation, control systems, etc. on a skid-mounted module before your filters are shipped to you for easy transport. No matter skid blocking or modularization, it is faster and reduces your labor cost than arranging personnel to assemble and install the fragmented parts at the site of your working condition. Under the premise of the whole skid mounted, the fastest half a day can be installed at your work site, start commissioning and use, shorten your installation time. If your work site is far away from you, modular skidding also allows you to better control the entire filtration system, and quickly start production.

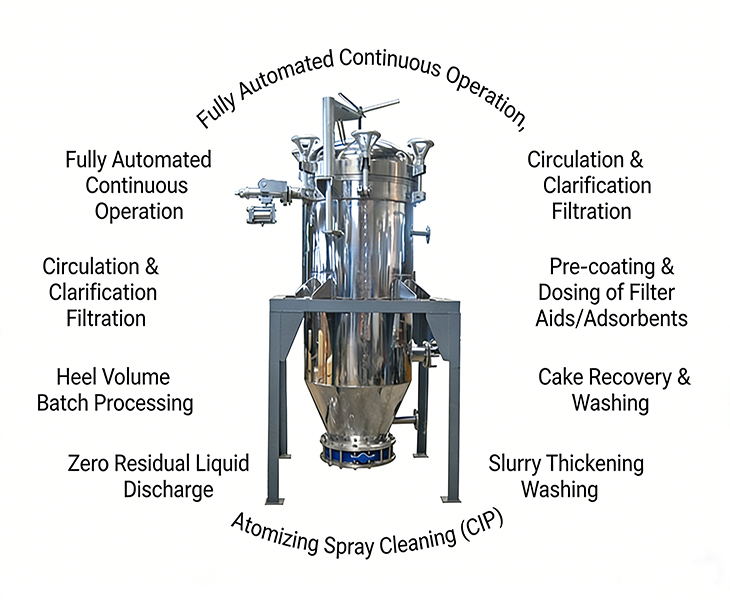

Automatic Candle Filter Customized System Integration Solutions
We FiltEdge not only pursue to sell you a machine and equipment, more concerned about your equipment in the actual use of whether to achieve your ideal filtration effect, FiltEdge not only to do shallow routine customization (such as custom size, pressure, flow, temperature, inlet and outlet interfaces, control systems), but also for the depth of your needs for the work of the 8 functional systems (circulation, clarification, washing. batch processing, spray cleaning, pre-coating, thickening, zero residual liquid) customization, so that you like building blocks to flexibly adjust the configuration of the equipment according to the actual needs to avoid unnecessary expenditure, Batch processing, spray cleaning, pre-coating, thickening, zero residual liquid) customization, so that you like building blocks, according to the actual needs of flexible adjustment of the equipment configuration, to avoid unnecessary expenditure. Your filtration system is not only perfectly adapted to your process needs, but also maximizes your investment cost savings.
FiltEdge: Your Global Precision Filtration Partner Specializing in Automatic Candle Filter Solutions

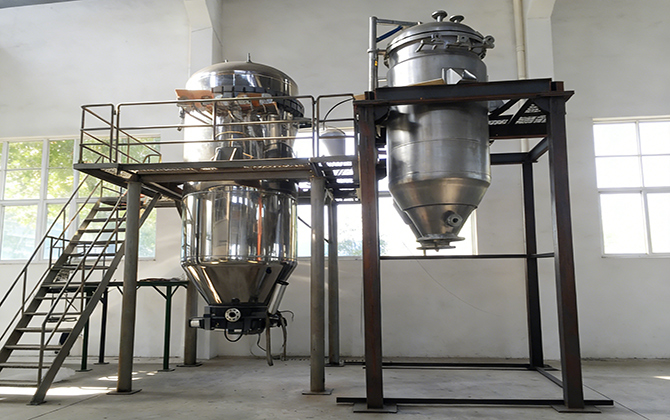

FiltEdge is an Automatic Candle Filter manufacturer and supplier in the filtration industry for over 20 years. With our deep professional background, we can quickly respond to your diversified needs and provide you with a wide range of Our Automatic Candle Filter is a supplier of Automatic Candle Filter with 20 years of experience in the filtration industry. Our Automatic Candle Filter is designed according to this concept to help you solve all kinds of solid-liquid separation challenges.

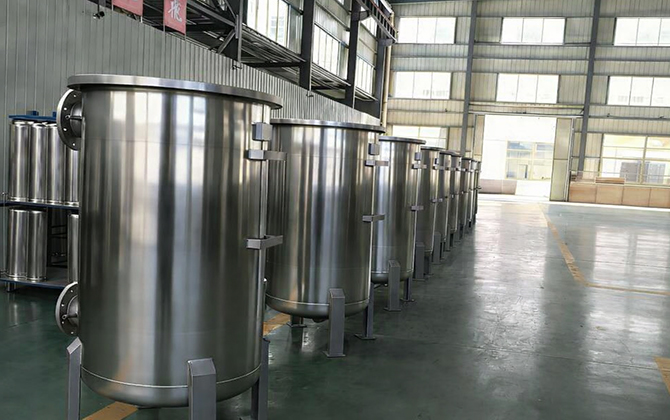

We have a 2,000 square meter production base equipped with advanced CNC machine tools, CNC rolling machines, stamping presses and automated welding equipment, as well as several pieces of laboratory equipment, including air tightness testers, pressure testers and flow testers. The complete configuration of these equipments and technologies ensures that the Automatic Candle Filter you receive can meet the most stringent performance requirements.
Through long-term technology development deposits, we continue to optimize the performance of our products, so that FiltEdge is always at the forefront of filtration technology, ensuring that you can get the most advanced and reliable filtration solutions.
Why Choose FiltEdge Company for High-Performance Automatic Candle Filter Systems?
Choosing a quality Automatic Candle Filter supplier not only reduces the amount of time you spend choosing a filter, it also eliminates concerns about the quality of your equipment and reduces the stress of maintaining it while it’s running. Choosing FiltEdge is the beginning of your choice to save heartache, effort and expense.
- FiltEdge has 22 utility model patented technologies for solid-liquid separation, covering opening and closing technology, cartridge structure, sludge discharge technology, and sealing technology. These innovations ensure that you experience the benefits of state-of-the-art technology when using the Automatic Candle Filter.
- FiltEdge has a professional testing laboratory, you can send materials to us for simulation testing, to provide scientific data support for your later equipment selection.
- FiltEdge has an annual production capacity of 3,200 units of liquid filtration equipment, which can easily cope with all kinds of large-scale projects.
- We have a professional purchasing team with more than 10 years of experience, strictly follow the purchasing process to control the quality of each raw material and spare parts, to ensure that the Automatic Candle Filter you get is always of high quality.
- Strictly according to ISO9001:2015 quality standards and 6S site management for production management, all equipment through the CE certification, to ensure that when you choose FiltEdge, you can get the most stable and reliable filter equipment.
- FiltEdge has warehouses in both the US and China to ensure that you have quick access to regular small equipment and accessories (e.g. filter bags, cartridges, O-rings, etc.). We are committed to providing you with one-stop shopping service.
- For non-standard customized equipment, we can achieve the fastest delivery of 4 days, to meet your timeliness needs.
- In pre-sales, we provide you with technical analysis, sample analysis, selection analysis, customized design, rapid prototyping and other services to ensure that your needs are accurately understood and met.
- After sale, for common problems, FiltEdge provides you with remote debugging and diagnostic services to assist your operators in solving problems. We also provide services such as dispatching technicians for on-site installation, maintenance, technical guidance and personnel training to ensure the long-term stable operation of Automatic Candle Filter equipment.
Challenges And Applications of Automatic Candle Filters
Whatever your filtration challenges, FiltEdge’s Automatic Candle Filter offers solutions for a wide range of industry applications to help you tackle them with ease.

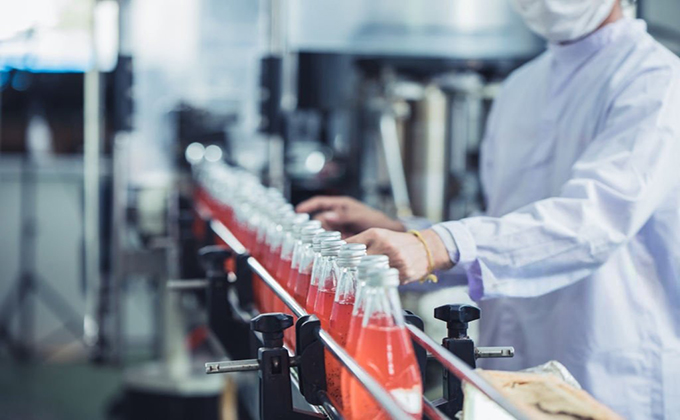

In the food and beverage industry, how to efficiently decolorize edible oils, clarify syrups, and ensure product safety and quality is a problem that every production manager needs to solve.FiltEdge’s Automatic Candle Filter is a filtration system designed specifically for high-viscosity, high-solids materials. All you need to do is to adjust the accuracy to 0.2μm to 10μm according to the quality requirements of edible oil or syrup, and then you can easily finish the work of decolorization and clarification. We use FDA-approved food-grade materials (e.g., 316L stainless steel, PTFE seals, EPDM rubber, etc.) to ensure that the equipment meets strict health and safety standards. Meanwhile, the Automatic Candle Filter’s fully automatic and fully enclosed design effectively protects your product quality and food safety, allowing you to produce with peace of mind.
The pharmaceutical industry places high demands on filtration, especially in terms of “hygienic sterility” and “separation of ultrafine particles” FiltEdge’s Automatic Candle Filter is capable of achieving precision filtration of up to 0.1 μm and FiltEdge’s Automatic Candle Filter is capable of achieving precision filtration up to 0.1μm and utilizes a pre-coating process that ensures the interception of microscopic contaminants to meet the purity requirements of the pharmaceutical industry. Our equipment is FDA-compliant and GMP-compliant for fully automated, sealed operations, which further ensures product hygiene and safety. In addition, FiltEdge’s candle filters automatically record operational data, providing reliable support for your production documentation, ensuring compliance and traceability.

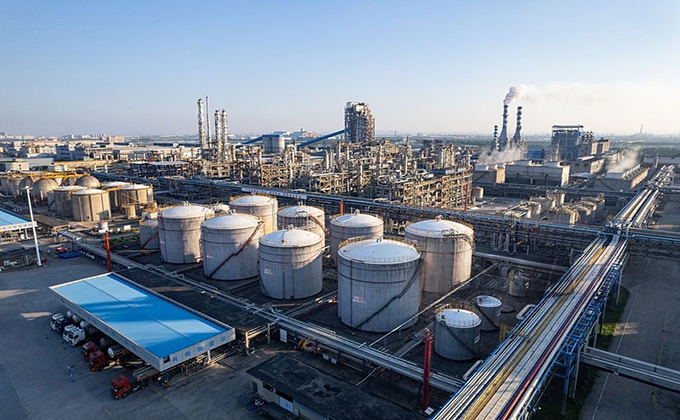

In the fine chemical and petrochemical industries, it has always been a challenge for you to effectively recover expensive catalysts and extend the life of your equipment to reduce corrosion. You may have realized that traditional filtration systems struggle to meet this need, but FiltEdge’s Automatic Candle Filter solves these problems once and for all. By carefully selecting corrosion-resistant materials (e.g., 316L stainless steel, PTFE, PVDF, Viton, etc.), we effectively prevent equipment from corroding due to the filtration of acid and alkaline fluids. What’s more, FiltEdge’s Candle Filter adopts slag filtering technology, which is capable of precision filtration down to 0.1μm, maximizing the interception of catalysts and ensuring that you are able to recover the complete high-value materials. Meanwhile, the backblow unit helps you get an ultra-dry filter cake for improved catalyst recovery. And the fully automated design reduces manual intervention, allowing you to improve efficiency while ensuring production safety.
FiltEdge’s Automatic Candle Filter not only has a wide range of applications in the fine chemical, food and beverage, and pharmaceutical sectors, but it also provides superior filtration solutions in a number of industries. The following are some typical application scenarios:
Decolorized Carbon Filtration | Catalyst Recovery Filtration
Lithium Liquid Filtration | Brine Refining Filtration
Epoxy Resin Filtration | Inorganic Salt Production
Plasticizer Filtration | Flue Gas Desulfurization Filtration
Lactic Acid Filtration | PLA Adsorbent Filtration
PGA Filtration | Titanium Dioxide Filtration
Polymer Filtration | TDA Hydrogenation Filtration
Bio-extraction Filtration
Regardless of your industry, FiltEdge’s Automatic Candle Filter provides you with precision filtration solutions that will help you increase your productivity, reduce your costs, and improve the quality of your final product.
Technical Specifications of Automatic Candle Filter
The parameters of FiltEdge’s Automatic Candle Filter are for your reference to choose the suitable product, and can be customized according to your needs if required.
- Technical Specifications
| No. | Product Model | Filter area (m²) | Dimension (mm) | Filter media size(mm) | Quantity of Filter Media (pcs) |
| 01 | DCF-1 | 1 | ф377*1600 | ф60*760 | 7 |
| 02 | DCF-2 | 2 | ф450*2000 | ф60*1070 | 10 |
| 03 | DCF-3 | 2 | ф450*2500 | ф60*1600 | 10 |
| 04 | DCF-5 | 5 | ф550*2400 | ф60*1400 | 19 |
| 05 | DCF-8 | 8 | ф700*2500 | ф60*1520 | 29 |
| 06 | DCF-10 | 10 | ф700*3500 | ф60*1830 | 29 |
| 07 | DCF-15 | 15 | ф900*3500 | ф60*1830 | 44 |
| 08 | DCF-20 | 20 | ф900*3500 | ф60*2450 | 44 |
| 09 | DCF-30 | 30 | ф1250*4500 | ф86*2300 | 49 |
| 10 | DCF-45 | 45 | ф1500*4800 | ф86*2600 | 64 |
| 11 | DCF-60 | 60 | ф1800*5000 | ф86*2600 | 86 |
| 12 | DCF-80 | 80 | ф2000*5500 | ф86*2800 | 108 |
| 13 | DCF-100 | 100 | ф2200*5500 | ф86*2200 | 172 |
| 14 | DCF-120 | 120 | ф2200*6000 | ф86*2600 | 172 |
| 15 | DCF-150 | 150 | ф2500*6400 | ф86*2600 | 214 |
The Relevant Products You Will Use

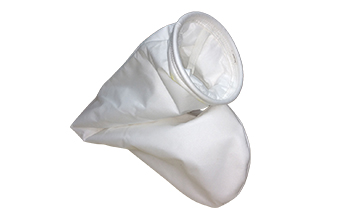

PP Candle Filter BagPrecision:1-200μm

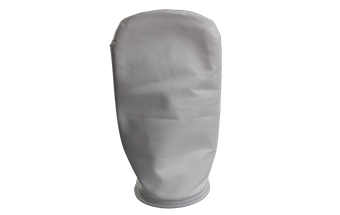

PET Candle Filter SockPrecision:1-200μm

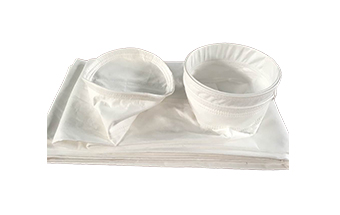

PTFE Candle Filter SleevesPrecision:1-200μm

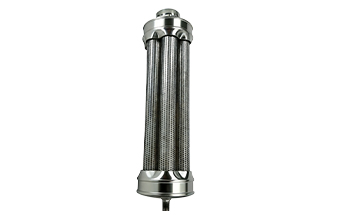

Candle Filter CartridgePrecision: 1-200μm
Get a Customized Automatic Candle Filter Proposal Now
You don’t need to be indecisive about choosing the right Automatic Candle Filter! Whether it’s process analysis, model selection, custom design, proposal comparison and order preparation, FiltEdge – the world’s leading manufacturer of Automatic Candle Filters – can provide you with a fast, accurate and cost-effective solution for every filtration need.
Choose the next step that’s best for you:
Download Technical Information Packages
Want to learn more about Automatic Candle Filter product details, technical specifications, or conduct a project evaluation? Contact us and you’ll get instant access to a complete technical resource kit containing a PDF selection guide, dimensional drawings, material specifications, and more to help you make a quick decision.
Request a Project Consultation
Still confused by the tedious selection of parameters? Worried about poor filtration or clogging problems? Submit your process requirements and FiltEdge engineers will provide you with free, customized selection advice and process optimization solutions to ensure your filtration system maximizes performance.
Get a Professional Quote
Provide flow rate, fluid characteristics (e.g., solids, pH, etc.), pressure, temperature, installation space, and other pertinent parameters, and our team will provide you with a detailed quote and delivery schedule within 24 hours, ensuring that you can get your project started early and delivered on time.
Contact a FiltEdge engineer today for a customized solution and quote for your filtration needs to improve productivity and optimize your process!
Although their names both include a candle filter, they are two completely different products. A household filter is usually a Ceramic Candle Filter, which relies on the gravity of the liquid to filter, and is not under much pressure. On the other hand, our Industrial Pressure Automatic Candle Filter is able to withstand pressures ranging from 0.6MPa to 2.5MPa, and is specially designed for industrial applications. It is a fully automatic, high-flow product, not a single cartridge consumable.
FiltEdge’s Automatic Candle Filter features a unique technology called “filtering residue with residue”. The filter media is filtered through the cartridge in a closed housing, and the filter residue forms a uniform cake on the cartridge. When the pressure in the housing or the filter cake reaches the initial setting, the filter is automatically purged through the Pulse Tube Filter, which instantly removes the filter cake. The entire process adequately separates and clarifies liquid and particulate matter, guaranteeing a smooth flow of your production process.
FiltEdge Automatic Candle Filter Beer is especially suitable for beer filtration in breweries. The Pre-coating technology effectively removes yeast, impurities and allows for an excellent clarity without affecting the taste and flavor of the beer.
FiltEdge offers a variety of filter materials, Candle Filter Steel has 316L, 304L stainless steel; Synthetic Cloth Sleeves have PP, PTFE, according to your process requirements and budget, you can freely choose the appropriate material to ensure filtration effect.
After finalizing the plan, our engineers will provide you with detailed design drawings. Automatic Candle Filter Diagram will mark the key parts and data such as feed inlet, clear liquid outlet, cone bottom discharge port and internal discharge pipe. A common design is the Vertical Candle Filter, which displays the Header and suspended cartridge above. If the installation site has special requirements, we will provide Horizontal Candle Filter, Skid Mounted Candle Filter drawings to you.
FiltEdge’s Automatic Candle Filter Price varies according to the filtration area, material, function, working pressure and temperature and other factors. Regular prices range from tens of thousands of dollars to hundreds of thousands of dollars, and we will give you a detailed quote based on your specific needs. Although the initial investment is relatively high, the cartridges are renewable, you don’t need to keep buying consumables at a later stage, and the level of automation improves productivity, so you can usually recoup the cost through savings in about a year. For high value substances, it is not impossible for you to recoup your costs within 3 months.
FiltEdge’s Sanitary Automatic Candle Filter strictly complies with FDA and GMP standards. The internal Mirror Polishing design supports CIP cleaning, which fully meets your high requirements for hygiene and safety.

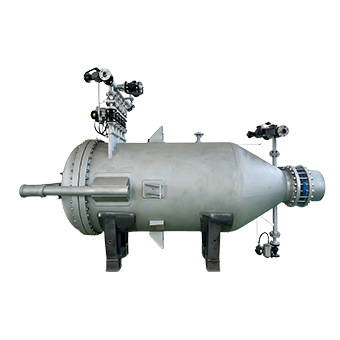

The FiltEdge Candle Cake Filter reduces the moisture content of the cake to less than 20% by blowing back nitrogen or other gases. It is particularly well suited for the efficient recovery of expensive materials such as Catalyst Recovery. This technology can greatly improve the recovery of materials and reduce your losses.
FiltEdge’s Automatic Candle Filters do not require manual cleaning, they are self-cleaning filters that automatically restore the cleanliness of the cartridge by back-purging gas. All you need to do is perform regular back-purging, or you can even use spray cleaning technology to ensure that the cartridges run efficiently for a long time.
Of course there are. All that is required is for you to pay regular attention to the pressure gauge data and make maintenance adjustments in a timely manner; and to perform regular back-purging cleaning of the filter element. Make sure to check the condition of the seals regularly, and your Automatic Candle Filter will provide you with long-lasting quality service.
