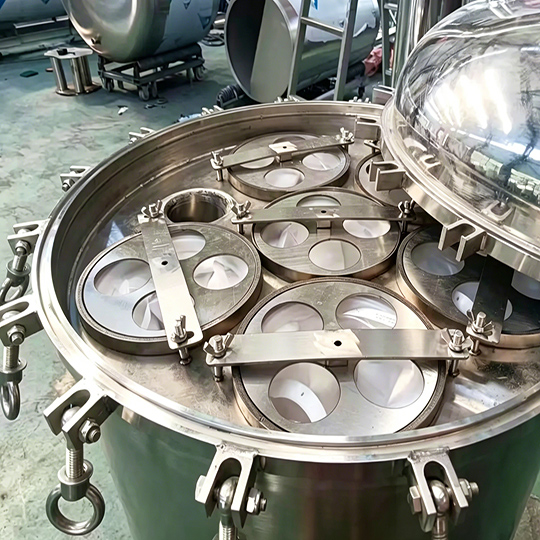

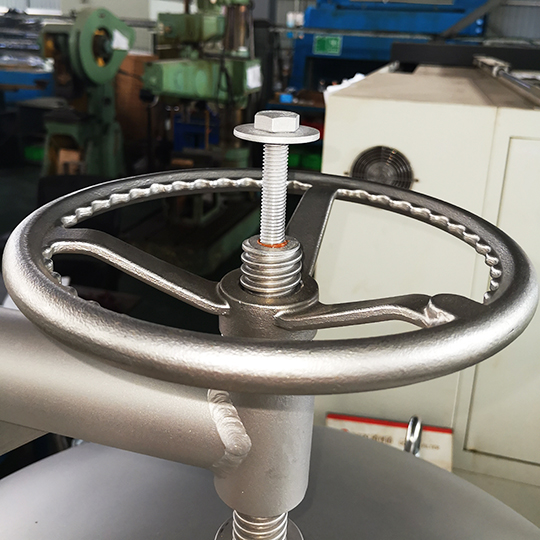

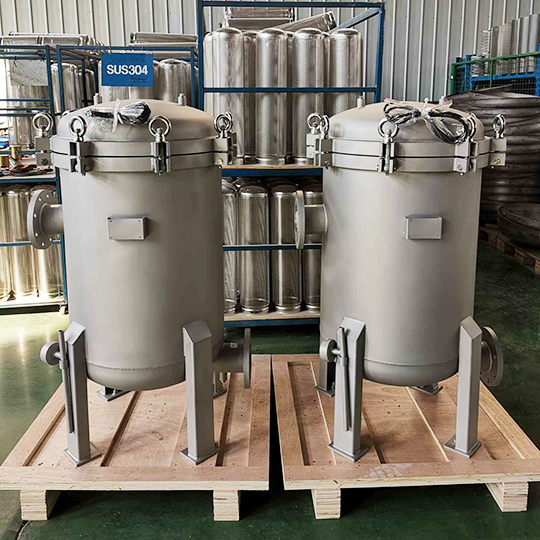

Advantages of FiltEdge's 6 Bag Filter

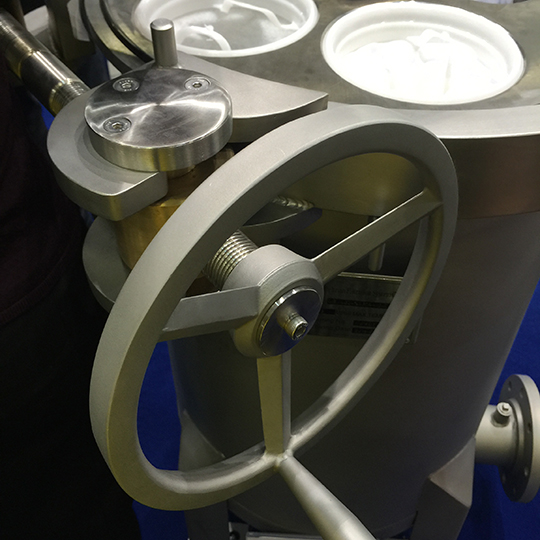

Maintenance: Quick-open, rocker-type and other lid arrangements are available according to the selected configuration. Maintenance time depends on the equipment and site procedure.
Sealing: Confirm the bag-ring and sealing arrangement for your fluid and operating conditions. Correct assembly and inspection remain necessary; no zero-bypass guarantee is implied.
Customization: Material, connections and inlet/outlet orientation are reviewed against an approved specification.
Inspection: Confirm the applicable pressure and weld inspection plan, including any stated 1.5-times pressure test, before ordering. Available documents must be checked for their product-specific scope.
6 Bag Filter Type
FiltEdge’s 6 bag filters can be customized to suit the flow rate, the nature of the liquid, and the location of your plant in terms of bag size, filter material, closure, and more.

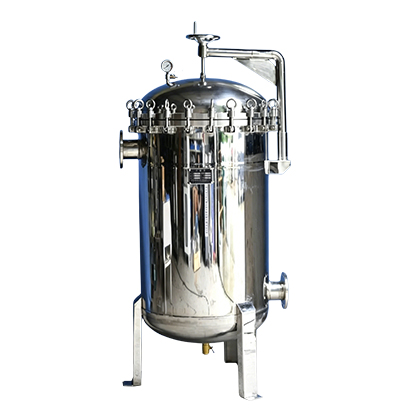

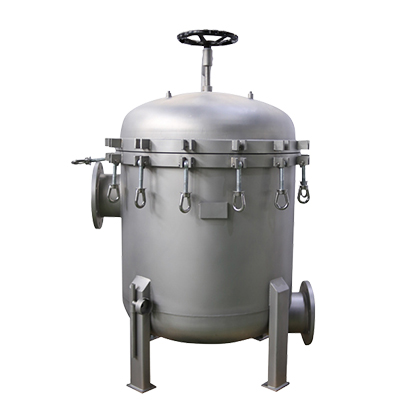

There are two types of stainless steel, 304/316, which can be selected according to your actual working conditions.
Commonly used in small corrosive, large flow rate of water treatment, can save your cost.

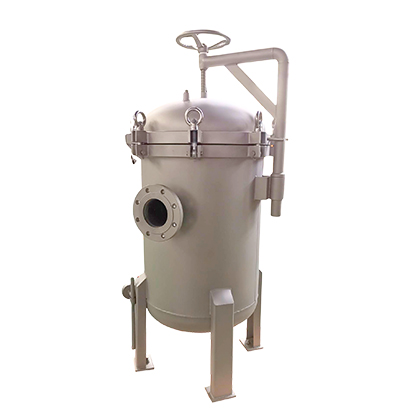

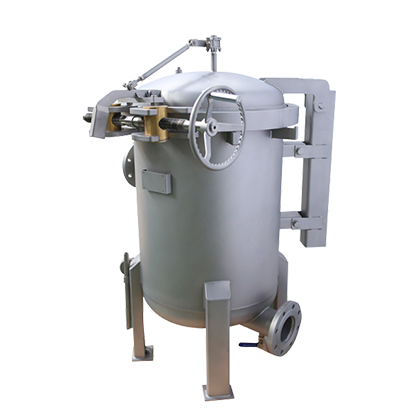

The cover can be opened by one person within 15 seconds, allowing you to change the filter bag quickly and reduce downtime.

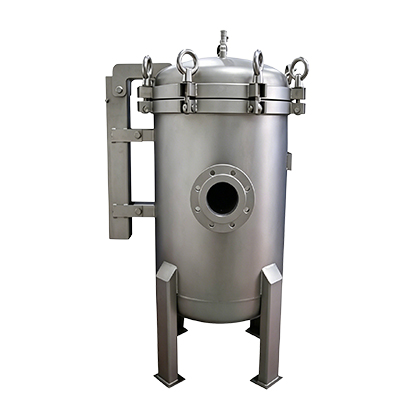

Clam Open 6 Bag FilterOpen like a clam shell, the lid can be opened at any angle, suitable for compact spaces.
Features of 6 Bag Filter
FiltEdge’s 6 Bag Filter is designed to save you downtime, reduce labor, save you as much money as possible, and improve your production line efficiency and product quality.
One person can operate and maintain the filter, reducing downtime to less than 10 minutes.
Handles flow rates of 120-240 m³/h.
Conventional 0.6-1.0MPa, customizable to 2.5Mpa
1-2000μm precision coverage allows you to use for coarse filtration, fine filtration
Stainless steel material and internal anti-corrosion spraying

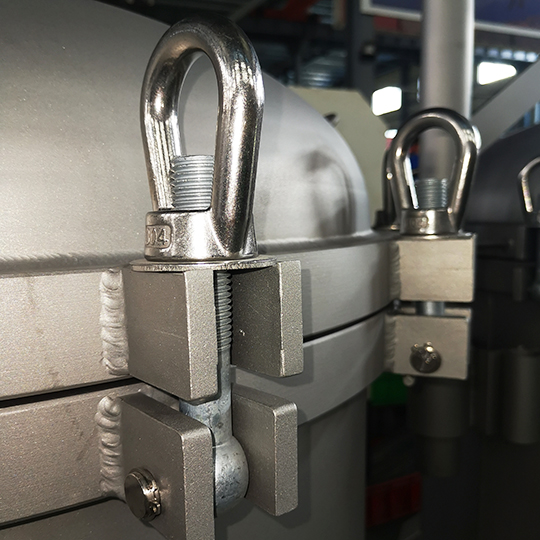

Three-point locking structure prevents leakage
Pressure relief device to open the lid, to protect personal safety.
Can be used with any bag of different brands, saving your cost of consumables.
Applications For The 6 Bag Filter
Our 6 Bag Filter can be used in the water treatment, fine chemical, food and beverage, and automotive paint industries. Depending on the effect you want to achieve for the whole filtration system, choose from 1-2000μm precision, and apply the 6 Bag Filter to coarse or fine filtration of solvents, resins, edible oils, cooling water and so on. Protect your back-end equipment and improve product quality.

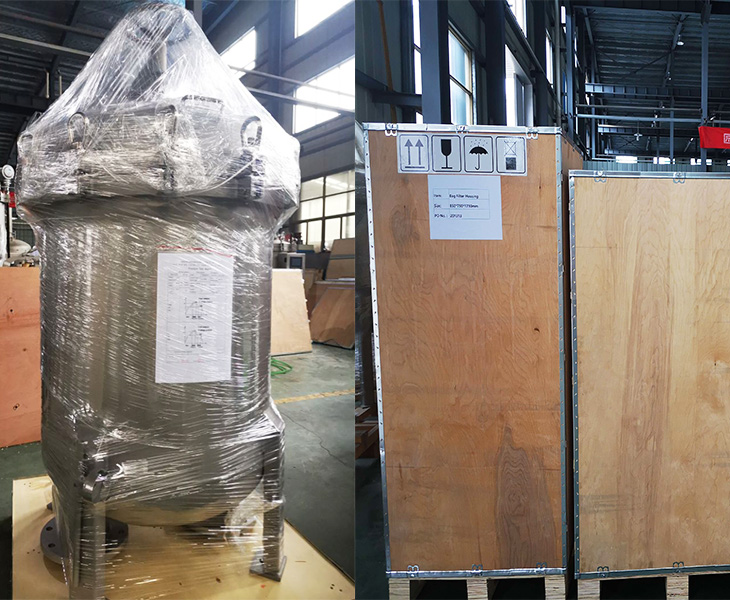

Packaging of 6 Bag Filter
6 Bag Filter already belongs to the heavy-duty filter housing, it has been wrapped by our bubble film/pearl cotton, as well as stretch film, and the fittings are firmly fixed. The flange and other key parts are again protected. The base is bolted down to ensure that the filter does not shift in the non-steam wooden crate. Your mark and important identification are affixed on the outside of the wooden box. You can rest assured that you will receive the filter in good condition.
6 Bag Filter Certification
Confirm the selected 6 bag filter configuration, applicable design requirements and available certificates before ordering. Material declarations and test reports must be reviewed for the intended application; no blanket ISO, CE or FDA product approval is implied.

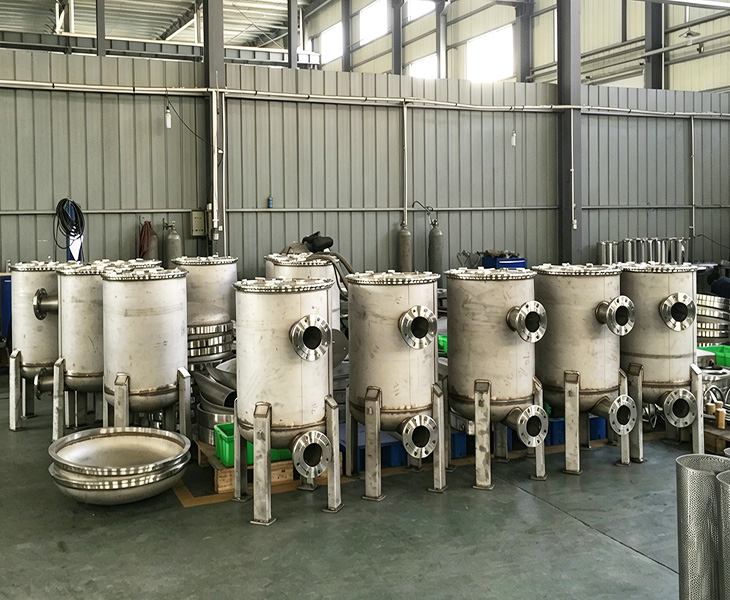

Customized 6 Bag Filter
As a 6 bag filter manufacturer, FiltEdge offers a full range of customization services to better match your current filtration needs. We at FiltEdge can provide you with design-to-test prototyping services within 7 days, including condition analysis, material selection, CAD design drawings and more.

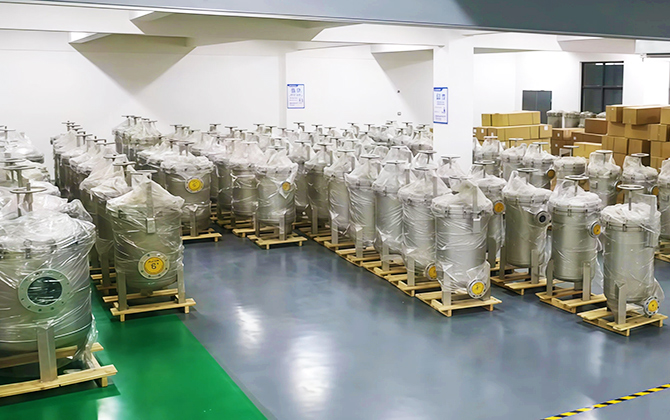

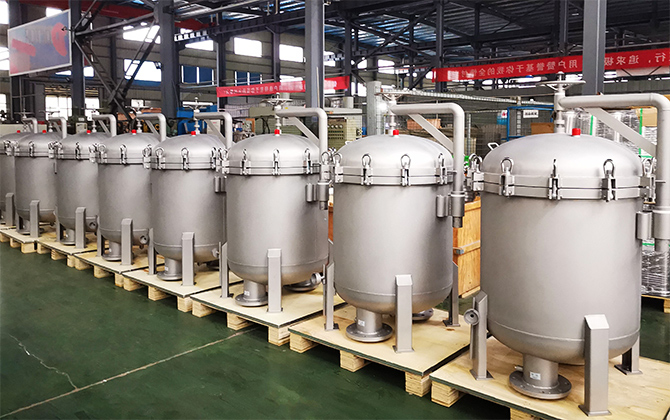

Why Choose FiltEdge's 6 Bag Filter?
FiltEdge LLC is a U.S. company established in 2025, supported by SFFILTECH in China, established in 2006. Manufacturing support is provided through SFFILTECH in China; this does not imply a FiltEdge-owned U.S. factory or warehouse.
Contact us to review the filter and spare-parts specification, required inspection documents and delivery schedule. Remote support is arranged during business hours. Any on-site installation, maintenance or training requires separate agreement. Payment and delivery terms are confirmed in the quotation and order.
Technical Parameters of 6 Bag Filter
Below are the core technical parameters of FiltEdge’s 6 bag filter to help you quickly navigate. For other detailed information, you can contact us, tell us your actual working conditions and detailed requirements, we will help you do the analysis.
- Technical Parameters of 6 Bag Filter
| Item | Specification |
| Number of Bags | 6 Bags (Standard Configuration) |
| Flow Capacity | 1050 GPM to 1400+ GPM (Approx. 240+ m³/h) |
| Structural Type | Rocker-Arm or Mussels-Open Multi-Bag Housing |
| Opening Method | Quick-Opening + Rocker-Arm Assisted / Spring-Balanced Mechanism |
| Bag Size Compatible | Standard #2 Bag (7″ × 32″) or #1 Bag (7″ × 16″) |
| Filtration Rating | 1 – 1000 μm (Standard: 1, 5, 10, 25, 50, 100 μm) |
| Material Options | SS304, SS316L, or Carbon Steel |
| Design Pressure | 0.6 – 1.6 MPa (Customizable up to 2.5 MPa / 25 bar) |
| Operating Temp | -20°C to 120°C (EPDM); Up to 150°C (Viton/PTFE) |
| Sealing System | High-quality O-ring (Buna, EPDM, Viton, PTFE) |
| Inlet/Outlet Size | DN150 (6″) – DN200 (8″) Standard Flanged Connection |
| Surface Treatment | Internal Polishing (Ra ≤ 0.8 μm); External Sandblasting or Mirror Finish |
| Design Standards | ASME Section VIII Div.1 / CE-PED / GB150 |
We have 3 main types of 6 Bag Filters, and the way they open and close directly affects the time it takes to change the bags. Usually it takes about 10 minutes to change the bags. If you want to change the filter bag faster, you can consider the quick-opening 6 Bag Filter.
For normal neutral liquids, you can consider carbon steel with anti-corrosion coating to save cost, or 304 stainless steel. For acidic and alkaline solutions or food applications, we recommend that you use 316 stainless steel for the housing container. In addition to the filter housing material, the choice of seal material is equally important. We have EPDM/Viton/PTFE seals for 6 Bag Filter.
Theoretically it is compatible, but in practice it is not recommended. Because the cartridge filter housing and the bag filter housing have the same appearance, but the internal support structure is not the same. So you can’t simply replace the filter bag in the 6 bag filter with a cartridge.
Our filters have a pressure gauge connection and you can install a differential pressure gauge. When the gauge shows a differential pressure of 0.05-0.1 MPa, the filter bag can be replaced.
FiltEdge’s 6 bag filter is certainly easy to clean. Although the 6 bag filter is already a large filtering equipment, we have the opening and closing structure that can be operated by one person. Secondly, the welds on the inside of the filter are flat and polished, so there is no liquid residue, and you can clean the entire inside of the unit through the bottom drain. If you face the situation of replacing slurry, our filter basket can also be pulled out directly, which is convenient for you to maintain the whole filter.
