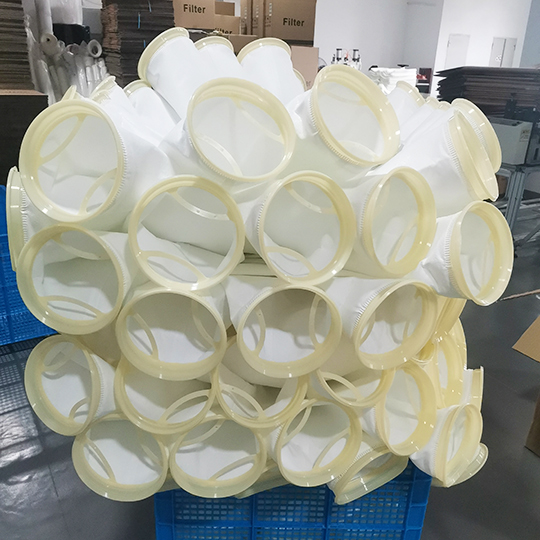

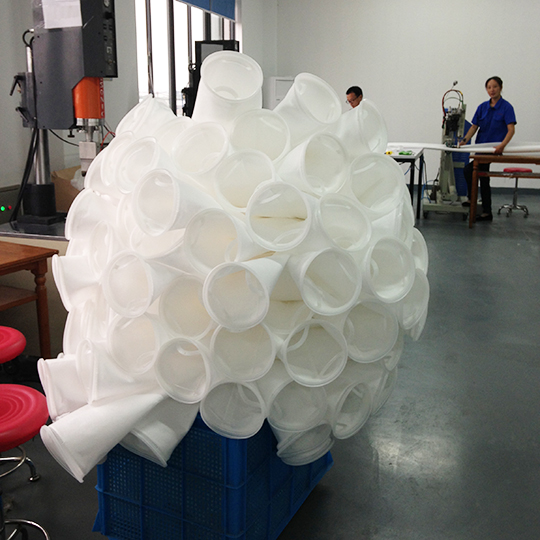

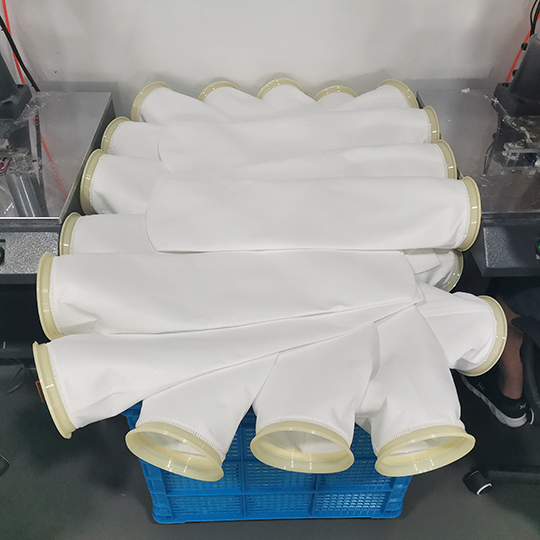

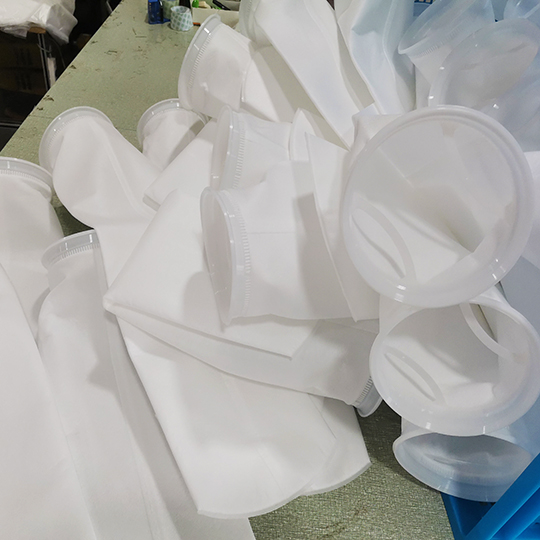

Why Choose FiltEdge 5 Micron Filter Bag?
Order Planning
Production availability and delivery schedules are confirmed for each order.
Quality Documentation
Confirm the required inspection plan and available batch records for the selected 5 micron filter bag.
Technical Support
Contact us during business hours for selection and troubleshooting support; service scope and timing are agreed according to the application.
What Is FiltEdge 5 Micron Filter Bag?
Are you fed up with frequent bag ruptures, liquid bypass leaks, and costly maintenance downtime? We have the exact solution you need.
Designed to seamlessly fit into your existing housing, the FiltEdge 5 micron filter bag helps you capture fine particles down to 5 microns—protecting your equipment and keeping your production line running without interruption.
Made of high-quality filter materials under strict production control, it gives you stable filtration performance and high dirt-holding capacity. Compared to coarse-accuracy filtration solutions, your FiltEdge 5 micron filter bag delivers finer filtration while maintaining a good balance between service life and flow.
5 Micron Filter Bag by Material
Different liquids need different solutions — choose the material that delivers the performance you need.

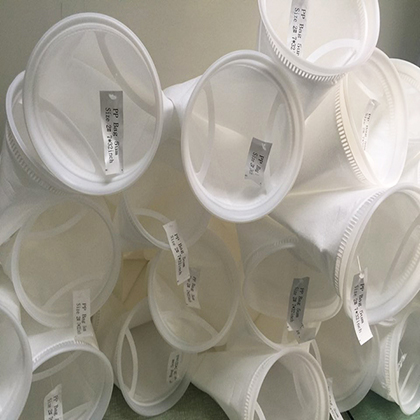

FiltEdge PP 5 micron filter bag is made of 100% Polypropylene, which has excellent acid and alkali resistance and is suitable for water treatment, chemical treatment and filtration of many industrial liquids.

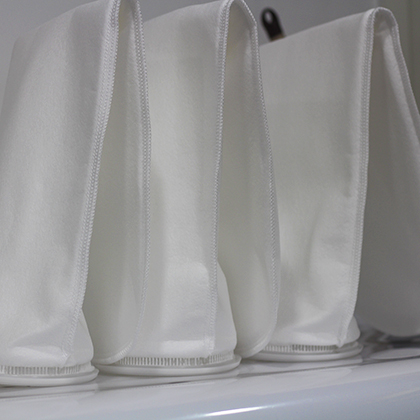

FiltEdge 5 Micron Polyester Filter Bag It has excellent temperature resistance and wear resistance and good resistance to organic solvents and dry heat, and is suitable for filtration of industrial liquids such as coatings, resins and oils.

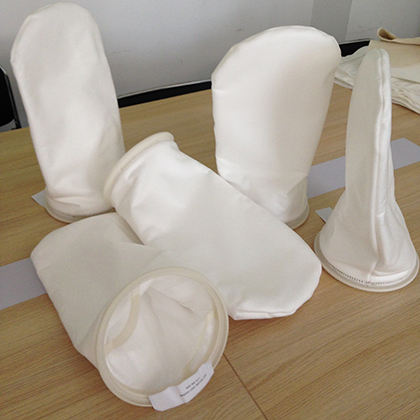

PTFE 5 Micron Filter BagFiltEdge PTFE 5 Micron Filter Bag is designed for the filtration of highly corrosive industrial liquids, with excellent high temperature and chemical resistance, and is widely used in industries with strong acid and base liquid characteristics such as pharmaceutical and battery production.

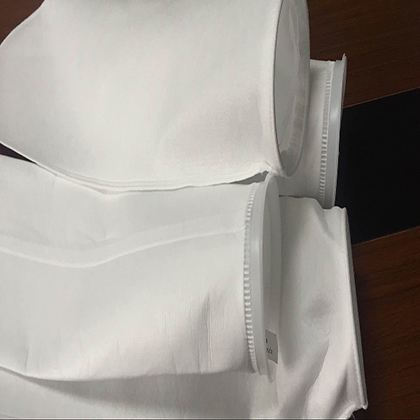

POXL 5 Micron Filter BagThe FiltEdge POXL (Polypropylene Extended Life) 5 Micron Filter Bag not only has four times more dirt-holding capacity than ordinary Polypropylene Felt, but also has a longer service Life, which is widely used in automotive spraying and chemical industries.

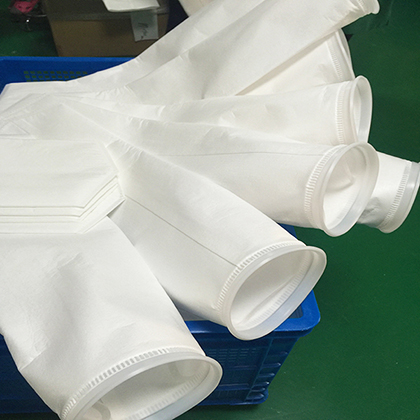

PEXL 5 Micron Filter BagFiltEdge PEXL (Polyester Extended Life) 5 Micron Filter Bag It is composed of finer and heavier fibers, has higher dirt-holding capacity, makes the running time of the process longer, and is mostly used in the treatment of industrial wastewater.
Key Features of FiltEdge 5 Micron Filter Bag
Our 5 micron filter bag is designed to reduce the number of filter bag changes, reduce maintenance costs, and avoid the risk of contamination, providing you with a continuous and stable filtration solution.
Fine fiber control and optimized production process flow reduce the risk of fiber shedding, ensuring your high-quality production of products in industrial applications such as coatings, food and beverage, and pharmaceuticals.
The precision seal ring design allows the filter bag to fit perfectly with the liquid filter, preventing liquid bypass and leakage
Our 5 micron filter bag provides excellent resistance to high pressure and deformation. Even in high flow and harsh filtration environments, the seam of the filter bag will not crack, and still maintain stable filtration performance
Designed for quick installation and maintenance, our 5 micron filter bags are available in a variety of sizes and ring-mouth construction, reducing operator downtime for maintenance and reducing manual maintenance costs
The high pollution capacity and durable filter bag structure reduce the number of filter bag replacements and reduce the comprehensive operating cost of industrial filtration systems
Our 5 micron filter bag has a uniform pore size distribution through the control of precise fiber distribution, ensuring relatively stable filtration accuracy throughout the operation of the continuous filtration system.
Durable filter materials and reinforced structural design allow our 5 micron filter bag to have a longer replacement cycle while ensuring stable filtration performance.
We offer pp, pe, ptfe and other materials for you to choose from. Whether it is high temperature or high acid or high alkali industrial chemical environment, we can provide you with filter materials that suit your filtration needs

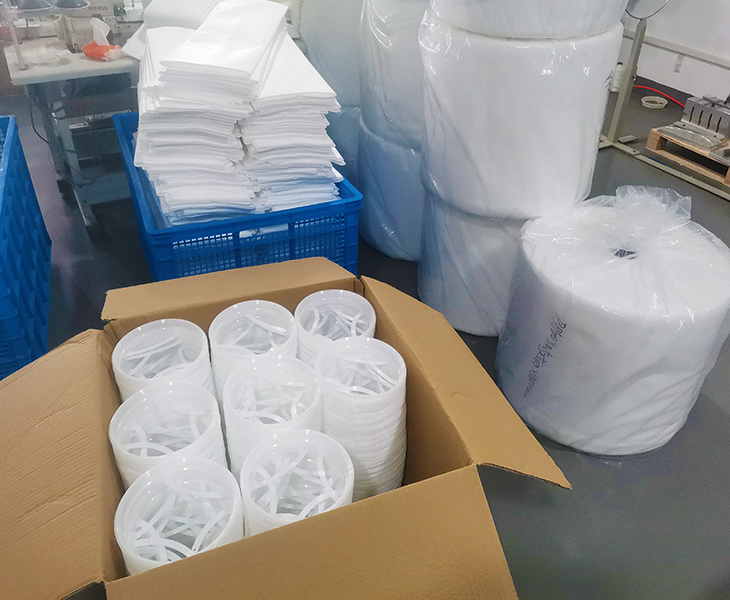

Customized 5 Micron Filter Bag for Your Specific Filtration Requirements
We can design and customize 5 micron filter bags that match your actual filtration needs according to the liquid characteristics, operating conditions and equipment requirements of your filtration solution, including a variety of filter bag sizes, ring types, sealing structures and materials with different chemical resistance properties. You can tell us your liquid viscosity, temperature, flow rate and other parameters by clicking [Send Inquiry Now], Filtedge will provide you with fast and reliable customized filtration solutions.

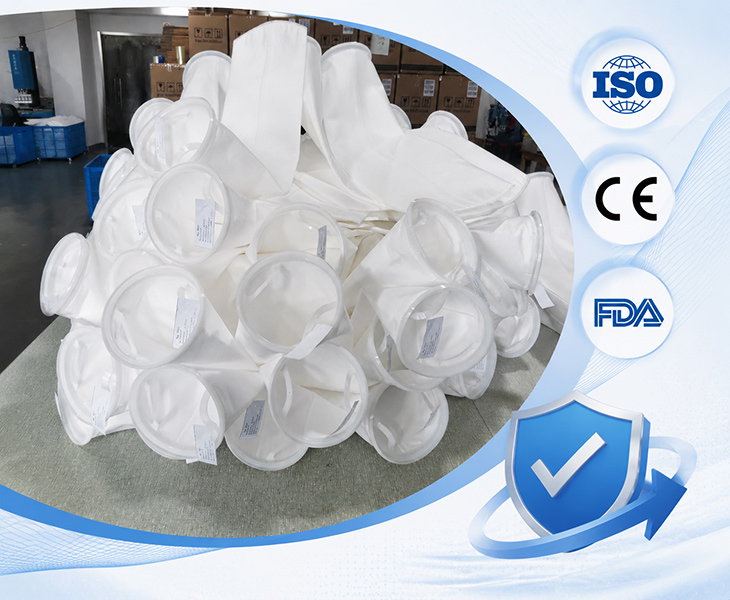

Certified 5 Micron Filter Bag for Reliable Industrial Filtration
For the selected 5 micron filter bag, confirm available material declarations, quality-system certificates and batch test reports against your application requirements. Review the relevant entity, facility, product and document scope before ordering; documentation does not guarantee performance in every process.

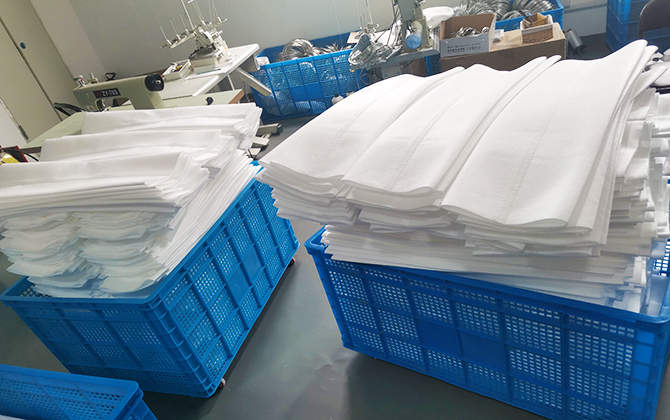

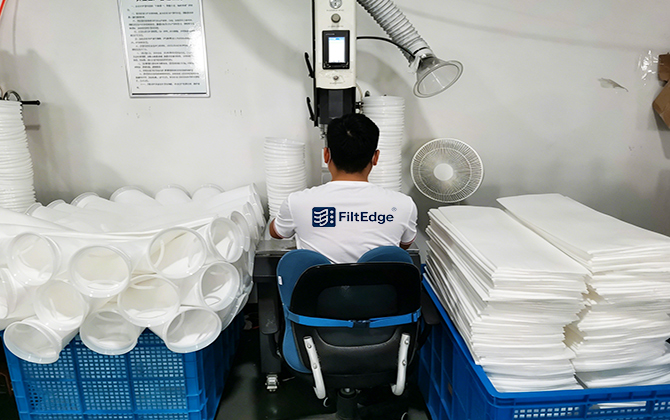

Why Choose Filtedge for 5 Micron Bag?

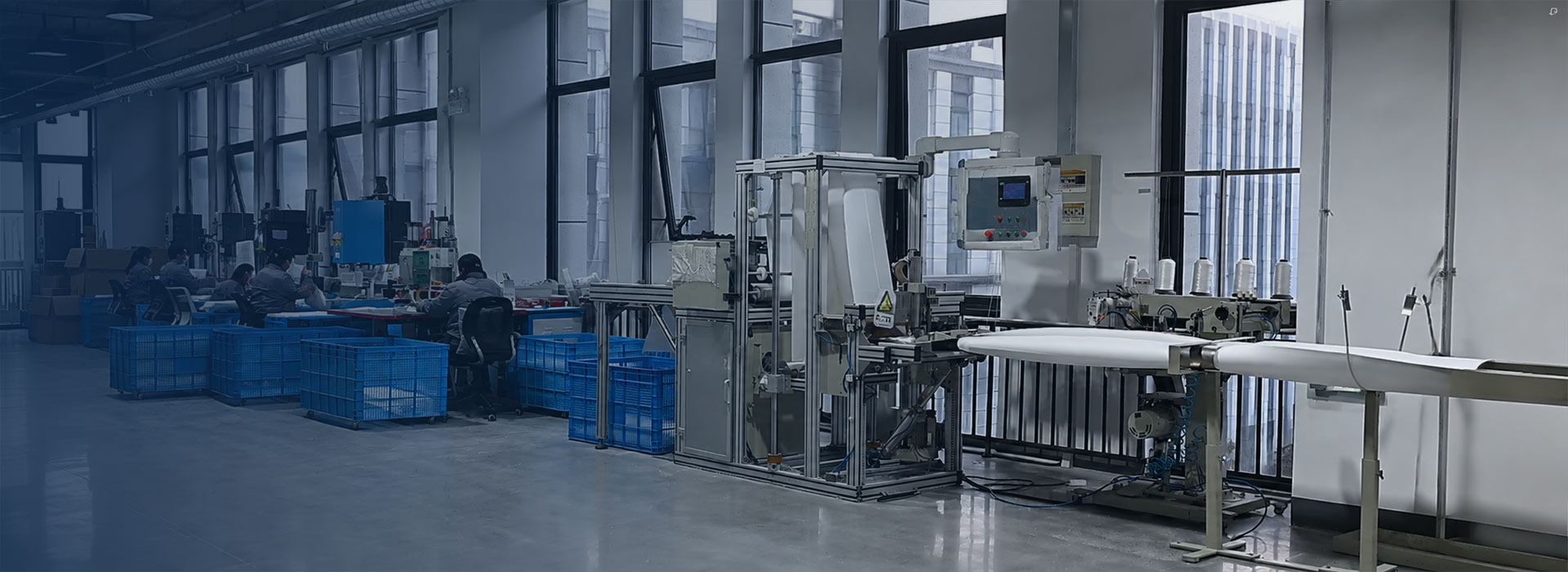

FiltEdge LLC is a U.S. company established in 2023, supported by SFFILTECH in China, established in 2006. Manufacturing support is provided through SFFILTECH in China.
Contact us to review your 5 micron filter bag specification, quantity and available documentation. Production, delivery and support arrangements are confirmed for each order; inquiries are handled during business hours.
Applications of 5 Micron Filter Bag
Our 5 micron filter bag is widely used in water treatment, food and beverage, aquaculture, electronic semiconductor production and many other industries to provide you with customized and reliable 5 micron filtration solutions.
In circulating water treatment, the 5 micron filter bag is often used as a front-end mechanical filtration link to help you efficiently remove fine suspended particles from fish and shrimp farming systems and RAS circulation pipelines, and keep the sink clean. At the same time, in the ocean and aquarium display system, it presents a clearer display effect for tourists, reduces manual cleaning work and reduces the operating cost of the water system.
In the process of pharmaceutical production, our 5 micron filter bag is widely used in the pre-filtration of raw material solution (API), buffer solution and purified water, effectively trapping fine impurities before they enter the subsequent process, helping to reduce the risk of contamination and provide you with a more stable pharmaceutical production.
FiltEdge 5 micron filter bag can effectively remove fine particles in your juice, syrup and edible oil, maintain the transparency and original taste of your products, help reduce the your contamination risk of products and ensure the stable operation of back-end canning equipment.
FiltEdge 5 micron filter bag is commonly used in industrial wastewater treatment or pre-filtration for electronic chemical supply systems, reducing clogging and contamination buildup in your wet equipment, chemical circulation systems, and back-end filter cartridges.
5 Micron Filter Bag Selection Guide & Technical Specifications
- 5 Micron Filter Bag Size
- 5 Micron Filter Bag Standard Specifications
| Bag Size | Diameter(Inch) | Length(Inch) | Dia*Length（mm） | Max Flow(m³/h) | Filter Area(㎡) | Volume(L) |
| Size#1 | 7 | 17 | 180×420 | 20 | 0.25 | 8 |
| Size#2 | 7 | 32 | 180×810 | 40 | 0.50 | 17 |
| Size#3 | 4 | 9 | 102×230 | 6 | 0.09 | 1.3 |
| Size#4 | 4 | 15 | 102×410 | 12 | 0.16 | 2.5 |
| Size#5 | 6 | 22 | 152×559 | 18 | 0.20 | 3.8 |
| Parameter | Specification |
| Filtration Rating | 5 Micron |
| Filter Media | PP Needle Felt / Polyester Needle Felt / PTFE Needle Felt (Optional) |
| Filtration Type | Depth Filtration |
| Material Options | PP / Polyester / PTFE |
| Construction | Sewn or Heat Welded |
| Ring Options | PP Ring / Stainless Steel Ring / Flat Ring / Drawstring |
| Operating Temperature | PP: ≤90°C (194°F); Polyester: ≤150°C (302°F); PTFE: ≤260°C (500°F) |
| Chemical Compatibility | PP: Good resistance to acids & alkalis; Polyester: Suitable for oils, solvents & organic liquids; PTFE: Excellent chemical resistance |
| Recommended Differential Pressure | Replace when differential pressure reaches approximately 1.0–1.5 bar (15–22 psi) |
| Available Sizes | Size #1, #2, #3, #4, #5 |
| Customization Options | Custom size, ring type, micron rating, and filter media available |
| Typical Applications | Water Treatment, Chemical Processing, Electronics, Paint, Resin, Food & Beverage |
Testimonials
“In our electronic manufacturing process, particle control is extremely important to us. Even a very small number of contaminated particles will lead to substandard product quality. After we used FiltEdge 5 micron filter bag for circulation filtration of chemical solutions, the replacement cycle of the filter bag was increased from 14 days to 30 days. Thank you very much to FiltEdge, because this greatly reduced our manual maintenance cost.”
Yuki TanakaManufacturing Engineer at NexTech Electronics Corporation“First of all, we would like to thank FiltEdge for its professional technical support for our filtration problems, because after using FiltEdge 5 micron water filter bag, not only was the clear frequency of our RAS recycling aquaculture system reduced from 3 times a week to about once every 10 days, but they also formulated quick and timely solutions for some of our existing filtration problems, and our strong after-sales service capability made us feel at ease.”
Maria GarciaFarm Technical Manager at Pacific Shrimp Farming Ltd.“FiltEdge has always been our most trusted long-term partner. In the process of our winemaking and manufacturing, yeast particles and protein deposits will continuously accumulate in the filtration system, which in turn leads to unstable filtration performance. Under the same operating conditions, FiltEdge 5 micron filter bag has higher pollution holding capacity, reducing unplanned downtime in our continuous production.”
Thomas MüllerBrewing Process Engineer at RheinCraft Brewery GmbH
FiltEdge 5 micron filter bag Physical entrapment of suspended particles in liquids by specially designed fibrous structures. As your liquid stream passes through the filter bag, impurity particles are intercepted by the deep filtration mechanism, allowing clean liquid to flow into your process. This filtration mechanism does not rely on chemical reactions, but effectively captures organic debris and rust particles through physical barriers. The optimized three-dimensional fiber network inside the 5 micron filter bag can achieve efficient retention of 5 micron particles.
The choice of Micron Filter Bag with filtration accuracy needs to be determined according to your actual application needs. If the micron rating is too coarse (e.g., selecting 50µm instead of 5µm), it cannot effectively remove fine suspended particles. If the micron rating is too fine (e.g., selecting 1µm), it will lead to high initial pressure drop and significantly increase bag replacement frequency. You only need to tell us the liquid chemical characteristics of the filtered liquid, the flow size, the temperature, the diameter of contaminated particles, the specifications of the liquid Filter housing and other parameters, and we will recommend the Micron Filter Bag that is suitable for you according to your actual working conditions.
In some application scenarios with high pollution load, such as industrial water treatment, pre-filtration of food and beverages, and circulation filtration of aquaculture, 5 micron filter bag can serve as a cost-effective alternative cartridge filter to reduce filtration costs and increase operational efficiency. However, for some applications with ultra-fine filtration requirements, Cartridge Filter can better meet the standardized requirements. If you are unsure whether to replace the current filter product, please send us some important information such as your industry and requirements for product cleanliness, and our professional technical engineers will give you reasonable suggestions.
Of course you can. You can apply for samples according to your actual needs, you only need to provide:
- Filtration accuracy
- Size of filter bag
- Material requirements
- Ring mouth structure
- Specifications of filter housing
We can provide you with suitable samples according to your production needs, and our technical team can also provide technical advice on filtration performance, service life and cost optimization according to your actual operating conditions.
