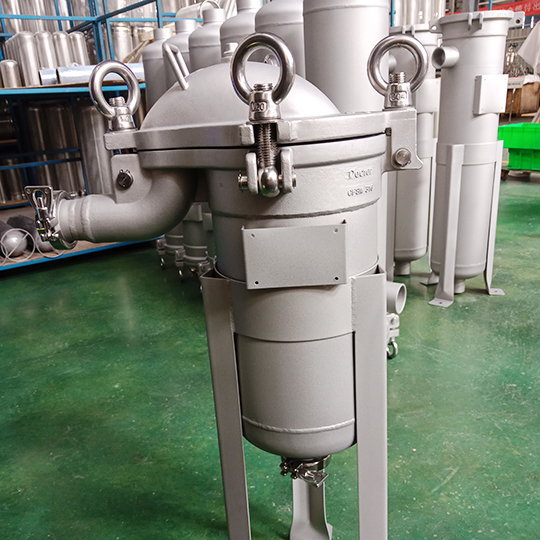

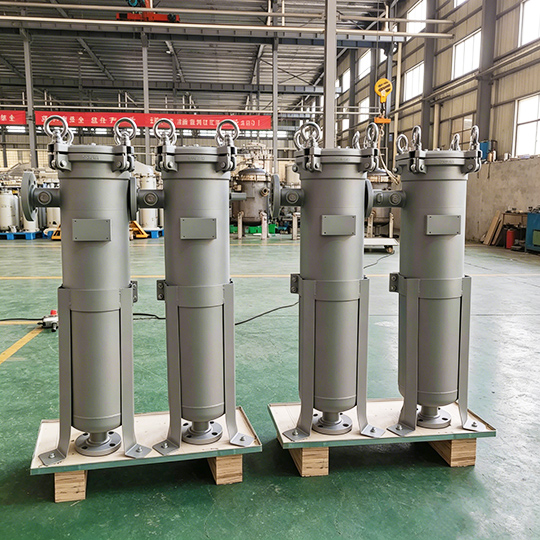

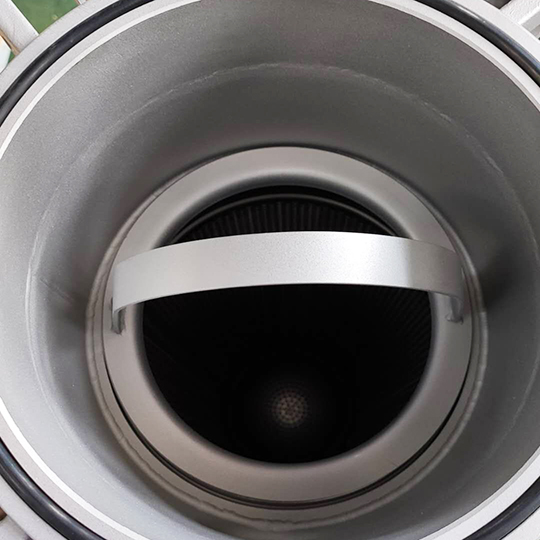

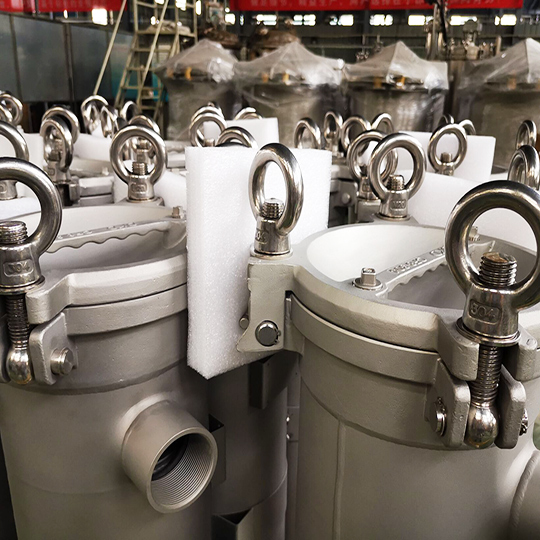

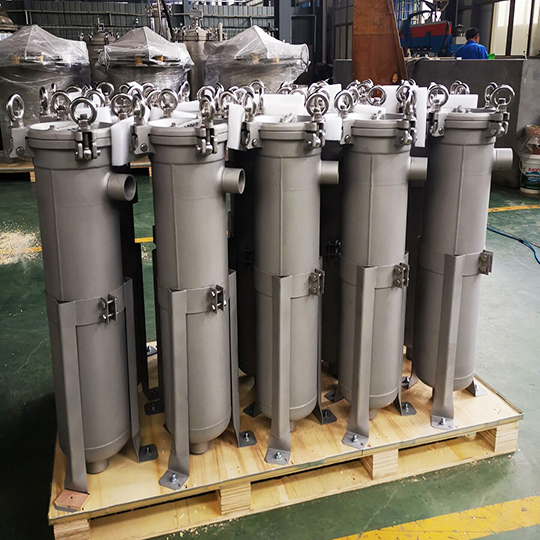

Details of FiltEdge's 1 Bag Filter Housing
- Heavy duty support blue: We provide you with a thickened and thickened design, which is more sturdy and prevents the filter bag from breaking under high pressure, reducing your consumable costs.
- Exhaust valve interface: Ensure your production safety and guarantee the air pressure before opening the hood
- Adjustable legs: can adjust the height more flexibly and better match your factory
- Sealing ring: Adopting standard O-ring design, 100% sealing
What Is A 1 Bag Filter Housing?
The 1 bag filter housing of FiltEdge is also known as the single bag filter housing. You can use it in laboratories or on production lines of small and medium-sized enterprises, such as craft breweries, small paint factories, cosmetics workshops, and so on. Based on the chemical properties and impurity content of your liquid, you can choose the most suitable material from carbon steel/SS304/SS316/PVDF/PP to better handle the corrosiveness and pressure of the working conditions.
We have two types of filter housings, top in and side in, with one bag type filter housing and opening and closing structures such as concave cover/flip cover/backpack, making it easy for you to quickly maintain the equipment.
Classification of 1 Bag Filter Housing
The 1 bag filter housing of FiltEdge is only available in top in and side in styles. If the following types do not meet your process requirements, you can customize materials, import and export, pressure, temperature, and so on.

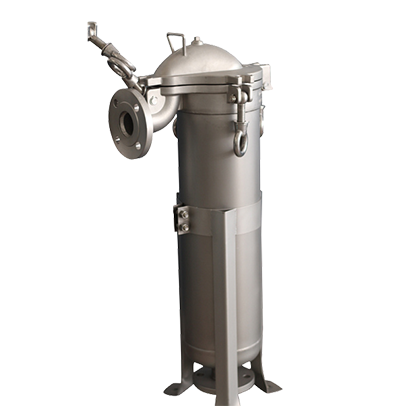

Top In 1 Bag Filter HousingThe liquid is distributed more evenly inside the tank and there are multiple materials to choose from.

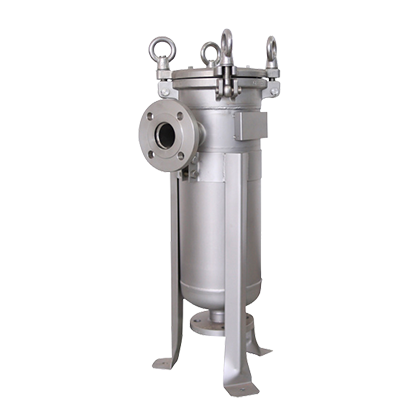

Side Entry 1 Bag Filter HousingMore suitable for compact pipeline layout, with multiple opening and closing methods to choose from.

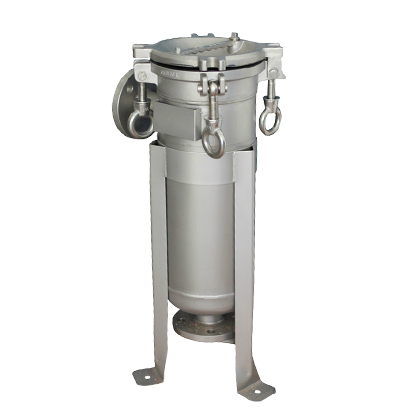

Stainless Steel 1 Bag Filter HousingThere are two materials to choose from, 304/316, with good pressure resistance performance

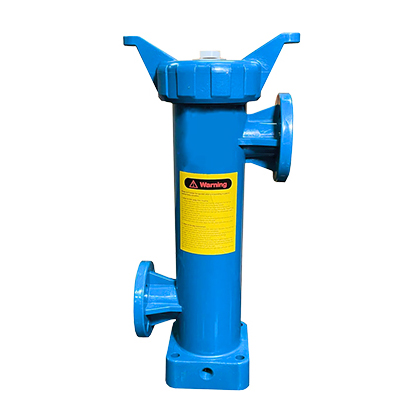

PVDF 1 Bag Filter HousingGood corrosion resistance, no metal ions will precipitate, suitable for industries such as ultrapure water, chips, semiconductors, etc.

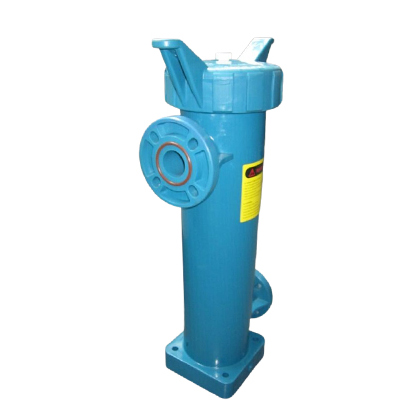

PP 1 Bag Filter HousingStable chemical properties, the king of cost-effectiveness under normal temperature conditions.

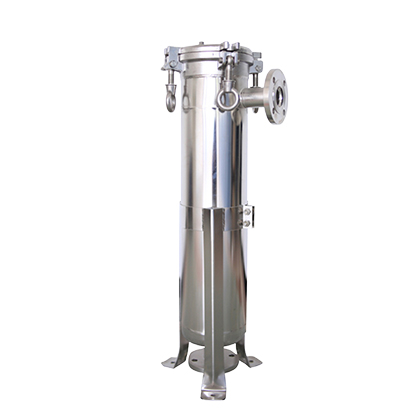

Food Grade 1 Bag Filter HousingMaterials and designs that meet FDA certification standards, suitable for food, beverage, and pharmaceutical applications.
Advantages of 1 Bag Filter Housing
The bag filter housing is compact and lightweight, with diverse uses, empowered by 22 patented filtration technologies.
100% leak free sealing ring and shell material tailored to your specific working conditions
Adapt to mainstream filter bags on the market without worrying about consumable costs.
Various surface processes such as sandblasting, polishing, and coating can achieve a beautiful effect and bring you safety and hygiene benefits.
It can be used in various ways such as series/parallel/movement/elevation to better filter your liquid.
Application of 1 Bag Filter Housing
The 1 bag filter housing of FiltEdge can pre treat seawater and purified water for you, filter out food such as syrup, edible oil, juice, etc. It can also be applied in chemical industries such as resins, solvents, lubricants, or for processing automotive electrophoretic paint, cutting fluids, etc.

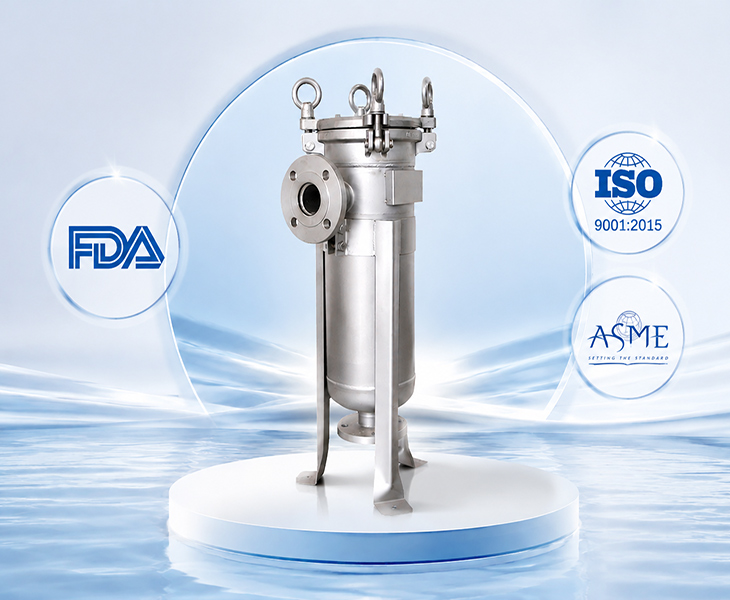

Certification of 1 Bag Filter Housing
The 1 bag filter housing of FiltEdge undergoes strict production processing and quality inspection procedures. Each filter complies with ISO and CE certification standards. If your industry is the food or pharmaceutical industry, our filters will also meet the requirements of FDA certification. If you need ASME standard filters, we can design and process them according to American standards.

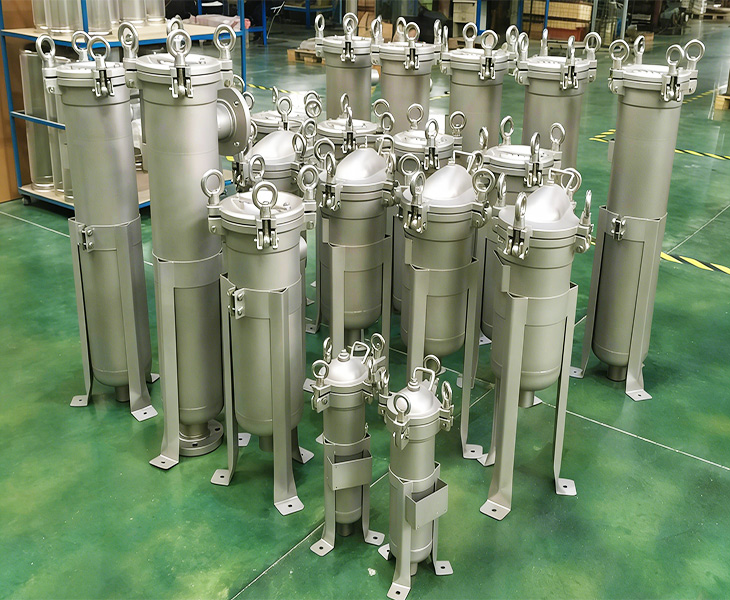

Customize 1 Bag Filter Housing
As a 1 bag filter housing factory, we can customize various components for you, including material, precision, support feet, pressure, temperature, opening and closing methods, inlet and outlet directions, and standards, to provide the most suitable bag filter housing for your process.

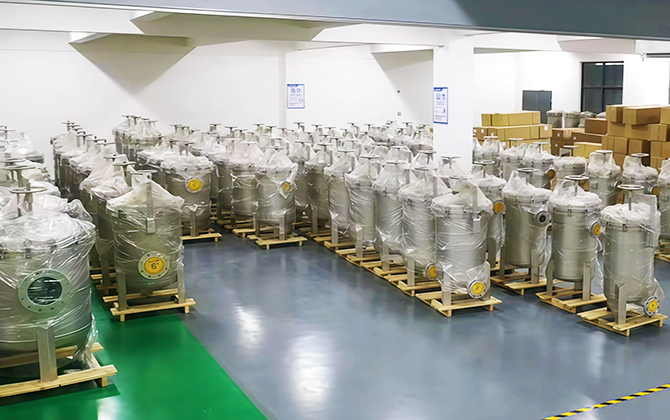

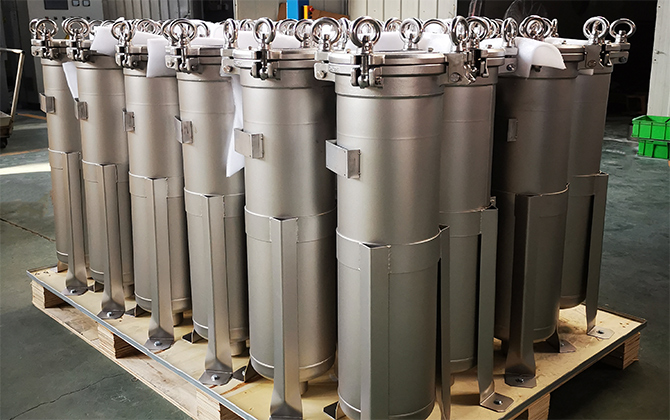

Why Choose FiltEdge's 1 Bag Filter Housing?
We, FiltEdge, are a manufacturer of 1 bag filter housings with 20 years of filtration experience, providing effective and accurate services for your selection. We have product warehouses in the United States and a modern factory with an area of 3600 square meters in China. We can not only provide you with stable supply of goods, but also quickly ship them to ensure the stability of your production line.
Our filter products are manufactured according to the complete production process of ISO standards, and undergo various tests such as pressure testing, material testing, and weld seam testing before leaving the factory to ensure that every filter you receive is an excellent product.
For important after-sales services, we can provide 24-hour remote technical support for you. Faced with complex and tricky problems, we can arrange technical personnel to go to your factory to install, debug, repair, and provide operational training for you.
We have over 100 cooperative clients in FiltEdge countries and hope that you can establish long-term cooperation with us in the future.
Technical Parameters of 1 Bag Filter Housing
The technical parameters of FiltEdge’s 1 bag filter housing mainly include the following two conventional models. We can also customize special filters for you.
- Technical Parameters of 1 Bag Filter Housing
| Feature | Top Entry Design (Precision Type) | Side Entry Design (Standard Type) |
| Model Range | 1S / 2S / 3S / 4S | DS1# / DS2# |
| Applicable Filter Bag | #1, #2, #4 bag | #1, #2 bag |
| Sealing Performance | Zero Bypass: Patent multi-sealing ring or O-ring | Concave precision casting cover with standard seal |
| Inlet/Outlet Config | Top-in inlet / Bottom-out outlet | Side-in inlet / Bottom-out outlet |
| Flow Rate (#2 Bag) | Approx. 20 – 40 m³/h (Depends on viscosity) | Approx. 15 – 30 m³/h (Depends on viscosity) |
| Filtration Precision | 1μm – 1000μm | 1μm – 1000μm |
| Design Pressure | 0.6 MPa – 1.0 MPa (Customizable up to 2.5 MPa) | ≤ 1.0 MPa (Higher pressure available upon request) |
| Materials Available | SS304, SS316L, Carbon Steel, PP, PVDF | SS304, SS316L |
| Surface Treatment | Internal polishing / External sandblasting or electrolytic | Exterior sand blasting (Easy to clean) |
| Lid Opening Method | Quick-opening top cover / Ring-free structure | Quick-open (Unscrew nut to open) |
| Installation | Adjustable legs | Stainless steel adjustable bracket |
| Target Applications | Chemicals, RO pretreatment, food liquids, acids/alkalis | Resins, solvents, high-viscosity or corrosive liquids |
| Customization | OEM dimensions, pressure, and materials supported | Port orientation, mounting height, and seal material |
Our 1 bag filter housing can accommodate # 1, # 2, # 3, # 4, and # 5 filter bags. The most commonly used filter bag models are # 1 and # 2. You can choose the appropriate filter bag based on your filter basket.
There is no good or bad distinction between these two types of 1 Bag Filter Housing, only which one is more suitable for your needs. Compared to the side entry type, the top entry type has a more uniform flow distribution and lower internal pressure drop; The side entry inlet has a large flow impact, but it is more convenient for installation and use in sites with limited pipeline layout.
Of course. We at FiltEdge can provide you with one-stop procurement services, not only for filter bags, but also for other spare parts. And according to your address, we will ship from warehouses in China and the United States for you.
