About Filtedge HVAC Bag Filter
FiltEdge HVAC bag filters have high dust holding capacity and low pressure drop performance, suitable for heating systems in office buildings, hospitals, clean rooms, etc. We have been focusing on the filtration industry for 20 years and have provided efficient and reliable air filtration solutions to more than 10,000 companies.
HVAC Bag Filter Material Types
Filtedge HVAC bag filters offer non-woven, synthetic, fiberglass or activated carbon filter media. These materials are sourced from our stable supply chain to ensure quality and price.

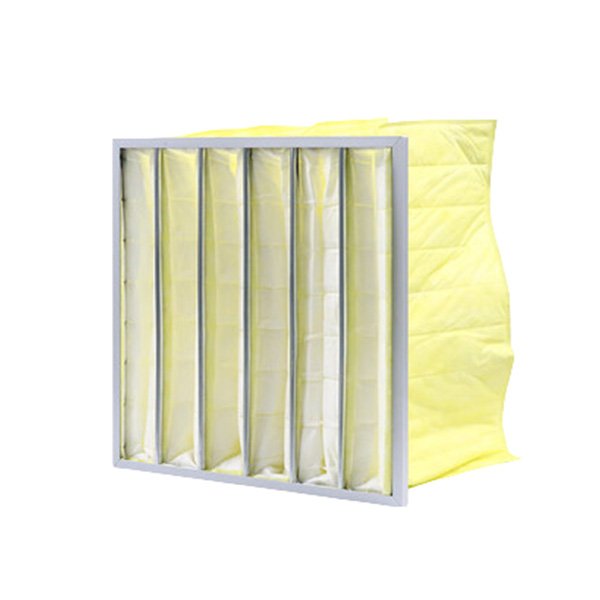

Non-woven HVAC bag filter is Filtedge’s more common hvac bag filter. It uses high-strength non-woven filter material, has a large dust holding capacity and low resistance, and is suitable for all types of commercial HVAC systems.

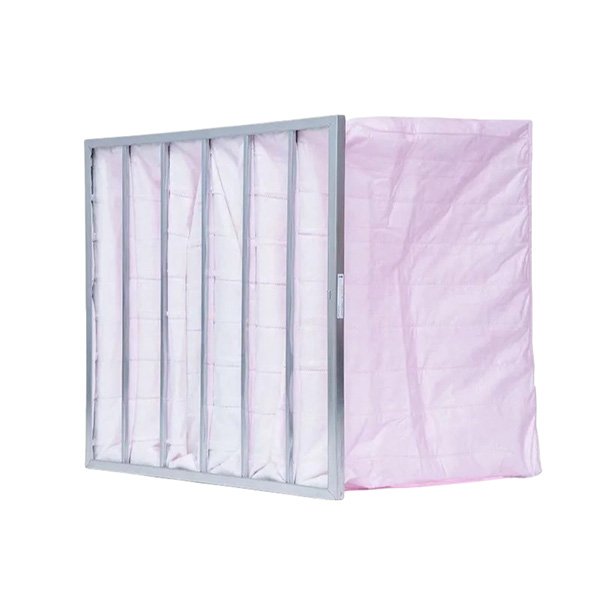

Filtedge synthetic fiber HVAC bag filters offer high dust holding capacity, low resistance and good moisture resistance for energy-efficient ventilation systems

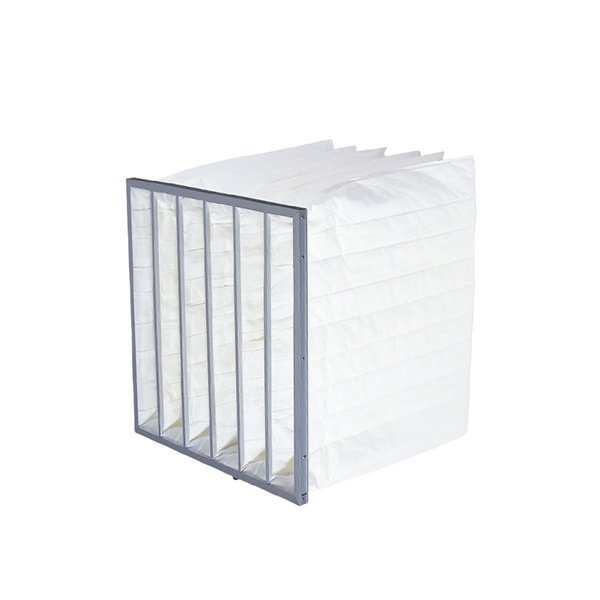

Glass fiber HVAC bag filters have the characteristics of high efficiency, high temperature resistance, stable performance, etc., and are suitable for harsh working conditions

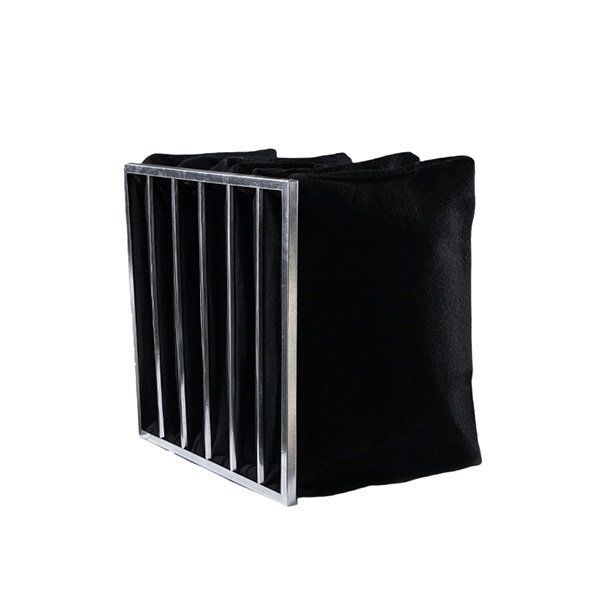

Filtedge activated carbon HVAC bag filters provide filtration and deodorization functions, effectively adsorbing gases and odors, and are suitable for hospitals and commercial spaces.

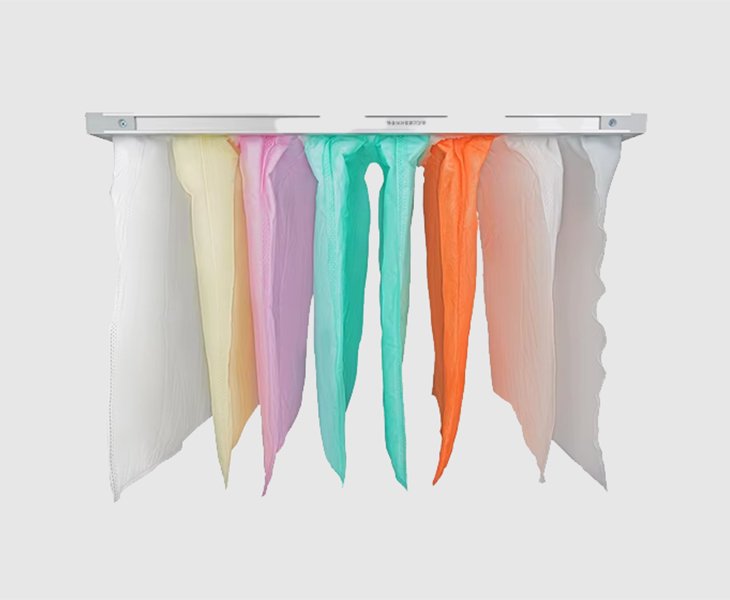

Filtedge HVAC Bag Filters Can Be Customized
Filtedge HVAC bag filters can be customized in filter media type, size, filtration efficiency level, frame material, bag mouth design, and other appearance structures, additional resistance monitoring interface, flame retardancy performance, and other functions. Packaging and labeling can also be customized.

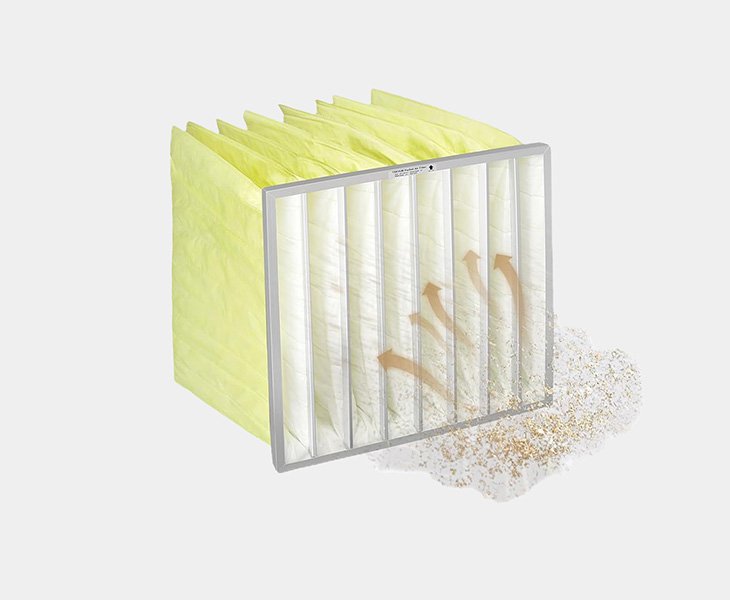

Advantages of HVAC Bag Filters
HVAC bag filters have a large dust capacity, low resistance, a solid frame, flexible customization, a wide range of filtration efficiency, handle diverse scenarios, are easy to install and replace, have long service life, reduce maintenance costs, and ensure efficient operation of the system.
FiltEdge HVAC Bag Filter Applications
Applicable to various HVAC systems such as hospitals, shopping malls, office buildings, clean rooms, factories, etc., meeting the operating requirements under different air cleanliness conditions.
Specification
HVAC is a system that refers to heating, ventilation, and air conditioning. Filtedge HVAC bag filters or bag filters play an important role in the system.
- Data Sheet
| Filtration Rating | G3～F9(ISO16890) |
| Filter Size | Standard sizes like 592×592mm, 592×490mm, 592×287mm (Customizable) |
| Media Material | |
| Frame Material | Galvanized Steel / Plastic / Aluminum/stain |
| Working Temperature | ≤ 80°C (High-temperature options available) |
| Operating Humidity | ≤ 100% RH (Non-condensing) |
| Number Of Pocket | 3–10 pockets (Customizable per airflow need) |
Why Choose FiltEdge HVAC Bag Filters?
Multiple filter levels available: Coarse, medium, and HEPA high-efficiency bag filters are available to meet the needs of different cleanliness levels and application scenarios.
Flexible delivery methods: Bag filters can be pre-assembled and shipped, or they can be separated for on-site assembly by customers, adapting to various procurement and installation methods.
Focus on the filtration industry for 20 years: Serving 10,000+ customers worldwide, with rich engineering experience and a stable supply chain, providing you with reliable air filtration solutions.
FiltEdge recommends replacing HVAC bag filters every 3-6 months, depending on your environment. For sparse industrial applications, more frequent replacements ensure optimal air quality and system protection. Our filters have high dust holding capacity and low resistance for extended service life.
FiltEdge supplies HVAC bag filters with different filtration levels from coarse efficiency G4, medium efficiency F5-F9, to high efficiency H10-H13, suitable for commercial buildings, laboratories, clean workshops, medical institutions, etc. Filtedge’s products can provide tests that meet EN779, ISO16890, or ASHRAE standards.
FiltEdge has a complete material supply chain, various media types for you to choose from: non-woven fabrics (non-woven fabrics), synthetic fibers (synthetic fibers), glass fibers (glass fibers), activated carbon (activated carbon), etc. Non-woven fabrics are suitable for cost-effective filtration, synthetic fibers for higher dust holding, fiberglass is suitable for high-temperature resistance, and activated carbon can absorb odors and respiratory odors. We can help you select the most suitable media based on your application.
We can provide HVAC bag filters in the built state according to your requirements, or we can ship the HVAC filter bags fully assembled or with pockets separated from the frame, which is convenient for transportation and reduces costs. We also offer disassembled kits with easy assembly instructions. All separated parts are precisely prefabricated, and you can easily complete them.
Of course. FiltEdge is a professional HVAC bag filter supplier with a complete supply chain and supports customized services: size, number of bags, bag depth, specific materials (such as iron frame, plastic frame, aluminum frame), etc. are customized according to the size of the nurse equipment or pipeline to ensure a perfect match and optimal filtration effect.
FiltEdge’s standard HVAC bag filters can withstand temperatures of approximately 70°C, and special high-temperature models can be customized to 120°C or even higher. We use a variety of filter materials. We use premium synthetic or fiberglass media to ensure durability under demanding conditions
Yes. FiltEdge’s HVAC bag filters offer certified test reports from third-party labs test reports such as EN779, ISO16890, and ASHRAE, to help you meet project application, quality inspection, and environmental protection requirements. We work with third-party testing agencies to provide compliance support for global customers.
FiltEdge has an integrated supply chain from raw materials to finished products, ensuring stable delivery and reliable quality. We support flexible customization, fast delivery, and serve customers in more than 50 countries around the world. We are your trusted HVAC bag filter partner.
