 About Filter Fan Units from Filtedge
Filtedge is a professional filtration brand in the United States and specializes in filter fan units. We develop our products in-house, have a manufacturing plant to control the production line, and have a professional quality control and after-sales team to protect you. We ensure that the products are delivered on time, and at the same time, we also ensure that the performance of the products is stable. We support OEM/ODM cooperation. Choosing Filtedge is your best decision.
Product Details

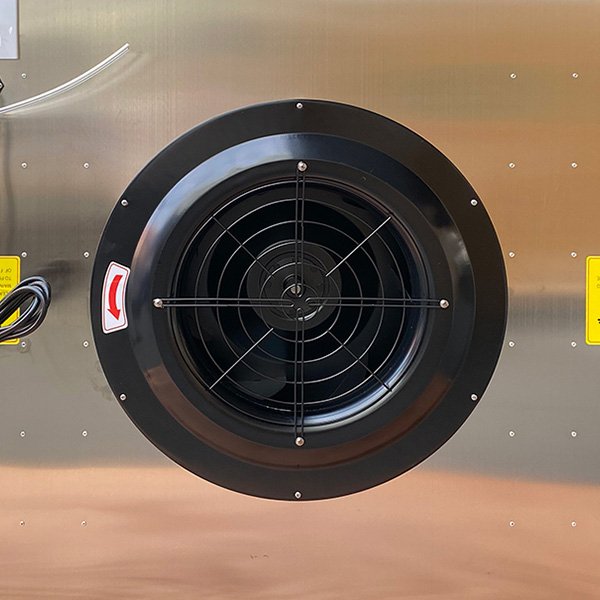

ImpellerTwo materials of wind impeller, aluminum leaf, plastic leaf according to the need to choose.

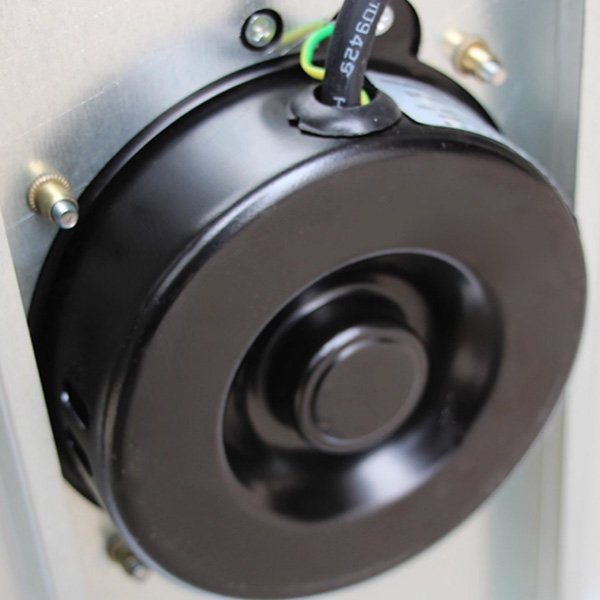

Copper Core FanCopper wire movement, the use of output wind power, heat resistance, prolonging the service life.

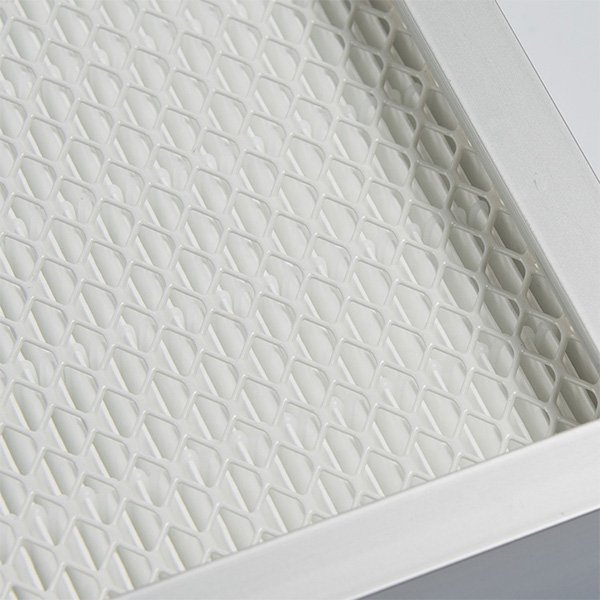

High-Efficiency Air FilterHigh-density glass fiber cartridge, large dust capacity, high filtration efficiency.

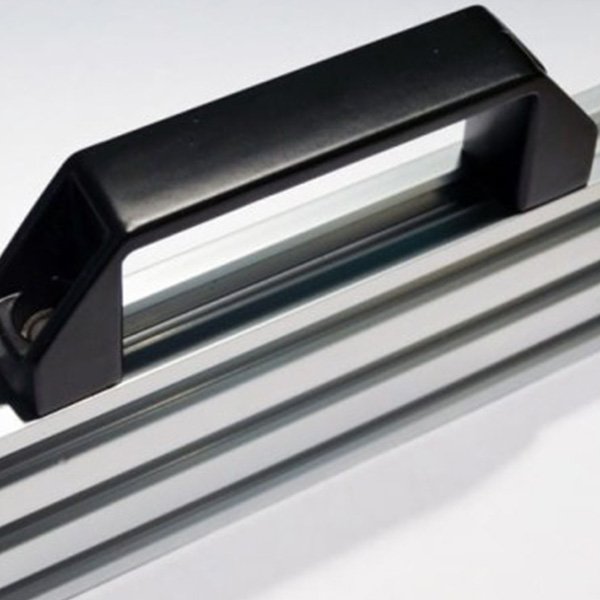

Insulated HandleThe product is easy to install and move more labor-saving, the use of insulated material, the use of safety.
Advantages of FFU
The Filter Fan Units system can be easily and flexibly combined and can be used in cleanrooms of different configurations and classes. With filtration efficiencies up to 99% and HEPA/ULPA air filters of H13-U15 ratings as standard, filtedge’s Cleanroom Filter Fan Units are an economical choice with their noise-reducing design, energy-saving fans, and intelligent, centralized monitoring system.
Custom Filter Fan Units
Filter Fan Units can be customized in terms of cleanliness level, size, air volume, voltage, interface, control mode, etc. Other special customizations include: multi-step air speed or constant air volume system, explosion-proof type, battery back-up type, logo, etc. Filtedge’s supply chain capability and its production line are the biggest guarantee for you.

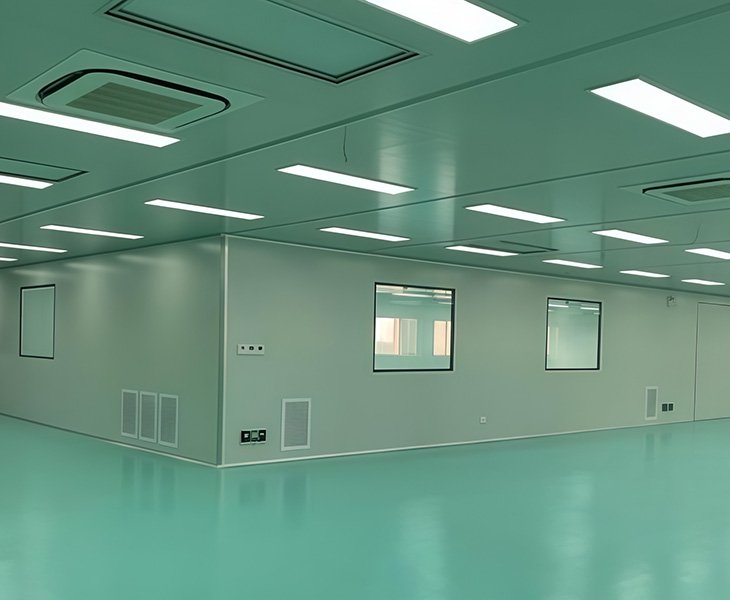

Application Areas of Filter Fan Units
Filter Fan Units purify the air for life sciences, food and beverage, beverage, microelectronics, pharmaceuticals, clean rooms, and laboratories by purifying the circulating air of harmful airborne particles, and can also be installed in other purification equipment, e.g., moveable clean rooms, clean benches, clean corridors, etc. It is always a wide range of applications. If you need, you can choose our brand for the Filtedge Filter Fan Units manufacturer.

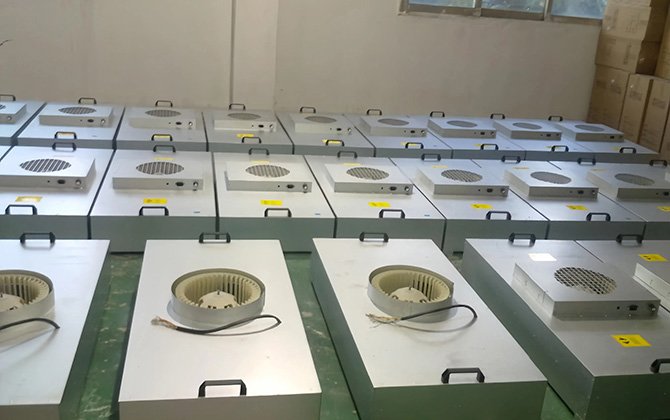

Filtedge Filter Fan Units Manufacturer Chain Advantage
Filtedge has been deeply engaged in air filtration products for more than 20 years. We have mature FFU independent research and development capabilities, and a strong Filter fan units manufacturer production line. We can provide you with customized multiple sizes, motors, control systems, and ratings. With strict quality control and a stable supply chain, we can provide you with high-quality FFU products with stable performance and timely delivery, and we are experienced in providing you with solutions and technical guidance.
Common Specifications
- Data Sheet
| Dimensions(mm) | 1175*575*340,1175*1175*340,575*575*340 etc. can be customized |
| FFU cabinet | Galvalume/stainless steel/aluminum alloy sheet/galvanized sheet iron |
| Face Velocity(m/s） | 0.35-0.55 |
| Noise Sound(DB) | 46-52 |
| Electricity source | AC，1-200v50Hz |
| Power consumption（w） | 100-120 |
| Body Weight(kg) | 25ï¼›45ï¼›15 |
| Filter efficiency | >=99.99-99.999%@0.3um |
| Filter specifications(mm） | 1175*570*80/70,1175*1170*80/70,575*570*80/70. Depends on the size of the FFU |
| Filter weight（KG） | 9.5/17/5.2 Customizable |
| External static pressures  described（pa） | 98 |
Filtedge Filter fan units are stand-alone units with an integrated HEPA filter, fan, and control system. It is commonly used in clean rooms, laboratories, or precision instrument factories. It combines a fan system with a high-efficiency air filter to filter out airborne particles and deliver clean air into the space through a return air system to maintain a specific level of cleanliness.
Filter Fan Unit (FFU) uses a fan to drive the airflow, and a high-efficiency filter to intercept the pollutants, realizing a continuous purification cycle of the air. The core advantage of FFU is that it is zone-driven, the cleanliness is controllable, and it can flexibly cover a large area of the clean zone, so it can be the key equipment for the quality of the air. Filter fan units of filtedge are cost-effective and practical, and we can help you with scientific selection, after-sales guidance for installation and maintenance, to ensure the stable operation of the clean environment.
About filtedge brand ffu rewiring, first need to confirm the disconnection of the power supply, can not and residual voltage, with reference to the electrical schematic diagram of the equipment to record the original wiring, according to the identification of the power supply input line, the motor phase line and the control line corresponds to the access to the terminals, the no-load test is normal, after the restoration of the shell.
