Why Choose Filtedge Commercial Air Filters
Filtedge commercial air filters muaufacturer is designed for commercial HVAC, industrial workshops, cleanrooms and other environments, with the following product advantages:
- High airflow, low resistance
- Full range of efficiency ratings and configurations
- Supports full customization
- Multiple application scenarios
- Complies with industry standards

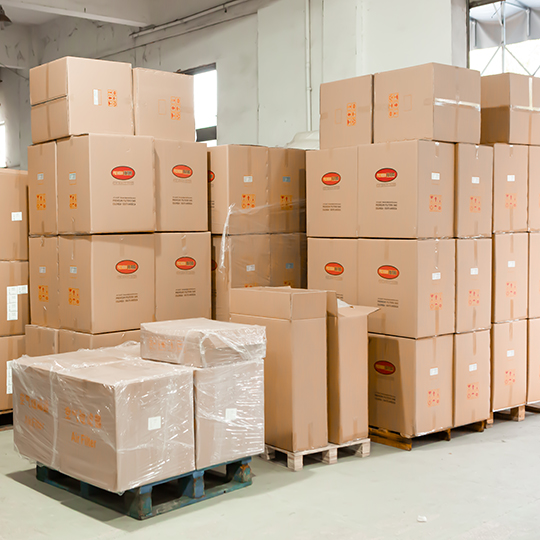

- Factory direct supply
- Fast delivery
What is a Commercial Air Filter?
Commercial air filters are specially designed for commercial building HVAC systems, Air Handling Units (AHU), hospitals, industrial manufacturing, cleanrooms, etc. They can effectively remove dust, pollutants, harmful gases, etc. from the air.
Commercial Air Filter by Efficiency
Commercial air filters can be classified into different levels according to the size of filtered particles, which are classified according to the European EN 779 and EN 1822 standards, and the performance also corresponds to the MERV in ASHRAE 52.2.

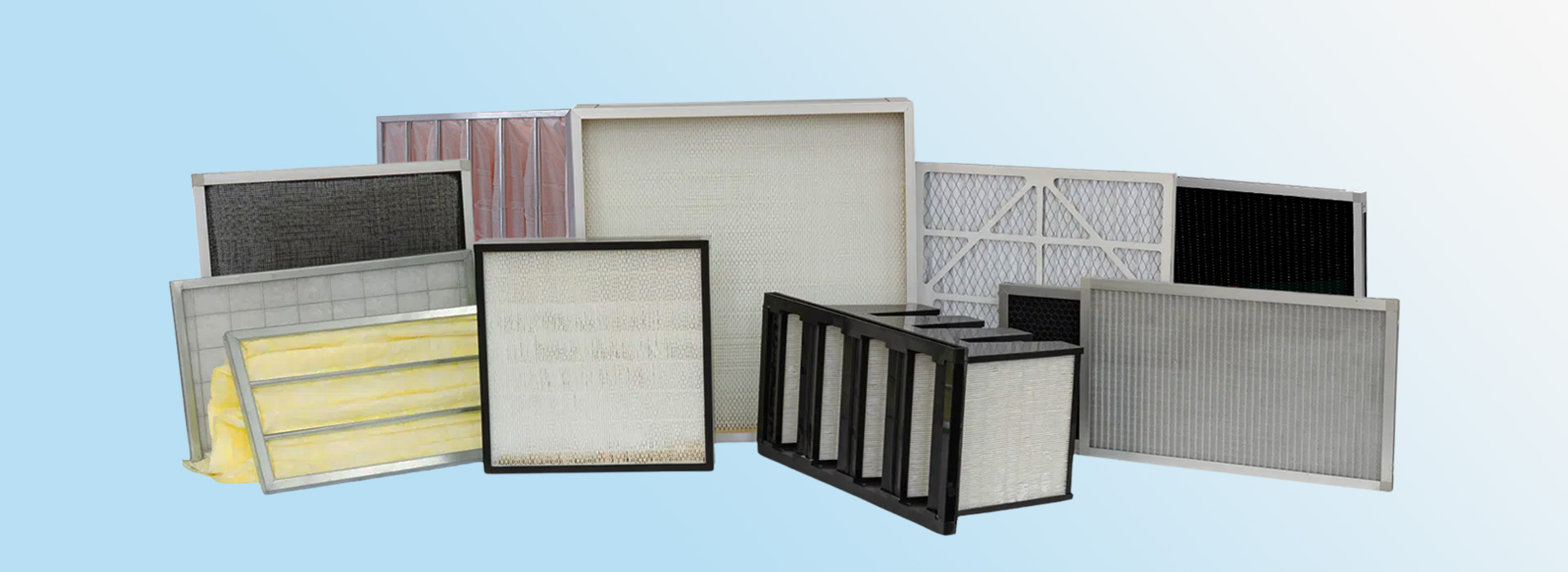

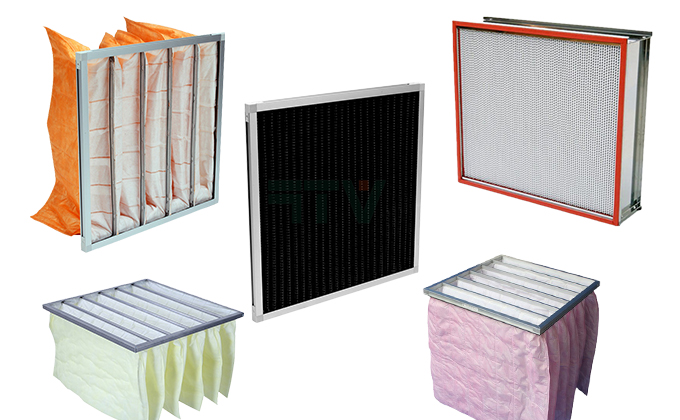

Commercial Air Filter by Structure
Filtedge commercial air filter manufacturer designs different styles for different filtration requirements and air flow rates, which are widely used in commercial, industrial, pharmaceutical, hospitals, clean rooms and other places.

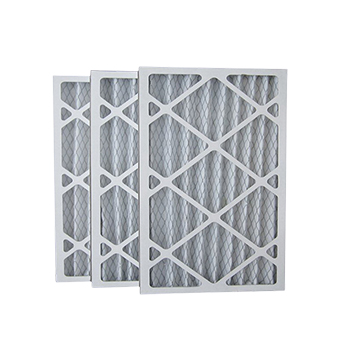

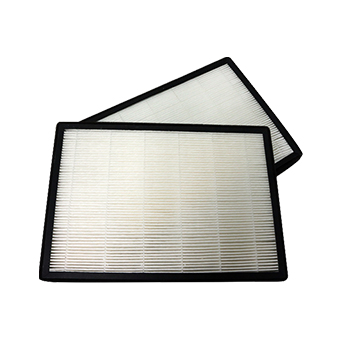

Simple structure, generally lay-flat type, keel type, shallow pleated type

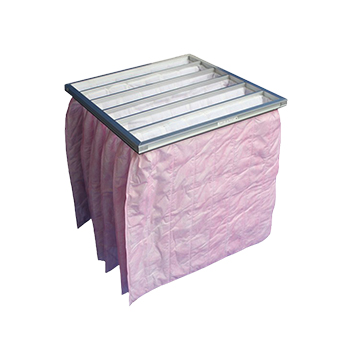

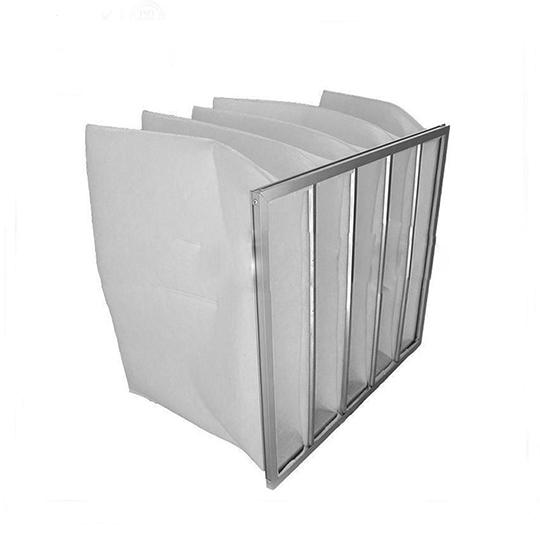

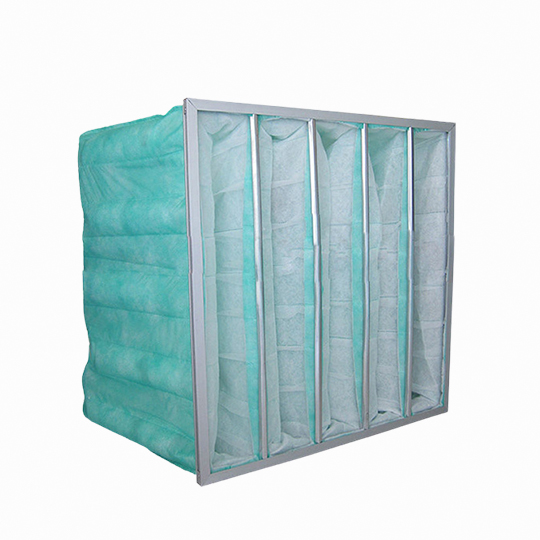

Multi-bag structure, high dust holding capacity, large filtration area

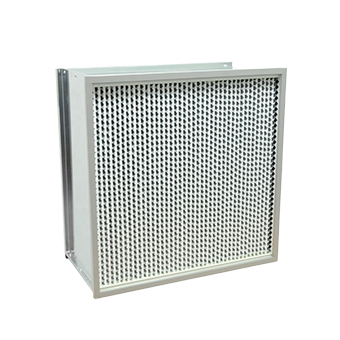

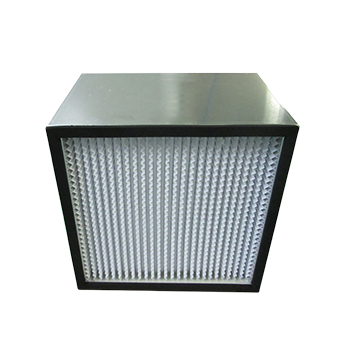

Generally rigid structure, deep pleats, suitable for high airflow environment

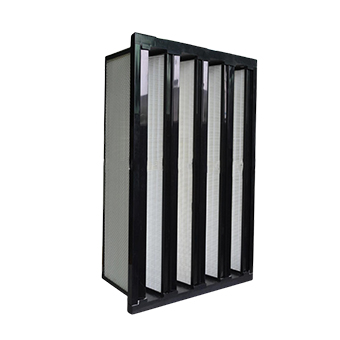

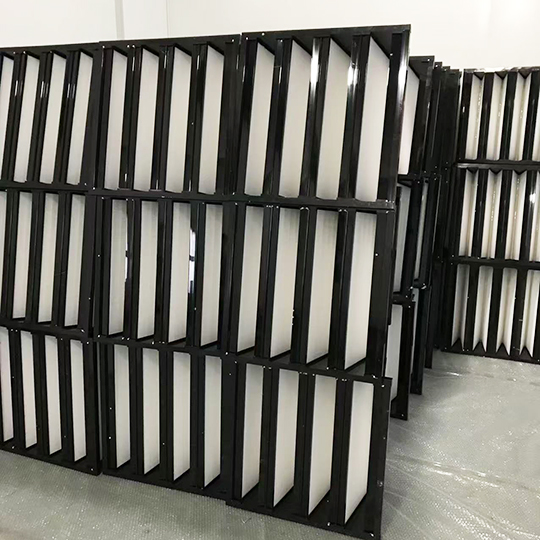

Stable structure, suitable for high airflow environment, large filtration area
Features of Commercial Air Filters
Outstanding core features of commercial air filters
Filter media are evenly folded at a uniform speed through automatic folding machine to ensure the same spacing and pressure drop of 50-250pa Airflow up to 2000-5000 m³/h
Generally adopts pleated or bag design, the depth of pleat is 10mm-30mm, and the dust capacity is from 1.0kg to 5kg.
Selected filter media. The minimum fiber diameter is less than 0.5 micron, and the filtration efficiency can reach 99.97%.
Life expectancy can be up to 6-12 months, high-quality filter material and metal frame, can maintain long-term operating condition.
Our products come with bayonet design, modular design, very easy to disassemble and install.
Filter Media Filter media is generally resistant to temperatures of 120 degrees Celsius, and higher up to 350 degrees Celsius, with a humidity resistance rate of 95% RH.
Automatic paper folding machine folding makes the filter media spacing uniform, air volume in 2000-5000m³/h, differential pressure change ≤ ±5 Pa
The product has passed ISO 29463 / UL 900 test certificate, air volume, efficiency have test data.

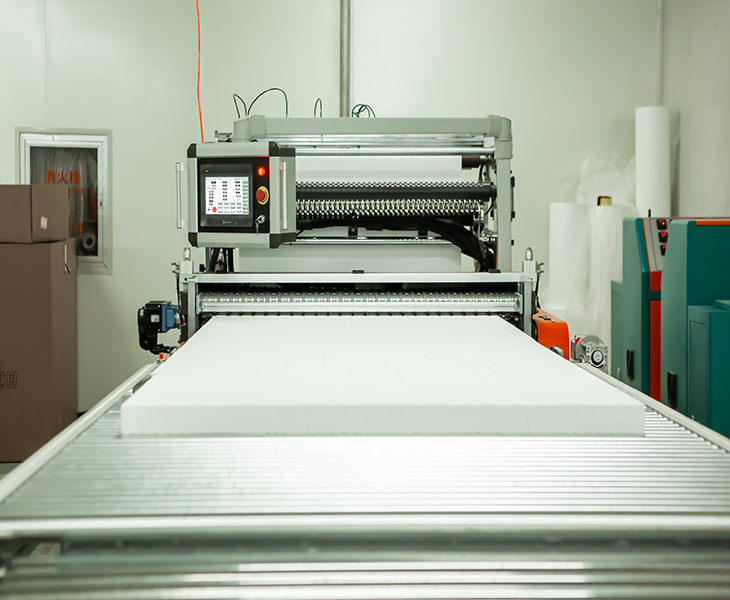

Commercial Air Filter Folding Process
Filtedge adopts fully automatic folding machine without divider, folding at even speed to ensure uniform pleat distance, which can ensure the air flow through evenly. The fold depth and fold pitch can be adjusted, fold pitch 5mm-15mm, fold depth 10mm-35mm, the capacity of each machine can be up to 20-40 meters per minute, so we can also give you a guarantee of delivery time under the premise of quality assurance.

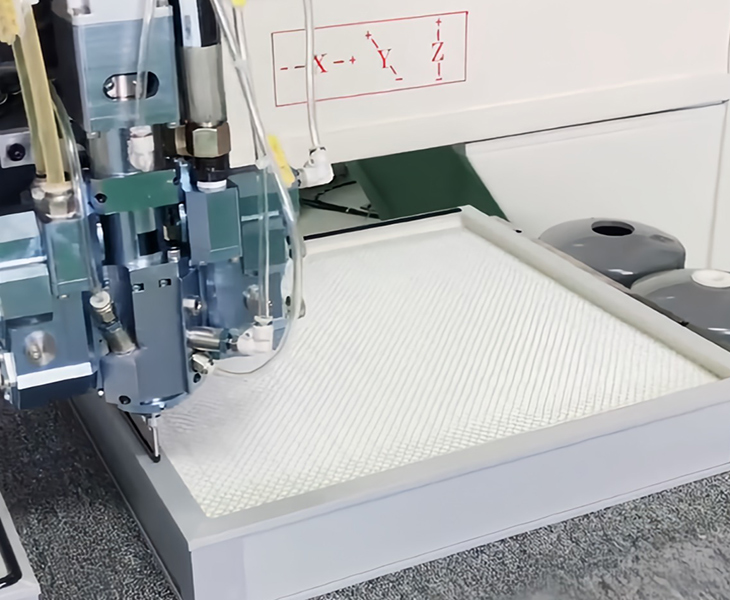

Commercial Air Filter Gluing/Dispensing Process
Our automatic hot melt gluing machine, generally adopts polyurethane sealant continuous and without breakpoints for gluing, which can completely guarantee the sealing of air filters and prevent air leakage phenomenon, and the thickness of the adhesive layer can be freely adjusted, generally the thickness is 5mm-12mm.

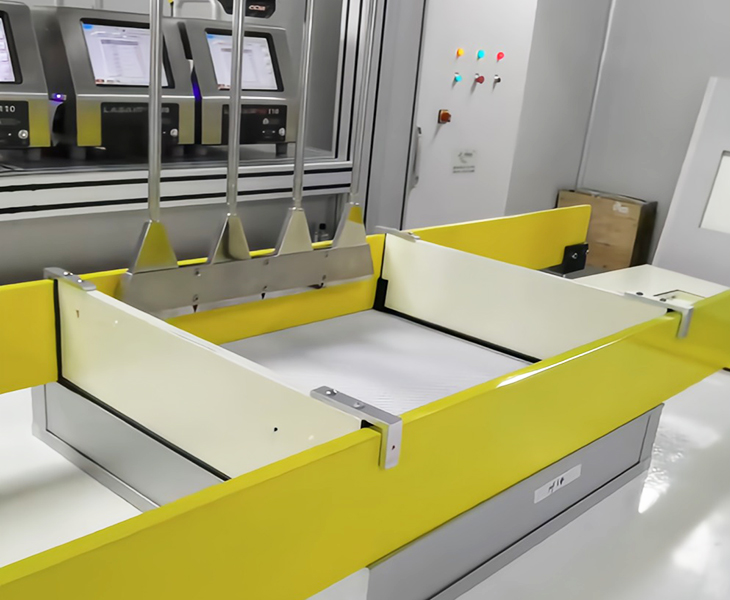

Commercial Air Filter Quality Inspection
We have a lot of testing equipments, such as air volume resistance test bench, HEPA pick-up leakage scanning system, sealing test device, we can ensure that the products that leave the factory, to ensure that the rated air volume, resistance is stable, sealing is good, no leakage and other issues that you are concerned about.
Why Choose Filtedge‘s Commercial Air Filter Manufacturer?
Filtedge has been in the commercial air filter industry for more than 20 years, and has accumulated a wealth of experience in solving air filtration problems, so that you can no longer make trial and error, and reduce the cost of risk.

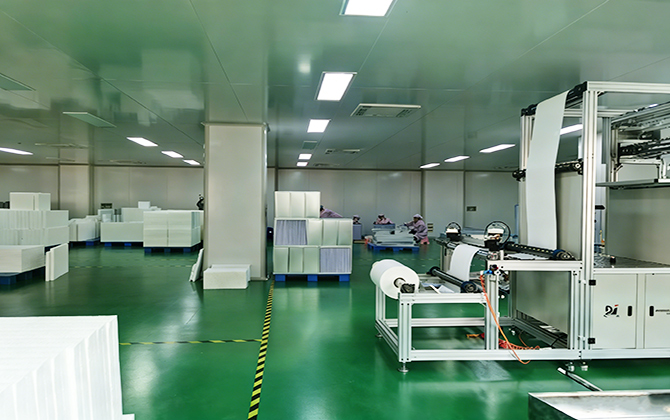

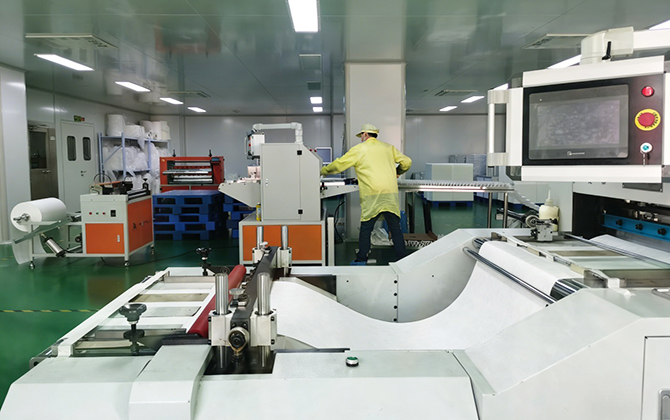

Filtedge commercial air filter manufacturer has 35,00 m² ISO 7 (Class 10,000) clean assembly workshop, equipped with 5 sets of high-end automatic paper folding machines, 4 sets of ultrasonic bag molding machines, 2 sets of gluing systems, 3 sets of high-precision particle detectors, air flow resistance testing stations, etc., which can ensure stable quality and daily production capacity of tens of thousands of square meters of filtration area.
With several years’ development, our customers are spreading over 100 countries, we continuously participate in more than 30 important exhibitions, and have formed long-term cooperative relationships with different market engineering companies, system integrators and brand customers.
Last but not least, we also hope you can visit our factory and become our important partner.
Different Application Scenarios of Commercial Air Filters
Commercial air filters in different application scenarios, need different types of air filters, such as HVAC, industrial air filters, cleanroom air filters, the need will be different, we have a standard commercial air filters, but also according to your specific needs, the flexibility to customize.
HVAC systems are air conditioning systems in major commercial buildings, such as offices, shopping malls, and hotels, where you may encounter problems such as high energy consumption, rapid airflow degradation, and frequent maintenance, etc. Filtedge commercial air manufacturers, in order to address these problems in HVAC systems, use filter media that meets the requirements of ISO 16890, and offer a wide range of bag/W/V and other styles of filter, and our products are all tested for airflow and air resistance. All products will be tested for air volume and wind resistance, to ensure that our Commercial Air Filters can maintain low resistance under the rated air volume for continuous operation, controllable energy consumption, no collapsing of the filter bag, even air velocity distribution, large filter area, and reduced unit load area. Large filter area and reduced unit load area can completely solve all problems in HVAC systems.
Filtedge, as the highest quality commercial air manufacturer for industrial air filtration systems, has solved the problems of large amounts of dust, fumes, fluctuating ambient temperatures and humidity, and equipment damage in industrial air filtration. Our Commercial Air Filters have excellent high dust capacity, stable structure and long service life. Industrial air filtration is mainly used in power plants, cement plants, steel mills, machining, metal processing and other working conditions.
Filtedge as the best commercial air manufacturer, in order to completely solve the cleanroom particles, prevent cross contamination, ensure process stability, we developed HEPA filters for cleanroom, the filter media are in accordance with ISO 16890 standards, and the most penetrating particle size test, the entire circumference of the potting seal, to eliminate air bypass, before leaving the factory, our filter media are in accordance with ISO 16890 standards, and the most penetrating particle size test, the entire circumference of the potting seal, to eliminate air bypass. Before leaving the factory, each of our Commercial Air Filters will go through HEPA leakage scanning system and sealing test to fully guarantee its filtration. Each Commercial Air Filter will be tested by HEPA leakage scanning system and sealing test before shipment to ensure its filtration efficiency, Commercial Air Filters are widely used in electronic workshops, semiconductor processes, precision instruments and other industries.
Commercial Air Filters VS. Residential Air Filters
Filtedge’s wide range of products includes, of course, commercial air filters and residential air filters, and there are clear differences between them.
Filtedge commercial air filters require high airflow, large filtering area, high dust holding capacity, stable structure, long-term operation, styles and flexible customization.
Application Scenario: Commercial HVAC system, industrial ventilation, clean room use.

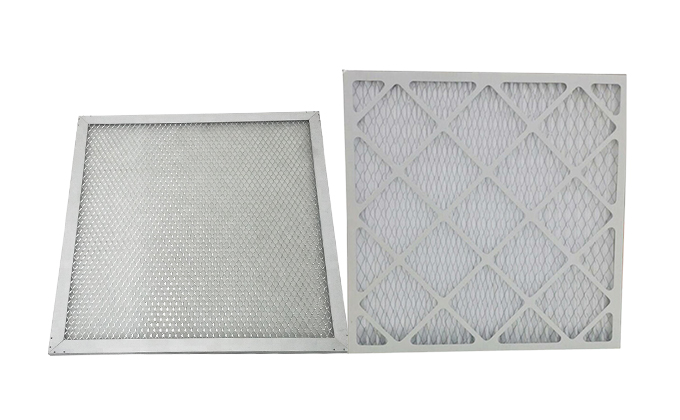

Filtedge Residential Air Filter main features of small air volume, intermittent operation, standardized size, single style, simple structure
Application Scenarios: Residential ventilation system, home air conditioning, new air equipment
Commercial Air Filter Efficiency Conversion Chart
Different filtration standards use different test methods and particle ranges, MERV ratings are for reference only and are not a strict correspondence.
- G / F / H Rating ↔ MERV Correspondence (Experience & Industry Consensus)
| Filter Grade | European classification | Standard | Corresponding MERV |
| Pre Filtration | G1-G3 | EN 779 | Below MERV 5 |
| G4 | EN 779 | MERV 6–8 | |

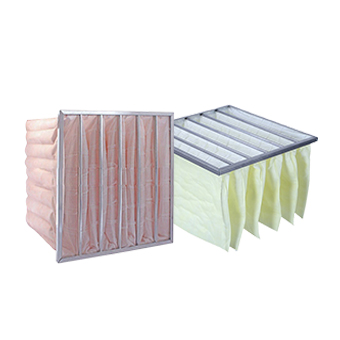

| Medium Efficiency Filtration | F5 | EN 779 | MERV 8 |
| F6 | EN 779 | MERV 9–10 | |

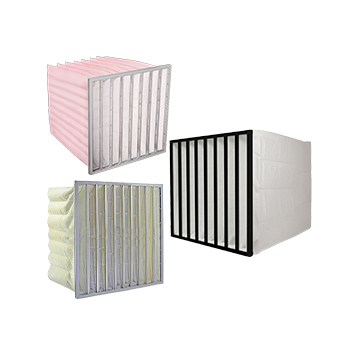

| Sub-HEPA filtration | F7 | EN 779 | MERV 11–13 |
| F8 | EN 779 | MERV 13–14 | |
| F9 | EN 779 | MERV 15 | |
| High-efficiency filtration | H10-H12 | EN 1822 | Higher than MERV 16 |
| H13 | EN 1822 | Significantly higher than MERV 16 | |
| H14 | EN 1822 | Far higher than MERV 16 |
- Turn off the power
When changing the filter, please turn off the HVAC system or air handling equipment first to ensure that there is no power on.
- Determine the location of the filter
Commercial air filters are usually located at the air inlet of the fan or air conditioning box
- Remove the old filter
Carefully open the filter frame or tray and remove the old filter. Be careful to avoid scattering dust, we suggest you wear gloves and a mask.
- Check the filter frame and mounting slot
Clean the dust in the filter frame and slot to ensure that the new filter can be installed flat.
- Install the new filter
Please put the new filter into the filter slot according to the direction of the arrow (marking the direction of air flow) to make sure that the seal is good and no gap is left.
- Reset and check
Close the filter frame and restart the HVAC system or air handling equipment to make sure the airflow is normal and the equipment is running smoothly.
The frequency of replacement depends on the usage environment and the type of air filter selected, usually it is 6-12 months to replace it once, which is a more normal range, if it is in the same environment and the replacement is frequent, it may be caused by improper use of air filter. Filtegde’s engineers will give you good advice to fully utilize the filtration performance of air filters.
Air filters are divided into washable and non-washable, the washable ones are generally primary air filters, and the filter materials they use are generally synthetic fibers, metal mesh, non-woven fabrics and so on. Most of the medium and high efficiency air filters are not recommended to be washed, which will affect its filter performance.
Factors you need to consider when choosing:
- Air quality requirements, removing particles or odors
- Filtration level, generally divided into primary/medium/high
- Airflow requirements
- Maintenance intervals
- Installation space
MERV is the rating of air filters, generally applicable to commercial and industrial places, HEPA filtration efficiency is higher, can capture particles above 0.3 micron, mainly used in laboratories, electronic factories, clean rooms, etc.
Yes, the main function of commercial air filters is to remove dust, bacteria, odor, etc. from the air, which is mainly used to improve the air quality, to ensure the industrial working environment, and to protect the equipment.
